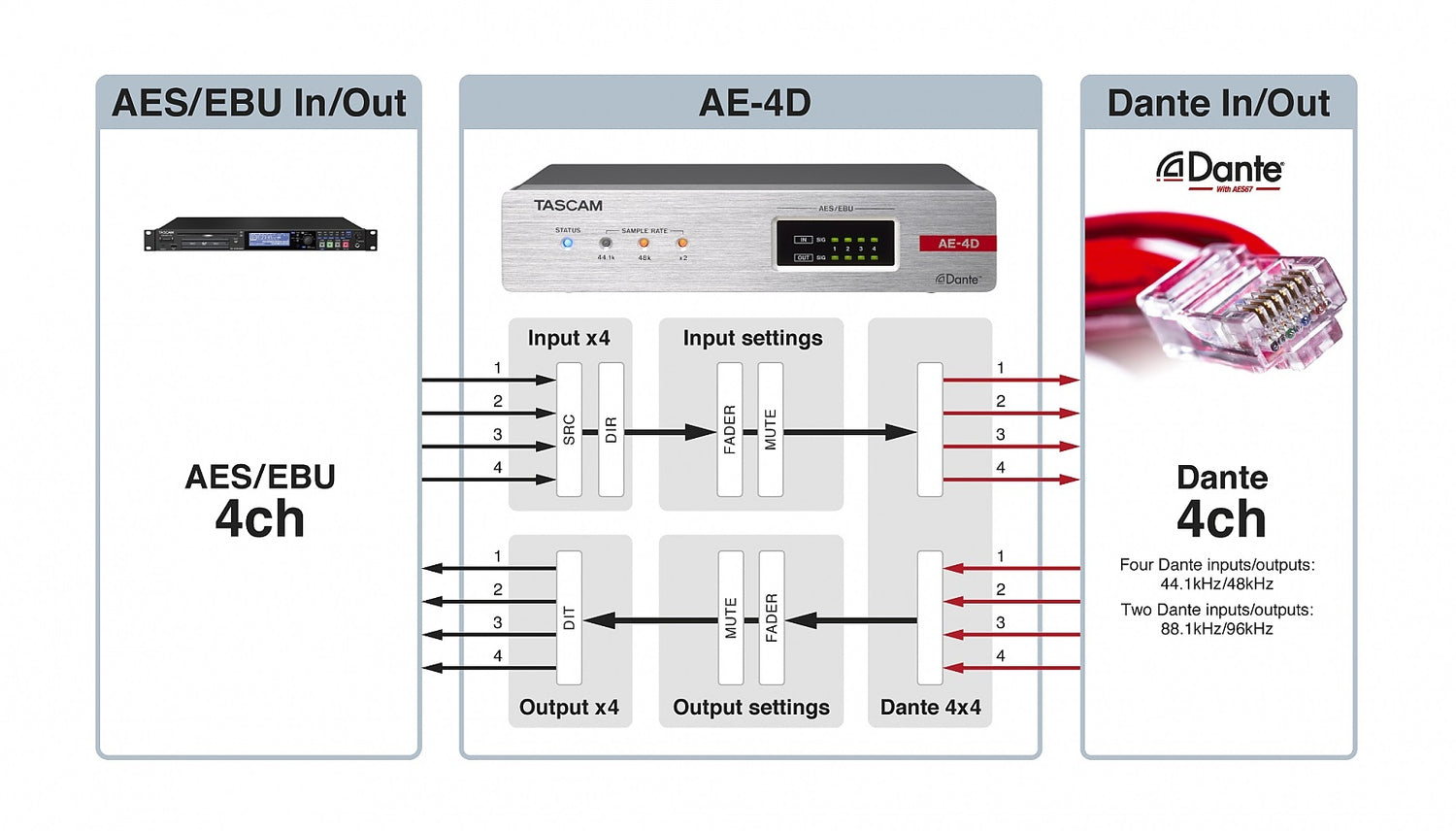

AE-4D er en utsøkt AES / EBU input / output-enhet, som konverterer opptil fire AES / EBU-signaler til fire Dante lydkanaler og vice versa. Den har en inngangs-samplingsfrekvensomformer, støtter lydoppløsninger opptil 96 kHz / 24 bit og bruker balanserte XLR-kontakter for AES / EBU-inngang og -utgang. DSP-funksjonene i denne modellen er begrenset til inn- og utgangsfader og lydløs.

AE-4D er en del av Tascam Dante Compact-processorserien, som består av kompakte audio-konvertere i halvhøyde for Dante / AES67-nettverk. Modellene kan enkelt legge til flere mic / line- eller AES / EBU-innganger / utganger til Dante-lydnett i offentlige fasiliteter, TV-stasjoner, innspillingsstudioer eller eksklusive hjemmemiljøer og kan kombineres fritt.

Fjernstyring er mulig via to forskjellige programvareprogrammer for Mac, Windows, iOS og Android-enheter: Tascam DCP Connect for konfigurasjon og Tascam EZ Connect for sluttbrukere, som begge er enkle å bruke og inkludert i enhetene.

Alle modeller kan drives av PoE eller en ekstra vekselstrømadapter. Ved bruk av power-daisy-chaining kan to enheter montert side om side i en rack forsynes med en vekselstrømadapter.

Hardware features

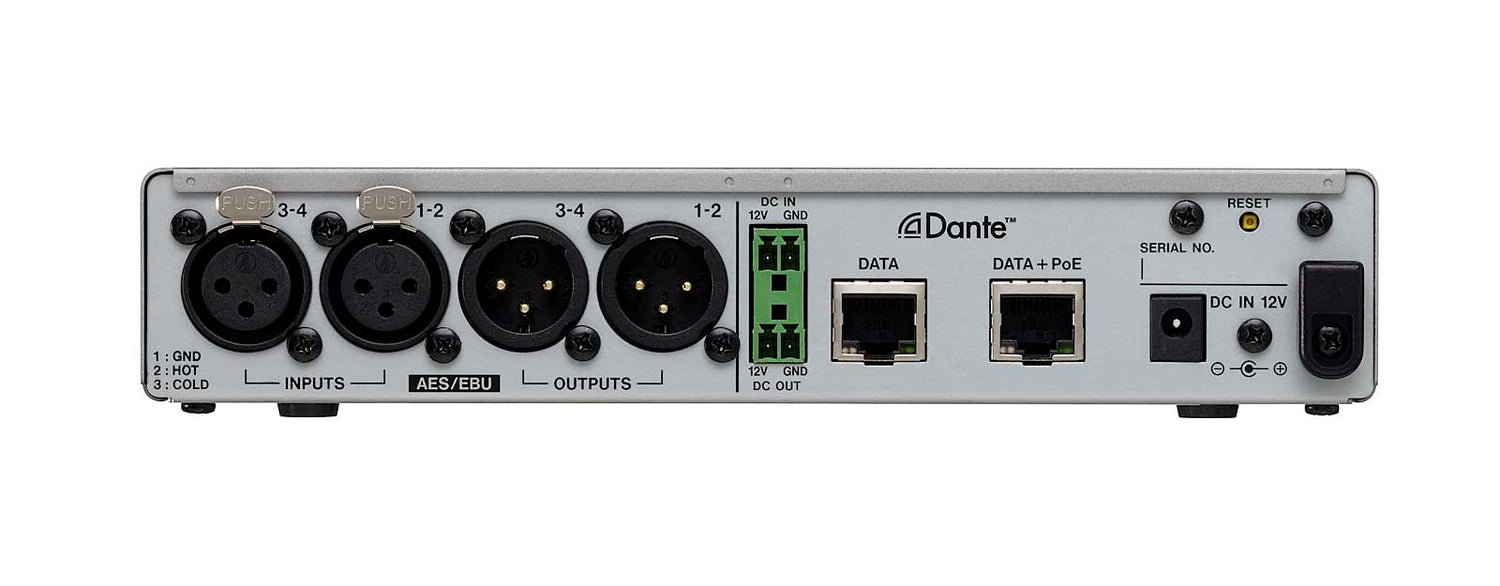

Two AES/EBU inputs on balanced XLR connectors with sampling rate converter
Two AES/EBU outputs on balanced XLR connectors
Four audio channels at 44.1/48 kHz, 16/24 bit
Two audio channels at 88.2/96 kHz, 16/24 bit
Dante interface allows audio signals to be transferred over an Ethernet network
Two LAN connectors for Dante daisy-chaining
Flexible routing with "Dante Controller" software
AES67 is supported to allow connection with Ravenna and other compatible audio network technologies

Up to 96 kHz sampling rate and 24 bit resolution

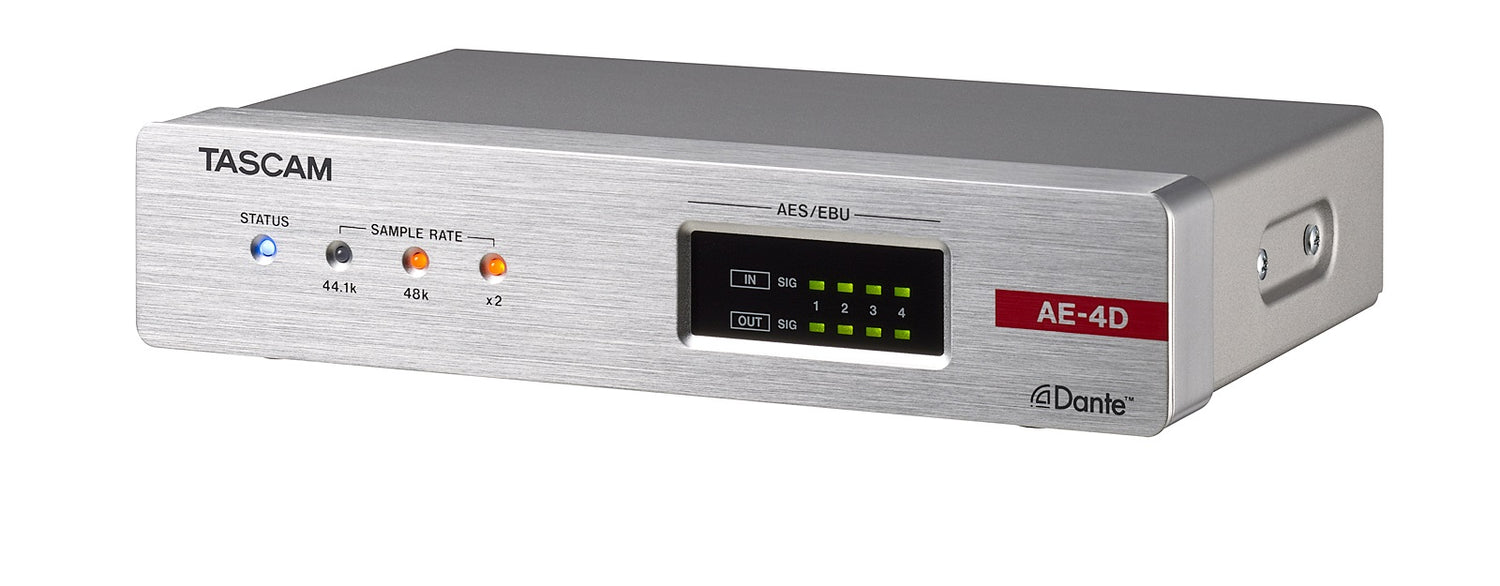

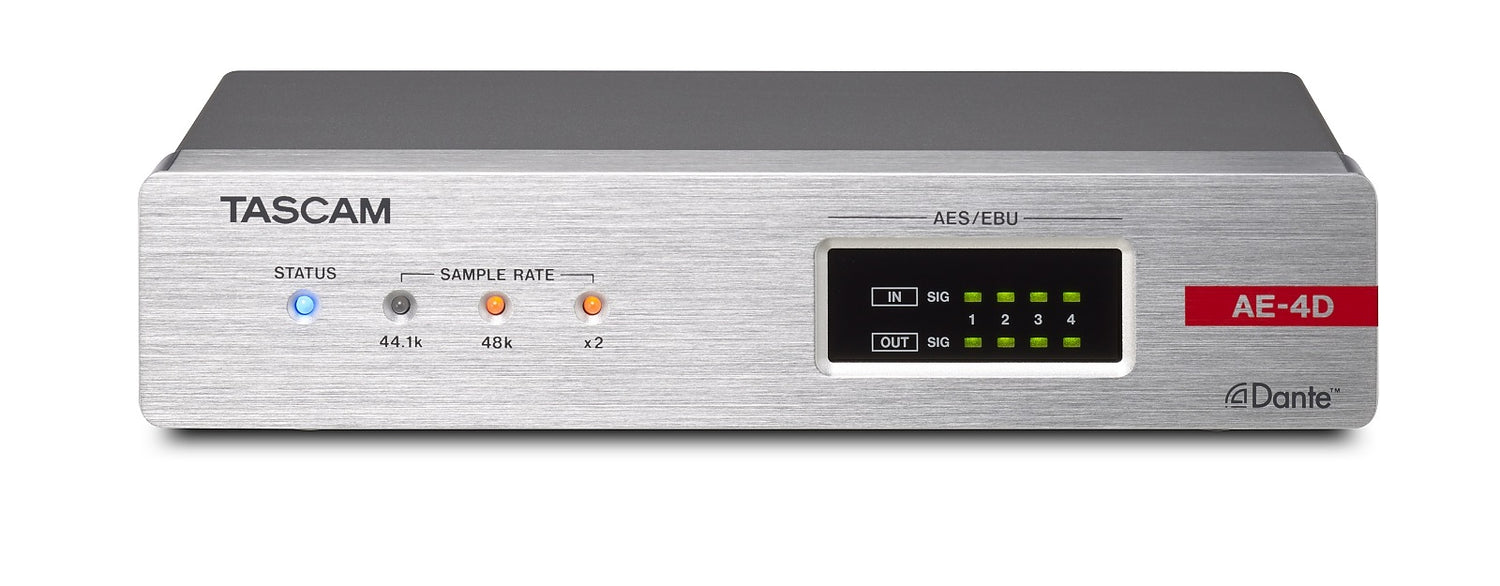

Front-panel indicators for operation status and current sample rate
Signal indicators for input and output signals
Power supply by PoE (Power over Ethernet) or optional PS-P1220E AC adapter
Power daisy-chaining allows two units to be supplied from one AC adapter
Half-rack size chassis (1U)
Attachment brackets included for mounting the unit under a table top, for example

Software features
Fader and mute settings for each input and output channel
Two types of control software available (compatible with Windows/Mac/iOS/Android devices): Tascam DCP Connect for system integrators offers full access to virtually all settings
Tascam EZ Connect for end-users is a simple app for only the most necessary settings (AE-4D does not have any settings that can be controlled via this app)

Optional accessories
PS-P1220E AC adapter (can also be used for redundant power supply when operating at PoE)
AK-RS1 rackmount shelf for two units to be mounted side by side

Specifications

General
Number of channels and formats 4 channels, 44.1 kHz, 48 kHz, 16/24-bit
2 channels (double speed), 88.2 kHz, 96 kHz, 16/24-bit

Inputs and outputs
AES/EBU INPUTS XLR-3-31
Input impedance 110 ohm
Format AES3-2003/IEC60958-4 (AES/EBU)
Supported sampling frequencies 32-192 kHz (Sampling rate converter is always on)
AES/EBU OUTPUTS XLR-3-32
Input impedance 110 ohm
Format AES3-2003/IEC60958-4 (AES/EBU)
Supported sampling frequencies 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Dante/Ethernet connectors (DATA/DATA+PoE) RJ-45
Transmission protocol Dante
Gigabit Ethernet standard 1000BASE-T (IEEE 802.3ab)
Cable requirements Cat 5e or better STP cables

Power supply and other specifications
Power supply PoE class 0
Tascam PS-P1220E AC adapter (sold separately)
Power consumption 3 W
Dimensions (W × H × D) 214 mm × 45 mm × 136 mm (including protrusions)
Weight 795 g
Permissible operating temperature range 0-40 ºC
