Tascam ML-32D Analog Dante converter 32 kanaler

Tascam ML-32D Analog Dante converter

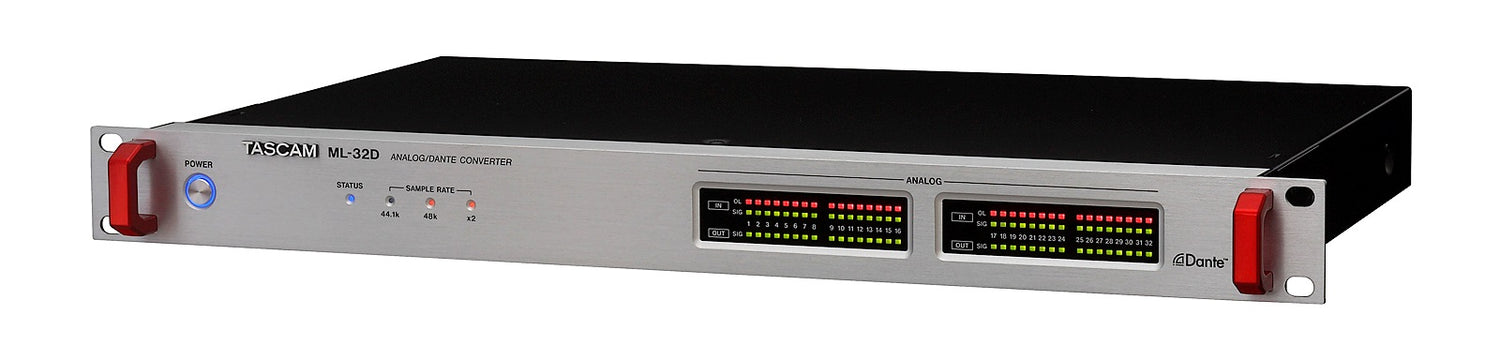

Tascam ML-32D er en kompakt høj-kvalitets Analog-Dante-Analog converter designet til at transportere 16 eller 32 analoge audio kanaler over Dante netværk i begge retninger.

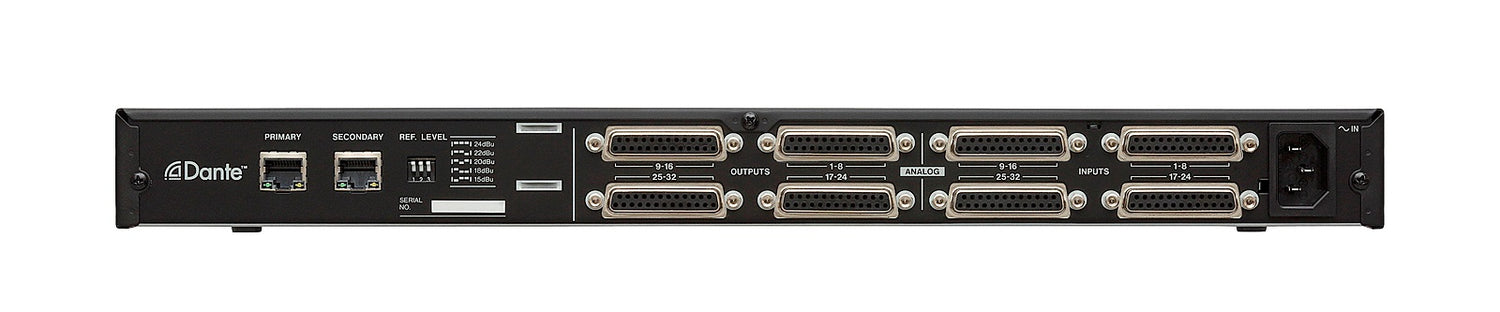

25-pin D-sub connector for at spare plads, kan anvendes sammen med Tascam breakout paneler; input og balanceret output, line-level analog audio signal.
2 Ethernet connector (Dante Primary/Secondary) til redundant netværksmode i 2 separate netværk.

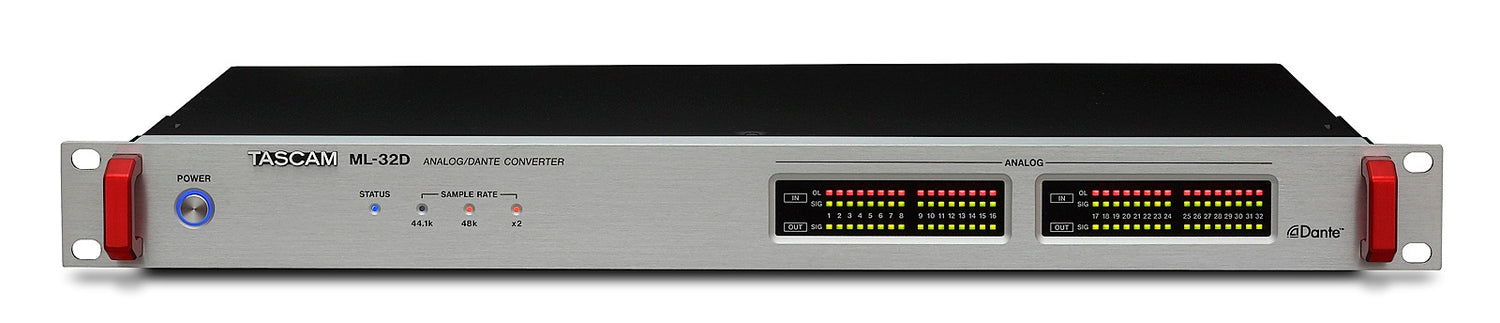

Indikator for driftsstatus og aktuelle sample rate samt overload LEDs for hvert input og signal LEDs for hvert in- og output.
Omskifter på bagsiden giver mulighed for at indstille det krævede maksimale indgangs-/udgangsniveau.
Eventuelle andre indstillinger, som f.eks. Sampling frekvens, kanal routing eller forsinkelse, kan laves på den frit tilgængelige "Dante Controller" computer applikation.

Dante er en netværksteknologi fra Audinate, der tilbyder højydende audio distribution over standard IP-netværk.
Den understøtter hundredvis af samtidige kanaler af ukomprimeret lyd med ultra lav latency og nøjagtig synkronisering.

Analogue-Dante-Analogue converter for 16 (ML-16D) or 32 (ML-32D) line-level audio channels
Dante interface allows up to 16/32 audio channels to be transferred over an Ethernet network. Two LAN connectors for primary and secondary networks provide redundancy.
Flexible routing with "Dante Controller" software.
AES67 is supported to allow connection with Ravenna and other compatible audio network technologies.

Up to 96 kHz sampling rate and 24 bit resolution.
Indicators for operation status and current sample rate.
Overload indicators for analogue input signals.

Signal indicators for analogue input and output signals.
Five different reference levels available to adapt to virtually any application in consumer, professional or broadcast environments (selectable via rear-side switches).
25-pin D-sub connectors for balanced line inputs/outputs (AES59-2012: TASCAM pin assignment). Euro Block breakout box can be used for fixed installation (BO-32DE).
XLR breakout boxes can be used for live music or studio applications (BO-16DX/IN, BO-16DX/OUT).

19-inch rack-mountable chassis (1U).

Ratings
Audio resolution: 44.1/48/88.2/96 kHz, 16/24 bit

Analogue audio inputs
Connectors: D-sub 25-pin
Locking screws: No. 4-40 UNC (inch type)
Nominal input level: +4 dBu, +6 dBu (only when maximum input level is +15 dBu)
Maximum input level: +24 dBu, +22 dBu, +20 dBu, +18 dBu, +15 dBu
(set by REF. LEVEL switches)
Input impedance: greater than or equal to 10 k ohm

Analogue audio outputs
Connectors: D-sub 25-pin
Locking screws: No. 4-40 UNC (inch type)
Nominal output level: +4 dBu, +6 dBu (only when maximum output level is +15 dBu)
Maximum output level: +24 dBu, +22 dBu, +20 dBu, +18 dBu, +15 dBu
(set by REF. LEVEL switches)
Output impedance: less than or equal to 200 ohm
Applicable load impedance: greater than or equal to 2 k ohm

Network inputs/outputs
Dante PRIMARY/SECONDARY RJ-45 connectors
Transmission protocol: Dante
Network standard: Gigabit Ethernet, 1000BASE-T (IEEE 802.3ab)
Cable requirements: Cat 5e or better STP cables

Audio performance
ANALOG IN to DANTE OUT
Frequency response: 20 Hz - 20 kHz, +0.1 dB / -0.5 dB
(-16 dBFS input, 44.1/48 kHz sampling frequency, JEITA)
20 Hz - 40 kHz, +0.1 dB / -0.5 dB
(-16 dBFS input, 88.2/96 kHz sampling frequency, JEITA)
Distortion (THD+N): less than or equal to 0.001%
(-1 dBFS input, 1 kHz, 44.1/48/88.2/96 kHz sampling frequency, JEITA)
S/N ratio: greater than or equal to 113 dB
(44.1/48/88.2/96 kHz sampling frequency, JEITA)
Crosstalk: greater than or equal to 115 dB
(1 kHz, 44.1/48/88.2/96 kHz sampling frequency, JEITA)

DANTE IN to ANALOG OUT
Frequency response: 20 Hz - 20 kHz, +0.1 dB / -0.5 dB
(-16 dBFS input, 44.1/48 kHz sampling frequency, JEITA)
20 Hz - 40 kHz, +0.1 dB / -1.0 dB
(-16 dBFS input, 88.2/96 kHz sampling frequency, JEITA)
Distortion (THD+N): less than or equal to 0.001%
(-1 dBFS input, 1 kHz, 44.1/48/88.2/96 kHz sampling frequency, JEITA)
S/N ratio: greater than or equal to 110 dB
(44.1/48/88.2/96 kHz sampling frequency, JEITA)
Crosstalk: greater than or equal to 115 dB
(1 kHz, 44.1/48/88.2/96 kHz sampling frequency, JEITA)

Power supply and other specifications
Power supply: AC 100-240 V, 50/60 Hz
Power consumption: ML-32D: 22 W, ML-16D: 14 W
Dimensions (W × H × D): 483 mm × 45 mm × 304 mm
Weight: ML-32D: 3.5 kg, ML-16D: 3.3 kg
Operating temperature range: 0-40 °C
