Tascam MM-4D IN Analog Dante-omformer med 4 kanaler, XLR

Tascam ML-4D/IN Analog Dante converter med DSP-mixer

MM-4D/IN er en utsøkt analog inngangsenhet som konverterer fire mic/line-inngangssignaler til fire Dante-utgangssignaler. I tillegg støtter den også firekanals Dante-input, noe som gjør det mulig å bruke praktisk talt alle lydkilder i et etablert Dante-nettverk. Tilgjengelig med Euroblock (MM-4D/IN-E) eller XLR (MM-4D/IN-X) kontakter for analoge innganger, kan denne modellen brukes til et bredt spekter av applikasjoner.

MM-4D/IN er en del av Tascam Dante Compact-processorserien, som består av kompakte lydkonvertere med halv rack til Dante/AES67-nettverk. Modellene kan enkelt legge til ytterligere mic/line- eller AES/EBU-innganger/utganger til Dante-lydnett i offentlige fasiliteter, TV-stasjoner, innspillingsstudioer eller eksklusive hjemmemiljøer og kan kombineres fritt.

En avgjørende fordel ved produktprogrammet er DSP-prosessoren innebygd i hver enhet. Ved å levere ikke bare miksfunksjoner og EQ, men også dynamisk behandling, automatisk nivåstyring, automatisk ducking, routing og støykompensasjon, kan selv små systemer fungere uten ytterligere signalbehandling eller miksere. Fra input av mikrofonsignaler til utgang til aktive høyttalere eller opptaksenheter, kan Dante Compact Processor Series bygge et komplett lite system alene.

Fjernstyring er mulig via to forskjellige programvareprogrammer for Mac, Windows, iOS og Android-enheter: Tascam DCP Connect for konfigurasjon og Tascam EZ Connect for sluttbrukere, som begge er enkle å bruke og inkludert med enhetene. MM-4D/IN gir også mulighet for å dempe sine innganger via GPI.

Alle modeller kan drives av PoE eller en ekstra AC-adapter. Ved bruk av power-daisy-chaining kan to enheter montert side om side i en rack forsynes fra én adapter.

Hardware features
Four balanced mic/line inputs with 48 V phantom power
Two product variants: MM-4D/IN-E: Equipped with Euroblock connectors for permanent installation
MM-4D/IN-X: Equipped with XLR connectors for touring and other more flexible applications

Dante interface allows audio signals to be transferred over an Ethernet network
Two LAN connectors for Dante daisy-chaining
Flexible routing with Dante Controller software
AES67 is supported to allow connection with Ravenna and other compatible audio network technologies

Up to 96 kHz sampling rate and 24 bit resolution

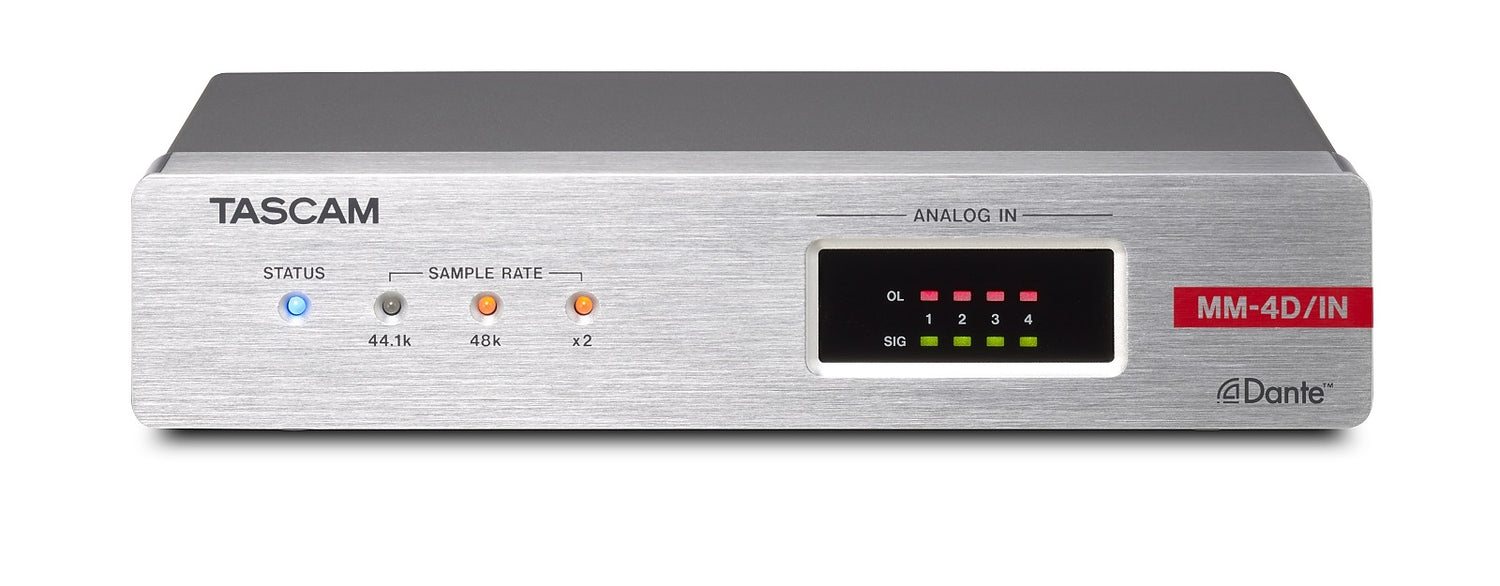

Front-panel indicators for operation status and current sample rate
Signal and overload indicators for analogue input signals
Inputs can be muted by GPI (MM-4D/IN-E only)
Power supply by PoE (Power over Ethernet) or optional PS-P1220E AC adapter
Power daisy-chaining allows two units to be supplied from one AC adapter
Half-rack size chassis (1U)
Attachment brackets included for mounting the unit under a table top, for example

Software features
Four Dante audio input and output channels

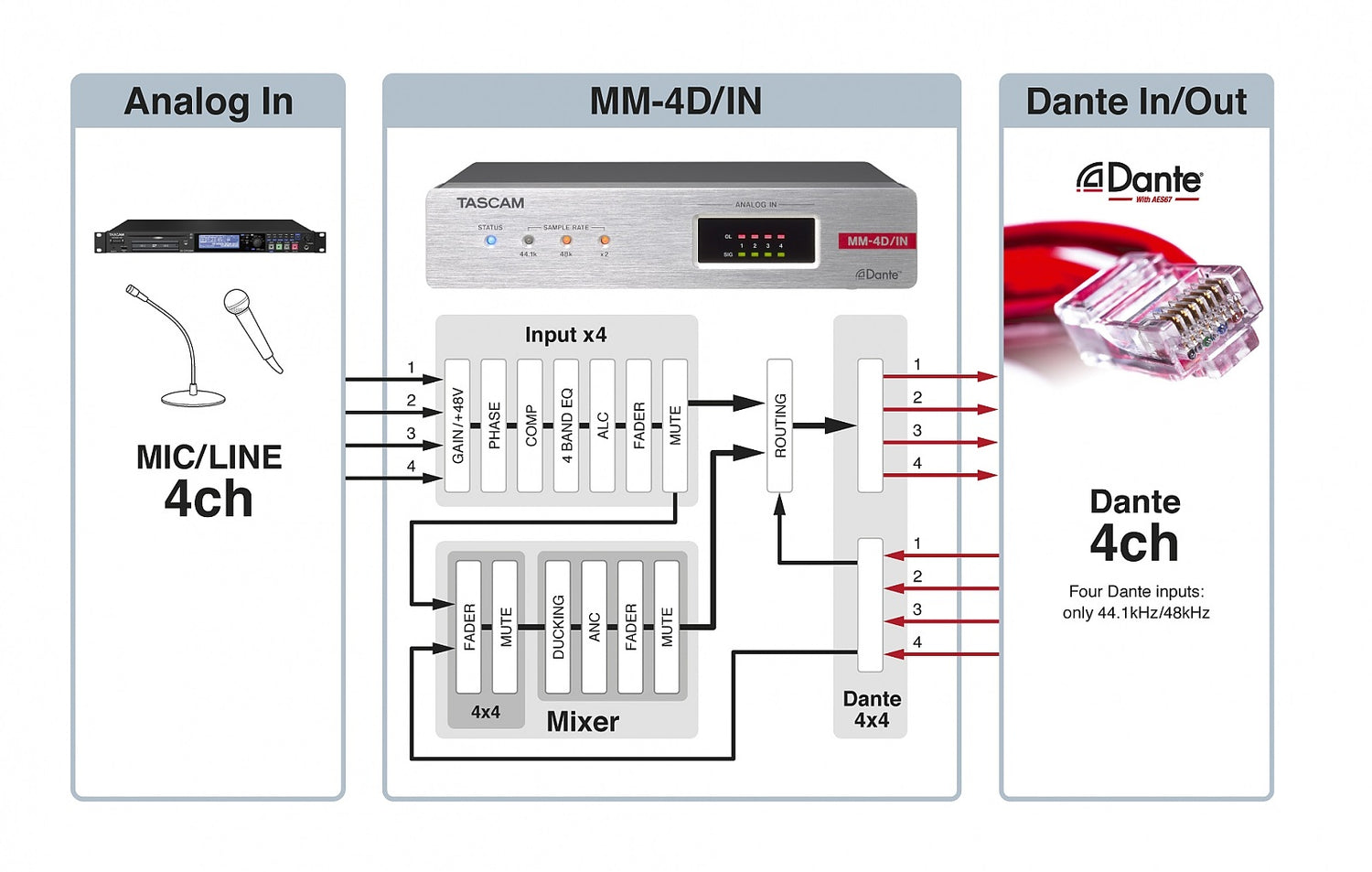

Powerful DSP mixer
Input features: phantom power on/off, polarity, sensitivity (gain), trim, automatic level control, 4-band equalizer, mute, fader
Mixer features: Matrix mixer, ducking, ambient noise compensator (ANC), routing

Up to 50 scene presets can be saved
Timer event function allows presets to be switched at specific times (planned for a future update)
Five different reference levels available to adapt to virtually any application in consumer, professional or broadcast environments
Two types of control software available (compatible with Windows/Mac/iOS/Android devices): Tascam MX Connect for system integrators offers full access to virtually all settings
Tascam EZ Connect for end-users is a simple app for only the most necessary settings

Optional accessories
PS-P1220E AC adapter (can also be used for redundant power supply when operating at PoE)
AK-RS1 rackmount shelf for two units to be mounted side by side

Specifications

General
Number of channels and formats: 4 channels, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 16/24 bit

Audio inputs
Analogue inputs (ANALOG IN):
MM-4D/IN-E: Balanced Euroblock connectors, 3.81 mm pitch
MM-4D/IN-X: XLR connectors (XLR-3-31, 1: GND, 2: HOT, 3: COLD)
Minimum input level: -70 dBu
Maximum input level: +26 dBu
Input impedance: ≥2 ohm
Note: 0 dBu equals 0.775 Vrms

Other inputs and outputs
Dante/Ethernet connectors (DATA/DATA+PoE): RJ-45
Transmission protocol: Dante
Gigabit Ethernet standard: 1000BASE-T (IEEE 802.3ab)
Cable requirements: Cat 5e or better STP cables
External muting control (LED/SWITCH/GND, MM-4D/IN-E only): Balanced Euroblock connectors, 3.81 mm pitch
LED connectors
Output format: Open collector (10 ohm output impedance, 48 V withstand voltage, 35 mA maximum current)
Maximum output voltage for Low level: 0.5 V
SWITCH connectors
Maximum input voltage: 5.5 V
Minimum input voltage for High level: 2.31 V
Maximum input voltage for Low level: 0.99 V

Audio performance
Microphone input to Dante output
Mic amp EIN (equivalent input noise): ≤-125 dB
(150 ohm, 22 kHz LPF, A-weighted, JEITA)
Frequency response: 20 Hz - 20 kHz, ±0.5 % (sampling frequency 44.1/48 kHz, JEITA)
20 Hz - 40 kHz, ±0.5 % (sampling frequency 88.2/96 kHz, JEITA)
Distortion (THD+N): ≤0.003 %
(-1 dBFS input, 44.1/48/88.2/96 kHz sampling frequency, JEITA)
S/N ratio: ≥108 dB
(44.1/48/88.2/96 kHz sampling frequency, JEITA)
Crosstalk: ≥100 dB
(44.1/48/88.2/96 kHz sampling frequency, JEITA)
Dynamic range: ≥108 dB (44.1/48/88.2/96 kHz sampling frequency, JEITA)
Note: JEITA indicates compliance with JEITA CP-2150

Power supply and other specifications
Power supply: PoE class 0
Tascam PS-P1220E AC adapter (sold separately)
Power consumption: 7.5 W
Dimensions (W × H × D): 214 mm × 45 mm × 136 mm (including protrusions)
Weight: 885 g
Permissible operating temperature range: 0-40 ºC
