Tascam Model 12 analog mikser og 12 track digital recorder

Tascam Model 12 analog mikser med Digital 12 track recorder

Integrated Production Suite for Music and Multimedia Creators

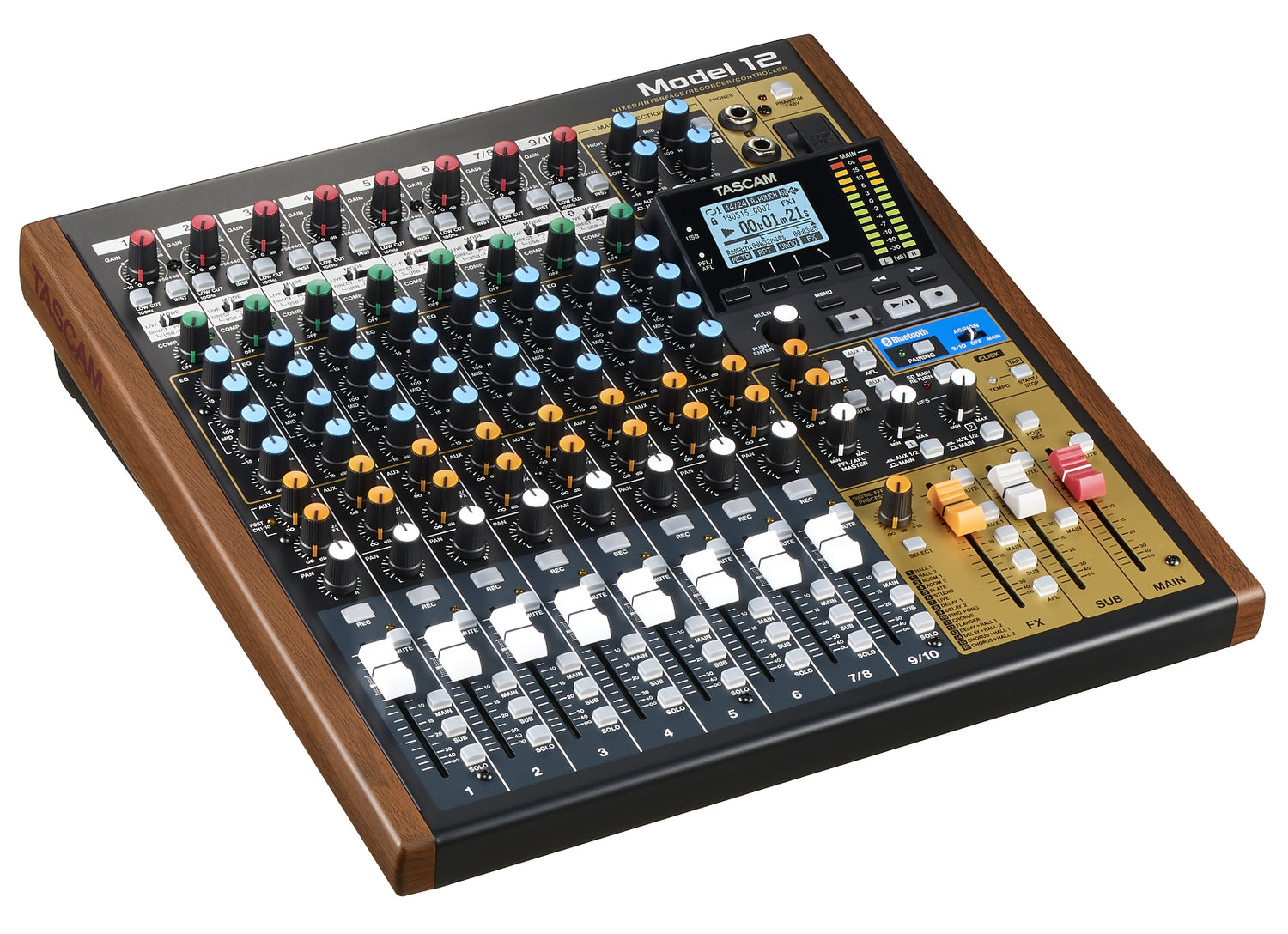

Tascam Model 12 er en kompakt alt-i-én integrert mikser og opptakssystem designet for musikk- og multimedieprodusenter, låtskrivere og artister.

Den består av en 10-input mikser, en 12-spors av den mye anerkjente Tascam multi-track opptakeren, USB-interface, MIDI-tilkobling, DAW-kontrollfunksjoner og unik podcasting-funksjon inkludert mix-minus og smartphone-input.

Ved å kombinere følelsen av en analog brukergrensesnitt med den effektive arbeidsflyten og upåvirket kvaliteten som er forbundet med digital opptak og produksjon, støtter den kompakte og rimelige Model 12 din kreative prosess fra start til slutt.

Multitrack opptaker, livemikser og Podcast mikser

12-Track Recording and 10-Track Playback

12 In / 10 Out USB Audio Interface for DAW Connectivity

Click Output With Tap Tempo Feature

Combine Your Setup With MIDI Equipment

Podcast Your Latest Music and Live Performances to Your Fan Base

All-in-One Audio Production From Recording to Mastering

Pristine Audio Quality

Compact Size With Plenty of Inputs

Dual Headphones Outputs for Creative Teamwork

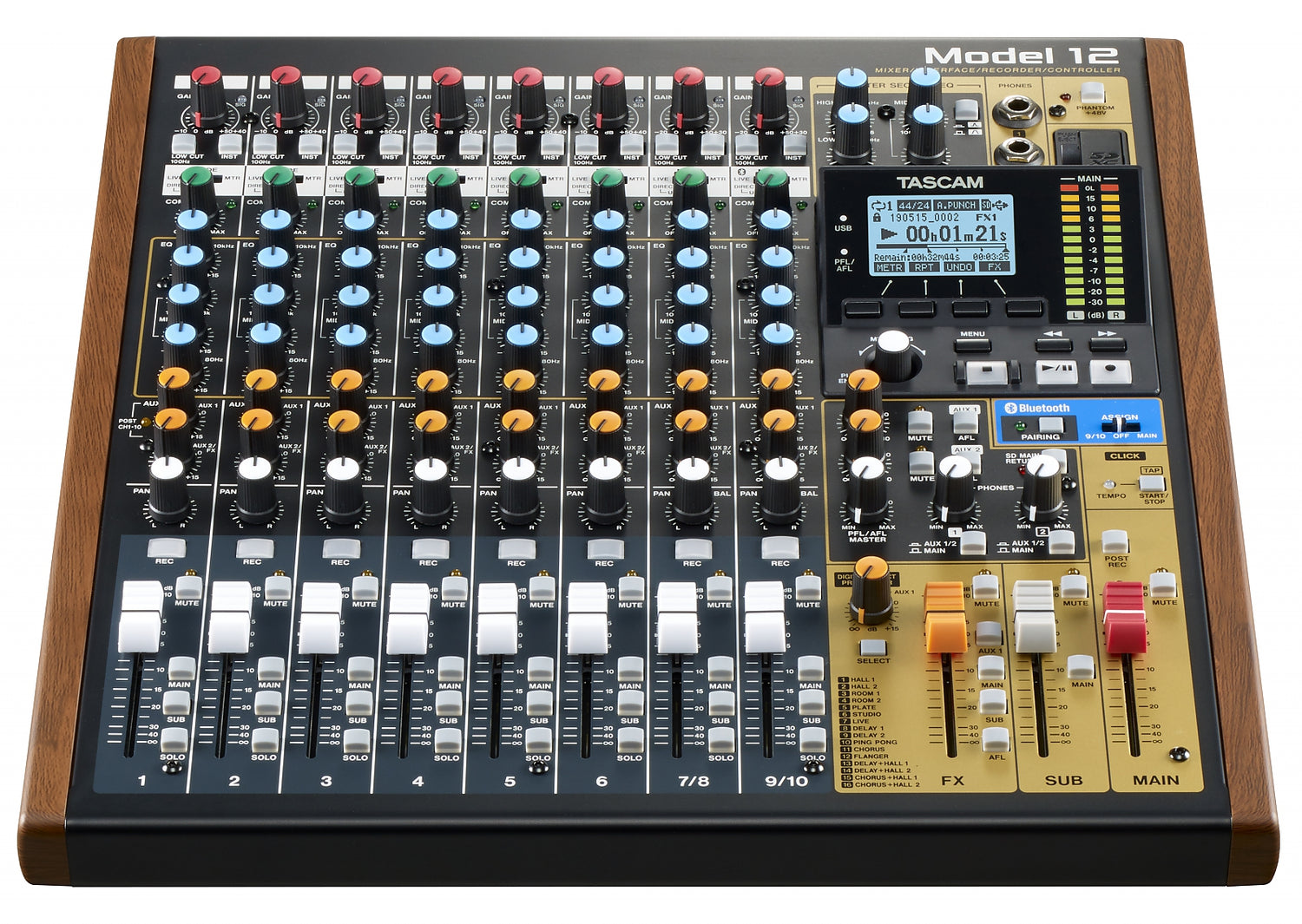

10-channel mikser med innebygd 12-track opptaker og USB audio interface

Mikser funksjoner

Ti analoge innganger på seks mono og to stereo kanaler

Åtte mono mikrofoninnganger på XLR-kontakter med bryter for phantom power (48 V)

Ultra-HDDA mikrofonforsterkere på inngangene 1-6

Åtte kanaler kan brukes med høylimpendans instrumenter som elektriske gitarer/basser

Ti balanserte linjeinnganger (seks mono, to stereo)

Multi-purpose stereo kanal for input fra mobile enheter via Bluetooth eller TRRS smartphone-kontakt (CH 9/10)

Inserts på inngangskanalene 1 og 2

Mix-minus funksjon på smartphone mini-jack input

To Aux outputs (monitor, effects) og to stereo outputs med uavhengige master faders (Main, Sub)

Monitoring kan velges mellom PFL (pre-fader), AFL (after-fader) og SIP (solo-in-place)

Dedicated click output med tap tempo-funksjon

One-knob compressor for alle inngangskanaler

Three-band equalizer med sweepable mids for alle inngangskanaler

Switchbar low-cut filter (100 Hz) på hver kanal

Semi-parametric EQ med sweepable mid band for aux eller main outputs

Innebygd Bluetooth receiver for trådløs avspilling

On-board effects processor 16 effects types

Kan brukes på alle inngangskanaler, aux busser, sub og main stereo buss

Kan slås på/av med en valgfri footswitch (Tascam RC-1F)

Kompatte 60-mm faders

12-segment LED output level meters

XLR balanserte outputs for main stereo buss

TRS balanserte outputs for sub og aux outputs

To headphones outputs med separate nivåkontroller

Recorder funksjoner

Tascam multi-track recording engine, bruker SD-kort som lagringsmedium (opptil 128 GB)

Opptil 12 spor (10 input kanaler + stereo mix) kan opptas uten behov for datamaskin

Recording/playback format: Linear PCM (WAV format, 44.1/48 kHz, 16/24 Bit)

Overdubbing, punch in/out recording

Multi-track playback for avansert live opptreden

Opplyste Play/Record/Stop knapper for bedre lesbarhet i dårlig opplyste omgivelser

Audio interface funksjoner

USB audio interface for bruk med Windows (ASIO) og Mac (Core Audio) datamaskiner

Transfer to computer: 12 channels (all 10 inputs + stereo mix)

Transfer from computer: 10 channels, assignable to each channel input

Audio resolution 44.1/48 kHz, 16/24 bit

USB MIDI interface function

Simple DAW control support via HUI/MCU protocol emulation

Andre funksjoner

MIDI input og output

Støtte for MIDI timecode (MTC) og MIDI clock output med song position pointer (SPP)

Enkel og rask menyoperasjon med multi-jog dial

Recorder

Recording media

SD (512 MB - 2 GB)

SDHC (4-32 GB)

SDXC (64-128 GB)

Class 10 eller høyere kreves

File system FAT16 (SD), FAT32 (SDHC), exFAT (SDXC)

Recording file format WAV (BWF, maksimum filstørrelse: 2 GB)

Playback formats WAV (BWF)

Sampling frequency 44.1 kHz, 48 kHz

Bit depth 16 bit, 24 bit

Recordable channels 12 channels max. (10 inputs + stereo mix)

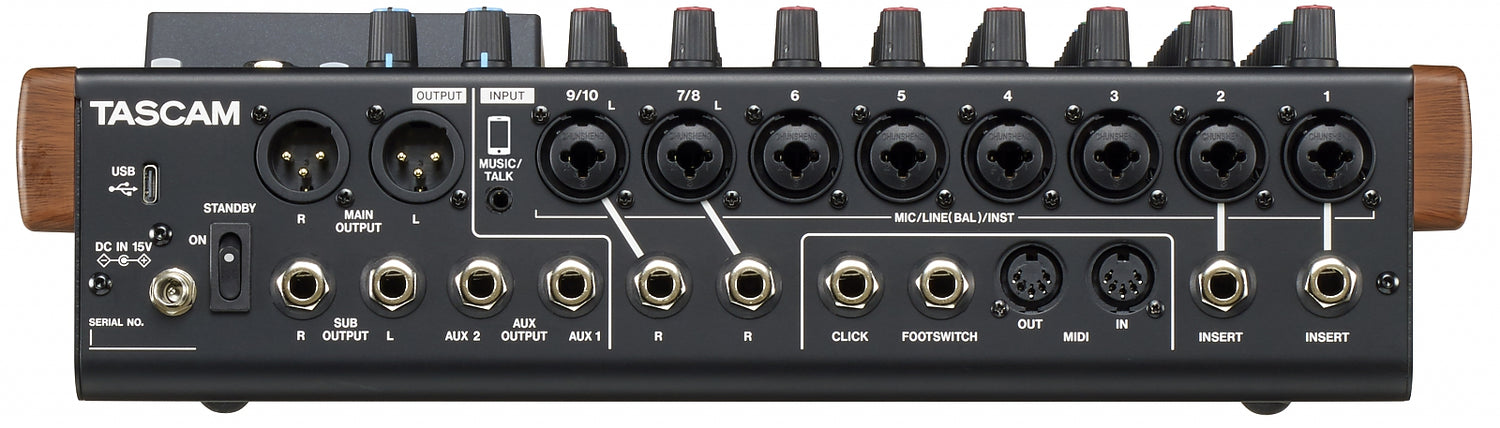

Audio inputs and outputs

Microphone inputs (CH 1-6, 7/8, 9/10) XLR-3-31, balansert

(1: GND, 2: HOT, 3: COLD)

Nominal input level -8 dBu

Maximum input level +10 dBu

Minimum input level -58 dBu

Gain adjustable range 0-50 dB

Input impedance 1.8 kOhm

Line inputs (CH 1-10) 6.3-mm TRS phone jack, balansert

(Tip: HOT, Ring: COLD, Sleeve: GND)

Nominal input level +4 dBu

Maximum input level +22 dBu

Gain adjustable range -10 dB to +40 dB (CH 1-6)

-20 dB to +30 dB (CH 7/8, 9/10)

Input impedance 22 kOhm

Instrument inputs (CH 1-6, 7, 9) 6.3-mm TS phone jack, ubalansert

(Tip: HOT, Ring: GND, Sleeve: GND)

Nominal input level +1.8 dBV

Maximum input level +19.8 dBV

Gain adjustable range -10 dB to +40 dB (CH 1-6)

-20 dB to +30 dB (CH 7, 9)

Input impedance 1 MOhm

Inserts (CH 1-2) 6.3-mm TRS phone jack

(Tip: SEND, Ring: RETURN, Sleeve: GND)

Nominal input level 0 dBu

Maximum input level +18 dBu

Input impedance 5 kOhm

Nominal output level 0 dBu

Maximum output level +18 dBu

Output impedance 100 Ohm

Music/Talk input (CH 9/10) 3.5-mm TRRS mini jack, ubalansert

Maximum input level +8 dBV

Nominal input level -10 dBV

Input impedance 10 kOhm

Main output XLR-3-32, balansert

(1: GND, 2: HOT, 3:COLD)

Nominal output level +4 dBu

Maximum output level +22 dBu

Output impedance 200 Ohm

Sub output, Aux output 6.3-mm TRS, balansert

(Tip: HOT, Ring: COLD, Sleeve: GND)

Nominal output level -2 dBu

Maximum output level +16 dBu

Output impedance 200 Ohm

Phones output 1/2 6.3-mm stereo phone jack

Maximum output power 45 mW + 45 mW (at 32 Ohm)

Footswitch connector 6.3-mm TS phone jack (Tascam genuine footswitch RC-1F recommended)

EQ

Channel EQ

Low cut 100 Hz, -12 dB/Oct.

High (shelving) 10 kHz, ±15 dB

Mid (peaking) variable 100 Hz to 8 kHz, ±15 dB (Mono)

fixed 600 Hz, ±15 dB (Stereo)

Q = 0.5

Low (shelving) 80 Hz, ±15 dB

Master EQ

High (shelving) 10 kHz, ±15 dB

Mid (peaking) variable 100 Hz to 8 kHz, ±15 dB, Q = 0.5/5

Audio performance

Residual output noise -103 dBu

(MAIN OUT, MAIN fader at nom.)

Equivalent input noise (EIN) -128 dBu

(Mono input channel at 150 Ohm, GAIN at max.)

Total harmonic distortion (THD+N) MAIN OUT, 1 kHz, GAIN at min., +2 dBu)

Frequency response 20 Hz to 20 kHz, ±0.5 dB (MIC IN-> MAIN OUT)

Channel crosstalk -95 dB

(1 kHz, PAN fully counter-clockwise / fully clockwise)

Maximum gain 74 dB (MIC to MAIN OUT)

50 dB (MIC to INSERT OUT)

74 dB (MIC to SUB OUT)

75 dB (MIC to AUX 1/2 OUT)

24 dB (USB/SD to MAIN OUT)

(all EQs flat, PAN fully counter-clockwise / fully clockwise)

Phantom Power DC 48 V

Computer system requirements

Windows

Compatible computers Windows-kompatibel datamaskin med en USB 2.0 (eller høyere) port

CPU type/speed Dual core, 2 GHz eller raskere

Memory 2 GB eller mer

Drivers USB Audio Class 2.0, ASIO 2.0, WDM (MME)

Screen resolution 1280 px × 800 px eller mer

Macintosh

Compatible computers Apple Mac datamaskin med en USB 2.0 (eller høyere) port

CPU type/speed Dual core, 2 GHz eller raskere

Memory 2 GB eller mer

Driver Core Audio

Screen resolution 1280 px × 800 px eller mer

USB audio specifications

Sampling rate 44.1 kHz, 48 kHz

Bit depth 16 bit, 24 bit

Maximum number of audio channels 12 inputs, 10 outputs

Bluetooth® Version 5.0

Output class Class 2

(approximate transmission distance: 10 m)

The transmission distance is approximate. The transmission distance could vary depending on the surrounding environment and electromagnetic disturbances.

Supported profile A2DP

Supported A2DP codecs SBC, AAC

A2DP content protection SCMS-T

Power supply and other specifications

Power supply Tascam AC adapter (included, input voltage AC 100-240 V, 50/60 Hz)

Power consumption 16 W

Dimensions (W × D × H, overall) 343 mm × 360 mm × 99 mm

Weight 4.3 kg

Permissible operating temperature range 5-35 °C

Included items AC adapter, Owner’s manual incl. warranty
