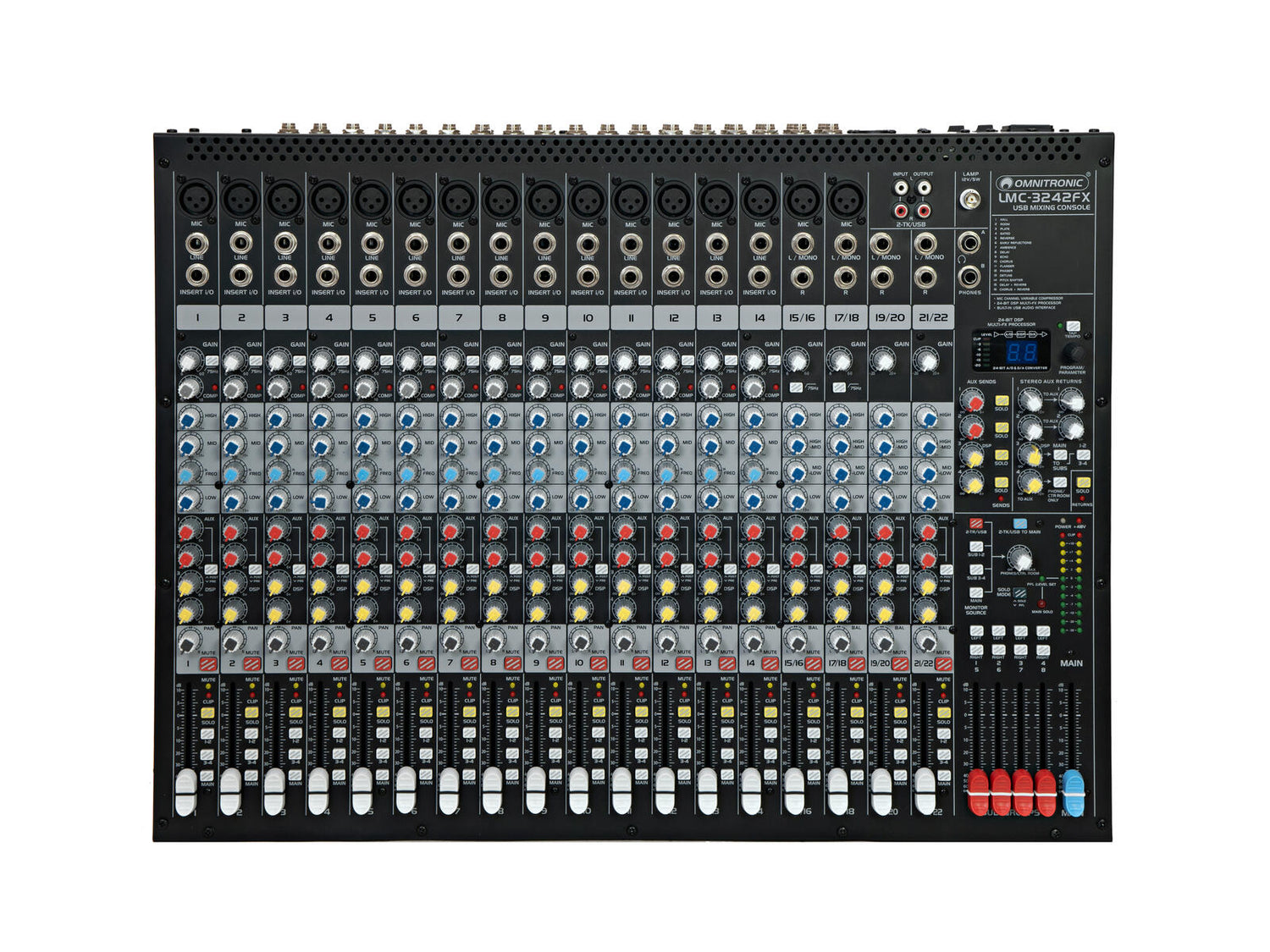

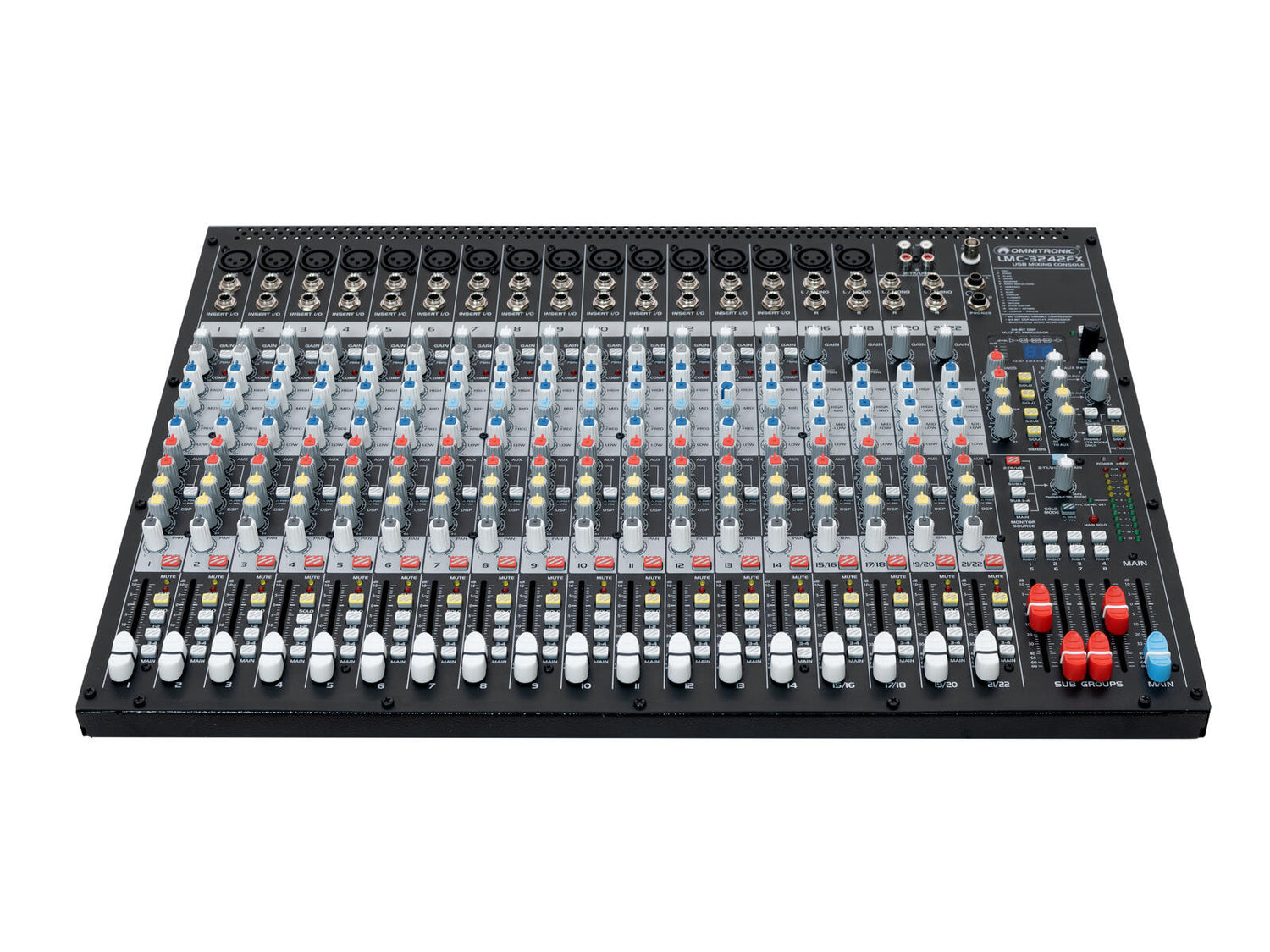

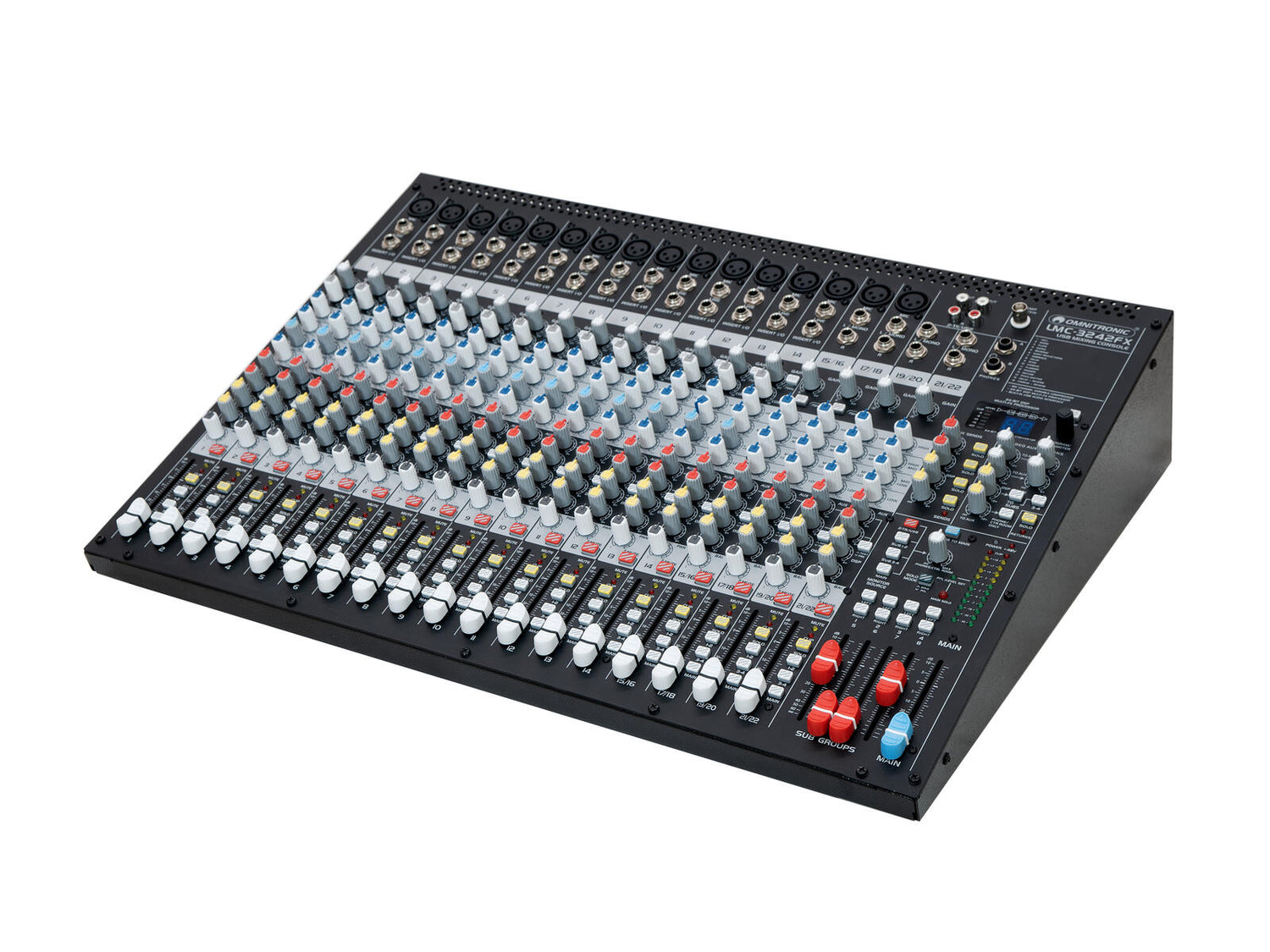

OMNITRONIC LMC-3242FX USB-miksekonsoll

Profesjonelle live miksere med British EQ, FX-enhet og USB-grensesnittGjør det enkelt å oppnå riktig lyd med LMC series fra OMNITRONIC! De usedvanlig brukervennlige miksere gir en varm, naturlig lyd med fremragende audio-parametere, et omfattende funksjonssett og maksimal pålitelighet - ideell for profesjonelle studioopptak, liveopptredener og faste PA-installasjoner. Spesielt 2022FX har flere nyttige funksjoner som er uten sidestykke i dette prissegmentet: feedback-detekteringssystem, voice canceller, og 3D stereo surround-effekt.Alle mono-kanaler har ekstremt lav- støy, førsteklasses mikrofonpreampere som tilbyr en ekstraordinær 130 dB dynamisk område, og et båndbreddeområde fra under 10 Hz til over 200 kHz for krystallklar signalreproduksjon. De utrolig varme og naturlige equalizerne brukt i alle kanalstriper er basert på klassisk "British EQ" kretser fra miksere fra 60- og 70-tallet. I tillegg har din LMC series mikser en studio-klasse kompressor med enkel one-knob funksjonalitet på hver mono-kanal pluss en 24-bit FX-prosessor med 16 redigerbare effekter som kan legges til individuelle kanaler, busser eller hovedmiksen. Ved å bruke det innebygde USB audio-grensesnittet med opptil 48 kHz samplingsfrekvens, kan du koble til din Windows eller Mac og ta opp øyeblikkelig.

PRO audio mixer with British-style EQ, compressor, effect unit and USB interface

• 14 mono input channels with gain control, 3-way EQ with semi-parametric mid band, low cut and pan control
• 14 inserts for flexible connection of outboard equipment on each mono channel
• 4 stereo input channels with gain control, 4-way EQ, low cut and balance control
• State-of-the-art, low-noise mic preamps with 130 dB dynamic range and high headroom
• Exceptional British EQs for warm and musical sound
• Studio-grade compressors with easy one-knob functionality and control LED on each mono channel
• 24-bit DSP FX unit with 16 editable presets, tap function and storable user parameter settings
• Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
• Intelligent feedback detection system makes eliminating feedback frequencies easy
• 4 AUX sends per channel: 2 pre/post-fader switchable for flexible routing
• 4 subgroups with separate faders and outputs for added routing flexibility
• 4 stereo AUX returns with flexible routing
• 14 direct outputs for recordings
• Clip LEDs on all channels
• Routing switches for mute, main mix, subgroup and solo/PFL on all channels
• 2 separate main mix outputs with inserts
• 2 phones and control room outputs with multi-input source matrix
• CD/tape input assignable to main mix or control room/phones outputs, CD/tape output
• Precise 12-digit LED level meter
• BNC lamp socket
• FX mute with remote control via footswitch
• +48 V phantom power, can be switched centrally
• Digital signal processor 24 bit with 16 effects
• Monochrome 2 digit 7-segment LED display
• The device can be connected via USB to the PC
• For application areas such as: Clubs/dancing school; stage; theater; concerts/FoH's; rental

Scope of delivery

• 1 x mixer
• 1 x power cord
• 1 x USB cable
• 1 x user manual
• 2 x angle

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	50 W
Protection class:	Protection class I
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:	20 - 20000 Hz
S/N ratio:	>110 dB
THD:	<0.05 % at 1 kHz
DSP:	Digital signal processor 24 bit with 16 effects
Phantom power:	48 V DC
Impedance:	Input: microphone 2.6 kOhm , bal. Input: line 10 kOhm , bal. Input: 2-Track 10 kOhm Input: AUX returns 10 kOhm , bal. Insert: 10 kOhm , unbal.
Gain:	Input: variable
Crosstalk:	>89 dB
Display type:	Monochrome 2 digit 7-segment LED display
Control elements:	Encoder, power switch, phantom power switch
Status LED:	Master level meter, clip, gain reduction, Mute, phantom power; power

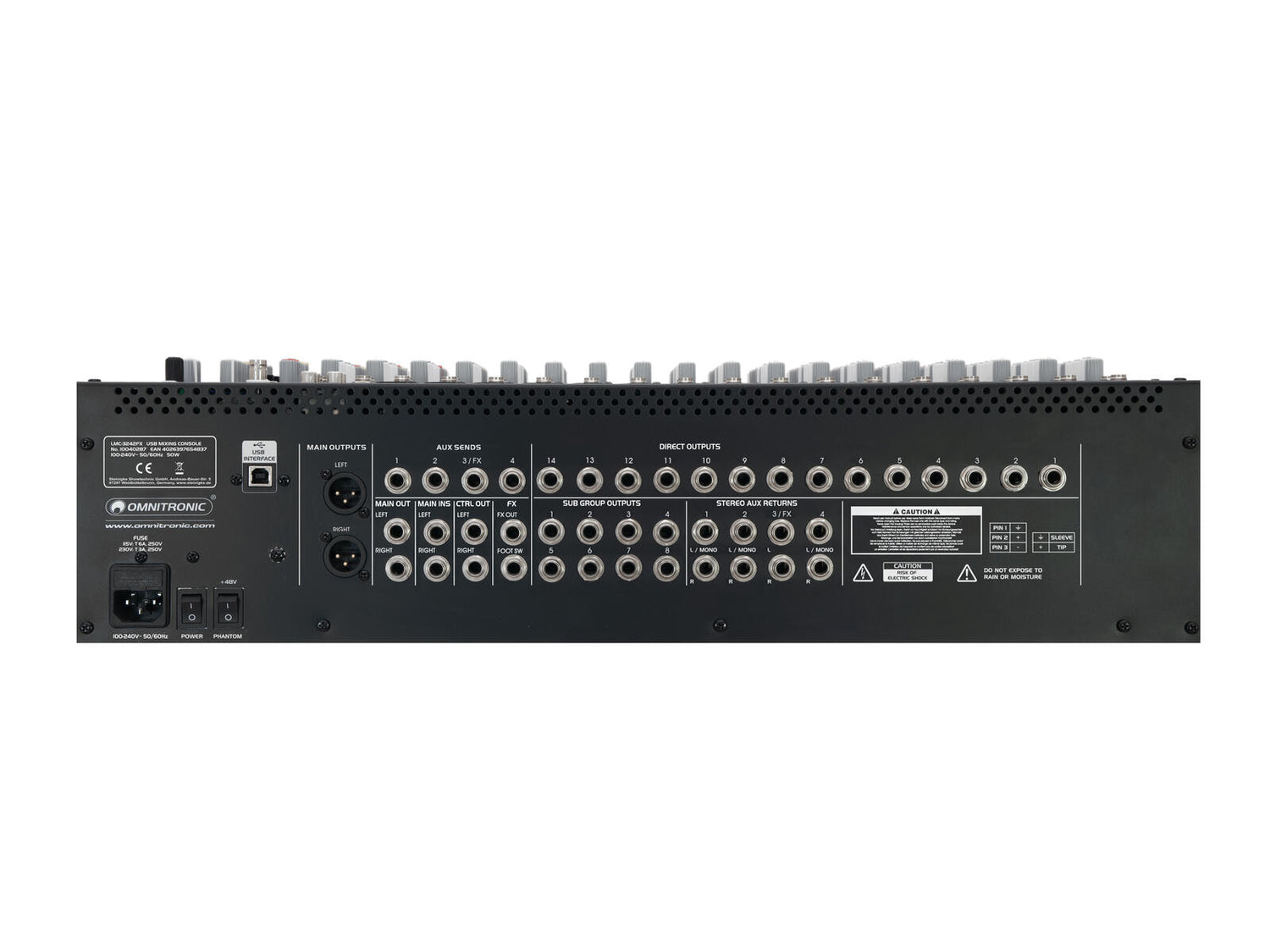

Connections:	Lamp via 1 x BNC (F) Input: microphone via 16 x 3-pin XLR Input: line via 22 x 6.3 mm jack socket (mono) mounting version Input: 2-Track via 1 x stereo RCA Output: headphones via 2 x 6.3 mm jack socket (stereo) mounting version Output: rec. via 1 x stereo RCA Output: master via 2 x 3-pin XLR Output: master via 2 x 6.3 mm jack socket (mono) mounting version Output: sub groups via 8 x 6.3 mm jack socket (mono) mounting version Output: direct out via 14 x 6.3 mm jack socket (mono) mounting version Output: AUX sends via 4 x 6.3 mm jack socket (mono) mounting version Output: foot control via 1 x 6.3 mm jack socket (stereo) mounting version Output: control room via 2 x 6.3 mm jack socket (mono) mounting version Output: AUX returns via 8 x 6.3-mm-jack (bal.) Insert: channel via 14 x 6.3 mm jack socket (stereo) mounting version Insert: master via 2 x 6.3 mm jack socket (stereo) mounting version
Channels:	Input channel: 14 x mono via XLR or jack, channel control via 60mm fader, 3-band EQ-Poti with semiparametric mid-band EQ ±15dB at 80Hz/500Hz/3kHz/12kHz, 4 Send/AUX, pre-post switch, gain control, low cut switch, adjustable single-knob compressor, routing sub group bus switch, routing master bus switch, panoramacontol, mute control, solo switch Input channel: 2 x stereo via XLR or jack, channel control via 60mm fader, 4-band EQ-poti EQ ±15dB at 80Hz/100-8kHz/12kHz, 4 Send/AUX, pre-post switch, gain control, low cut switch, routing sub group bus switch, routing master bus switch, balancecontrol, mute control, solo switch Input channel: 2 x stereo via jack, channel control via 60mm fader, 4-band EQ-poti EQ ±15dB at 80Hz/500Hz/3kHz/12kHz, 4 Send/AUX, pre-post switch, gain control, routing sub group bus switch, routing master bus switch, balancecontrol, mute control, solo switch Master output: stereo, channel control via 60mm fader
Crossover frequency:	High-pass 75 Hz, 18db/oct
Max. level:	Output: master +28 dBu, bal. Output: sub groups +22 dBu, unbal. Output: control room +22 dBu, unbal. Output: direct out +22 dBu, unbal. Output: rec. +22 dBu Output: headphones +19 dBu, unbal. Output: AUX sends +22 dBu, unbal.
USB port:	Type B
PC connect:	Via USB

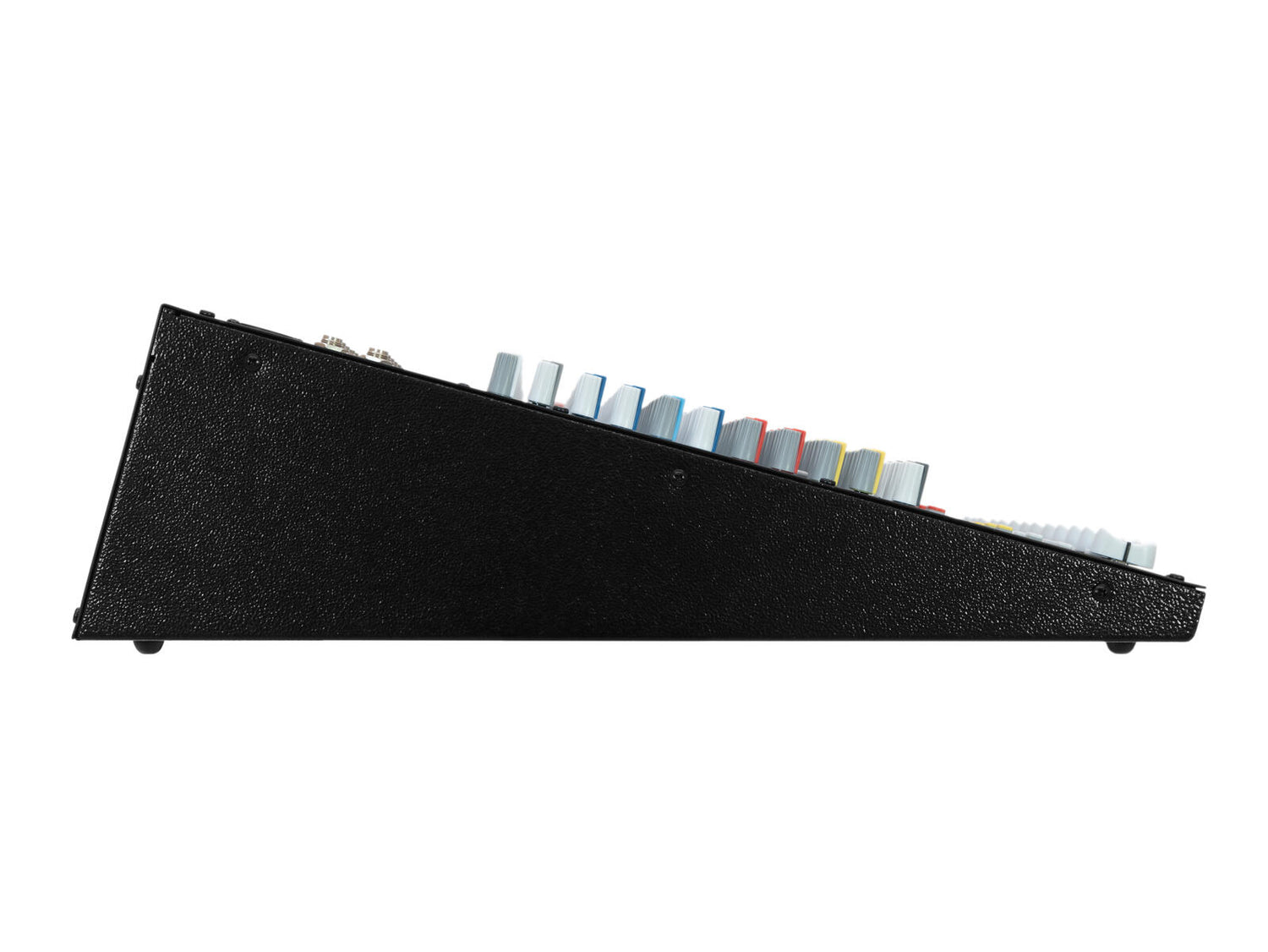

Dimensions:	Width: 59.2 cm Depth: 45 cm Height: 13.7 cm
Weight:	9.30 kg
