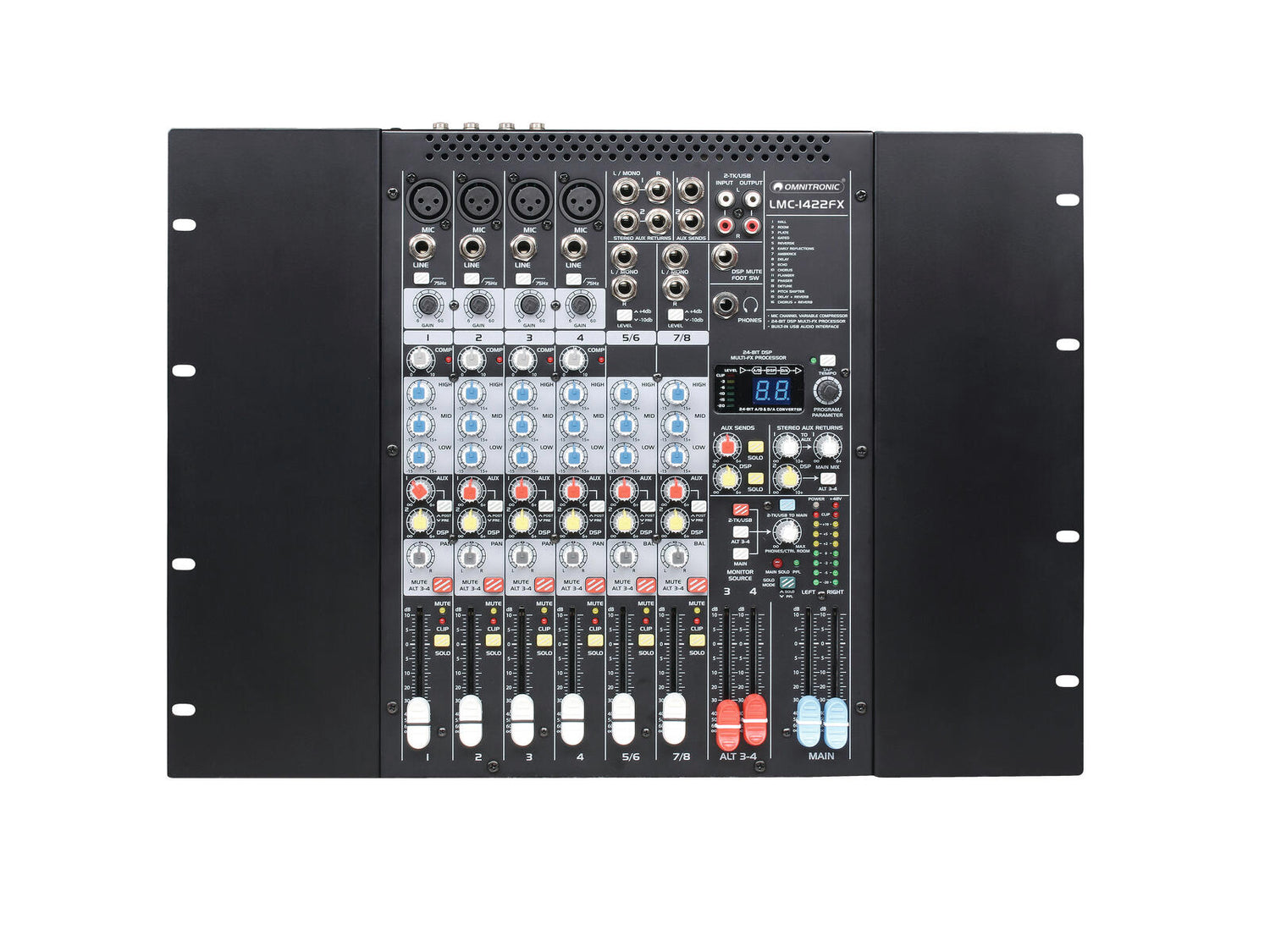

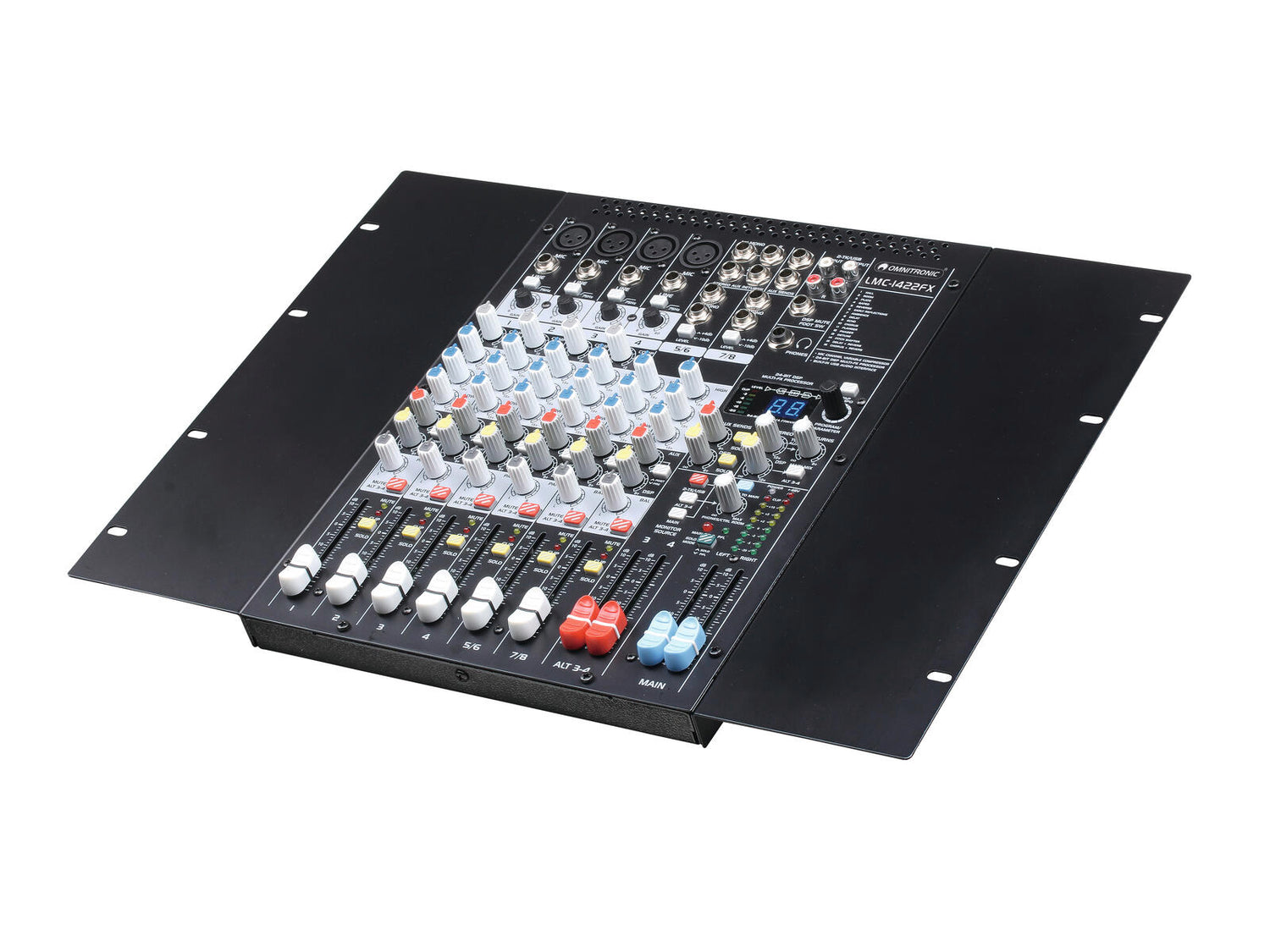

OMNITRONIC LMC-1422FX USB-miksepult

Profesjonelle live miksere med British EQ, FX-enhet og USB-grensesnittOppnå enkelt riktig lyd med LMC-serien fra OMNITRONIC! De utrolig brukervennlige mikserne gir en varm, naturlig lyd med fremragende audio-parametere, et omfattende funksjonssett og maksimal pålitelighet - ideell for profesjonelle studioopptak, liveopptredener og faste PA-installasjoner. Spesielt 2022FX har flere nyttige funksjoner som er uten sidestykke i denne prisklassen: feedback detection system, voice canceller, og 3D stereo surround effect.Alle mono-kanaler har ekstremt lav-støy, førsteklasses mikrofonforsterkere som tilbyr en ekstraordinær 130 dB dynamisk område, og et båndbreddeområde fra under 10 Hz til over 200 kHz for krystallklar signalgjengivelse. De utrolig varme og naturlige equalizerne brukt på alle kanalstriper er basert på klassisk "British EQ" kretser fra miksekonsoller fra 60- og 70-tallet. I tillegg har din LMC-serie mikser en studio-grade compressor med enkel one-knob funksjonalitet på hver mono-kanal pluss en 24-bit FX-processor med 16 redigerbare effekter som kan legges til individuelle kanaler, busser eller hovedmiksen. Ved å bruke det innebygde USB audio interface med opptil 48 kHz sample rate, kan du koble til din Windows eller Mac og spille inn øktene umiddelbart.

PRO audio mixer with British-style EQ, compressor, effect unit and USB interface

• 4 mono input channels with gain control, 3-way EQ, low cut and pan control
• 2 stereo input channels with 3-way EQ, level selection and balance control
• State-of-the-art, low-noise mic preamps with 130 dB dynamic range and high headroom
• Exceptional British EQs for warm and musical sound
• Studio-grade compressors with easy one-knob functionality and control LED on each mono channel
• 24-bit DSP FX unit with 16 editable presets, tap function and storable user parameter settings
• Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
• 2 AUX sends per channel: AUX 1 pre/post-fader switchable for monitoring/FX applications, AUX 3 post fader for internal FX
• ALT 3-4 stereo bus with separate faders and outputs for added routing flexibility
• 2 stereo AUX returns with flexible routing
• Clip LEDs and routing switches for mute and solo/PFL on all channels
• Balanced main mix outputs with gold-plated XLR connectors
• Control room/phones outputs with multi-input source matrix
• CD/tape input assignable to main mix or control room/phones outputs, CD/tape output
• Precise 8-digit LED level meter
• FX mute with remote control via footswitch
• +48 V phantom power, can be switched centrally
• Digital signal processor 24 bit with 16 effects
• Monochrome 2 digit 7-segment LED display
• The device can be connected via USB to the PC
• (19") 48.3 cm rack installation possible
• For application areas such as: Clubs/dancing school; stage; theater; concerts/FoH's; rental

Scope of delivery

• 1 x mixer
• 1 x user manual
• 1 x power cord
• 1 x USB cable
• 2 x angle

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	50 W
Protection class:	Protection class I
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:	20 - 20000 Hz
S/N ratio:	>110 dB
THD:	<0.05 % at 1 kHz
DSP:	Digital signal processor 24 bit with 16 effects
Phantom power:	48 V DC
Impedance:	Input: microphone 2.6 kOhm , bal. Input: line 10 kOhm , bal. Input: 2-Track 10 kOhm Input: AUX returns 10 kOhm , bal.
Gain:	Input: variable
Housing color:	Black
Crosstalk:	>89 dB
Display type:	Monochrome 2 digit 7-segment LED display
Control elements:	Encoder, power switch, phantom power switch
Status LED:	Master level meter, clip, Mute, gain reduction, phantom power; power, clip, level meter, phantom power, Mute

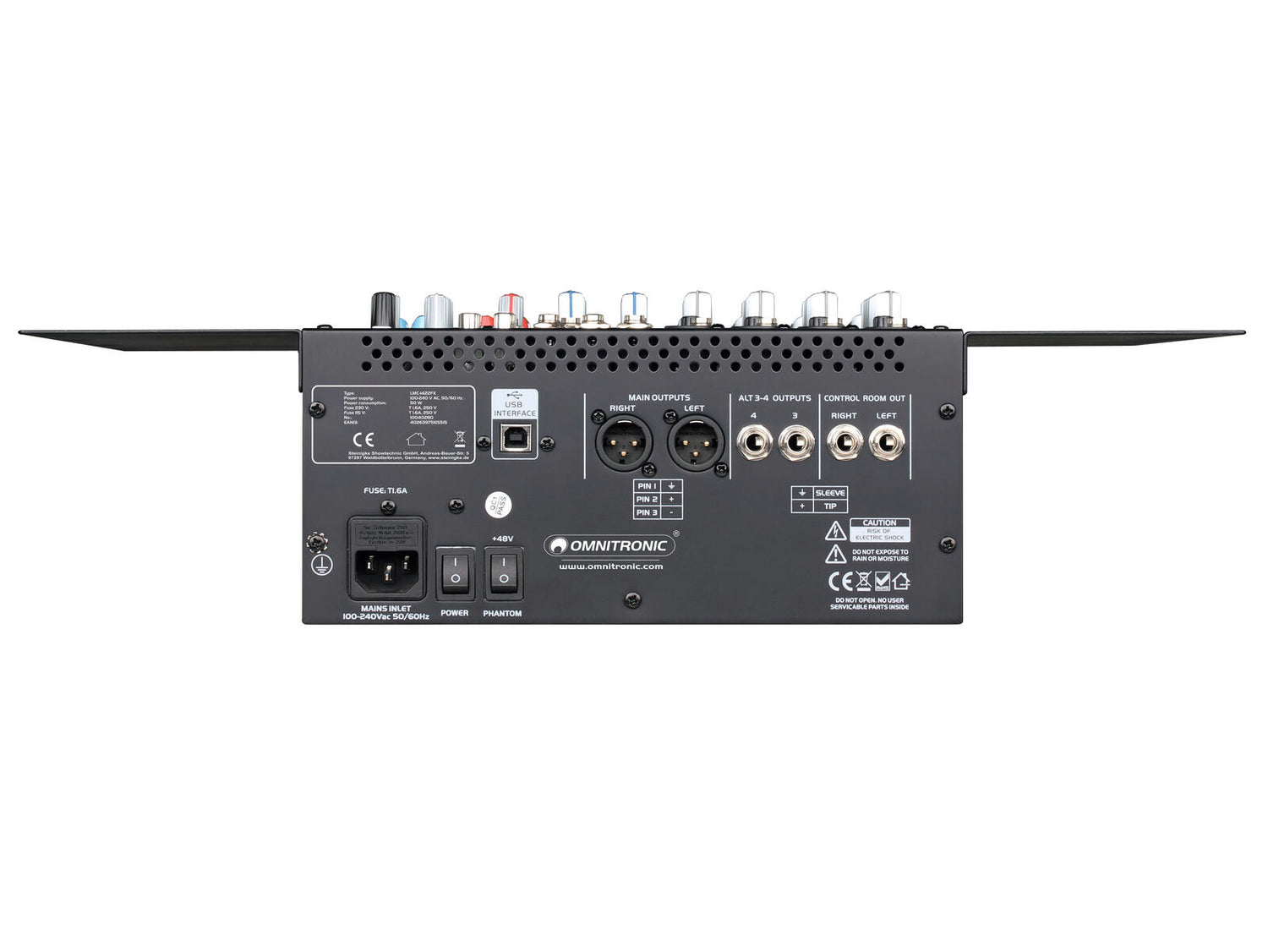

Connections:	Input: microphone via 4 x 3-pin XLR Input: line via 8 x 6.3 mm jack socket (mono) mounting version Input: 2-Track via 1 x stereo RCA Output: master via 2 x 3-pin XLR Output: sub groups via 2 x 6.3 mm jack socket (mono) mounting version Output: control room via 2 x 6.3 mm jack socket (mono) mounting version Output: AUX sends via 2 x 6.3 mm jack socket (mono) mounting version Output: AUX returns via 4 x 6.3-mm-jack (bal.) Output: rec. via 1 x stereo RCA Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
Channels:	Input channel: 4 x mono via XLR or jack, channel control via 60mm fader, 3-band tone control EQ ±15dB at 80Hz/2.5kHz/12kHz, 2 Send/AUX, pre-post switch, gain control, low cut switch, adjustable single-knob compressor, routing sub group bus switch, panoramacontol, mute control, solo switch Input channel: 2 x stereo via jack, channel control via 60mm fader, 3-band tone control EQ ±15dB at 80Hz/2.5kHz/12kHz, 2 Send/AUX, pre-post switch, Input sensitivity switch, routing sub group bus switch, balancecontrol, mute control, solo switch, low cut switch Master output: 1 x stereo, channel control via 60mm fader
Crossover frequency:	High-pass 75 Hz, 18db/oct
Max. level:	Output: master +28 dBu, bal. Output: control room +22 dBu, unbal. Output: AUX sends +22 dBu, unbal. Output: rec. +22 dBu Output: headphones +19 dBu, unbal. Output: sub groups +22 dBu, unbal.
USB port:	Type B
PC connect:	Via USB
Housing design:	(19") 48.3 cm rack installation possible
Dimensions:	Width: 48.3 cm Depth: 40 cm Height: 12.7 cm
Weight:	4.70 kg
