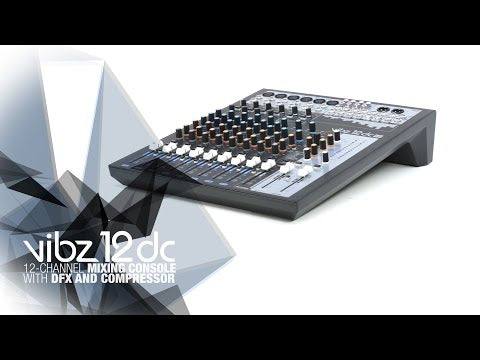

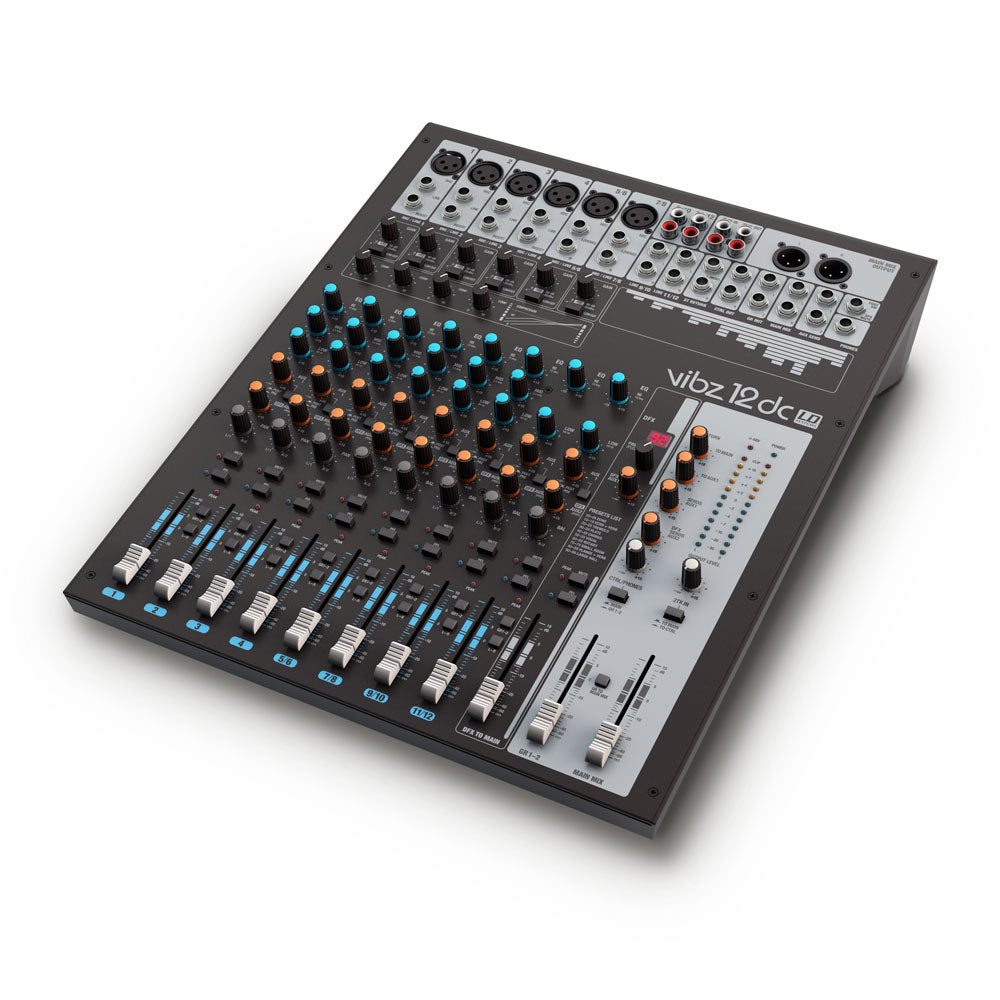

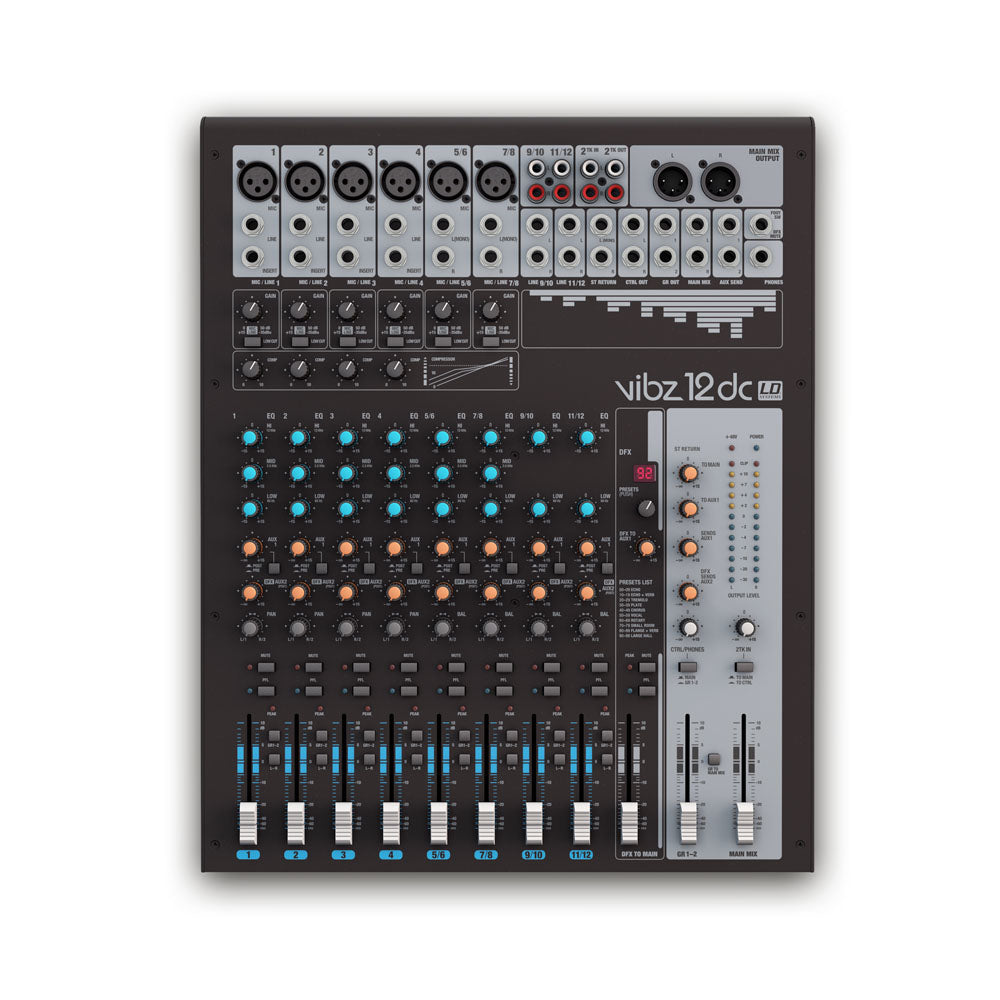

LD Systems VIBZ 12 DC - 12-kanals mixerpult med DFX og kompressor
1
av
10
Laster inn...
4 254 kr
Stk. pris kr
/
Ikke tilgjengelig
Inkl. moms
Gratis frakt
Betalingsmetoder akseptert

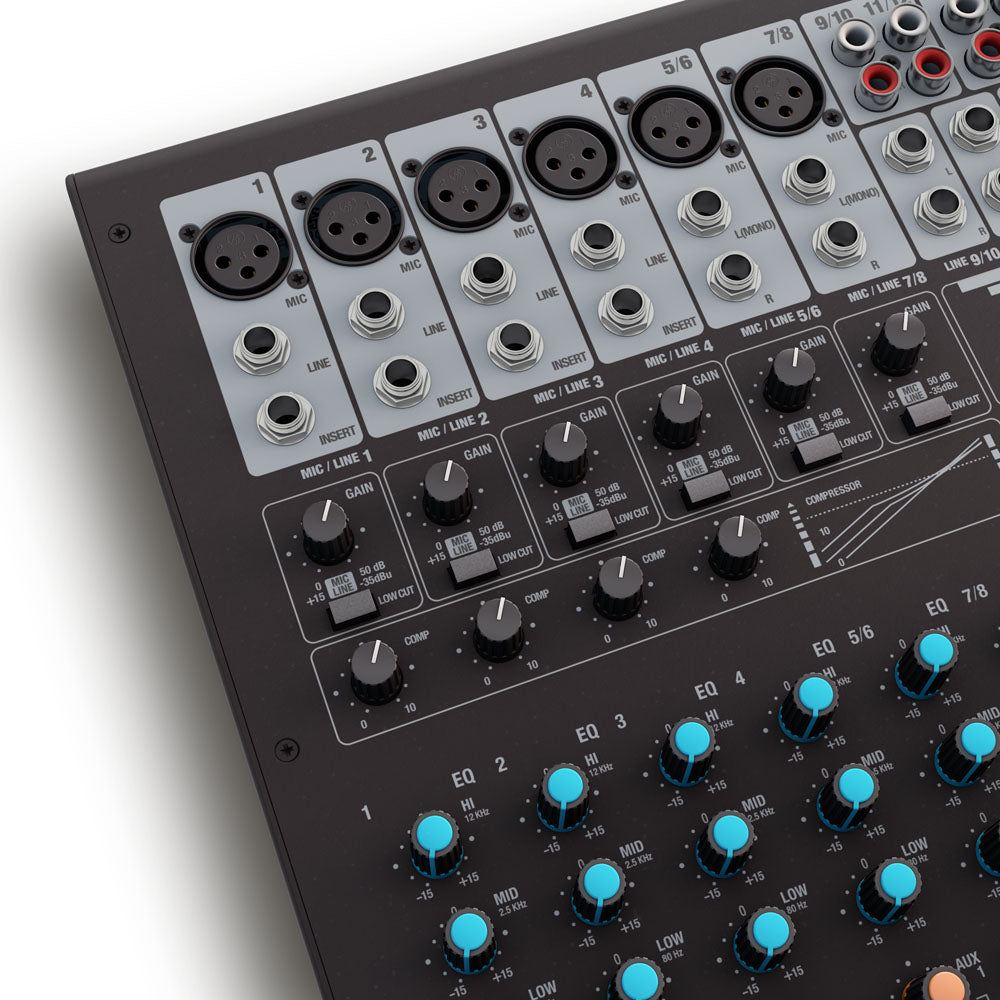

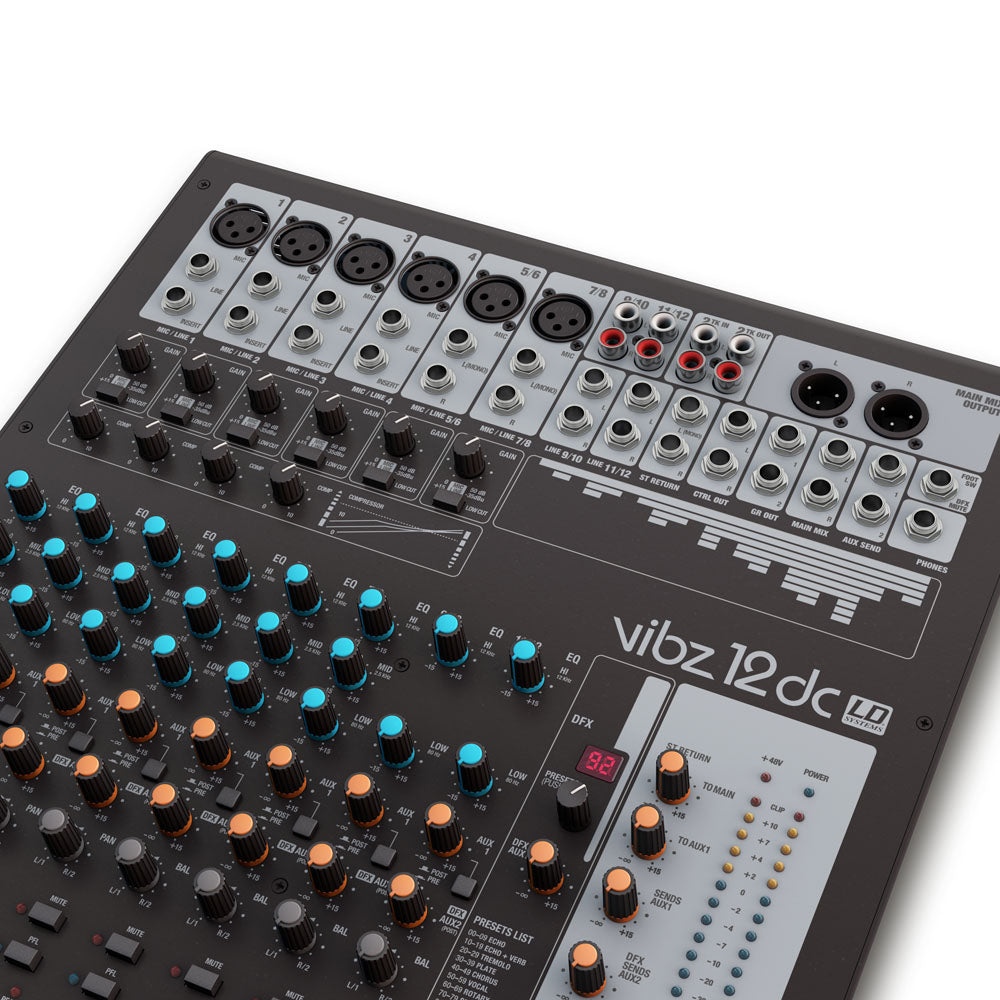

VIBZ 12 er en allsidig mixer med seks balanserte mikrofoninnganger med høykvalitets forforsterkere, et low-cut-filter, en effektiv 3-bånds EQ med praktisk valgte mellomtonefrekvenser og omkoblingsbar phantom power.
Fire mikrofonkanaler kan behandles separat ved hjelp av den innebygde kompressoren for effektiv kontroll av dynamikken; ytterligere to kan alternativt brukes som stereolinekanaler. De øvrige stereokanalene er utstyrt med 2-bånds EQ.

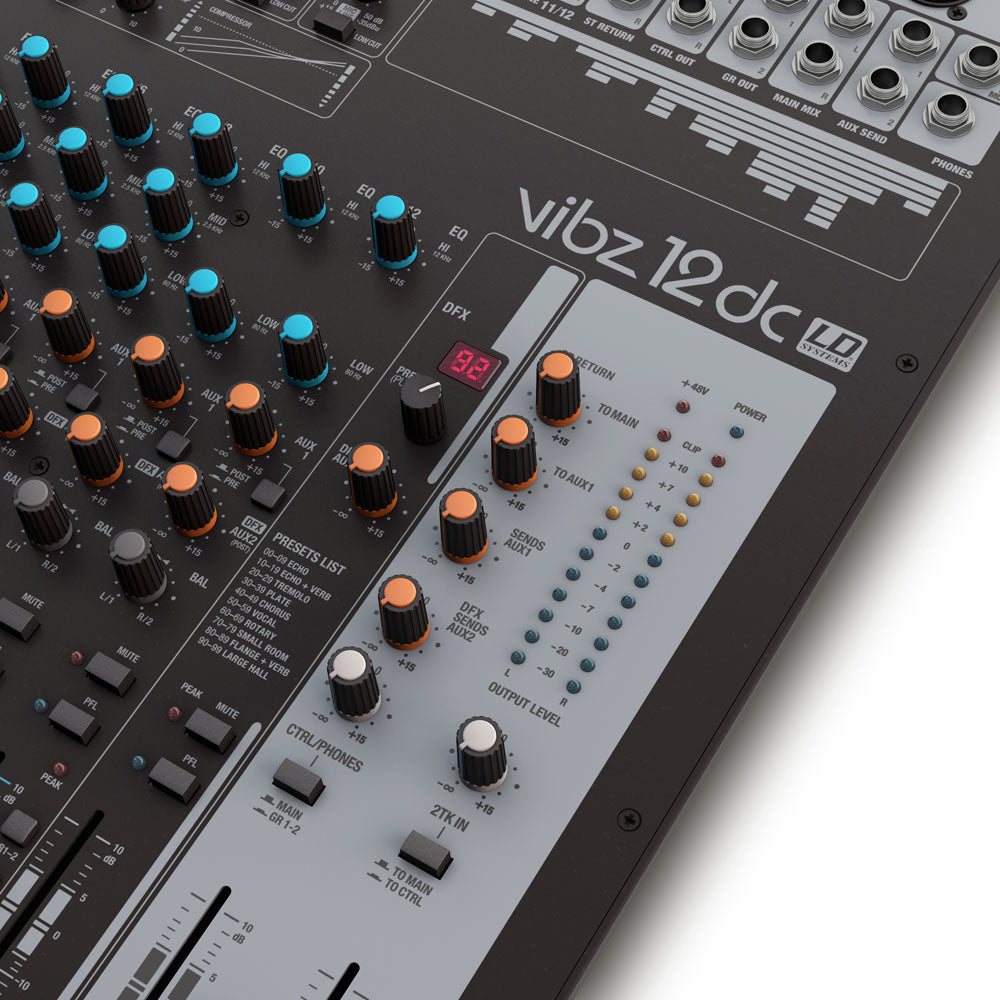

Mikserens masterseksjon omfatter to effektloops, balanserte XLR-utganger, gruppe- og monitorutganger samt en hodetelefonutgang. VIBZ 12 har også RCA-tilkoblinger for opptaks- og avspillingsenheter samt en digital effektseksjon med 100 presets.
Med nøkkelfunksjoner som PFL-funksjonen og Mute-knappene, samt sin naturlige, transparente lyd, er VIBZ 12 det perfekte valget for liveopptredener, installasjoner og krevende home recording-bruk.
- 12-channel mixer with 6 microphone channels
- 4 stereo line inputs
- Effective 3-band EQ
- 2 stereo channels with 2-band EQ
- Sliding adjustable compressor
- Digital Effects Section with 100 Presets
- Master, Monitor, Groups and headphone outputs
- Built in power supply
| Product type | Mixers |
| Type | Live |
| Channels | 12 |
Mono Channels:
| Mono Mic and Line Input Channels | 4 |
| Mono Mic input connectors | 6.3 mm TRS |
| Mono Mic input connectors | XLR |
| Mono Mic Input Type | Electronically balanced |
| Mono Mic Input Frequency Range | 10 - 45000 Hz |
| Amplification Range mono Mic Input | 0 - 50 dB |
| Mono Mic Input Input THD-N | 0.0058% |
| Mono Mic Input Impedance | 4k Ohm(s) |
| Mono Mic Input S/N Ratio | 113 dB |
| Mono Line Input Type | Electronically balanced |
| Mono Line Input Frequency Range | 10 - 45000 Hz |
| Amplification Range mono Line Input | 0 - 50 dB |
| Mono Line Input Input THD-N | 0.0045 % |
| Mono Line Input Impedance | 21k Ohm(s) |
| Mono Line Input S/N Ratio | 116 dB |
| Mono Channel Equalizer High | +/- 15 dB @ 12000 Hz |
| Mono Channel Equalizer Mid | +/- 15 dB @ 2,500 Hz |
| Mono Channel Equalizer Low | +/- 15 dB @ 80 Hz |
| Controls Mono Mic and Line Input Channels | 3-band EQ (High, Mid, Low) |
| Controls Mono Mic and Line Input Channels | AUX 1 umschaltbar Pre/Post |
| Controls Mono Mic and Line Input Channels | AUX 2 (DFX) Post |
| Controls Mono Mic and Line Input Channels | Compressor |
| Controls Mono Mic and Line Input Channels | DFX/AUX 1 |
| Controls Mono Mic and Line Input Channels | Gain |
| Controls Mono Mic and Line Input Channels | Low Cut (75 Hz) |
| Controls Mono Mic and Line Input Channels | PFL |
| Phantom power | 48 V DC switchable |
Stereo Channels:
| Stereo Line Input Channels | 4 |
| Stereo Line Input Connectors | 6.3 mm TRS |
| Stereo Line Input Connectors | RCA |
| Stereo Line Input Type | Electronically balanced |
| Stereo Line Input Type | Unbalanced |
| Stereo Line Input Frequency Range | 10 - 45000 Hz |
| Amplification Range stereo Line Input | 0 - 50 dB |
| Stereo Line Input Input THD-N | 0.0045 % |
| Stereo Line Input Impedance | 3,7k Ohm(s) |
| Stereo Line Input S/N Ratio | 116 dB |
| Stereo channel equalizer treble | +/- 15 dB @ 12000 Hz |
| Stereo channel equalizer mids | +/- 15 dB @ 2500 Hz |
| Stereo channel equalizer bass | +/- 15 dB @ 80 Hz |
| Controls Stereo Line Input Channels | 2-band EQ (High,Low) |
| Controls Stereo Line Input Channels | 3-band EQ (High, Mid, Low) |
| Controls Stereo Line Input Channels | AUX 1 umschaltbar Pre/Post |
| Controls Stereo Line Input Channels | AUX 2 (DFX) Post |
| Controls Stereo Line Input Channels | Balance |
| Controls Stereo Line Input Channels | Channel Volume |
| Controls Stereo Line Input Channels | DFX/AUX 1 |
| Controls Stereo Line Input Channels | Gain |
| Controls Stereo Line Input Channels | Low Cut |
Main Section:
| AUX / Effects Send Channels | 2 |
| AUX / Effects Send Connectors | 6.3 mm TRS |
| Stereo AUX Return Channels | 1 x stereo |
| Stereo AUX Return Connectors | 6.3 mm TRS |
| Stereo Tape Out Channel | 1 x stereo |
| Stereo Tape Out Connectors | 2 x RCA (Cinch) |
| Stereo Tape In Channel | 1 x stereo |
| Stereo Tape In Connenctors | 2 x RCA (Cinch) |
| Balanced Stereo Main Out | 1 |
| Balanced Stereo Main Out Connectors | XLR |
| Balanced Stereo Main Out Impedance | 120 Ohm(s) |
| Max. Balanced Stereo Main Out Level | 23 dBu |
| Stereo Control Room Out | 1 |
| Stereo Control Room Out Connectors | 6.3 mm TRS |
| Headphones ouput | 1 |
| Headphones outputs | 6.3 mm TRS |
| Digital Effects Processor | Yes, 24-bit AD/DA Resolution |
| Number of Presets | 100 |
| Footswitch Connector DFX Mute | 6.3 mm TRS |
| Main section controls | 2-track Assignment (Main, Contr. Room) |
| Main section controls | 2-track In Volume |
| Main section controls | AUX 2 Send Volume |
| Main section controls | CTRL / Phones assignment (Main/Group 1-2) |
| Main section controls | DFX Mute Schalter |
| Main section controls | DFX TO AUX Volume |
| Main section controls | DFX To Main Volume |
| Main section controls | Group 1-2 Volume |
| Main section controls | Group 1-2 assignment to Main MIX |
| Main section controls | Master Volume |
| Main section controls | PFL |
| Main section controls | Phantom Power |
| Main section controls | Power |
| Main section controls | Stereo Return to AUX Volume |
| Main section controls | Stereo Return to MAIN Volume |
| Main section controls | Volume Control CTRL / Phones |
| Main section controls | presets |
| Indicators | DFX Peak |
| Indicators | DFX TO MAIN |
| Indicators | PFL |
| Indicators | Phantom Power |
| Indicators | Power |

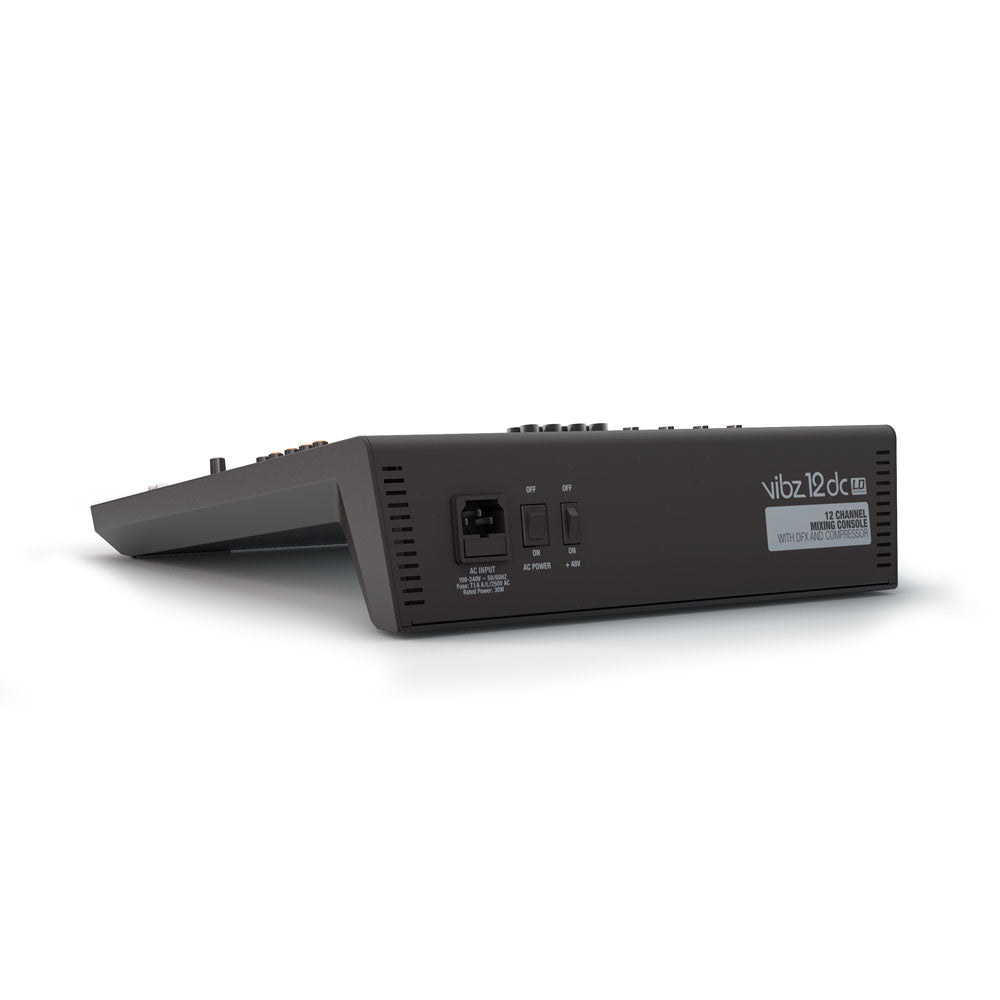

| Power supply | 100 V AC - 240 V AC, 50 - 60 Hz |
| Width | 350 mm |
| Height | 98 mm |
| Depth | 440 mm |
| Weight | 4,3 kg |
