ART Rackmixer 8-kanals stereo

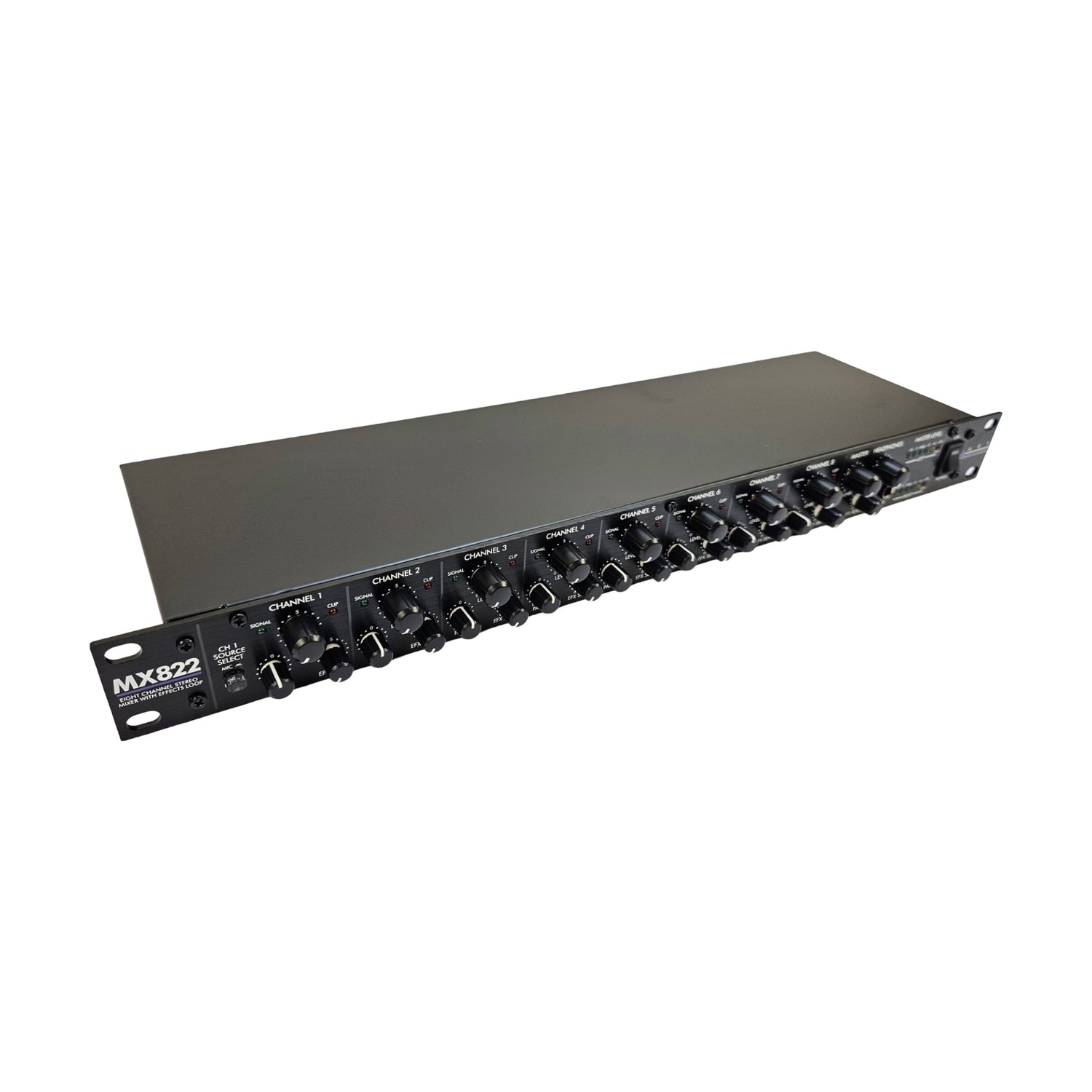

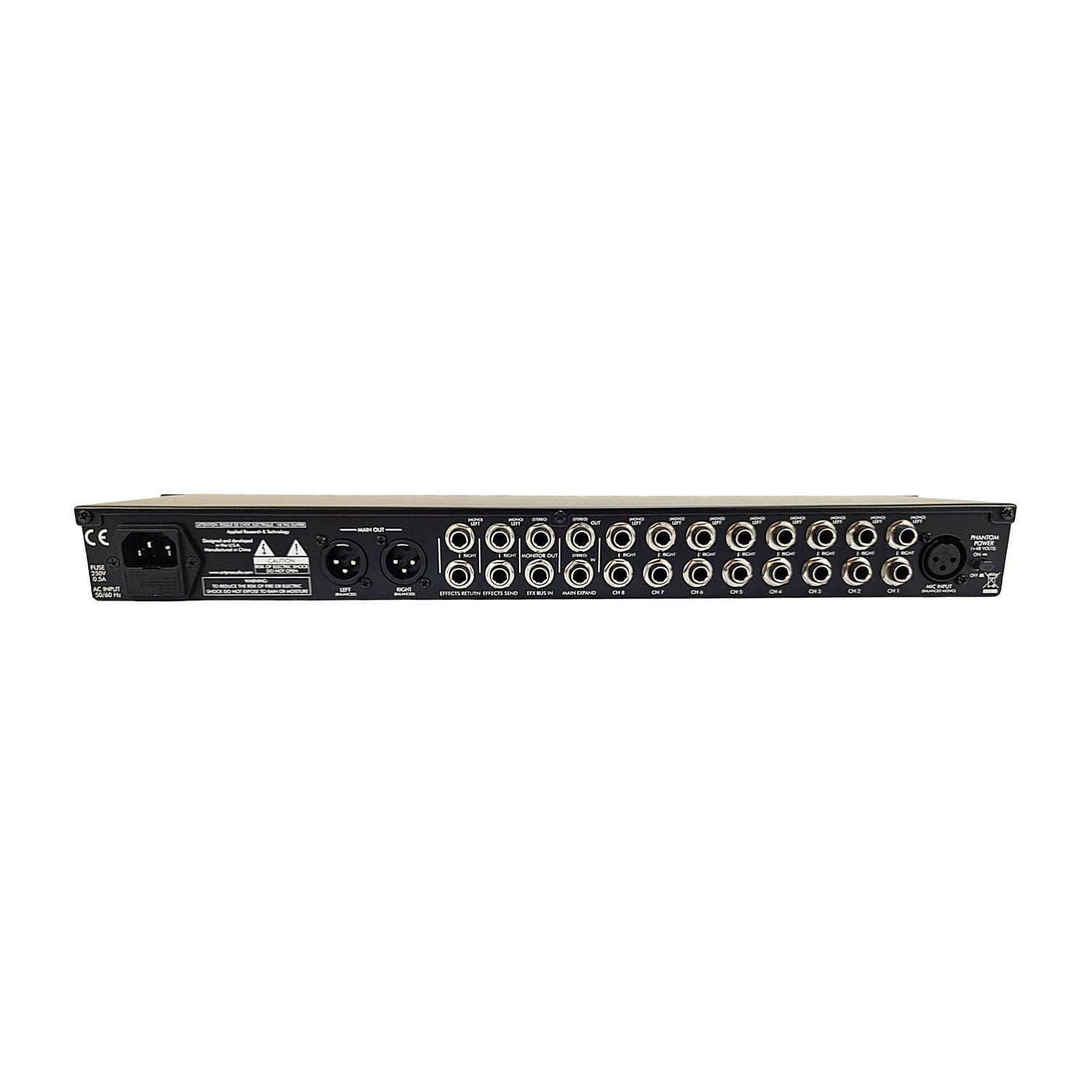

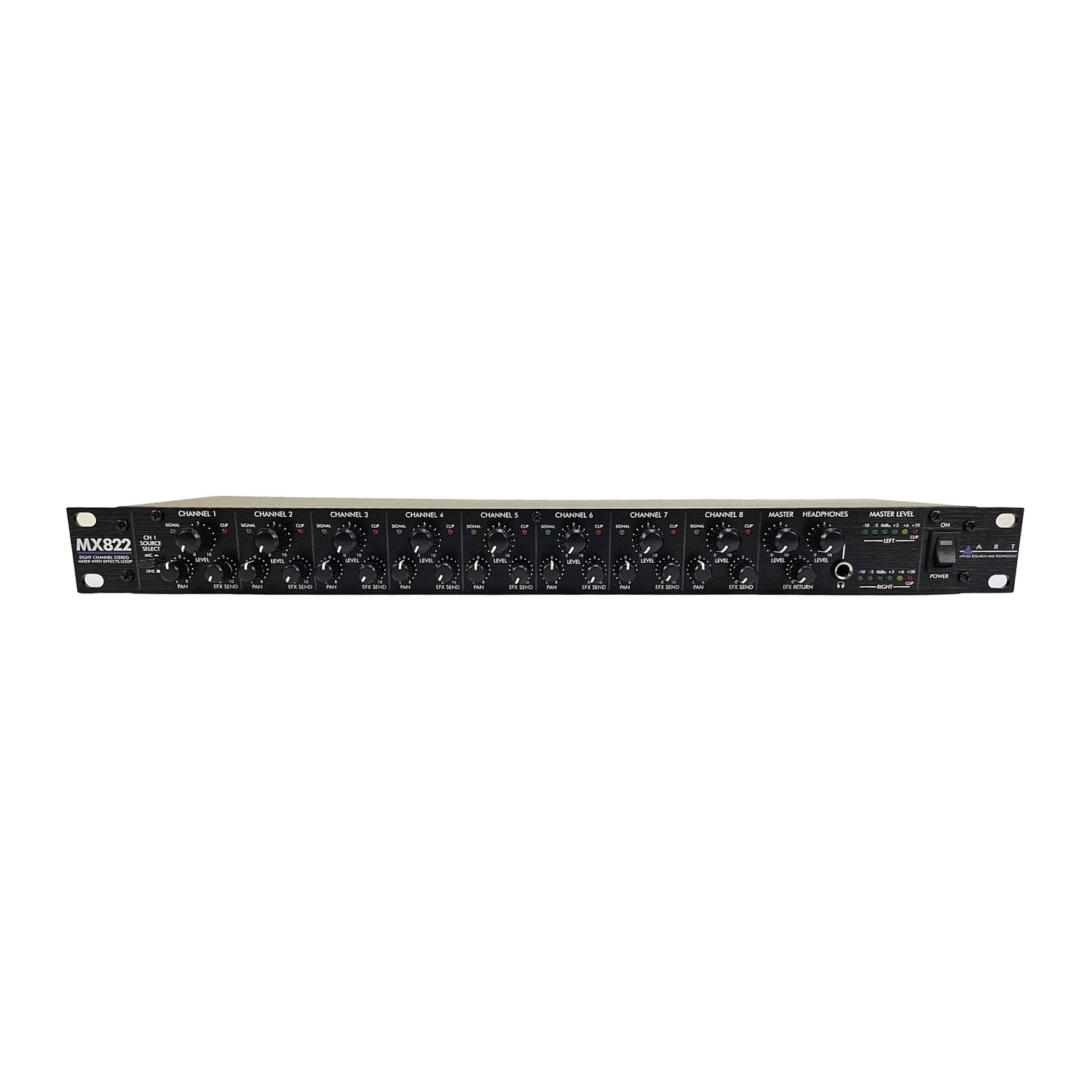

ART MX822CE Mixer 8 kanaler stereo

ART MX822 8-Channel Stereo Rackmount Mixer er en allsidig mixer med 8 inputs for studio, live-lyd eller installasjonsapplikasjoner. Hvert input aksepterer mono eller stereo-signal og tilbyr uavhengig level, panorering og effektsend-kontroll. Kanal-1 inkluderer en switchable mic/line-kilde og XLR mikrofon-stikket tilbyr switchable phantom-power.

Flere MX822 kan kobles sammen for ekstra inputs med vanlige 1/4" TRS-kabler. Eksterne effektprosessorer kan linkes inn og mixes via uavhengig level-kontroll. Et hodetelefon-jack på frontpanelet med separat level-kontroll muliggør uavhengig overvåkning.

Eight stereo/mono input channels with individual level, pan and effects send controls
External effects loop with independent send and return controls
Front panel 1/4-inch stereo (TRS) headphone jack with amplifier and independent level control for
output monitoring
Switchable balanced microphone XLR or 1/4-inch inputs on Channel One
Switchable low noise +48V phantom power for microphone input
Separate green and red LED signal and clip indicators for each input channel
Six level left and right main output metering including clip indicators
Balanced left and right XLR main outputs
Multiple units may be chained together for additional inputs
Rugged 1U rack mount steel case

Input Connections: XLR-F balanced (MIC), 1/4" TRS unbalanced (Ch1-Ch8, Effects Return), 1/4" TRS stereo unbalanced (EFX Buss, Main Expand)
Output Connections: XLR-M balanced (Main), 1/4" TRS unbalanced (Effectss Send), 1/4" TRS stereo unbalanced (Monitor, Main Expand, Headphone)
Input Impedance: 1k Ohm (MIC), 5k Ohm (Ch1-Ch8)
Output Impedance: Total Harmonic Distortion: Signal to Noise Ratio: > 90dB typical (Ref 0dBu)
Maximum Input Level: -19dBu (MIC), +24dBu (Ch1-8)
Maximum Output Level: +24dBu (Main), +18dBu (Monitor, Effects Send)
Maximum Gain: +60dB (MIC), +14dB (Ch1-8)
Phantom Power: Switch Selectable, +48V DC, filtered, current limited
Power Requirements: USA - 95 to 125 VAC, 50-60 Hz
Export units configured for country of destination
Dimensions: 1.75"H x 19"W x 6"D (44.5mm x 483mm x 152mm)
Weight: 6.5 lbs (2.95 kg)
