ART 8-kanals rackmikser

ART MX821S Mixer 8 kanaler

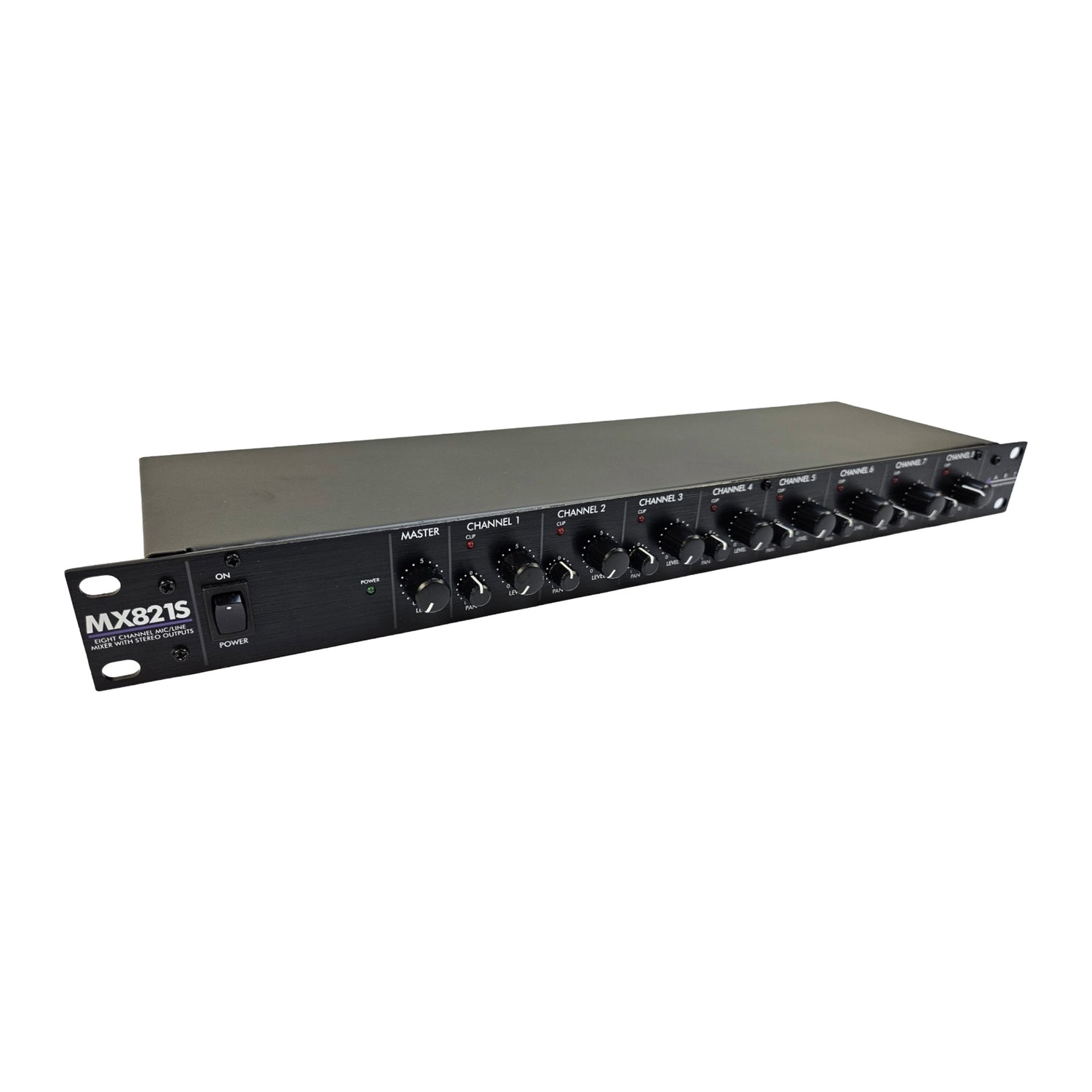

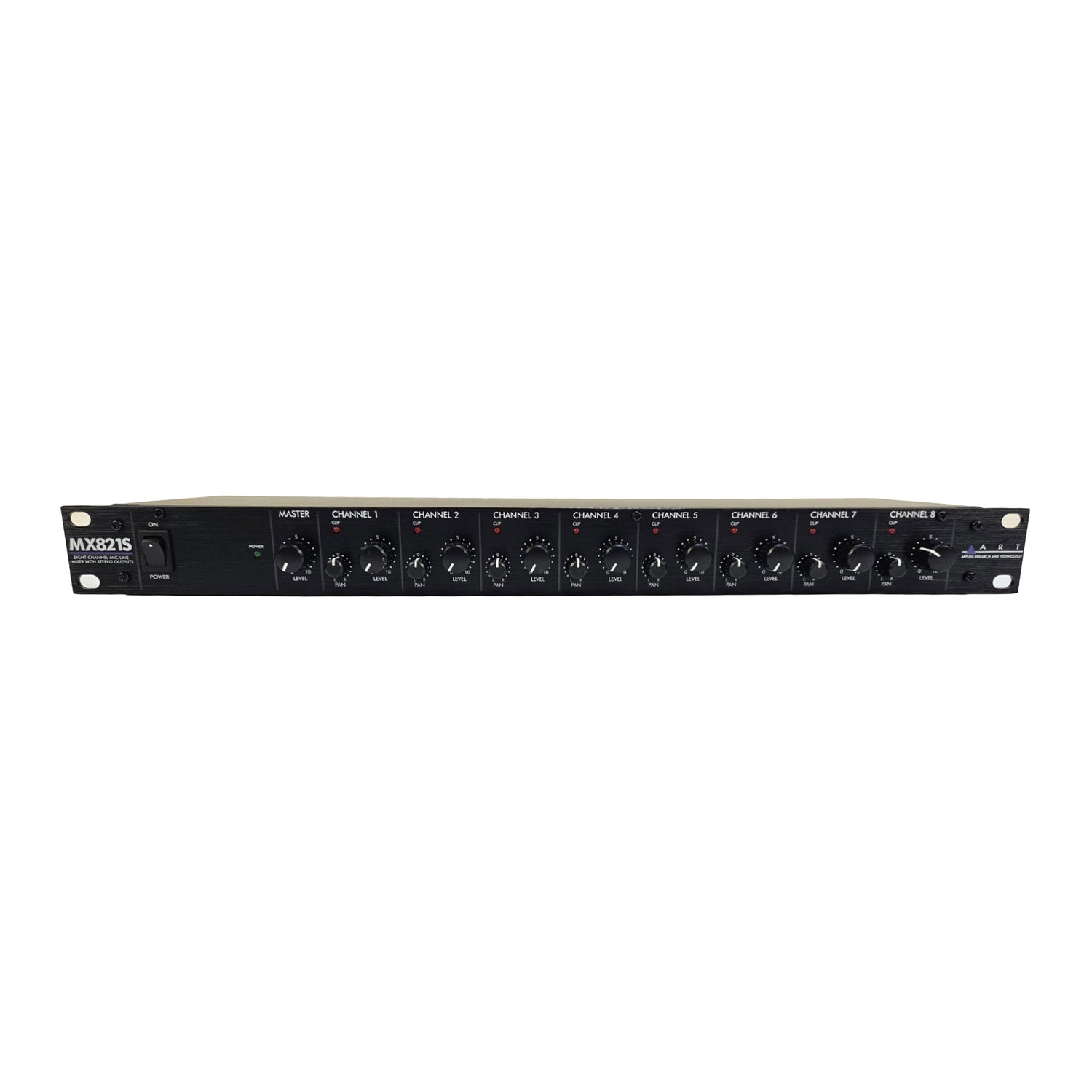

ART MX821S er en allsidig rackmount-mikser som kombinerer åtte uavhengige inputkanaler i et stereo line-nivå output. Hver inputkanal aksepterer en balansert XLR mikrofon-input, eller et ubalansert 1/4" TS line-nivå signal og tilbyr uavhengig nivå- og panorkontroll.

+48V phantom-power kan velges uavhengig på hvert mikrofon-input. Master-level kontrollen justerer signalets output hos lavimpedans balanserte 1/4" TRS-jacks. Prefade-output (påvirkes ikke av master-level kontrollen) og Aux-Bus input RCA-jacks tillater patching av flere enheter når flere kanaler er nødvendig.

ART MX821S kan brukes både på scenen, i studio eller til permanente installasjoner. Den innebygde strømforsyningen og 19" rackmount-formatet gjør enheten lett å installere og gir langsiktig, pålitelig drift.

Eight input channels with individual level and pan controls
Pan controls place each input mono signal anywhere in the output stereo image
Balanced microphone XLR or unbalanced 1/4-inch TS inputs on each channel
Full +48V low noise phantom power switchable for each microphone input
Balanced left and right 1/4-inch TRS main output jacks with master level control
Prefade Output jacks and Aux Bus Input jacks allow units to be chained to provide extra inputs
Each line input jack may be individually converted to a direct line output by means of internal jumpers
Rugged 1U rack-mount steel chassis with built-in power supply
Perfect for stage, studio and permanent installations

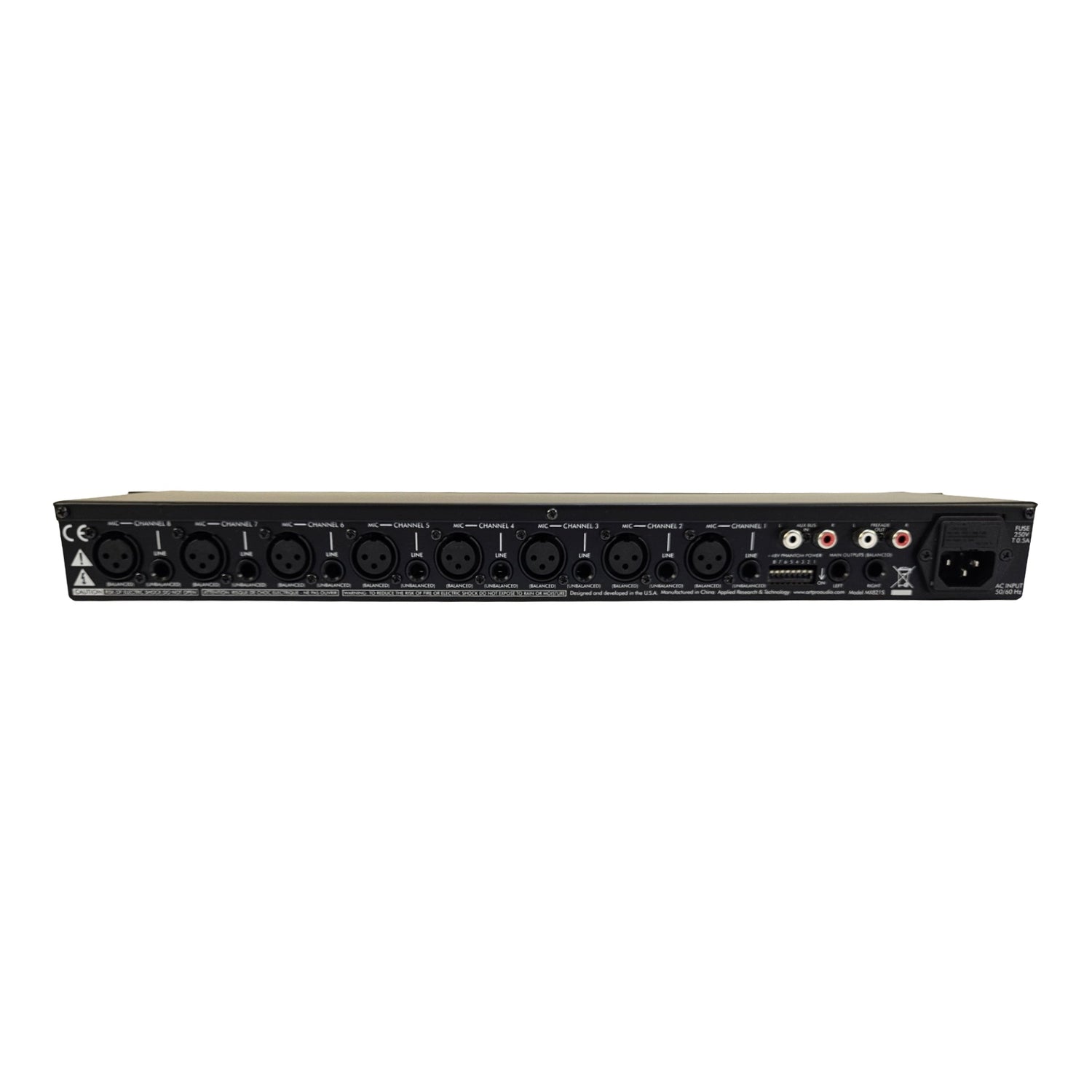

Input Connections: XLR female balanced (Mic, channels 1-8), 1/4-inch TS unbalanced (Line, channels 1-8), RCA unbalanced (Aux Bus In, Left and Right)
Output Connections: 1/4-inch TRS balanced (Main Outputs, Left and Right), RCA unbalanced (Prefade Out, Left and Right)
Input Impedance: 2k Ohm (Mic), 20k Ohm (Line), 51k Ohm (Aux Bus In)
Output Impedance: 200 Ohm (Main Outputs, balanced), 100 Ohm (Prefade Out)
Frequency Response: 20 Hz - 20 kHz (+0, -1 dB) (CH 1-8 in, M
Total Harmonic Distortion: Phase Response: All connections are phase coherent
Signal to Noise Ratio: >99dB typical (Ref 0dBu)
CMRR: >43 dB typical
Maximum Input Level: -4 dBu (Mic), +22 dBu (Line)
Maximum Output Level: +24 dBu (balanced), +18 dBu (unbalanced)
Maximum Gain: 54 dB (Mic), 29 dB (Line)
Phantom Power: Switch Selectable, +48V DC (regulated and filtered), 7 mA current limiting per leg
Power Requirements: USA: 95-125 VAC, 50-60 Hz, Dimensions: 1.75" x 19" x 6" (4.5cm x 48.3cm x 15.2cm)
Weight: 6.3 lbs (2.9 kg)
