Pioneer DJ TORAIZ AS-1 Synthesizer

• Laget med Dave Smith
• Prophet-6 analoge lyder
• 2 VCO, 2 VCF, VGA, 2 EG og 1 LFO
• 496 forhåndsinnstillinger
• Profet 6 effekter
• Tastatur og skalamodus

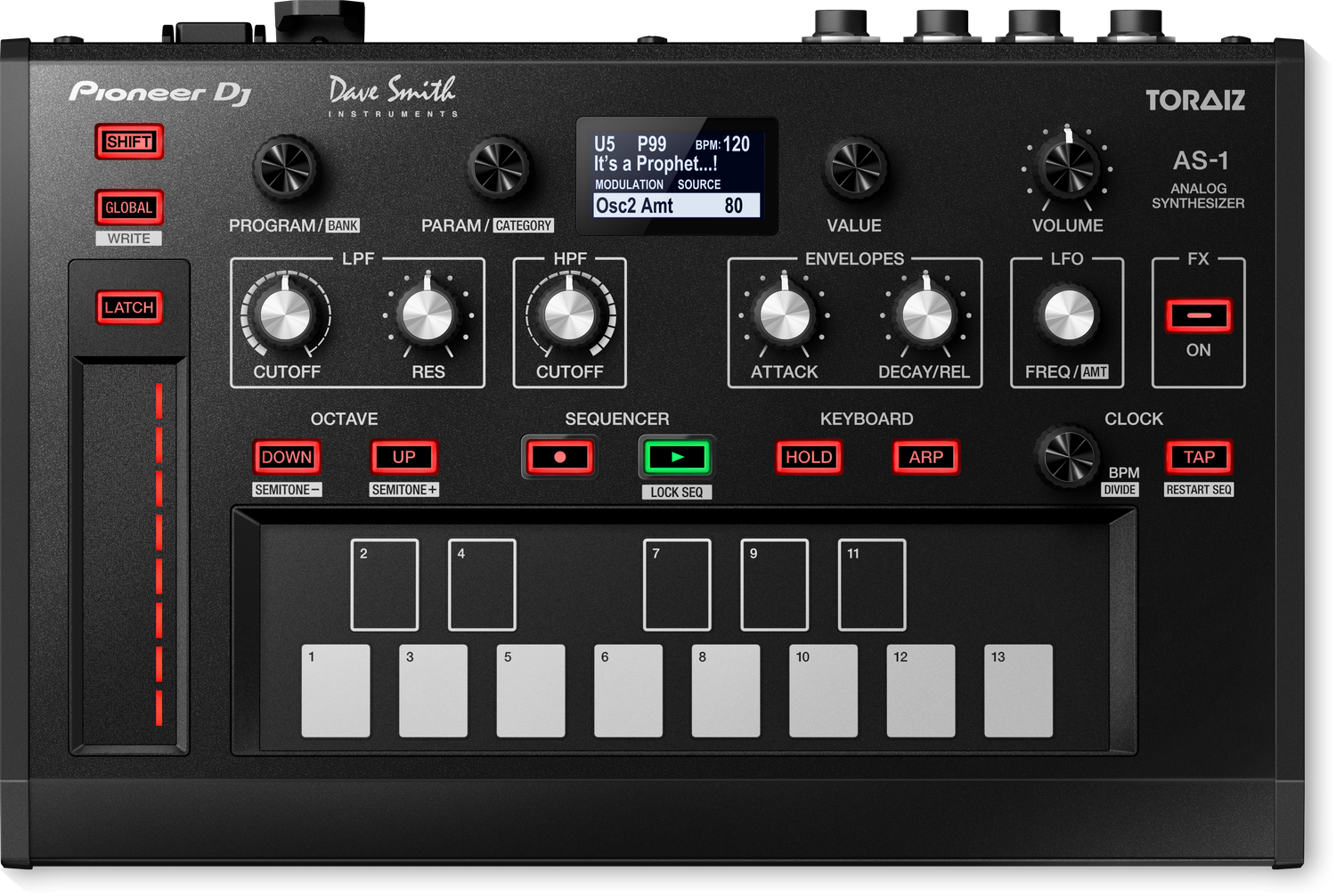

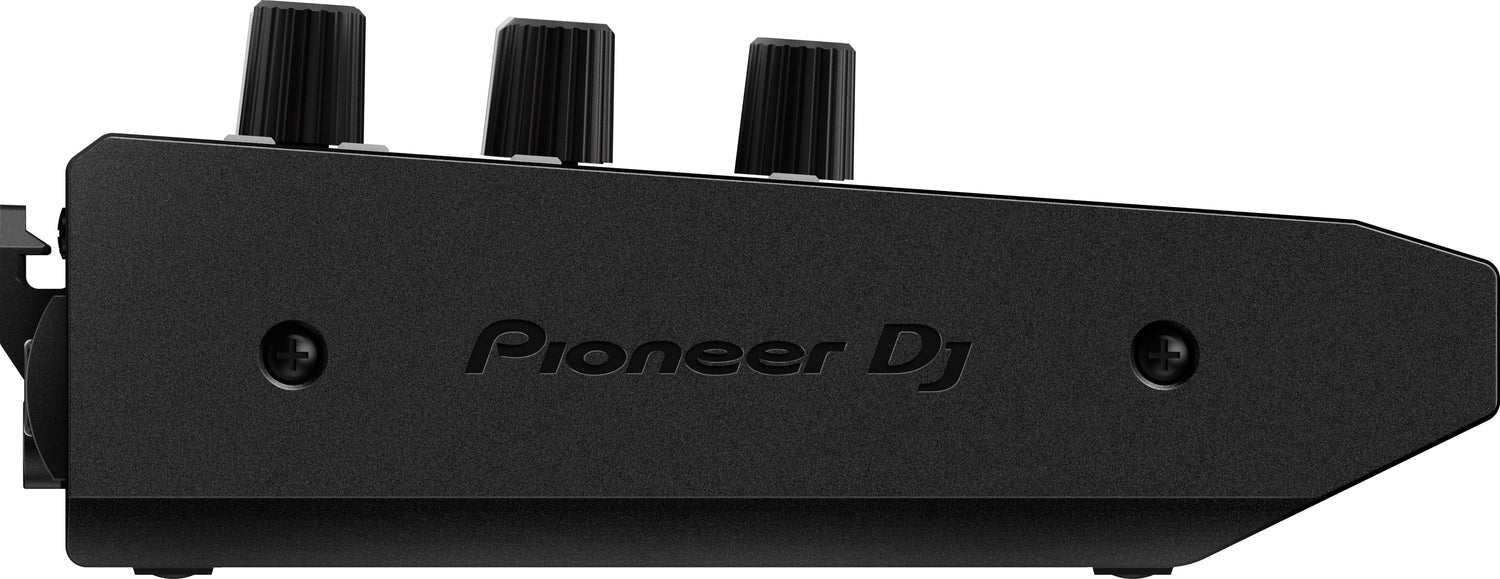

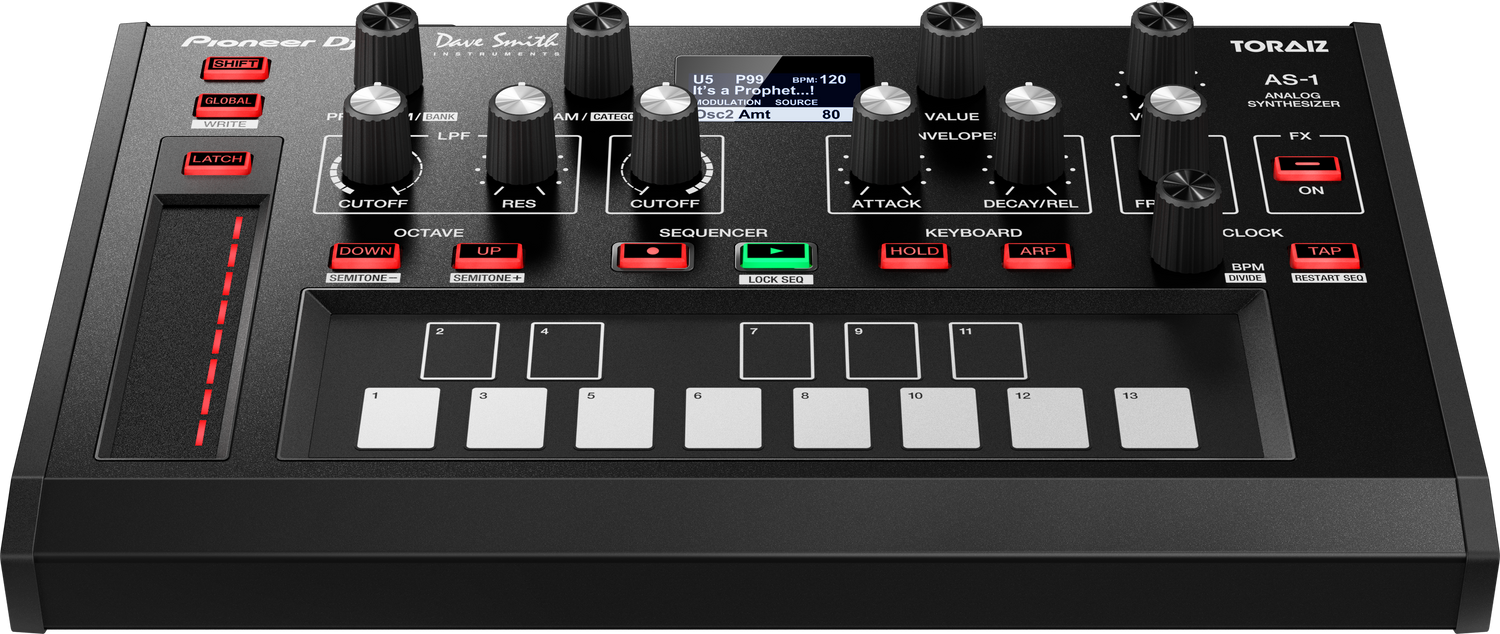

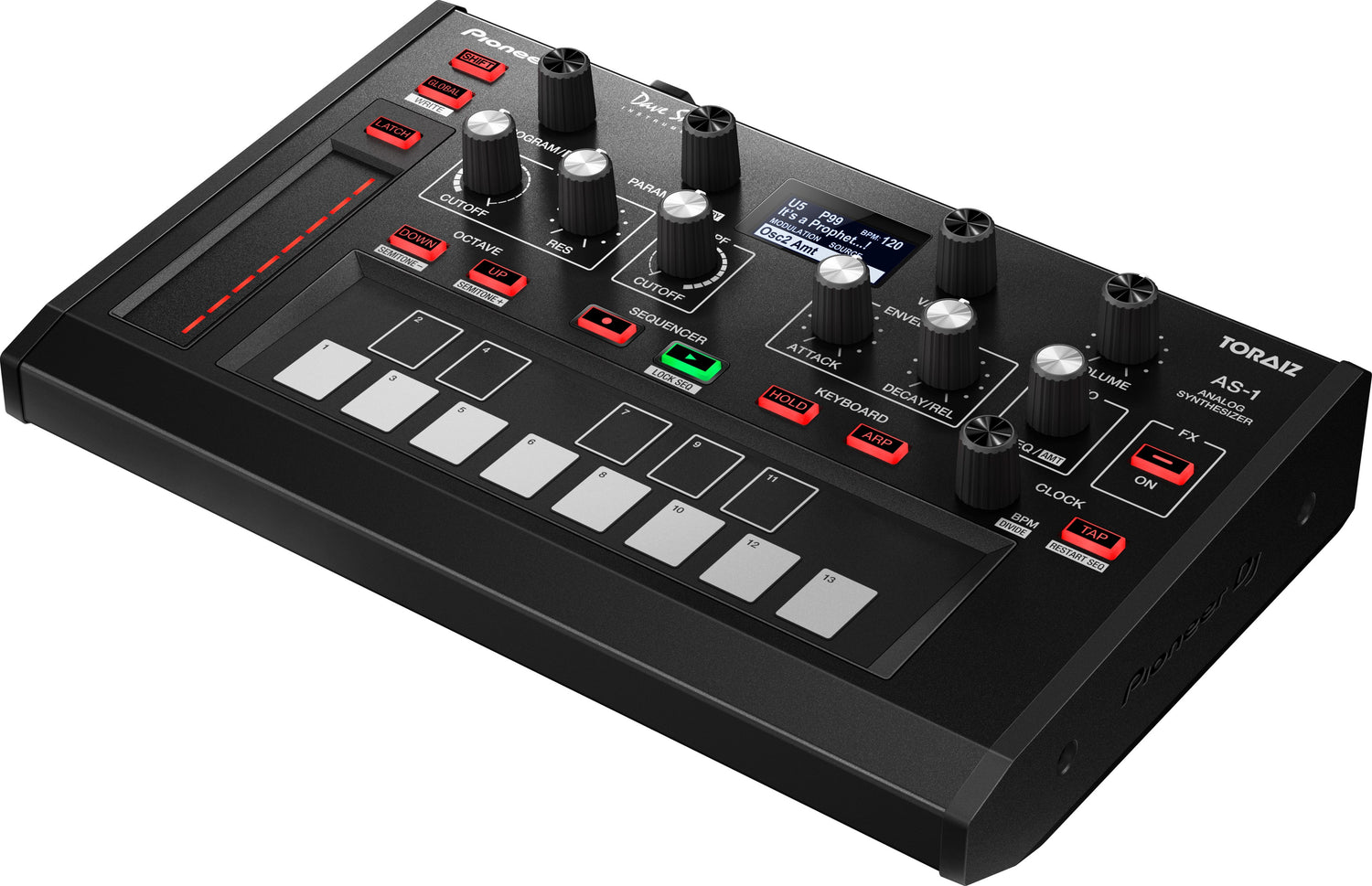

Pioneer TORAIZ AS-1 monofonisk analog synthesizer

Pioneer TORAIZ AS-1 Monophonic Analog Synthesizer er Pioneers nyeste kontroller som gir kreative muligheter både i studio og live på scenen. Analog synthesizer laget etter "Dave Smith Prophet 6" synthesizer

Specifikationer

Synthesis Parameters
Oscillator 1

• Frequency

• Pulse Width

• Sync (Off, On)

Oscillator 1 Waveshapes (continuously variable)

• Triangle

• Sawtooth

• Variable-width Pulse

Oscillator 2

• Frequency

• Fine

• Pulse Width

• Key Follow (Off, On)

• Low Frequency (Off, On)

Oscillator 2 Waveshapes (continuously variable)

• Triangle

• Sawtooth

• Variable-width Pulse

Oscillators
Slop
Mixer

• Oscillator 1 Level

• Oscillator 2 Level

• Sub Level

• Noise Level

Low-pass Filter

• Cutoff

• Resonance

• Key Amount (Off, Half, Full)

• Velocity (Off, On)

High-pass Filter

• Cutoff

• Resonance

• Key Amount (Off, Half, Full)

• Velocity (Off, On)

Filter Envelope

• Low-pass Filter Amount

• High-pass Filter Amount

• Attack

• Decay

• Sustain

• Release

AMP Envelope

• Amount

• Velocity (Off, On)

• Attack

• Decay

• Sustain

• Release

Glide

• Rate

• Off, On

• Mode (Fixed Rate, Fixed Time, Fixed Rate A, Fixed Time A)

LFO

• Frequency

• Sync (Off, On)

• Initial Amount

LFO Shapes

• Triangle

• Reverse Sawtooth

• Sawtooth

• Square

• Random

LFO Destination

• Oscillator 1 Frequency

• Oscillator 2 Frequency

• Oscillator 1 and 2 Pulse Width

• Low-pass Filter Cutoff

• High-pass Filter Cutoff

• VCA

Modulation Source

• Filter Envelope

• Oscillator 2 Amount

Modulation Destination

• Oscillator 1 Frequency

• Oscillator 1 Shape

• Oscillator 1 Pulse Width

• Low-pass Filter Cutoff

• High-pass Filter Cutoff

Effects
FX 1 Types

• Bucket-brigade Delay

• Distortion

• Ring Modulation

FX 2 Types

• Chorus

• Low Resonance Phaser

• High Resonance Phaser

• Maestro Phaser

Parameters
Each effect has 2 adjustable parameters
Sequencer
Step Length
Up to 64 steps
Parameters

• Key, Velocity, Slew (Off, On) for each step

• BPM (shared with arpeggiator)

• Time Divide (shared with arpeggiator)

Arpeggiator
Mode

• Up

• Down

• Up + Down

• Random

• Assign

Range
1 ~ 3 octaves
Parameters

• BPM (shared with sequencer)

• Time Divide (shared with sequencer)

Performance Controls
Keyboard

• 13-key touch keyboard

• 22 preset scales

• 9 octaves: C0 ~ C9 (use with Oscillator 1 and 2 frequency parameters)

Slider Parameters (multi assignable)

• Oscillator 1 Frequency

• Oscillator 2 Frequency

• Low-pass Filter Amount

• High-pass Filter Amount

• LFO Amount

• FX 1 Mix

• FX 2 Mix

OLED Display
Able to access all parameters
MIDI Controllable Parameters
Aftertouch
Amount
Aftertouch Destination

• Oscillator 1 Frequency

• Oscillator 2 Frequency

• Low-pass Filter Cutoff

• High-pass Filter Cutoff

• VCA

• LFO Amount

Pitch Bend Range
Up to -/+ 12 semitones
Miscellaneous
Key Mode

• Low

• High

• Last

• Low Retrigger

• High Retrigger

• Last Retrigger

Alternative Tuning
17 preset tunings

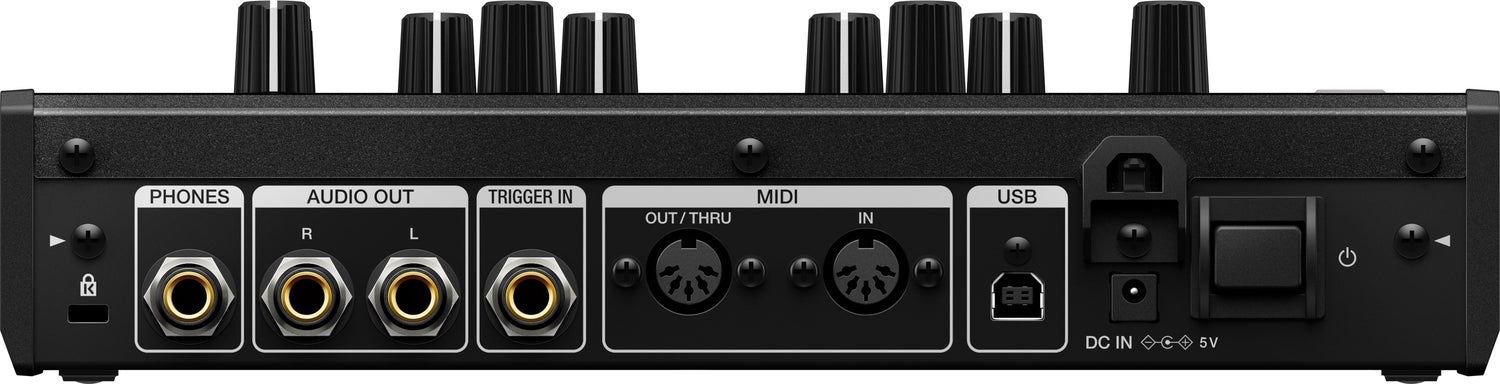

Terminals
Outputs

• 1 AUDIO OUT L/R (1/4 inch TS Jacks)

• 1 PHONES (1/4 inch stereo phone Jack)

MIDI

• 1 MIDI IN (5P DIN)

• 1 MIDI OUT/THRU (5P DIN)

USB
1 USB B port
Others
1 TRIGGER IN (1/4 inch TS jack)
Trigger Input

• Able to connect a general foot switch or input audio signals

• Able to set the operation from 4 types:

• Pedal

• Trigger

• Gate

• Trigger-Gate

Power Supply
Included Accessories

• AC adaptor

• Power cord

• Quick Start Guide

• warranty
