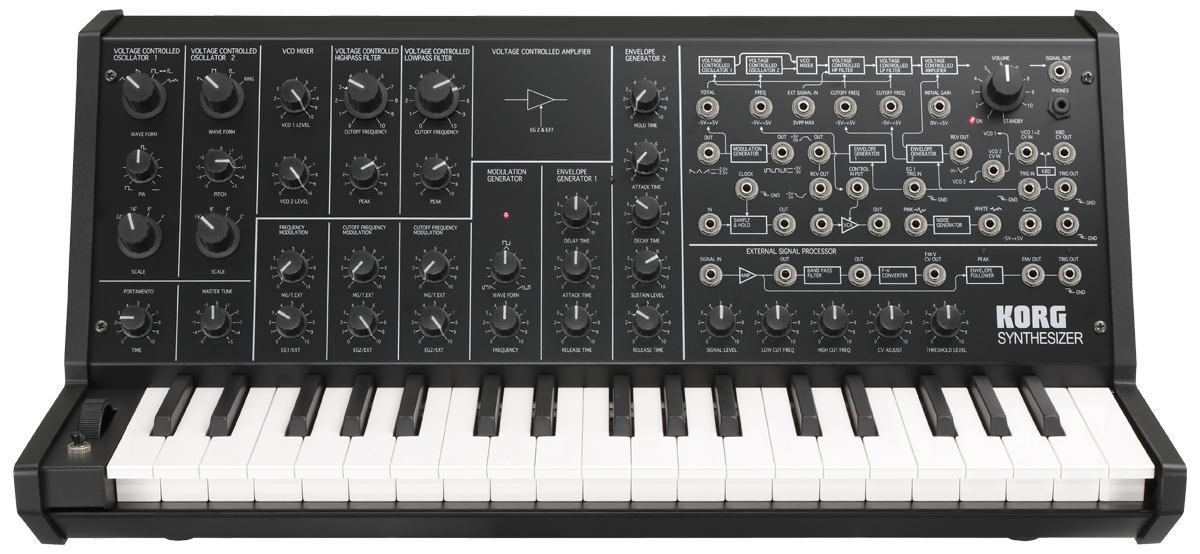

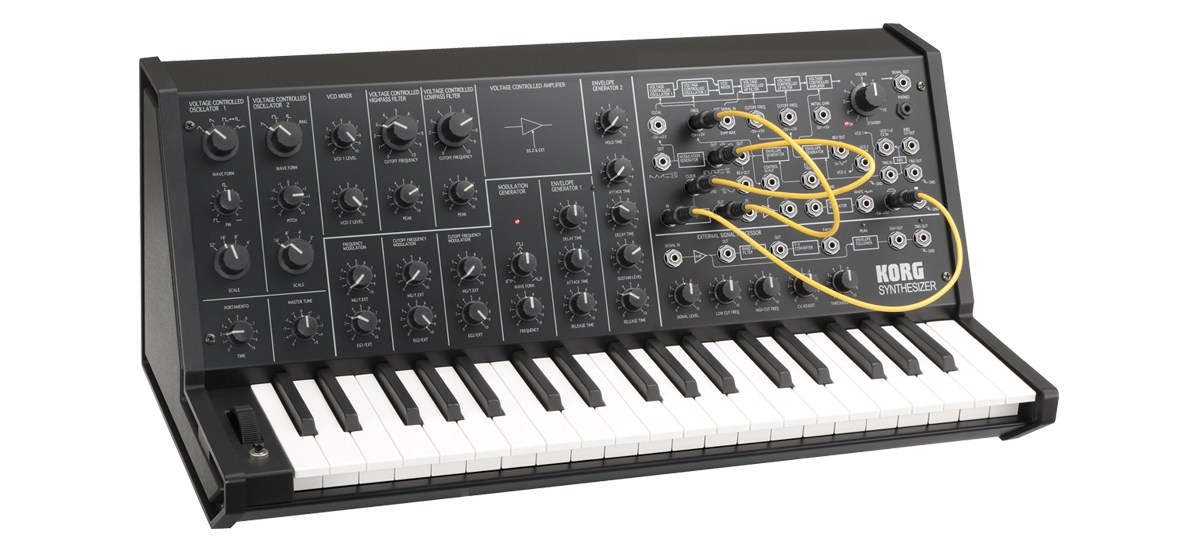

Korg MS-20 Mini

• Moderne utgave av den klassike og legendariske MS-20
• Monofonisk Analog Synthesizer med moderne funksjonalitet
• Patchable semi-modular
• 2 x VCO, Noise generator, 2 x LFO, ADSR

Moderne versjon av den klassiske og legendariske MS-20 først utgitt 1978. En kraftig semi-modulær monofonisk analog Synthesizer med moderne funksjonalitet.

Specifikationer

Keyboard

C – C: 37-notes (3 octaves), mini keyboard designed specifically for the MS-20 mini

Voltage Controlled Oscillator 1 (VCO 1)

Scale (32', 16', 8', 4') (6 octaves, +cent, -cent)

Wave form (Triangle, Sawtooth, PW-Square, White Noise) (4 modes)

Pulse width adjust 1:1 - 1:infinity

Voltage Controlled Oscillator 2 (VCO 2)

Scale (16', 8', 4', 2') (6 octaves, +cent, -cent)

Wave form (Sawtooth, Square, Pulse, Ring modulator) (4 modes)

Pitch (± 1 octave) 　 　

VCO Master control

Master tune (± 100cent)

Portamento (max. 10sec)

FFrequency modulation intensity by MG/T.EXT (-5V - +5V)

Frequency modulation intensity by EG1/EXT (-5V - 0V) 　 　

VCO Mixer

Voltage Controlled High Pass Filter (VCF HPF)

Cutoff frequency (50Hz - 15,000Hz)

Peak (flat - self OSC)

Cutoff frequency modulation intensity by MG/T.EXT (-5V - +5V)

Cutoff frequency modulation intensity by EG2/EXT (-5V - +5V) 　 　 　

Voltage Controlled Low Pass Filter (VCF LPF)

Cutoff frequency (50Hz - 15,000Hz)

Peak (flat - self OSC)

Cutoff frequency modulation intensity by MG/T.EXT (-5V - +5V)

Cutoff frequency modulation intensity by EG2/EXT (-5V - +5V) 　 　 　

Envelope Generator 1

Delay time (10sec)

Attack time (10sec)

Release time (10sec) 　 　

Envelope Generator 2

Hold time (20sec)

Attack time (10sec)

Decay time (10sec)

Sustain level (0V - 5V)

Release time (10sec)

Modulation Generator (LFO)

Wave form (Positive Sawtooth - Triangle - Negative Sawtooth, Wide Pulse - Square - Narrow Pulse)

Frequency (0.1Hz ～ 20Hz)

Manual controller

Cntrol wheel (center click)

Momentary switch -->GND

Control section

Input signal level

Low cut frequency (50Hz - 2,500Hz)

High cut frequency (100Hz - 5,000Hz)

CV adjust

Threshold level

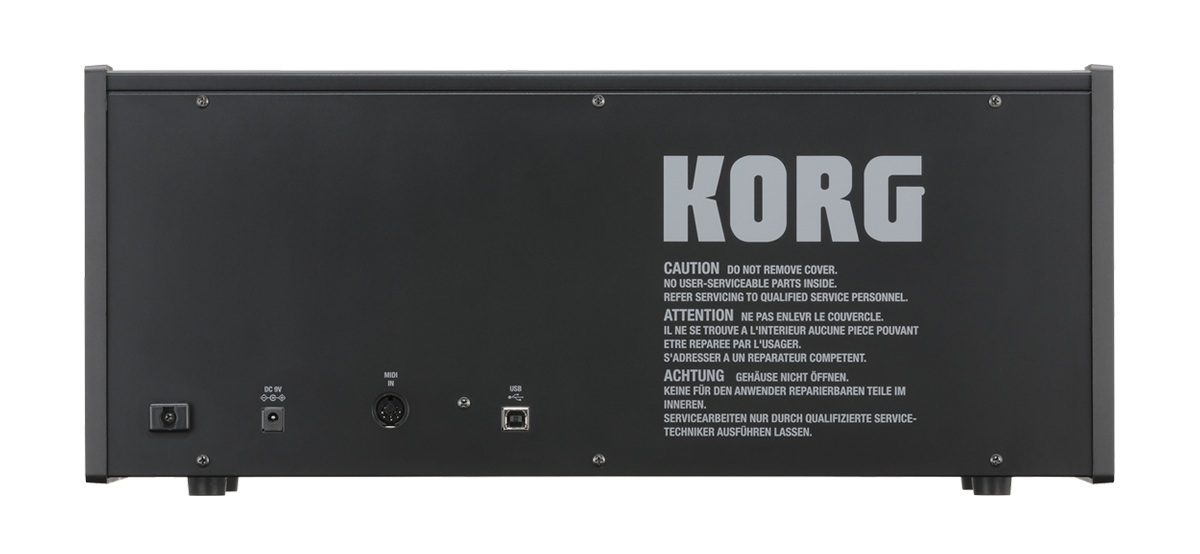

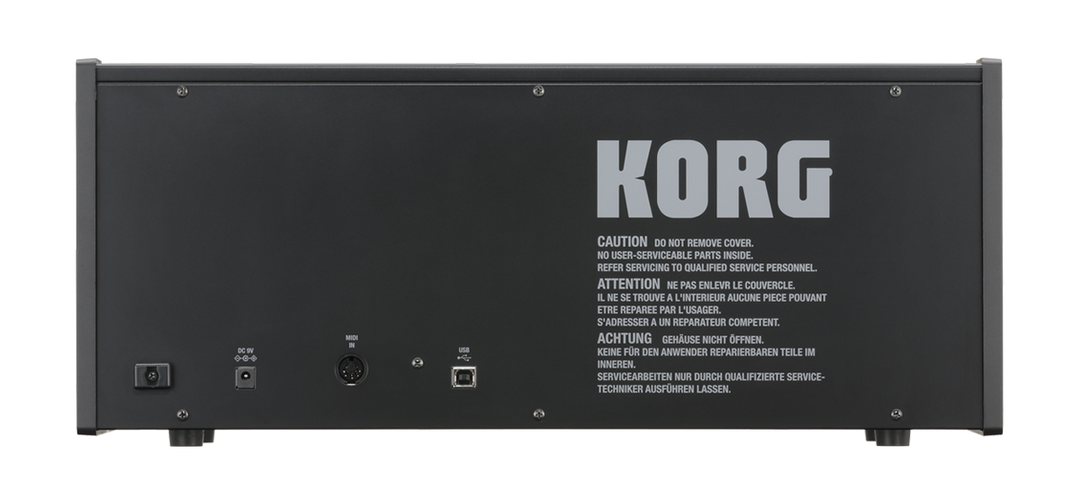

Input and Output

Signal In

Amplifier Out

Band pass filter Out

CV Out (0 - +8.4V)

ENV Out (0 - +5V)

Trig Out (+5V-->GND)

Signal output (mono 1/8" mini phone jack, 2Vp-p output impedance 3.5k Ω)

Head phones output (Stereo 1/8" mini phone jack, 33 Ω 48mW)

Type B, USB-MIDI Input/Output  *Only note messages (velocity is not used) can be transmitted and received.

MIDI In, Only note messages (velocity is not used) can be transmitted and received.

Power Supply

DC9V

Dimensions

(W x D x H)

493 ×257 × 208 mm / 19.41 x 10.12 x 8.19 inches

Weight

4.8 kg / 10.58 lbs.

Accessories

AC adaptor (9V/1.7A), Patch Cord x 10
