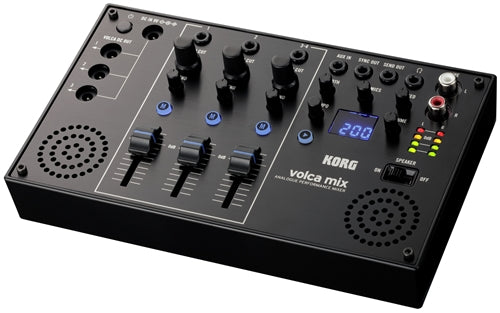

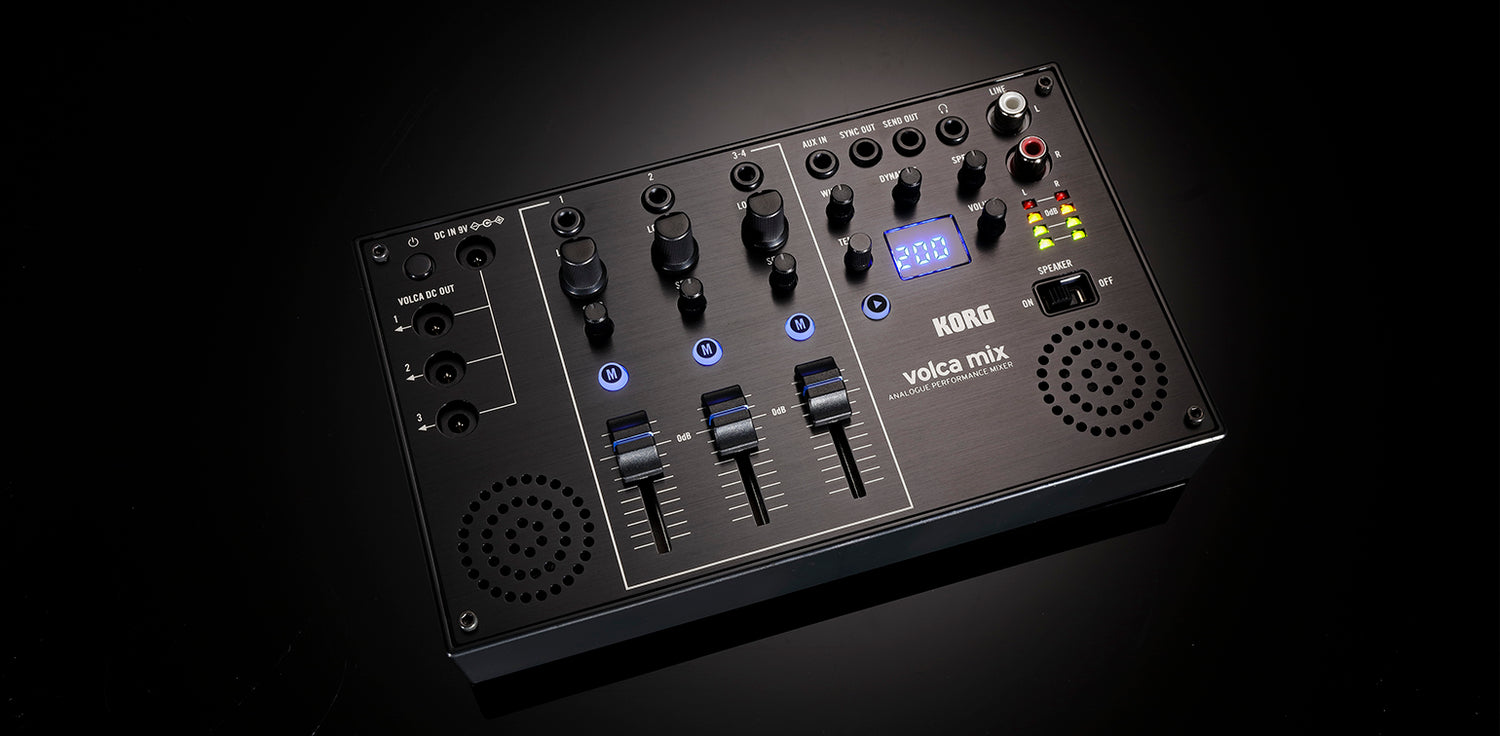

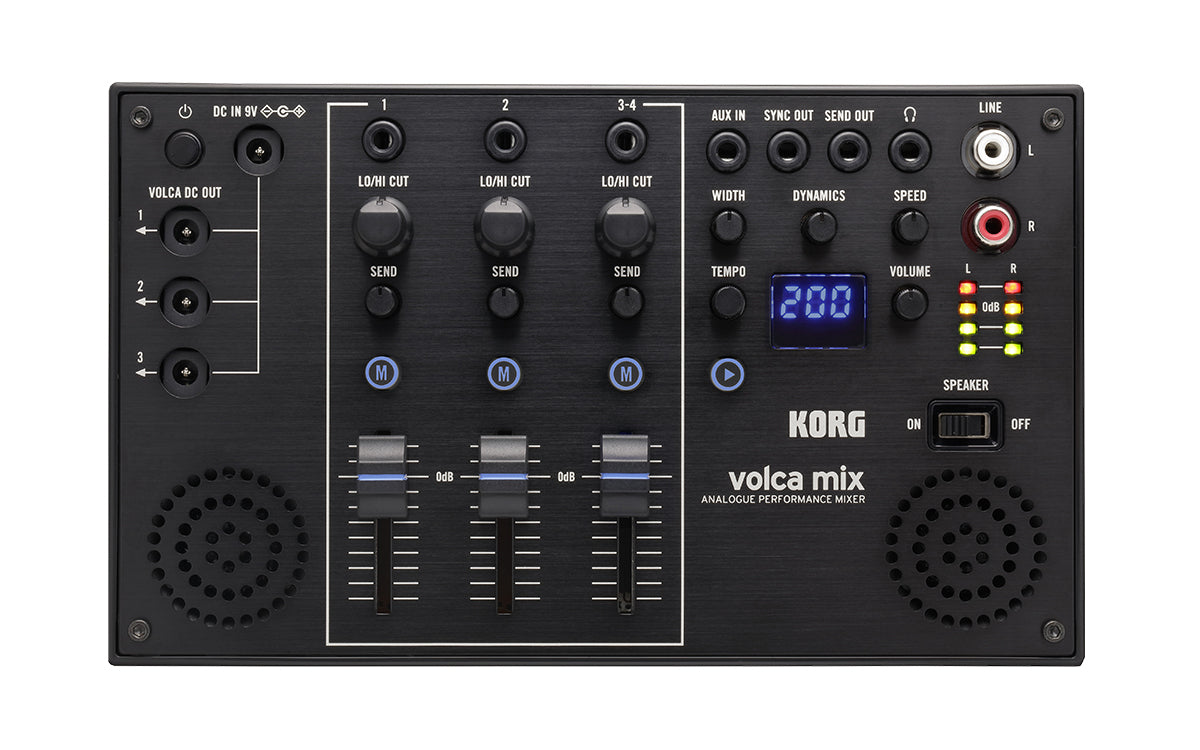

Korg Volca Mix

Mixer:

• Mixer Type: Four channel analogue mixer
• Number of Channels: Two monaural^*1, one stereo^*2

*1: Monaural output volca: volca keys, volca bass, volca beats, volca kick

*2: Stereo output volca: volca sample, volca fm

• Channel Controls: Lo/Hi Cut, Send Level, Mute, Volume (Available to boost +6 dB gain)
• Bus: Four channels analogue mix bus, monaural mix send bus, stereo AUX In/Return bus
• Master: Volume

 Master Effects:

• Effect Types: Analog Stereo Width Expander (Width), Analog Dynamic Range Compressor (Dynamics, Speed)

 Sync Controls:

• Play, Tempo

 Input/Output:

• Mixer Input: Mixer In x 3 (1/8" [3.5 mm] stereo mini jack, 0dBu)
• AUX: AUX In (1/8" [3.5 mm] stereo mini jack, 0dBu)
• Send: Send Out (1/8" [3.5 mm] stereo mini jack, 0dBu)
• Sync: Sync Out (1/8" [3.5 mm] stereo mini jack, Output Level: 5 V)
• Audio Output: LINE OUT (L/R, RCA pin jack, Max 11.1 dBu) Headphone (1/8" [3.5 mm] stereo mini jack)
• Speaker: Built-in stereo speaker, On/Off

Power:

• Power: AC adapter (DC 9 V)
• Current Consumption: 300 mA
• Output Power: VOLCS DC OUT x 3 (Connect with including DC-DC cable, up to 800 mA in total, 9 V)

 Others:

• Dimensions (W x D x H): 193 mm x 115 mm x 45 mm/7.60" x 4.53" x 1.77" (including knobs)
• Weight: 350g/12.35 oz.
• Including Items: AC adapter, DC-DC cable x 3, Audio cable x 3
