ROADINGER forsterkerrack PR-1, 3U, 47 cm dypt

Flightcase for 483 mm devices (19")The ROADINGER amplifier rack PR-1 with 3 U is optimally suited for your 19" equipment such as power amplifiers and other accessories. The maximum installation depth is 420 mm plus 90 mm per cover. The case features high-quality, 7 mm thick sides made of multi-layer glued and black laminated wood. The aluminium profile frame with rounded corners and the three-legged, medium-sized steel ball corners provide additional stability. The amplifier rack is equipped with four snap locks, two chrome-plated case folding handles and two wooden sliding rails on the floor. Both lids are removable.The maximum load is 50 kg.

Rack case

• 3 U
• High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated

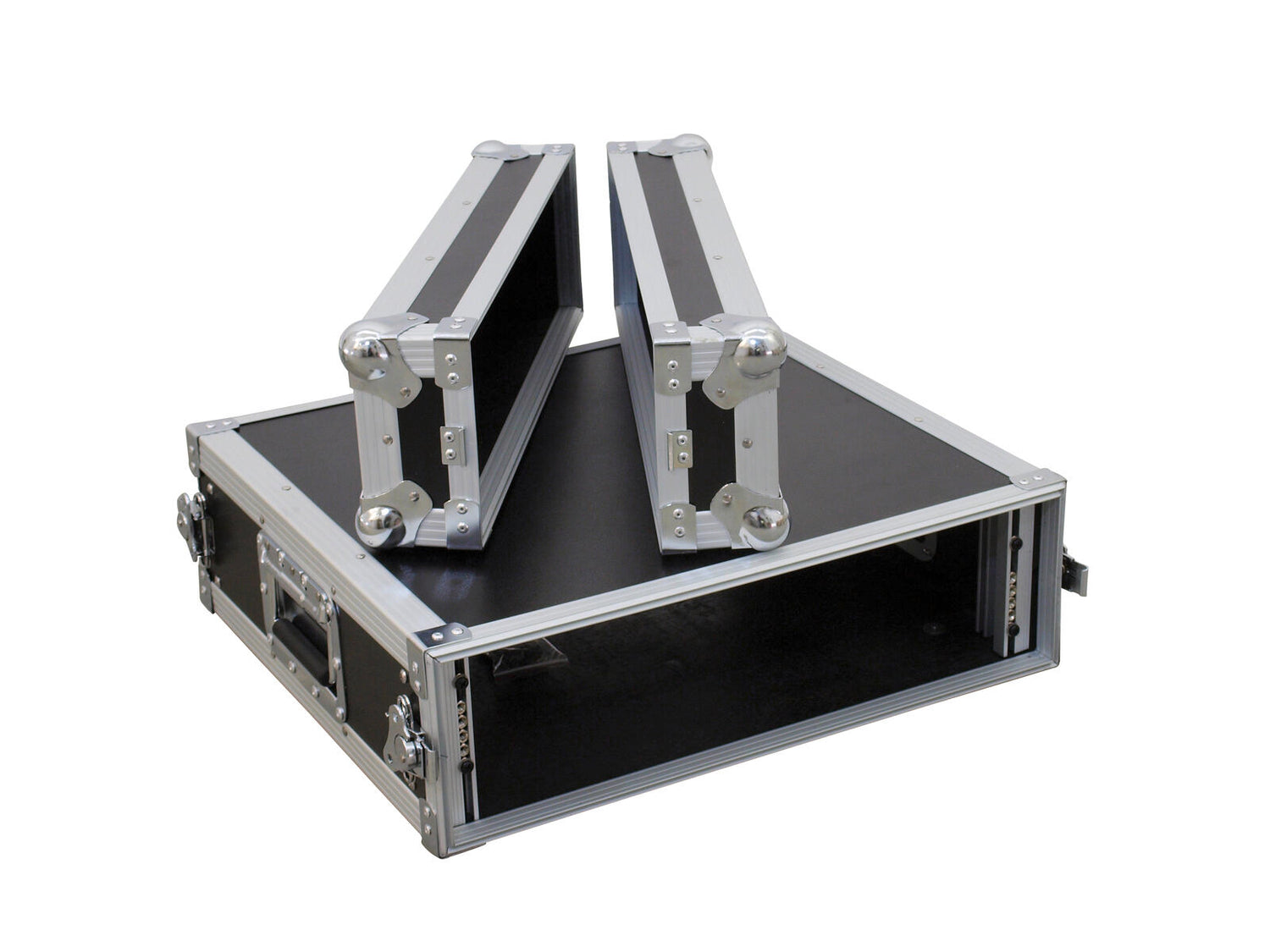

• 2 removable covers (double-Door-Version)
• Aluminum profile frames 30mm with rounded edges
• 2 hinged, chromium plated case handles
• 4 high-quality spring locks
• 2 x wooden slide rails on the bottom
• Available in different height units (1 U = 44 mm)
• With profile rails suitable for 19" units
• For further information about this product, please refer to the Data Sheet under "Downloads"

Omfang av leveringen

Maksimal belastning:	50 kg
Avtakbare deksler:	2 pc/pcs
Aluminium profilrammer:	30 mm
Koffertgrep:	2 pc/pcs
Lås:	Spring lock: 4 pc/pcs
Transporthjelp:	2 x wooden slide rails on the bottom
Materiale:	Plywood multi-layer glued, 7 mm
Farge:	Black, laminated
Frontpanelbredde:	19"
Monteringshøyde:	Ca. 13.5 cm (3 U)
Monteringsdybde:	470 mm
Huskonstruksjon:	3 U

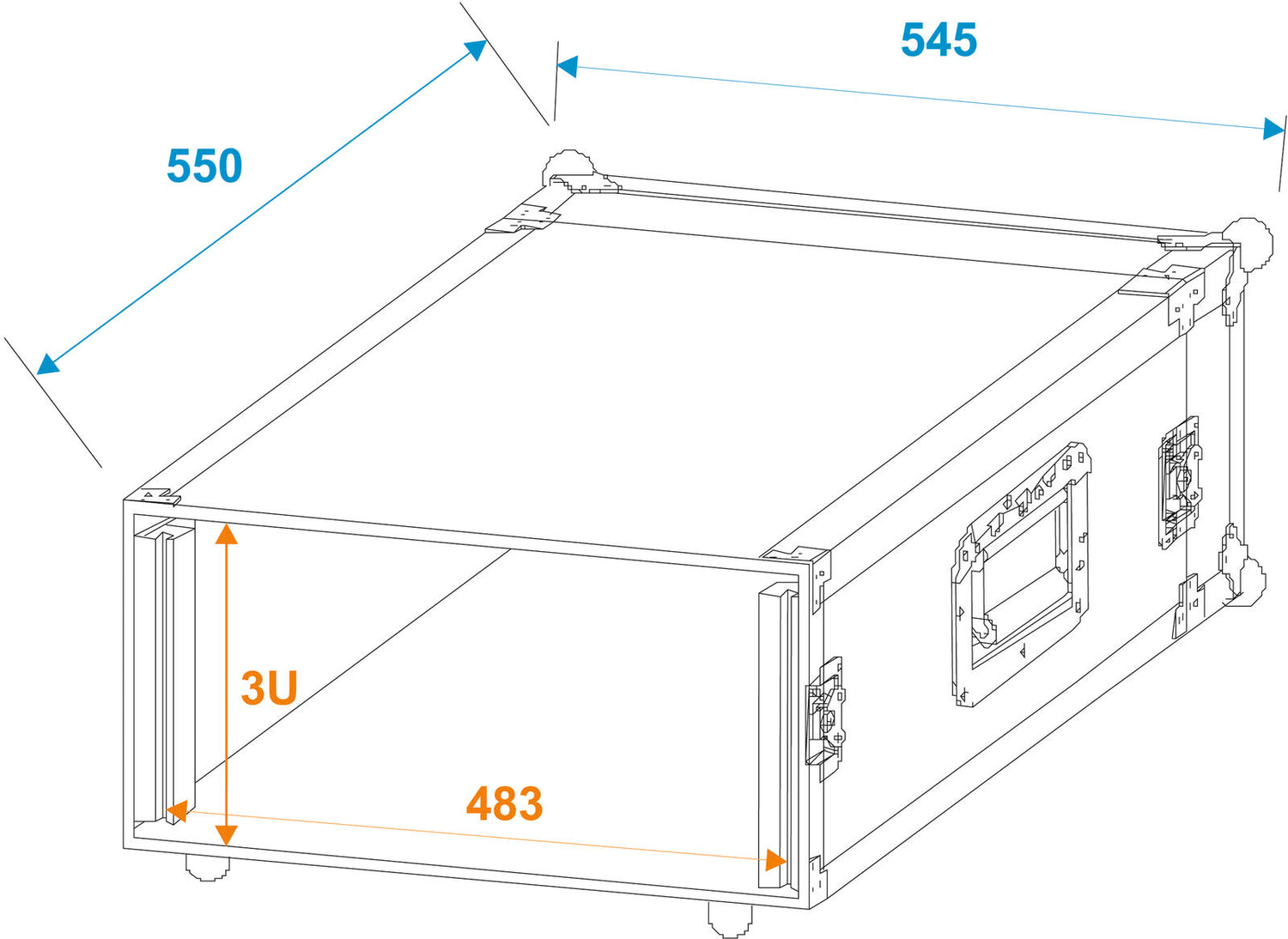

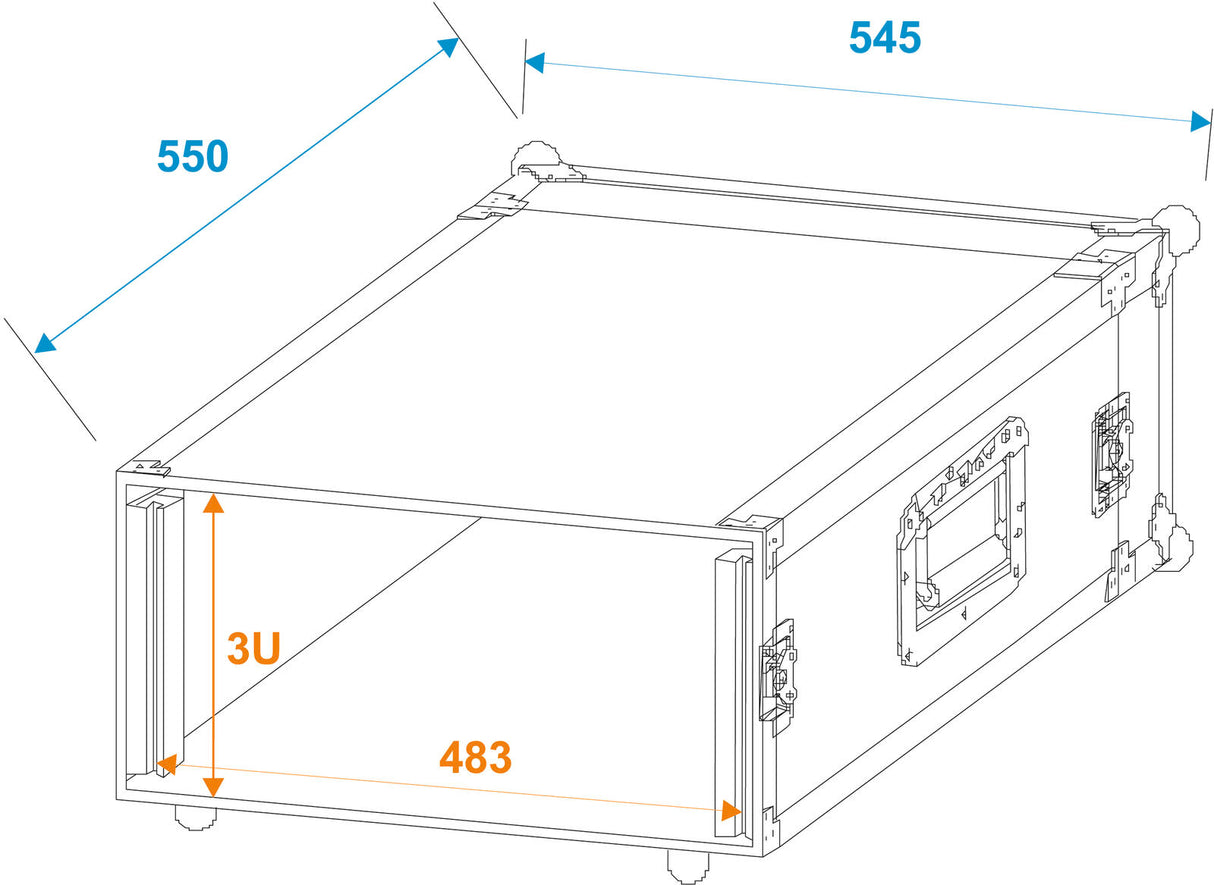

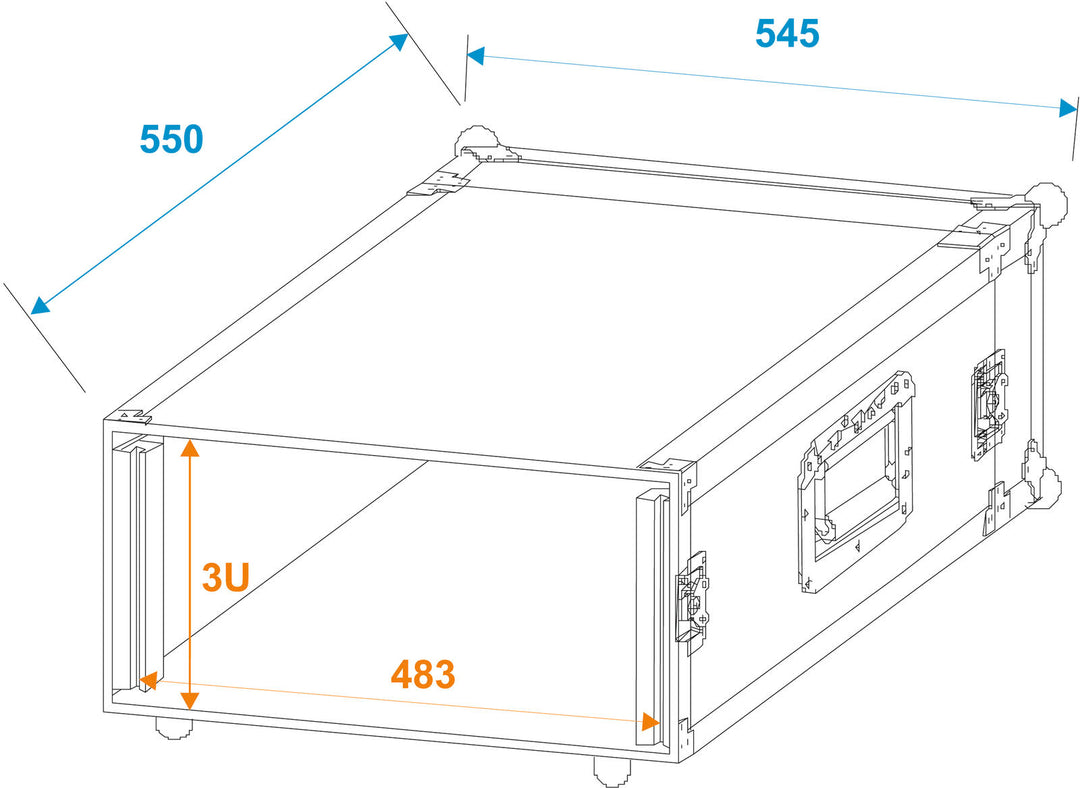

Mål:	Bredde: 54.5 cm Dybde: 64 cm Høyde: 17.5 cm
Vekt:	8.60 kg
