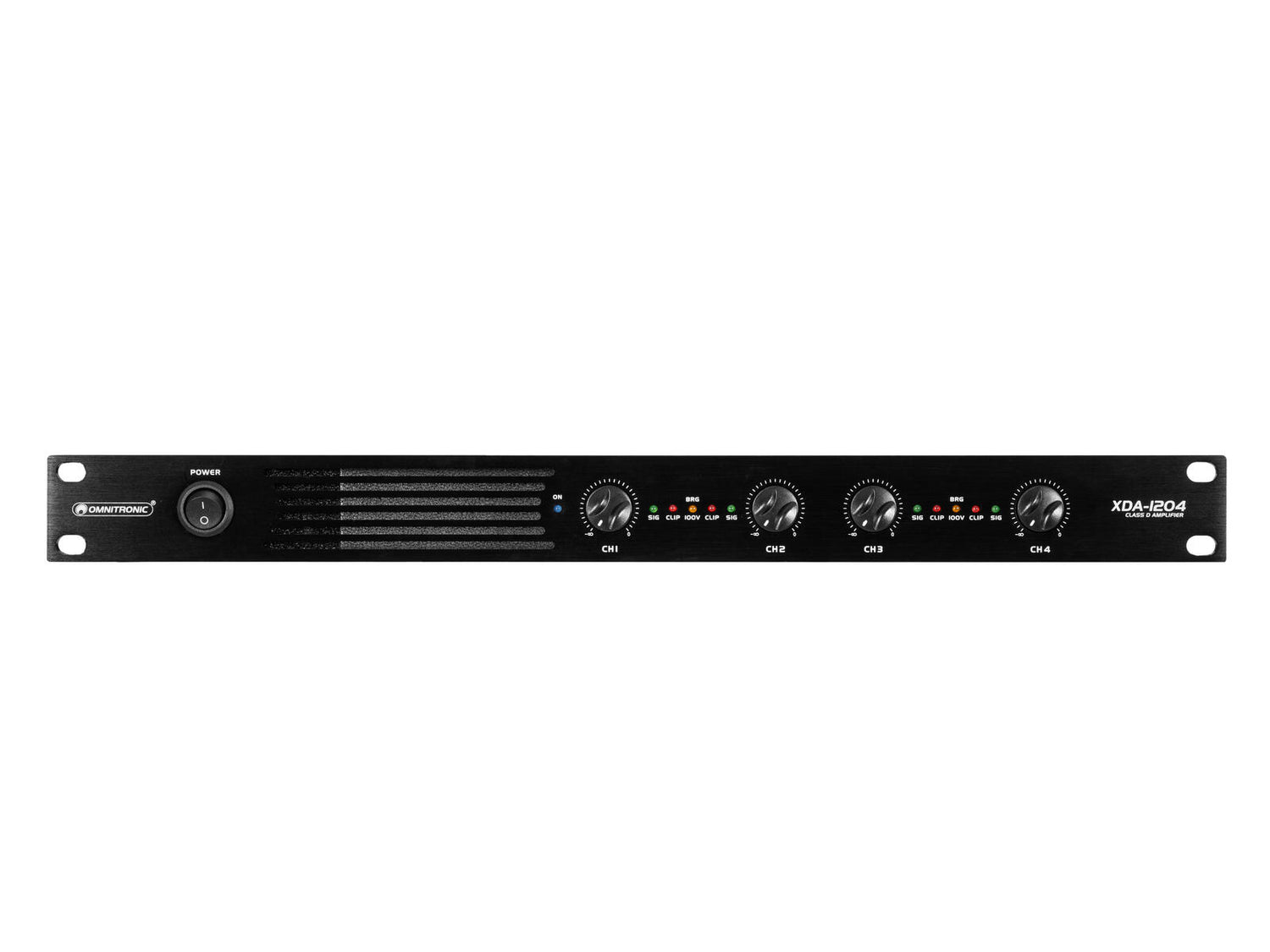

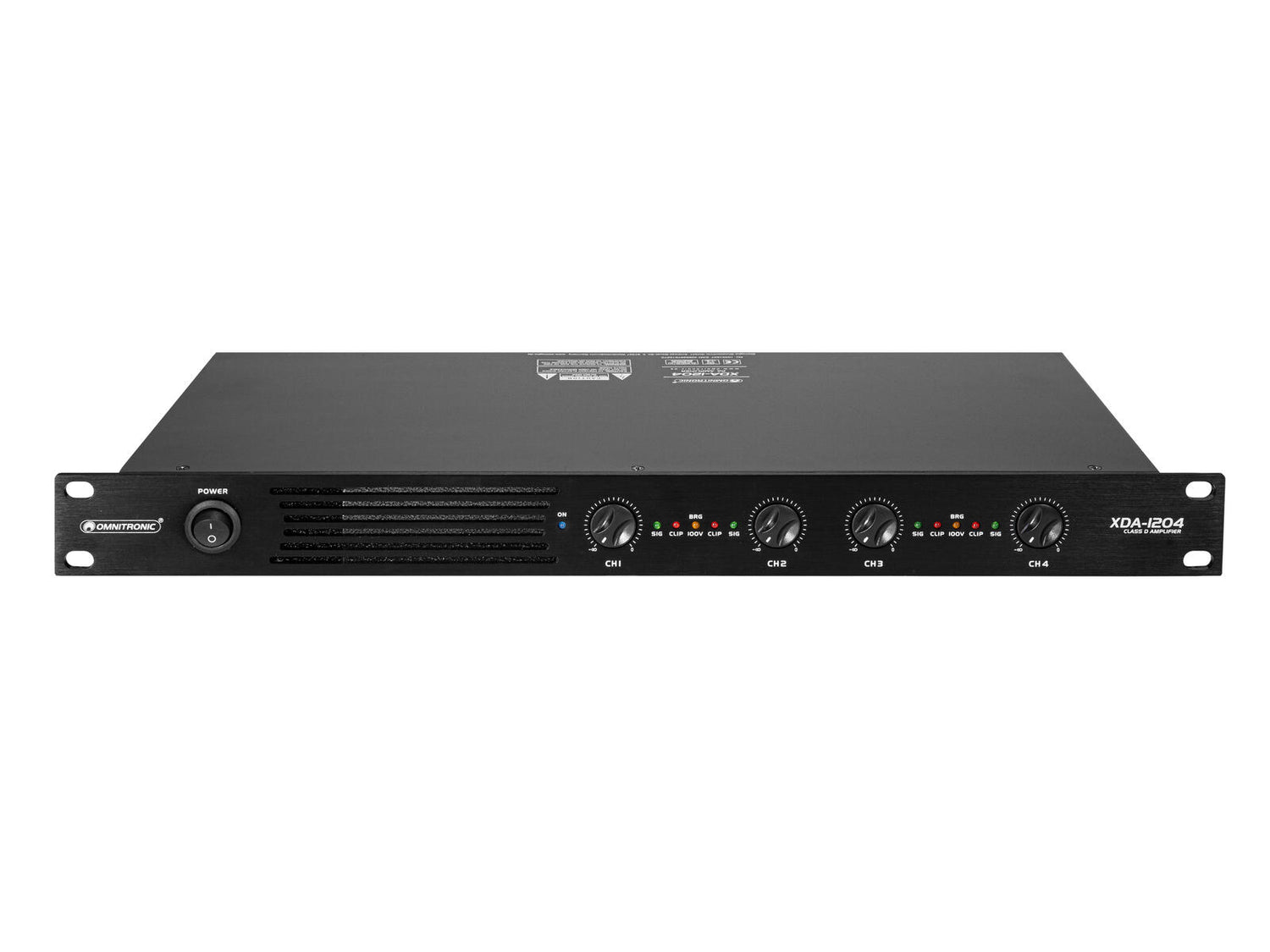

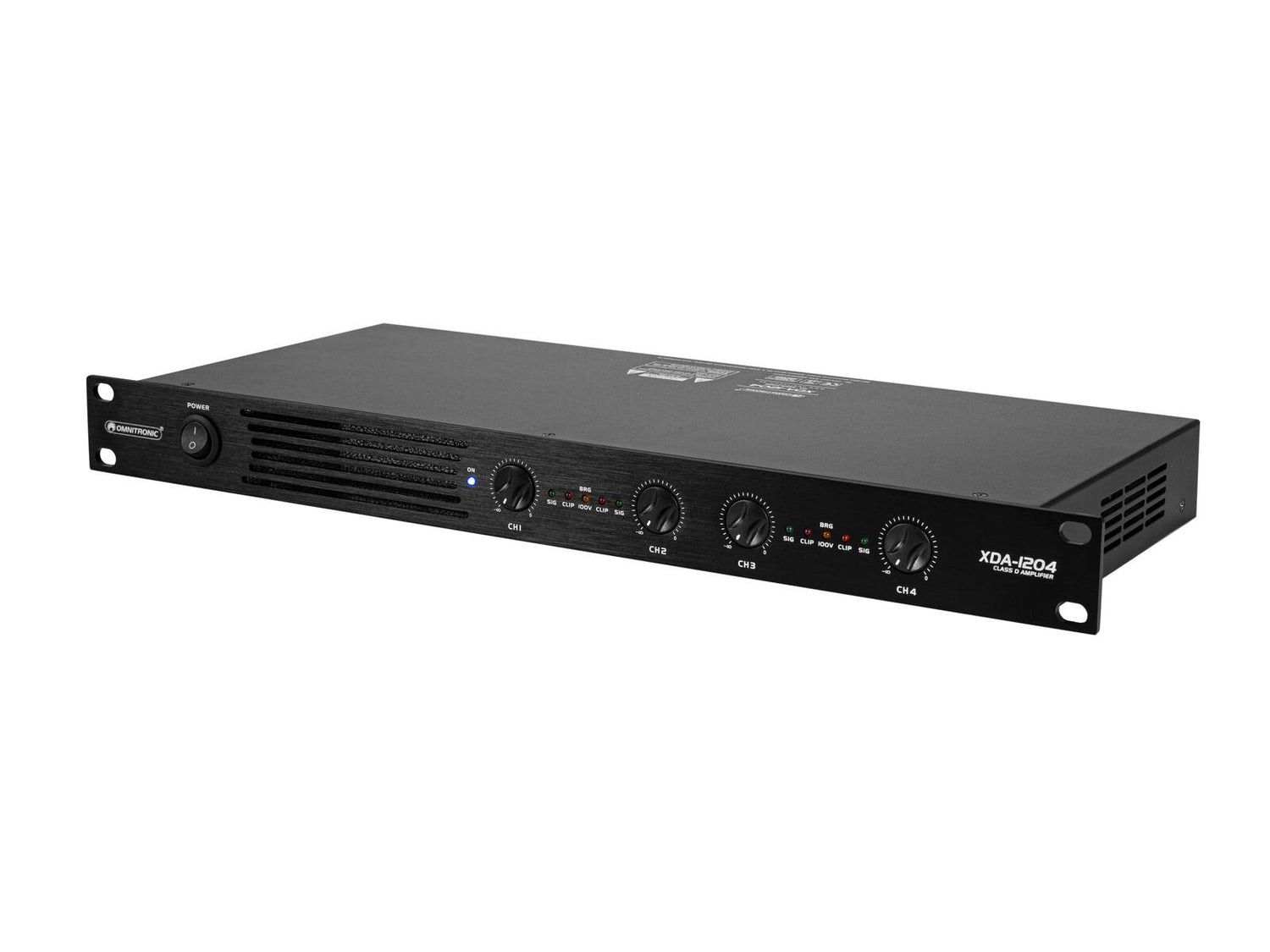

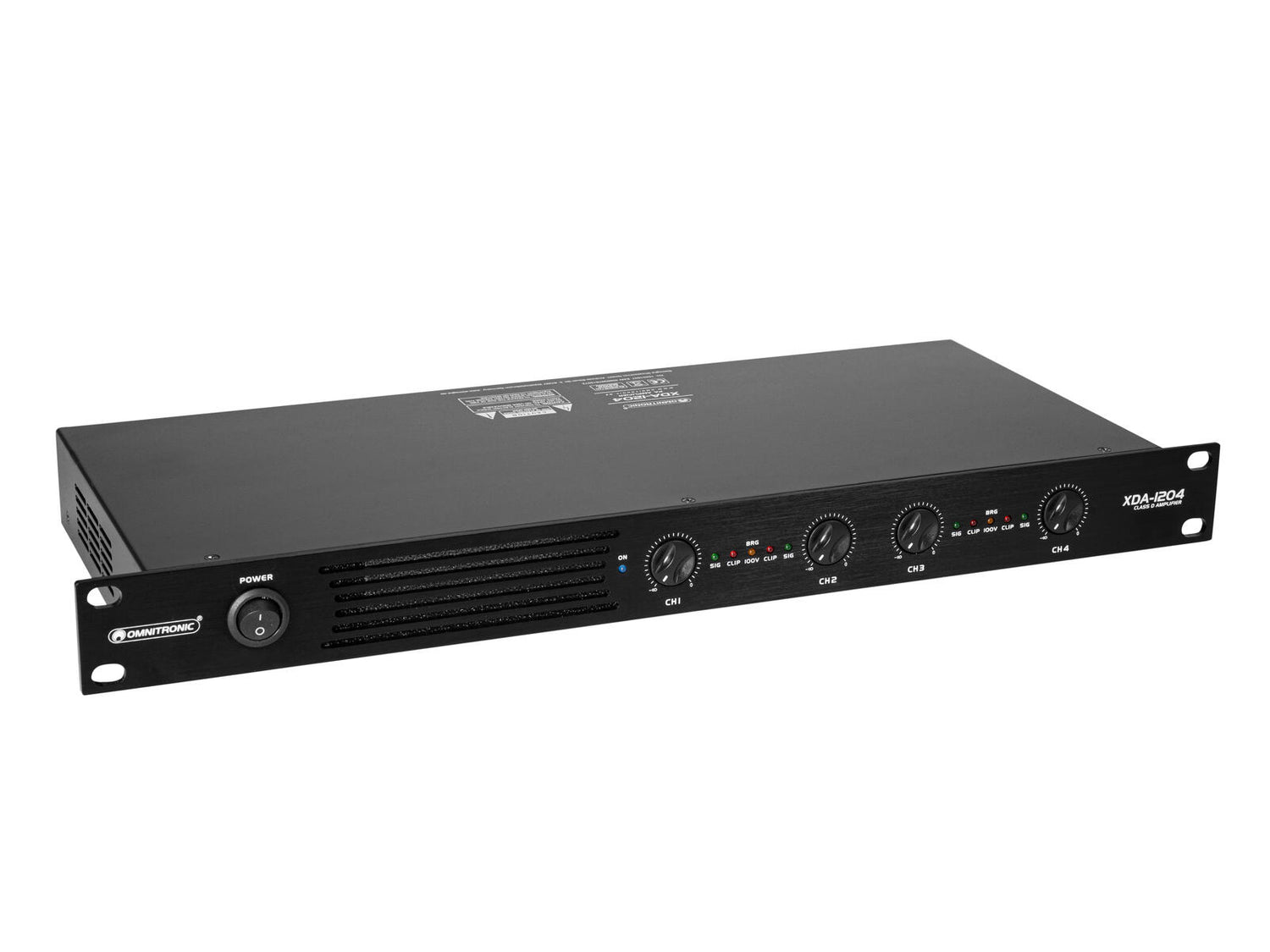

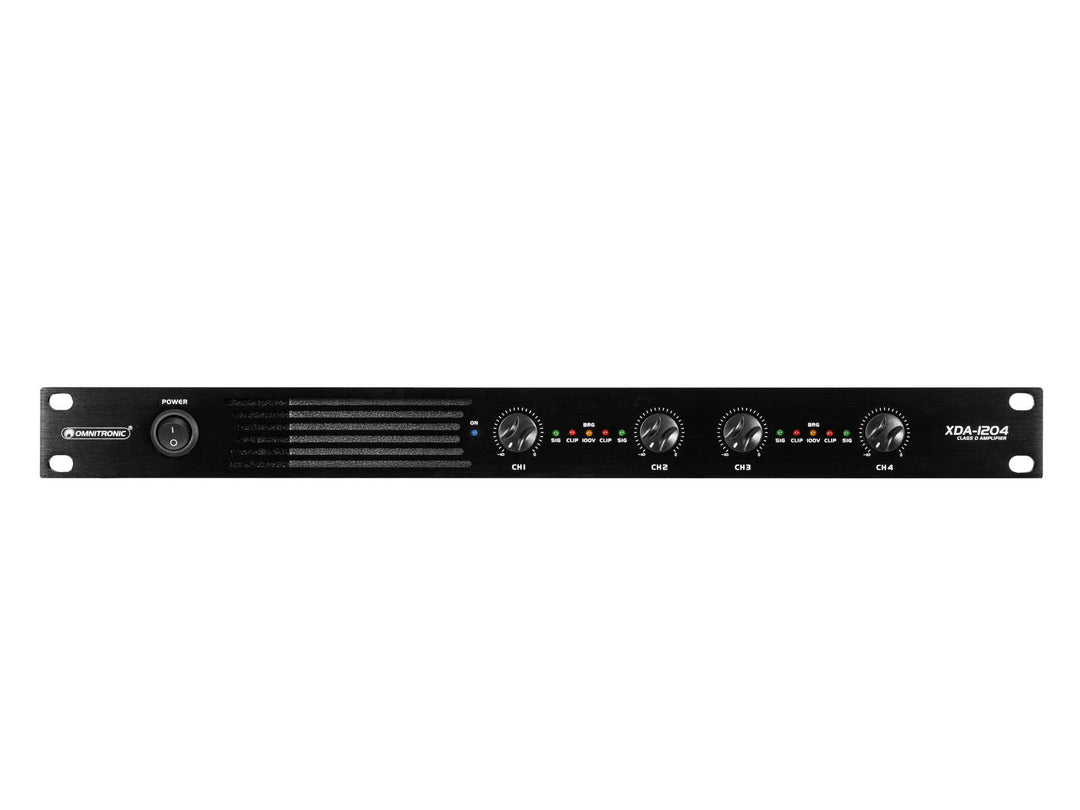

OMNITRONIC XDA-1204 4-channel Class D Amplifier

1 5
4 663 kr

Inkl. mva & toll

Inkl. mva (25%): 4.663,00 kr Ekskl. moms: 3.730,40 kr
På fjernlager – Beregnet leveringstid: 9–13 virkedager.
Gratis frakt
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • USDC
  • Visa
  • Klarna
  • Vipps
  • e-faktura
4,8 av 5 14.000+ anmeldelser

Andre kjøpte også:

Vis alle OMNITRONIC

Beskrivelse


Class D multi-channel PA amplifier with SMPS, 4 x 300 W RMS (4 ohms), 4 x 180 W RMS (8 ohms)

  • Extremely low weight and height due to integrated switch mode power supply
  • 3 operating modes can be selected (stereo, parallel or bridged)
  • Level control per channel
  • (19") 48.3 cm rack installation 1 U
  • For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms


Scope of delivery
  • 1 x amplifier
  • 1 x user manual
  • 1 x power cord
  • 6 x screw plug-in terminal
  • 4 x foot


Power supply: 230 V AC, 50 Hz
Power consumption: 1440 W
Protection class: Protection class I
Output power: 4 x 300 W RMS (4 ohms)
4 x 180 W RMS (8 ohms)
2 x 600 W RMS bridged (8 ohms)
2 x 600 W RMS bridged (100 V)
Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Device fuse: 5 x 20 mm, T 8 A fuse replaceable
Frequency range: 20 - 20000 Hz
S/N ratio: >100 dB
THD: <0.05 % at 1 kHz
Impedance: Input: 20 kOhm , bal.
Input: 10 kOhm , unbal.
Gain: 31 dB/ 0.775 V
Housing color: Black matte
Circuitry: Class D
Slew rate: >20 V/µs
Damping factor: >300
Control elements: Power switch, mode switch (stereo/parallel/bridged), level control per channel
Controls: Softstart; overheat; overload; short-circuit; DC voltage
Status LED: Power, signal, clip, bridged

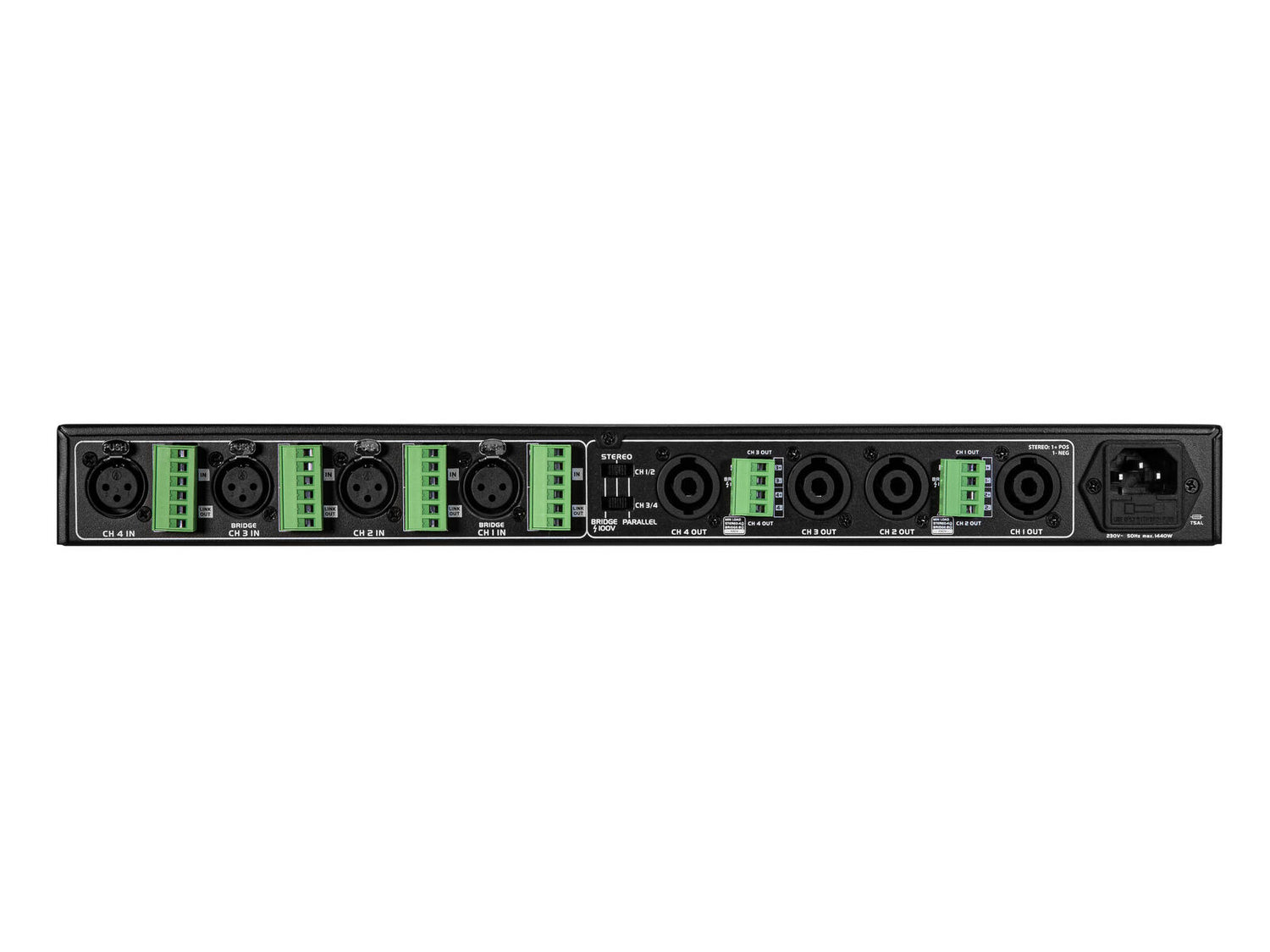

Connections: Input: line via 4 x 3-pin XLR
Output: line via 4 x 3-pin XLR
Output: speaker via 4 x speaker built-in socket (F)
Output: speaker via 4 x screw plug-in terminal
Input: line via 4 x screw plug-in terminal
Input sensitivity: 0.775 V
Housing design: (19") 48.3 cm rack installation 1 U
Dimensions: Width: 48.3 cm
Depth: 20.5 cm
Height: 4.4 cm
Weight: 3.33 kg

Tekniske spesifikasjoner

Brand: OMNITRONIC
SKU: STE-10451637
EAN: 4026397615272
Vekt: 3.88 kg
