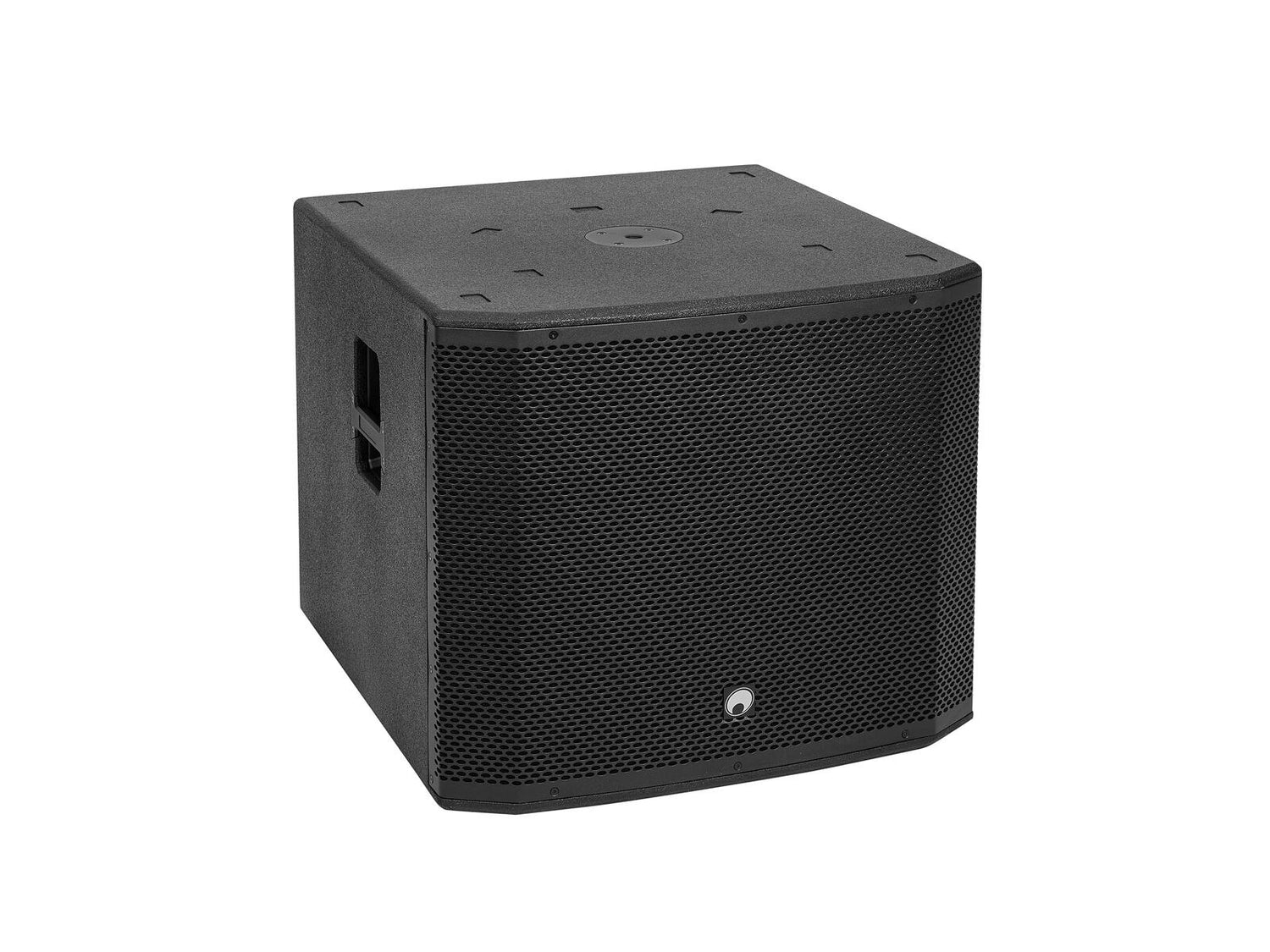

OMNITRONIC PAS-181A MK4 Subwoofer, active, DSP
1
av
5
Laster inn...
9 194 kr
Stk. pris kr
/
Ikke tilgjengelig
Inkl. mva & toll
Frakt 1999 kr.
Betalingsmetoder akseptert
Beskrivelse
Beskrivelse
Active 18" PA bassreflex subwoofer, 1400 W
- Active PA subwoofer for touring applications and permanent installations
- XLR outputs with switchable high-pass filter, 120 Hz
- Digital signal processor
- DSP presets: FLAT; KICK; DEEP
- The device is cooled by cooling fan

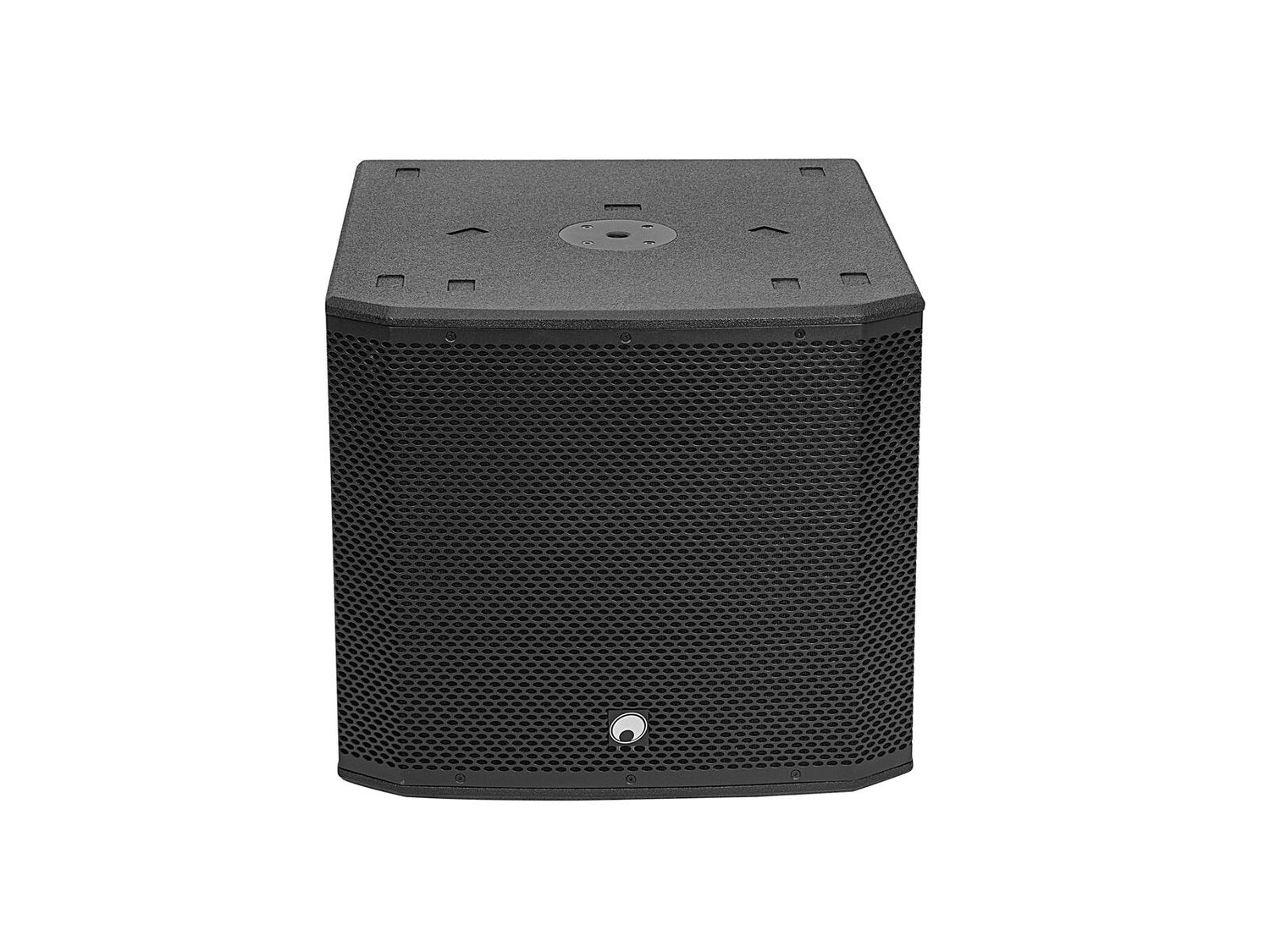

- Black metal grille with acoustic foam

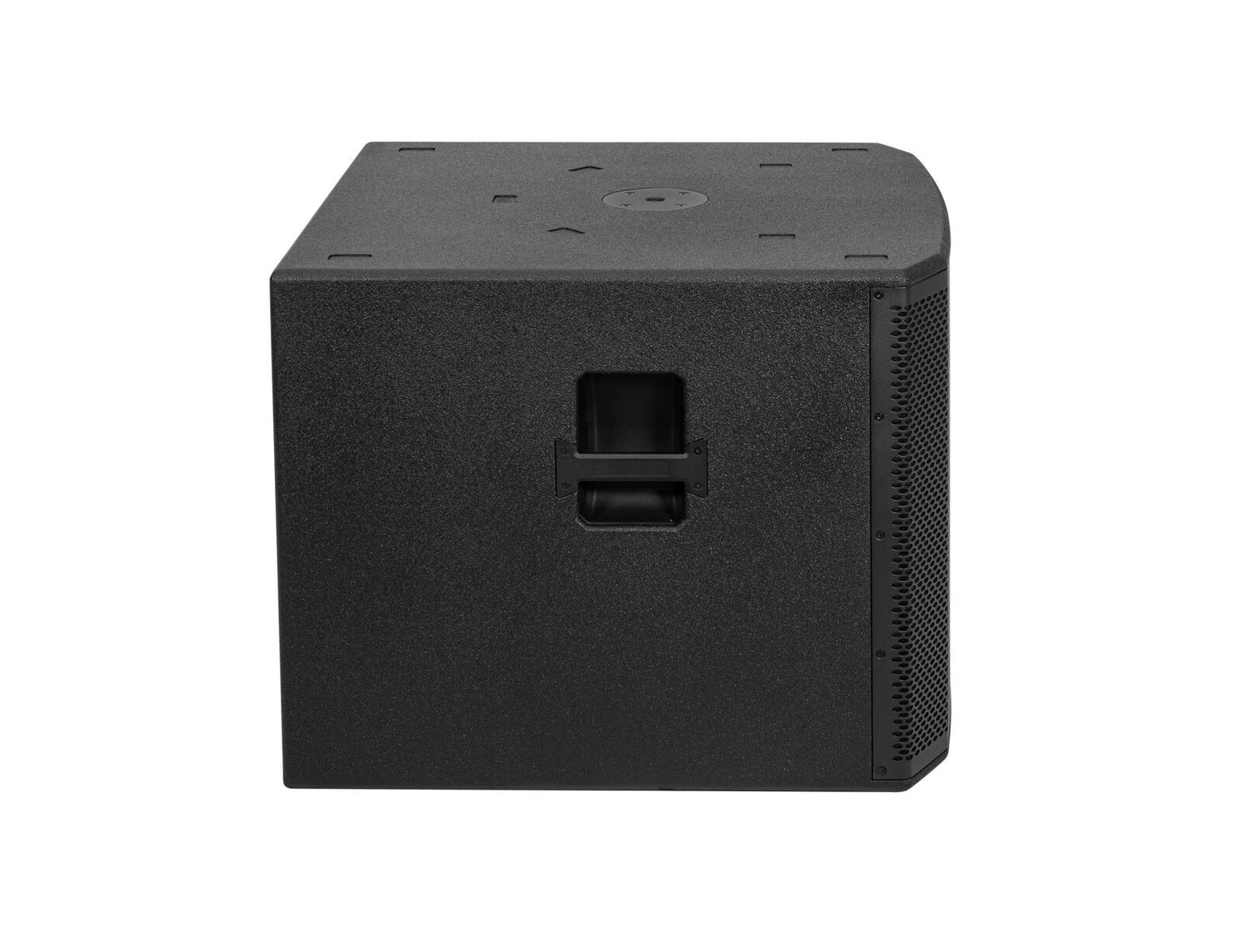

- 2 Rugged carrying handles
- 4 x wheels optional
Scope of delivery
- 1 x bass
- 1 x power cord
- 1 x user manual
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 1100 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power: | Program: 1400W Rated: 700W RMS |
| Frequency range: | 35 - 200 Hz |
| Max. SPL: | 129 dB |
| DSP: | Digital signal processor |
| DSP presets: | FLAT; KICK; DEEP |
| Cooling: | 1 x cooling fan |
| Filter: | Hi cut: 120 Hz; hi cut: 100 Hz |

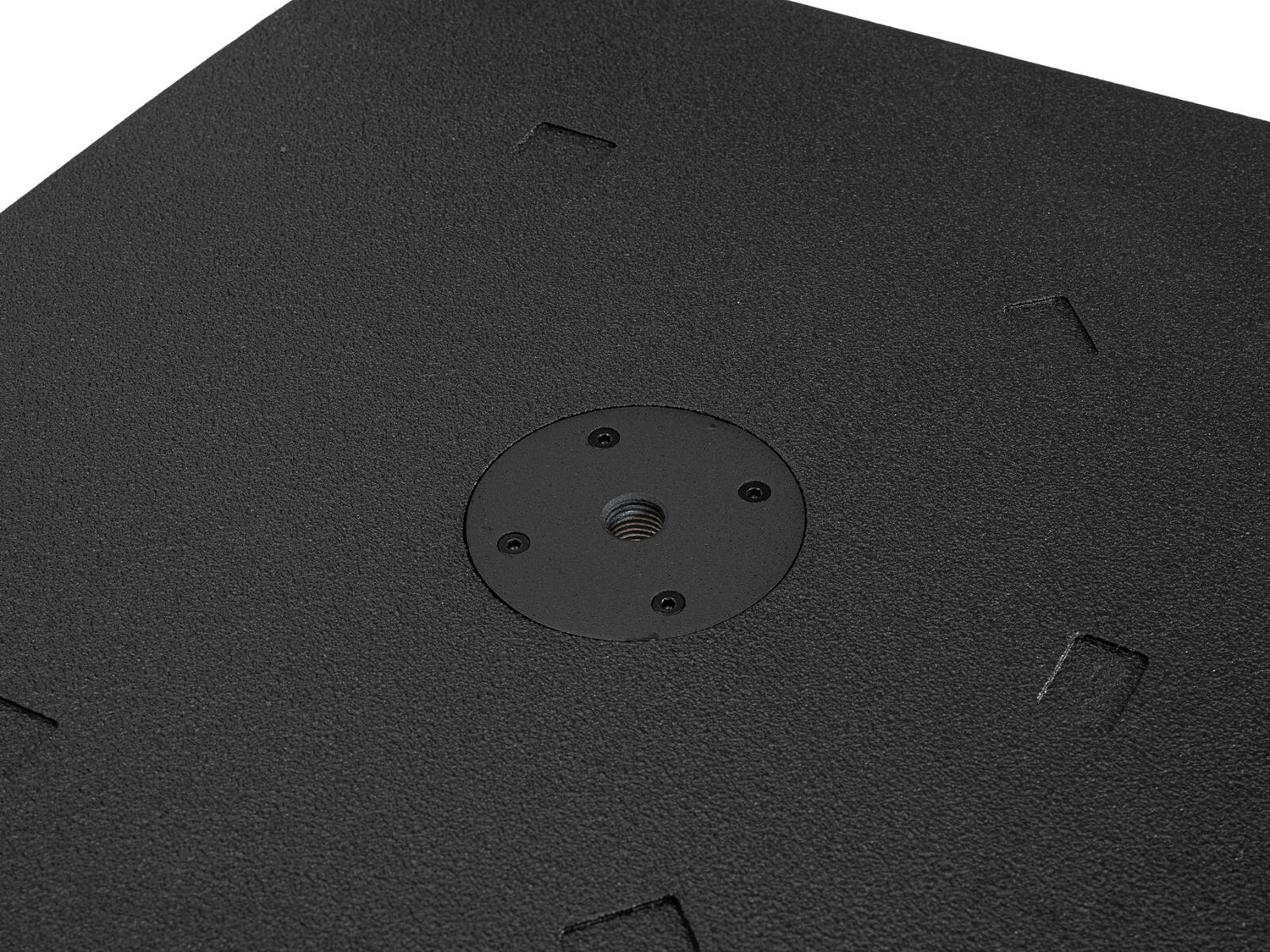

| Attachment system: | 1x M20 thread |
| Circuitry: | Class D |
| Control elements: | Power switch, Master control, Phase reversal switch, tone control, crossover frequency |
| Controls: | Limiter; power on/off transients |
| Status LED: | Power, peak, DSP presets |

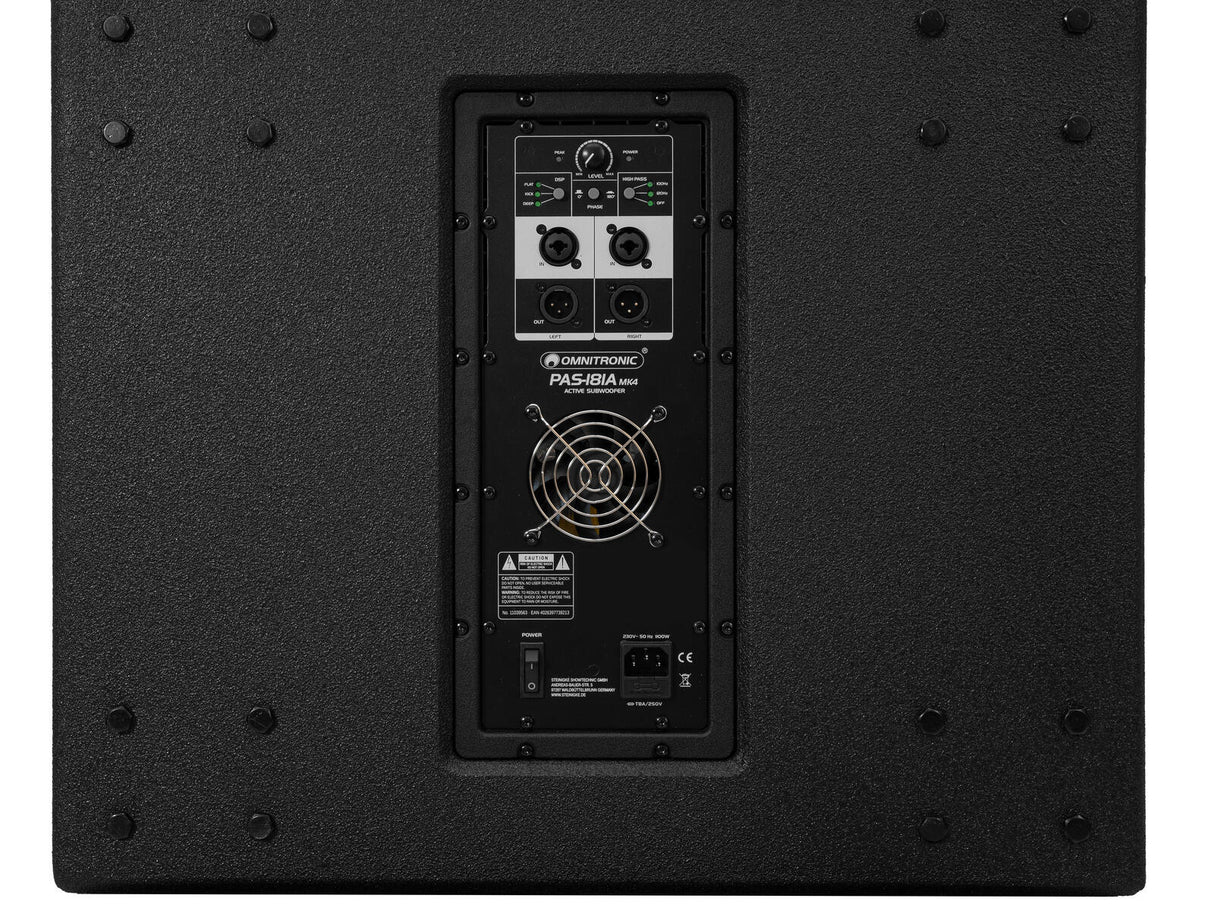

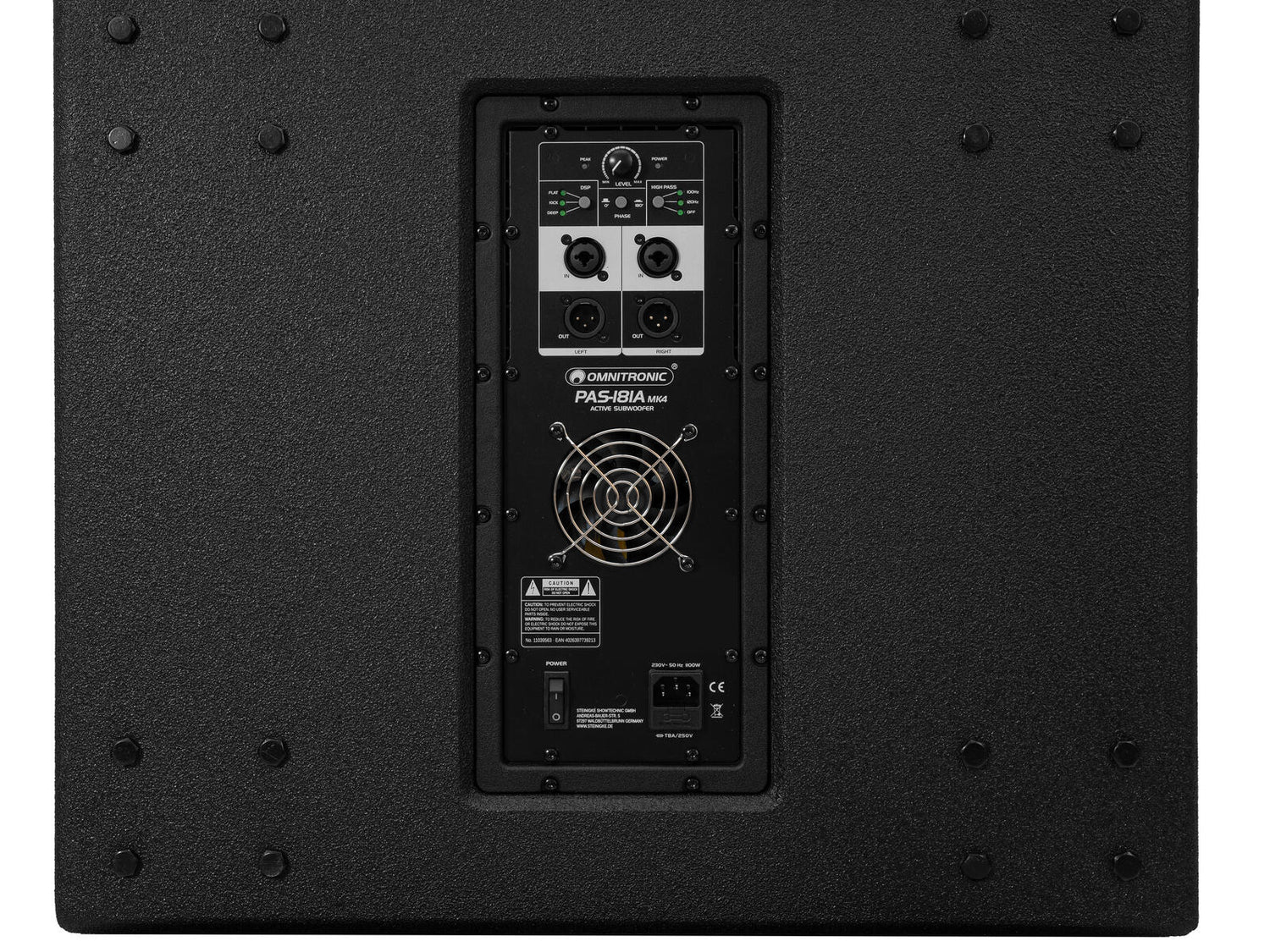

| Connections: | Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 2 x 3-pin XLR (M) mounting version |
| Speaker: | 1 x woofer 18" with ferrit magnet Basket material: aluminum Conematerial: cardboard/paper Voice coil lows 4" |
| Type of speaker: | Subwoofer |
| Type of construction: | Vented |
| Carrying handle: | 2 pc/pcs |
| Transport aid: | 4 x wheels optional |
| Material: | Plywood multi-layer glued, 15 mm |
| Color: | Black |
| Dimensions: | Width: 65 cm Depth: 53 cm Height: 61.5 cm |
| Weight: | 37.70 kg |
