OMNITRONIC LH-061 PRO Dual DI Box passive
1
av
4
Laster inn...
584 kr
Stk. pris kr
/
Ikke tilgjengelig
Inkl. mva & toll
Frakt 99 kr (gratis over 2499 kr.)
Betalingsmetoder akseptert
Beskrivelse
Beskrivelse
Passive 2-channel DI box/splitter, black

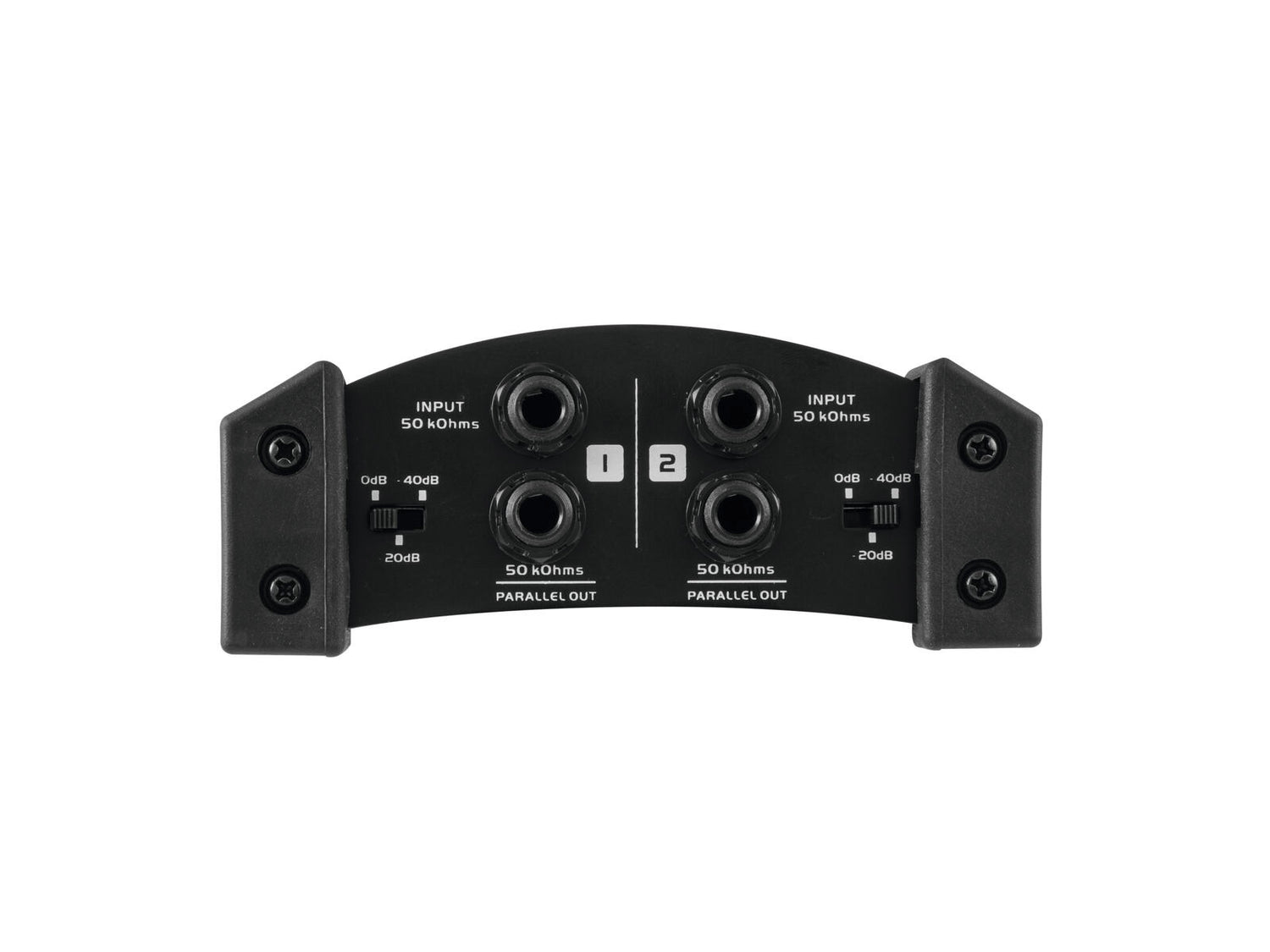

- 2 high-impedance signal inputs via two 6.3 mm jacks

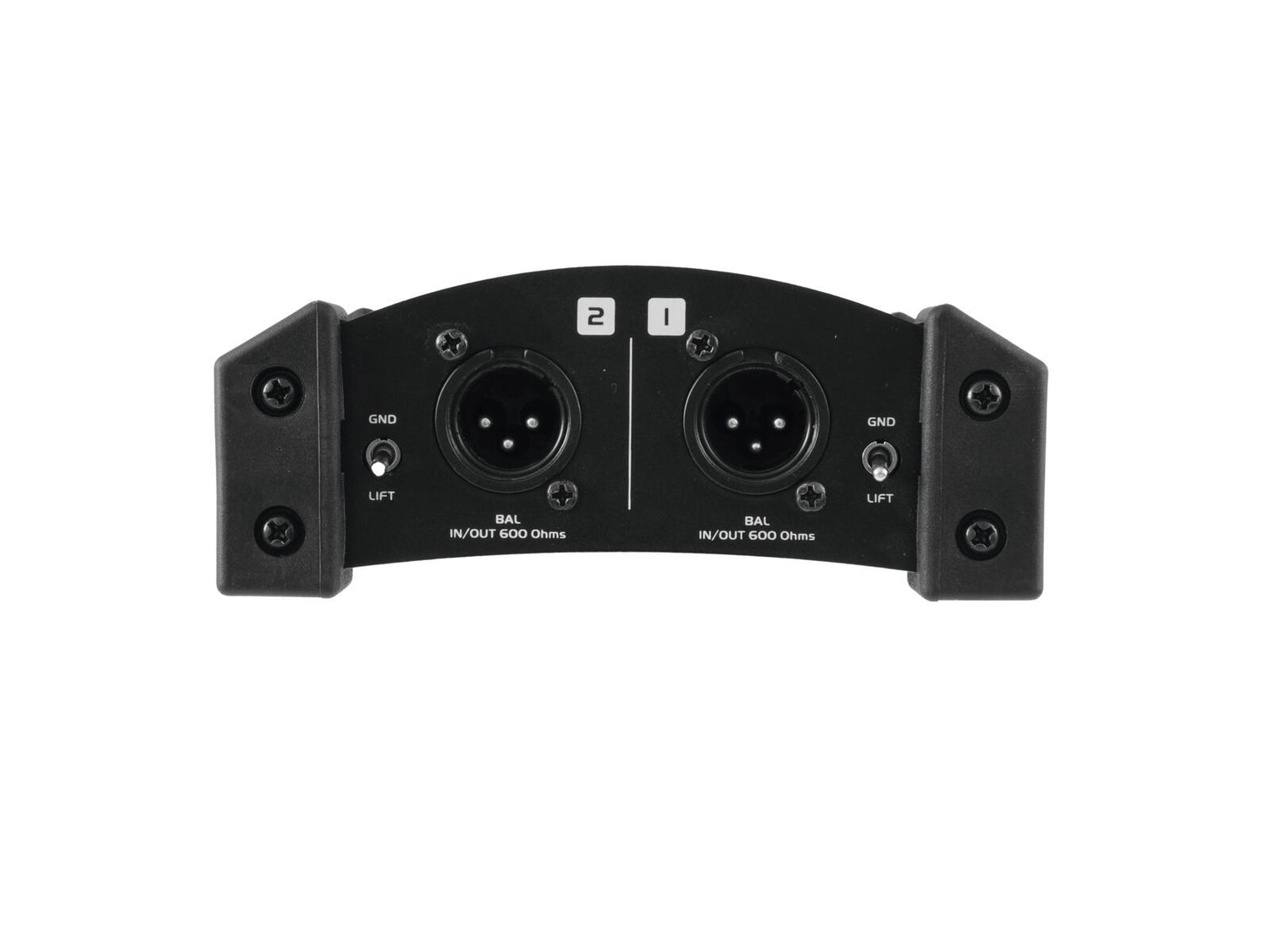

- 2 low-impedance XLR outputs
- Converts 2 separate unbalanced line inputs (e.g. CD player, instruments) into 2 balanced XLR outputs, for connecting a mixer
- Switchable input attenuation: 0 dB, -20 dB, -40 dB
- Cables can be routed under the housing
- For application areas such as: Installation; mobile use; mobile djs / entertainer
Scope of delivery
- 1 x user manual
- 1 x device
| Frequency range: | 15 - 30000 Hz |
| Impedance: | Input: 50 kOhm Output: 600 Ohm |
| Input attenuation: | 0 dB, -20 dB, -40 dB; switchable |
| Control elements: | Groundlift selector, Input sensitivity switch |
| Connections: | Input: 2 x 6.3 mm jack socket (mono) mounting version Output: line via 2 x 3-pin XLR Link: 2 x 6.3 mm jack socket (mono) mounting version |
| Max. level: | Output: +6 dBu |
| Color: | Black |
| Dimensions: | Width: 13.3 cm Depth: 11.5 cm Height: 5.4 cm |
| Weight: | 0.61 kg |
