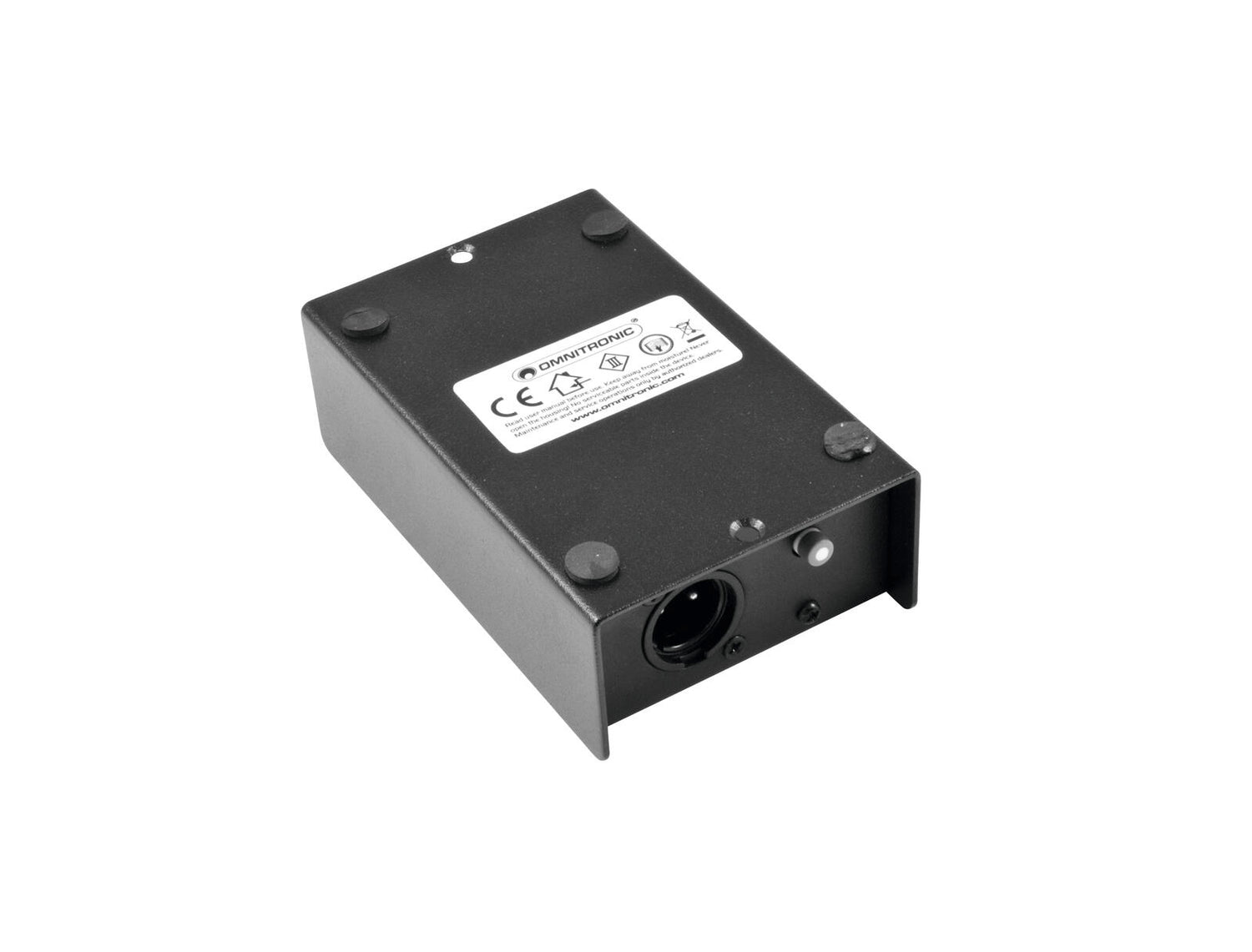

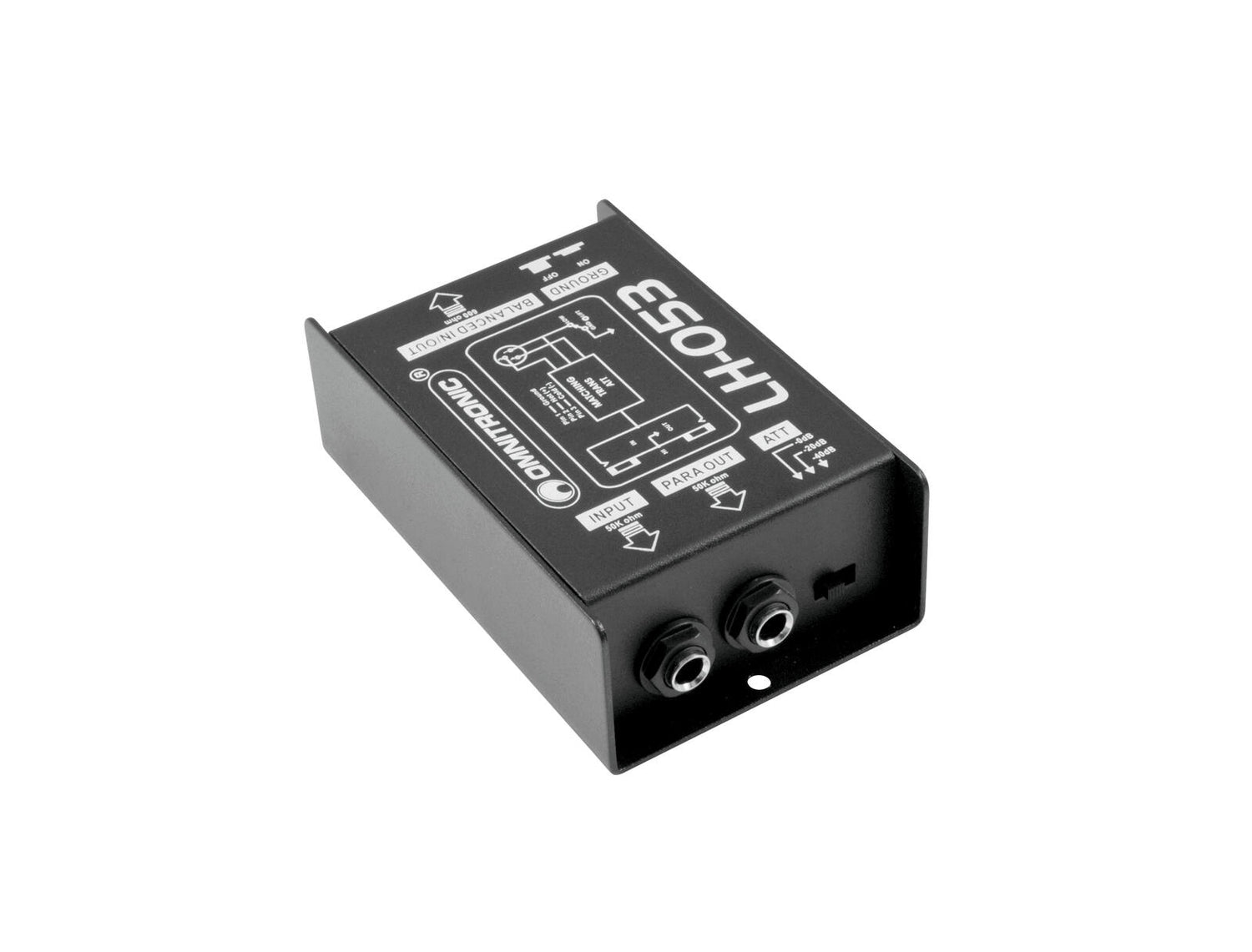

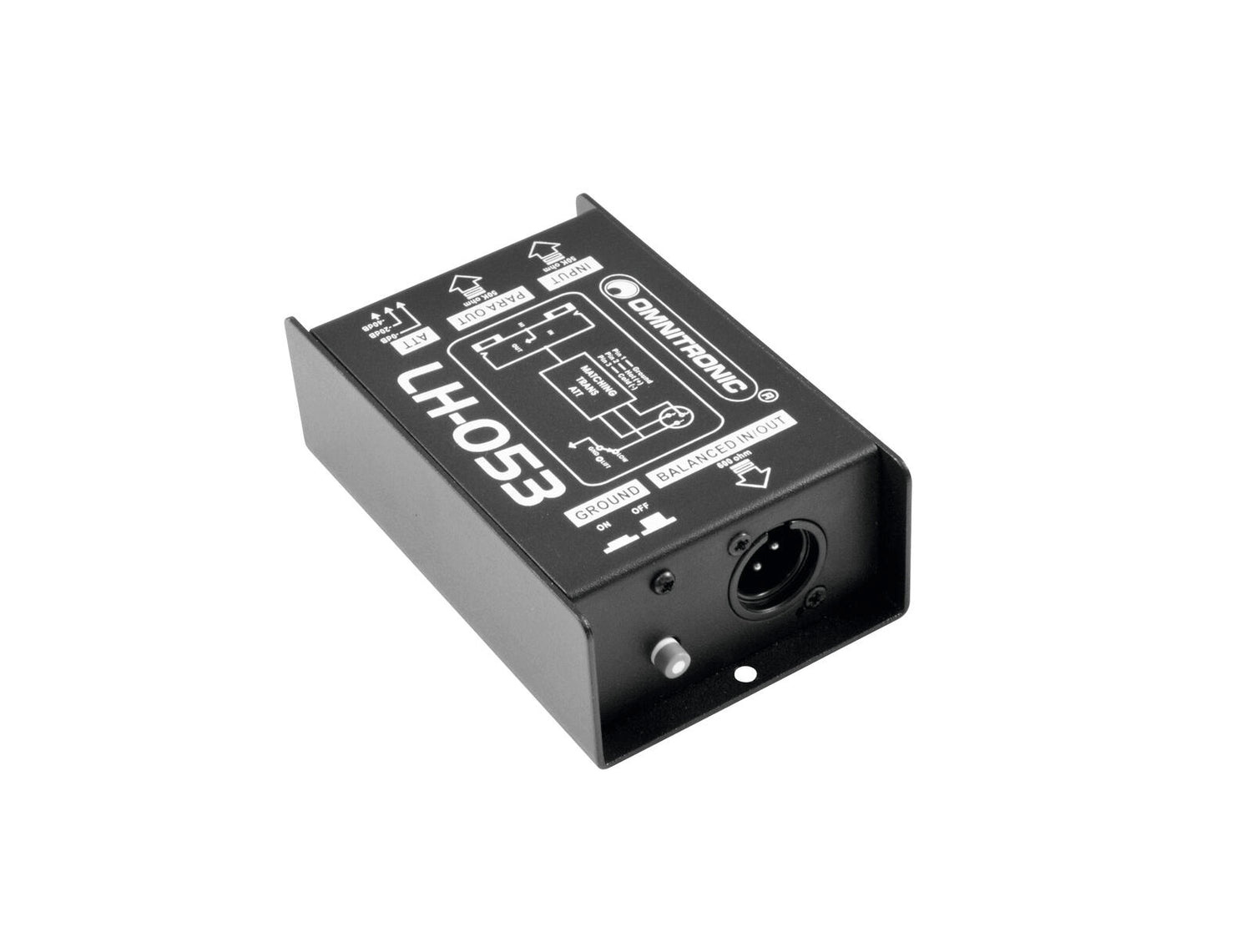

OMNITRONIC LH-053 DI Box passive

Little brother of the LH-055 DI Box. Sturdy housing, solid workmanship at an unbeatable price.

Passive 1-channel DI box, black

• 1 high-impedance signal input, 6.3 mm jack
• 1 low-impedance XLR output
• 6.35 mm jack input, and output
• Converts an unbalanced line input (e.g. instruments) into a balanced XLR output for connecting a mixer
• Switchable input attenuation: 0 dB, -20 dB, -40 dB
• Rugged black metal housing
• For application areas such as: Installation; mobile use; mobile djs / entertainer

Scope of delivery

• 1 x device
• 1 x user manual

Frequency range:	15 - 30000 Hz
S/N ratio:	>95 dB
Impedance:	Input: 50 kOhm Output: 600 Ohm
Input attenuation:	0 dB, -20 dB, -40 dB; switchable
Control elements:	Groundlift selector, Input sensitivity switch
Connections:	Input: 1 x 6.3 mm plug (unbal.) Link: 1 x 6.3 mm plug (unbal.) Output: line via 1 x 3-pin XLR
Color:	Black
Dimensions:	Width: 12.7 cm Depth: 7.4 cm Height: 4.5 cm
Weight:	0.44 kg
