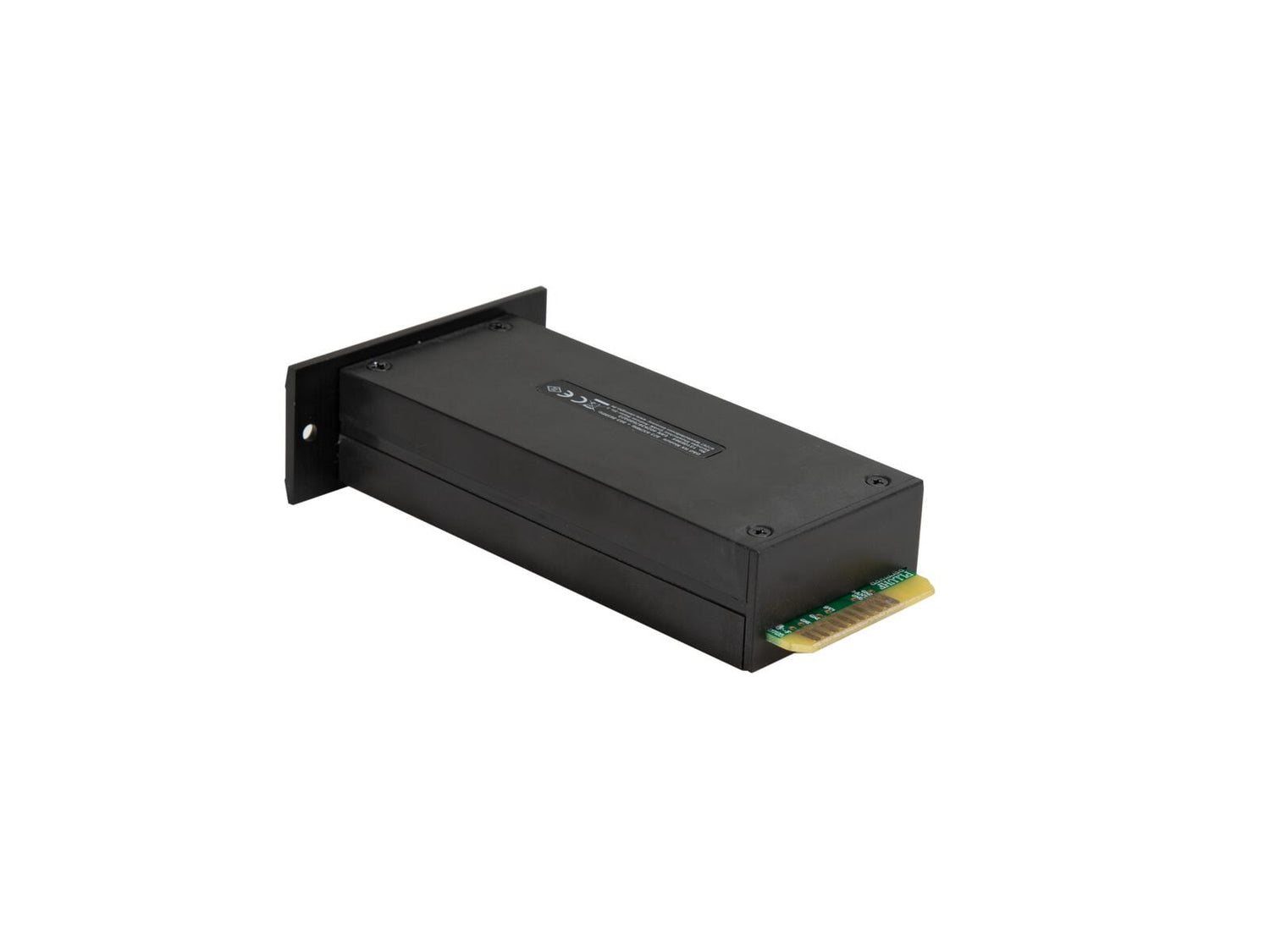

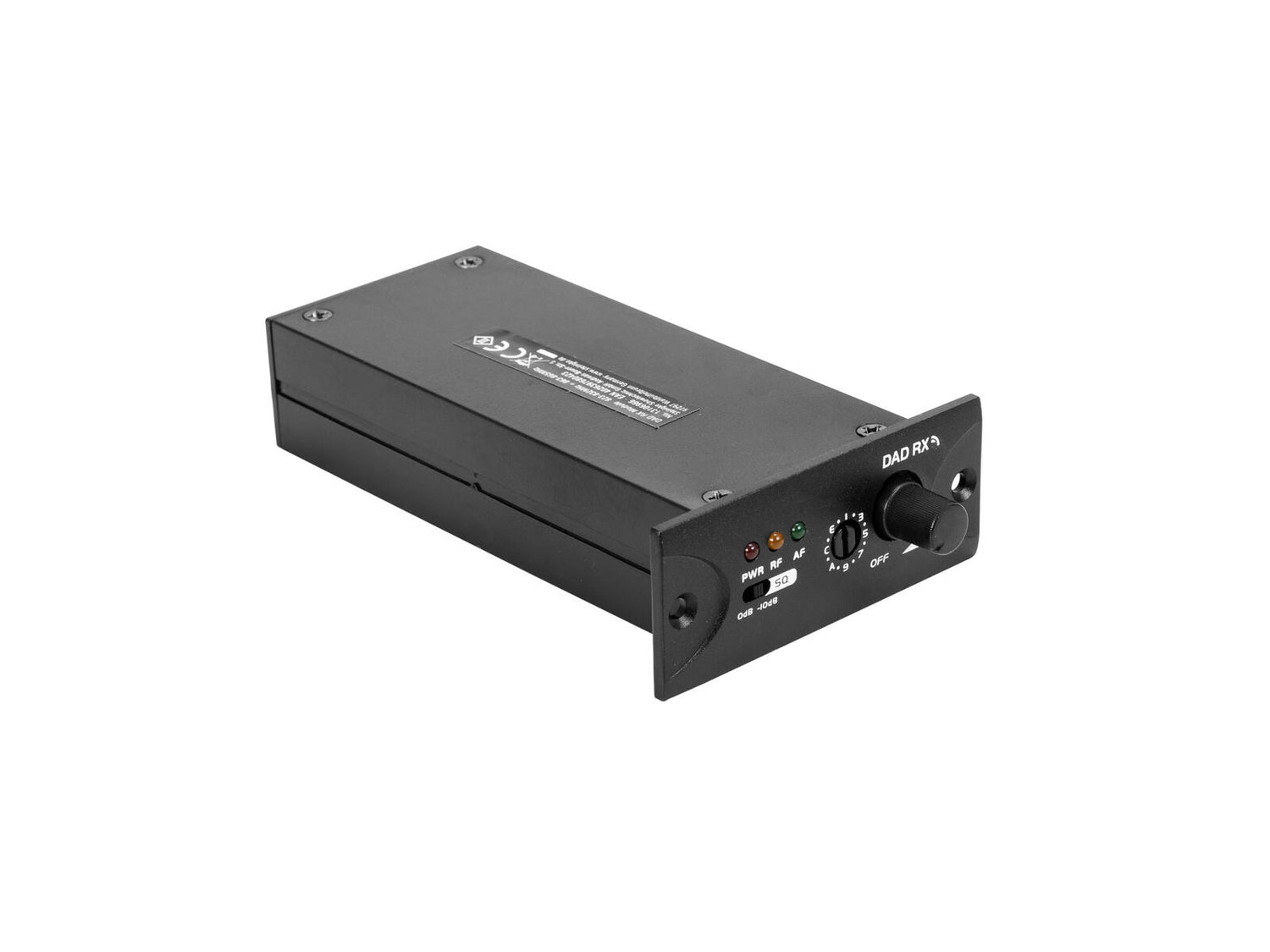

OMNITRONIC DAD Receiver Module
1
av
3
Laster inn...
467 kr
Stk. pris kr
/
Ikke tilgjengelig
Inkl. mva & toll
Frakt 99 kr (gratis over 2499 kr.)
Betalingsmetoder akseptert
Beskrivelse
Beskrivelse
Receiver module for UHF frequencies (microphone, bodypack + audio link module)
- For installation into the DAD-4RX 4-channel receiver housing
- For retrofitting the MOM-10BT4 modular PA system
- For wireless audio transmission with DAD transmitter modules and other components
- 16 selectable UHF frequencies (823-832 and 863-865 MHz)
- LEDs for carrier and audio signal
- Operating range up to 30m with line-of-sight
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe
Scope of delivery
- 1 x receiver
- 1 x user manual
- 1 x declaration of conformity
| Type: | Receiver |
| Power supply: | 12V DC 170 mA |
| Number of channels: | 1 |
| Frequency range: | 40 - 18000 Hz |
| S/N ratio: | >80 dB |
| THD: | <0.1 % at 1 kHz |
| Sensitivity: | -95 dB |
| Range: | Range up to 30m with line-of-sight |
| Frequency band: | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Frequency stability: | ± 0.001 % |
| Frequency selection: | 16 switchable frequencies |

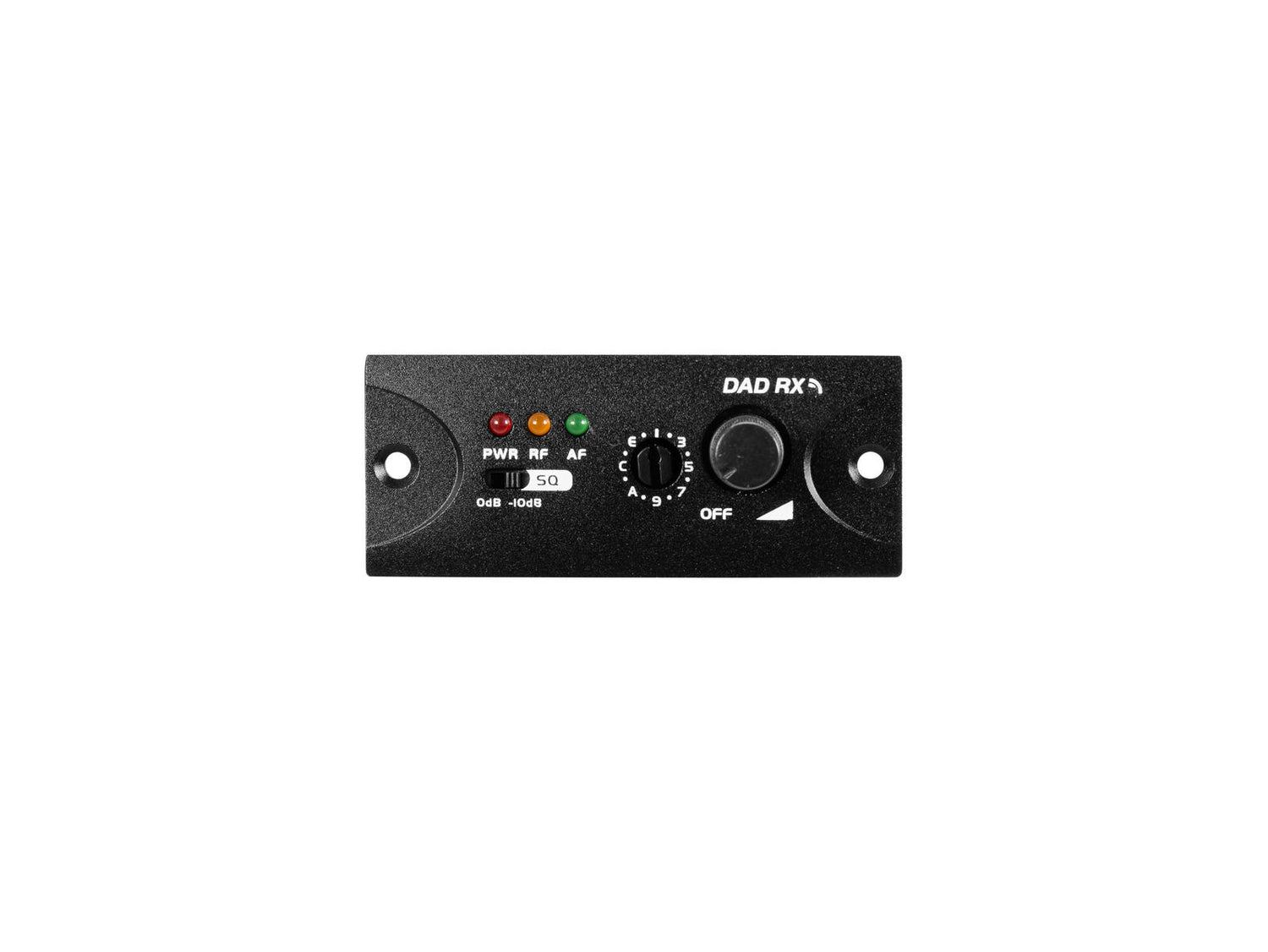

| Control elements: | Frequency selector switch, level control, Squelch control |
| Status LED: | Power, signal, level meter |
| Color: | Black |
| Dimensions: | Width: 7.1 cm Depth: 13.9 cm Height: 3 cm |
| Weight: | 0.09 kg |
