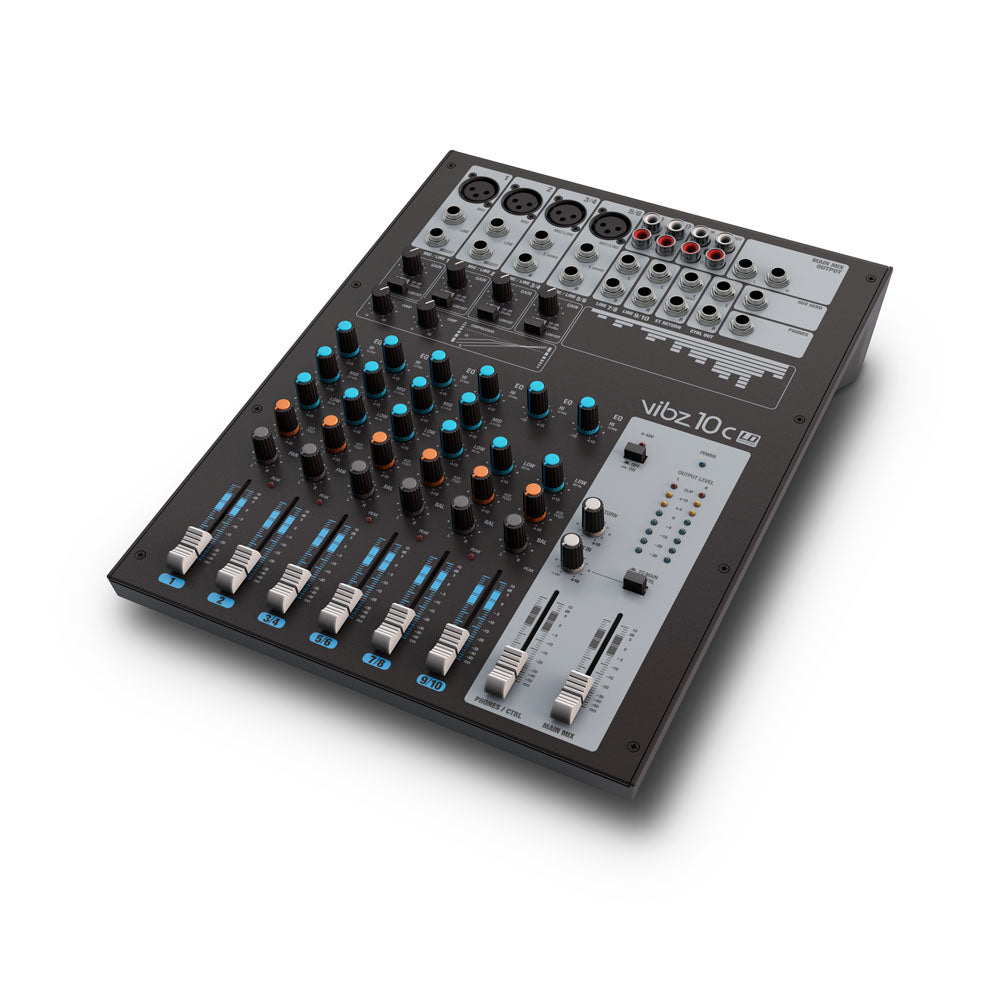

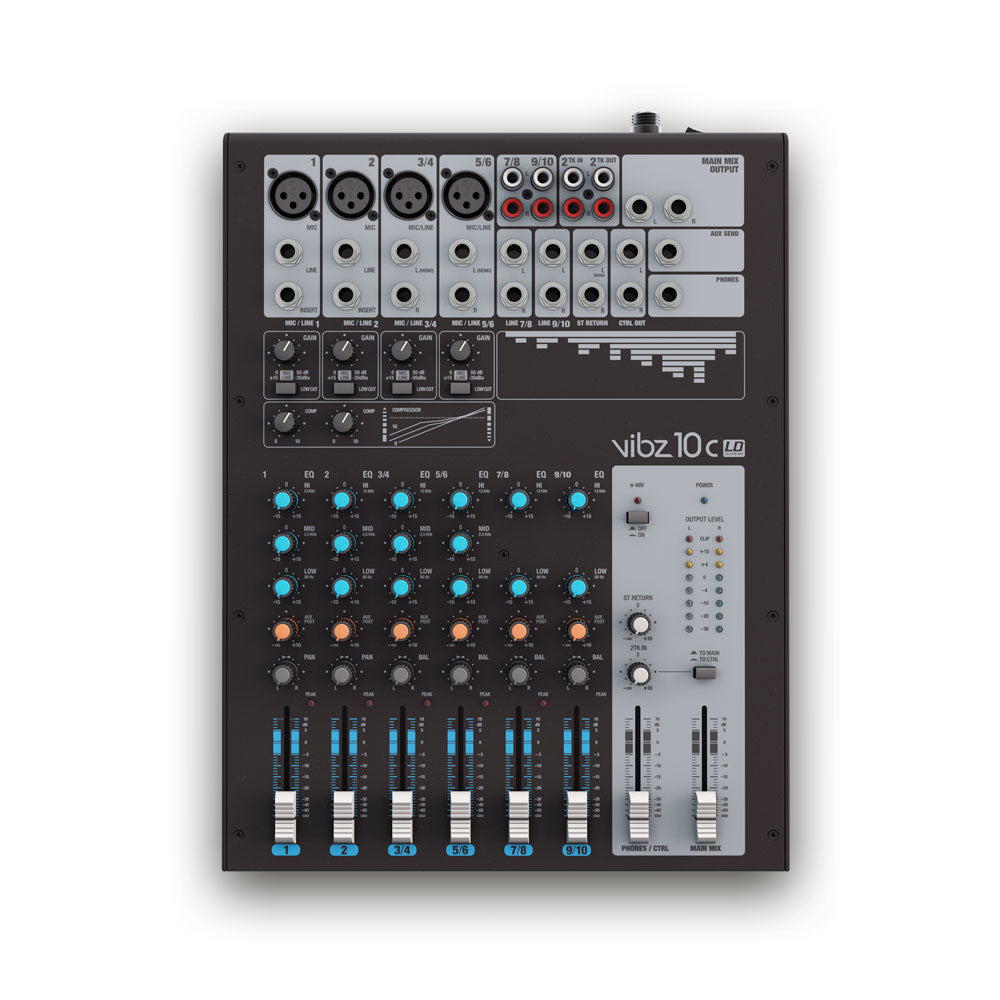

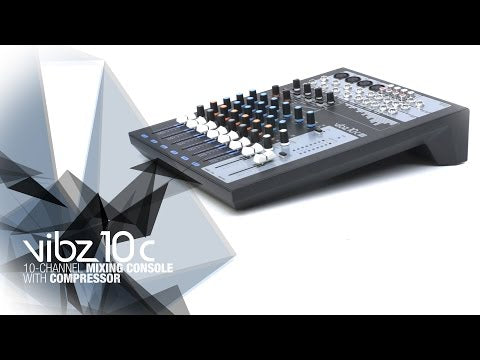

LD Systems VIBZ 10 C – 10-kanals mixerpult med kompressor
Inkl. mva & toll
Beskrivelse
Beskrivelse

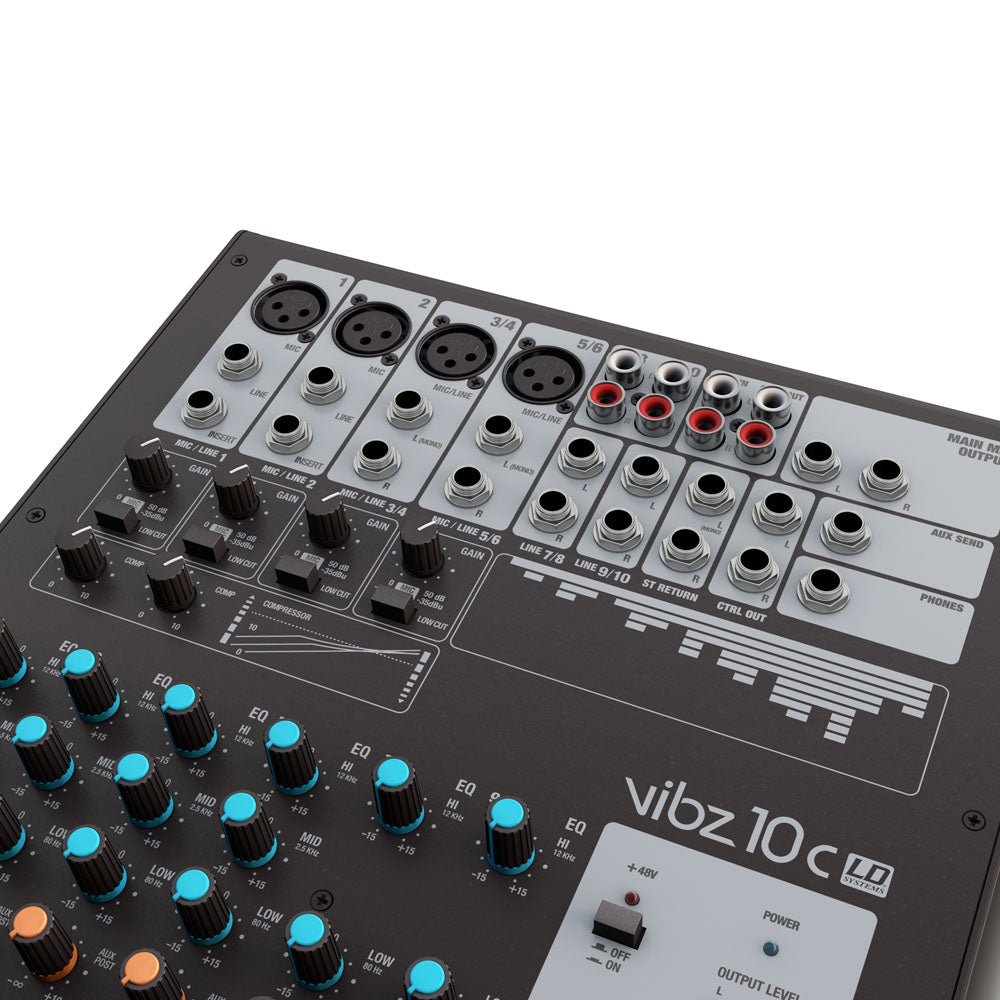

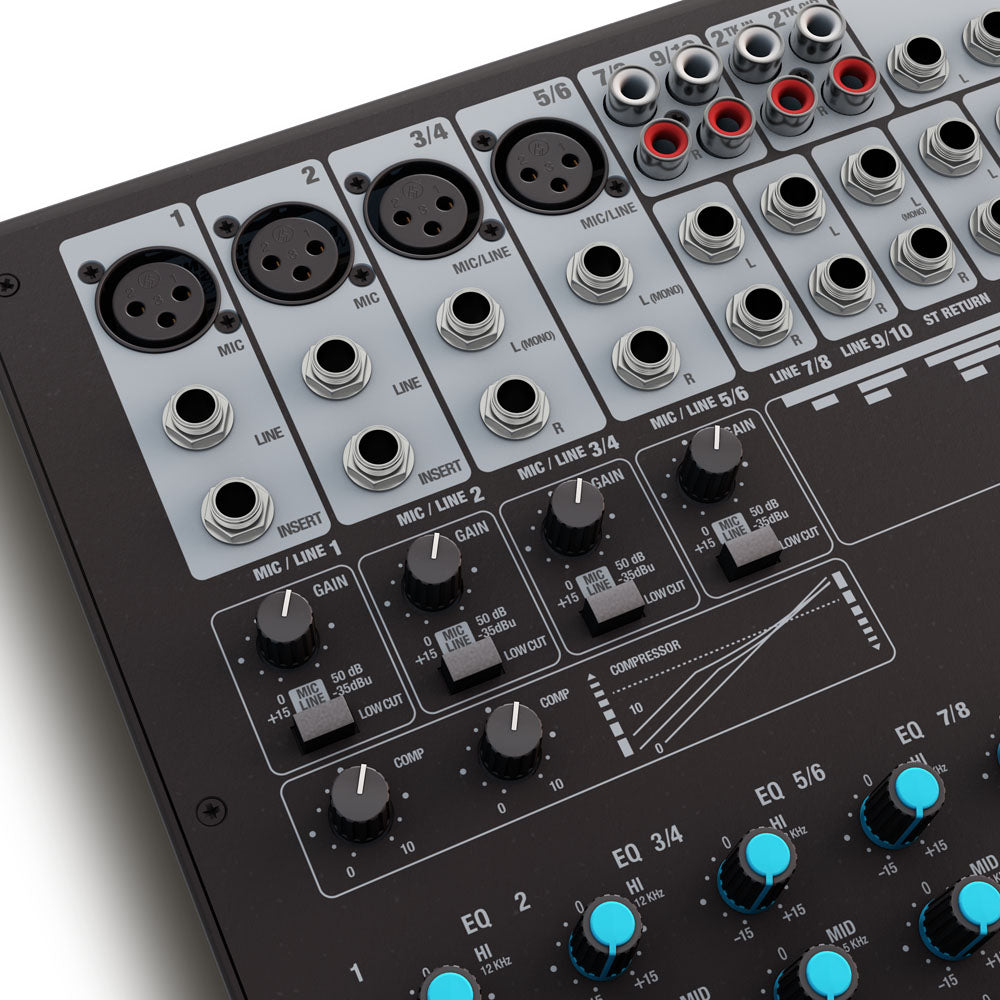

VIBZ 10 er en allsidig mikser med fire balanserte mikrofoninnganger med førsteklasses forforsterkere, et low-cut-filter og bryterbar fantommating. To mikrofoninnganger er utstyrt med inserts for individuell signalbehandling, og ytterligere to kan alternativt brukes som stereolinekanaler.
For effektiv lydjustering har VIBZ 10 svært presise 3-bånds EQ-er med hensiktsmessig valgte mellomfrekvenser; to stereokanaler kan justeres med 2-bånds EQ-er. Den innebygde kompressoren kan justeres trinnløst for effektiv dynamikkbehandling.
Mikserens masterseksjon har en effekt-loop, justerbare monitorutganger og en hodetelefonutgang. VIBZ 10 har også innganger og utganger for opptaks- og avspillingsenheter; inngangssignalet kan velges til master- eller monitorutgangen, og volumet kan justeres.
Med sin transparente, detaljerte lyd og enkle betjening er VIBZ 10 det perfekte valget for små band, installasjoner og hjemmeopptak eller som submikser. Den leveres med en ekstern strømforsyning som kan festes sikkert til mikseren. En fotbryter til effektseksjonen og en adapter for montering av VIBZ 10 på mikrofonstativer fås som tilbehør.
Tekniske spesifikasjoner
Tekniske spesifikasjoner
- 10-channel mixer with 4 microphone channels
- 4 stereo line inputs
- Effective 3-band EQ
- 2 stereo channels with 2-band EQ
- Sliding adjustable compressor
- Master, Monitor and headphone outputs
- Securely fastening external power supply
| Product type | Mixers |
| Type | Live |
| Channels | 10 |
Mono Channels:
| Mono Mic and Line Input Channels | 4 |
| Mono Mic input connectors | 6.3 mm TRS |
| Mono Mic input connectors | XLR |
| Channel Inserts | 2 |
| Channel Insert Connectors | 6.3 mm TRS |
| Mono Mic Input Type | Electronically balanced |
| Mono Mic Input Frequency Range | 10 - 45000 Hz |
| Amplification Range mono Mic Input | 0 - 50 dB |
| Mono Mic Input Input THD-N | 0.0058% |
| Mono Mic Input Impedance | 4k Ohm(s) |
| Mono Mic Input S/N Ratio | 113 dB |
| Mono Line Input Type | Electronically balanced |
| Mono Line Input Frequency Range | 10 - 45000 Hz |
| Amplification Range mono Line Input | 0 - 50 dB |
| Mono Line Input Input THD-N | 0.0045 % |
| Mono Line Input Impedance | 21k Ohm(s) |
| Mono Line Input S/N Ratio | 116 dB |
| Mono Channel Equalizer High | +/- 15 dB @ 12000 Hz |
| Mono Channel Equalizer Mid | +/- 15 dB @ 2500 Hz |
| Mono Channel Equalizer Low | +/- 15 dB @ 80 Hz |
| Controls Mono Mic and Line Input Channels | 3-band EQ (High, Mid, Low) |
| Controls Mono Mic and Line Input Channels | AUX (DFX) Post |
| Controls Mono Mic and Line Input Channels | Channel Volume |
| Controls Mono Mic and Line Input Channels | Compressor |
| Controls Mono Mic and Line Input Channels | Gain |
| Controls Mono Mic and Line Input Channels | Low Cut (75 Hz) |
| Controls Mono Mic and Line Input Channels | pan |
| Phantom power | 48 V DC switchable |
Stereo Channels:
| Stereo Line Input Channels | 4 |
| Stereo Line Input Connectors | 6.3 mm TRS |
| Stereo Line Input Type | Electronically balanced |
| Stereo Line Input Type | Unbalanced |
| Stereo Line Input Frequency Range | 10 - 45000 Hz |
| Amplification Range stereo Line Input | 0 - 50 dB |
| Stereo Line Input Input THD-N | 0.0045 % |
| Stereo Line Input Impedance | 3,7k Ohm(s) |
| Stereo Line Input S/N Ratio | 116 dB |
| Stereo channel equalizer treble | +/- 15 dB @ 12000 Hz |
| Stereo channel equalizer mids | +/- 15 dB @ 2500 Hz |
| Stereo channel equalizer bass | +/- 15 dB @ 80 Hz |
| Controls Stereo Line Input Channels | 2-band EQ (High,Low) |
| Controls Stereo Line Input Channels | 3-band EQ (High, Mid, Low) |
| Controls Stereo Line Input Channels | AUX Post |
| Controls Stereo Line Input Channels | Balance |
| Controls Stereo Line Input Channels | Channel Volume |
| Controls Stereo Line Input Channels | Gain |
| Controls Stereo Line Input Channels | Low Cut |

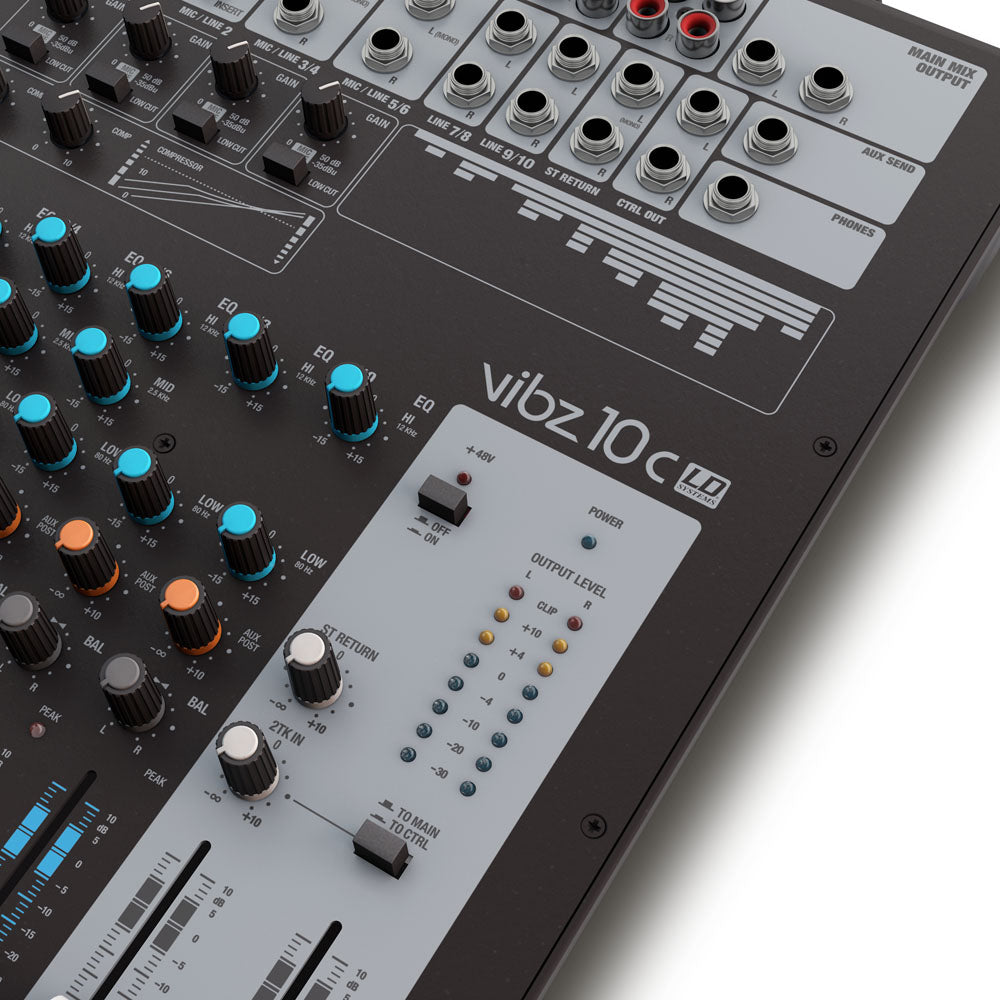

Main Section:
| AUX / Effects Send Channels | 1 |
| AUX / Effects Send Connectors | 6.3 mm stereo jack unbalanced |
| Stereo AUX Return Channels | 1 x stereo |
| Stereo AUX Return Connectors | 6.3 mm TRS |
| Stereo Tape Out Channel | 1 x stereo |
| Stereo Tape Out Connectors | 2 x RCA (Cinch) |
| Stereo Tape In Channel | 1 x stereo |
| Stereo Tape In Connenctors | 2 x RCA (Cinch) |
| Unbalanced stereo Main Outputs | 1 |
| Unbalanced stereo Main Output Connections | 6.3 mm TRS |
| Unbalanced Stereo Main Out Impedance | 120 Ohm(s) |
| Max. Unbalanced Stereo Main Out Level | 20 dBu |
| Stereo Control Room Out | 1 |
| Stereo Control Room Out Connectors | 6.3 mm TRS |
| Headphones ouput | 1 |
| Headphones outputs | 6.3 mm TRS |
| Digital Effects Processor | No |
| Main section controls | 2-track Assignment (Main, Contr. Room) |
| Main section controls | 2-track In Volume |
| Main section controls | Master Volume |
| Main section controls | Phantom Power |
| Main section controls | Phones / Control Room Volume |
| Main section controls | Stereo Return Volume |
| Indicators | Phantom Power |
| Indicators | Power |

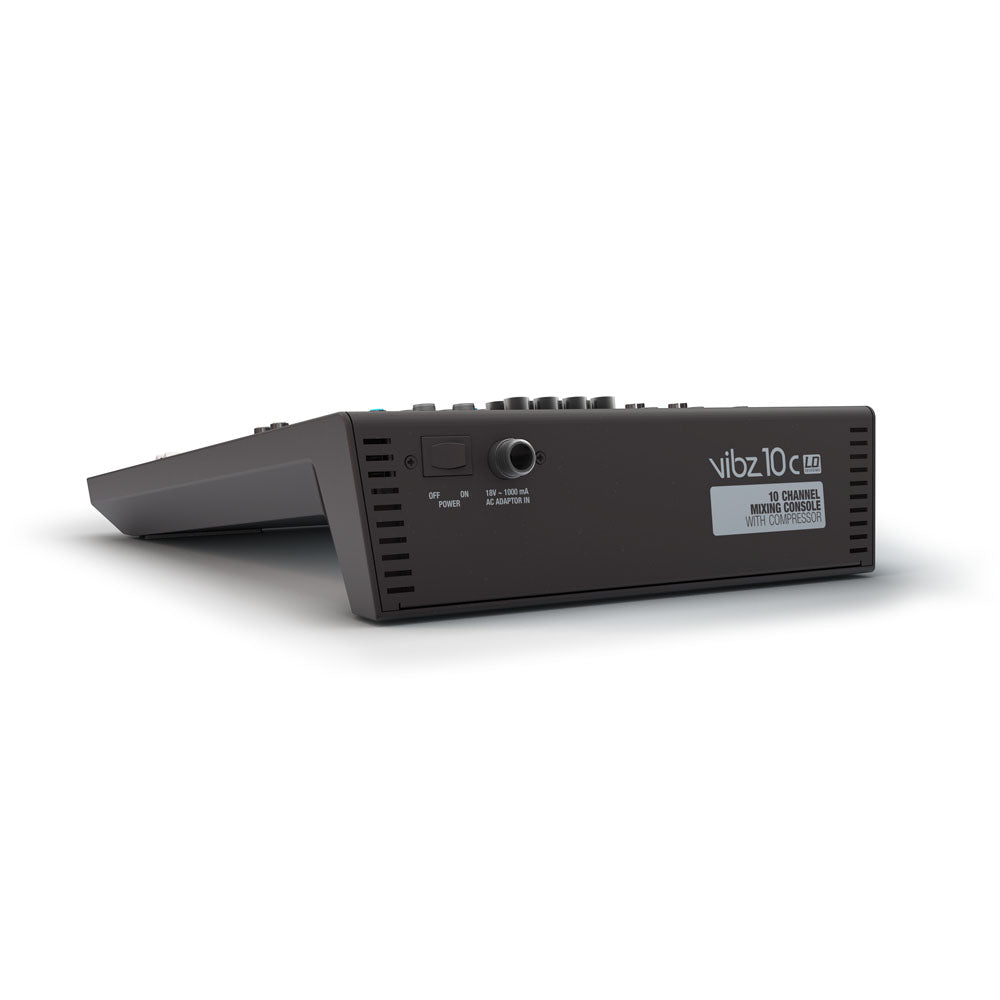

| Power supply | 18V DC - 1 A, External PSU |
| Power supply | 230 V |
| Width | 265 mm |
| Height | 78 mm |
| Depth | 352 mm |
| Weight | 2,3 kg |
