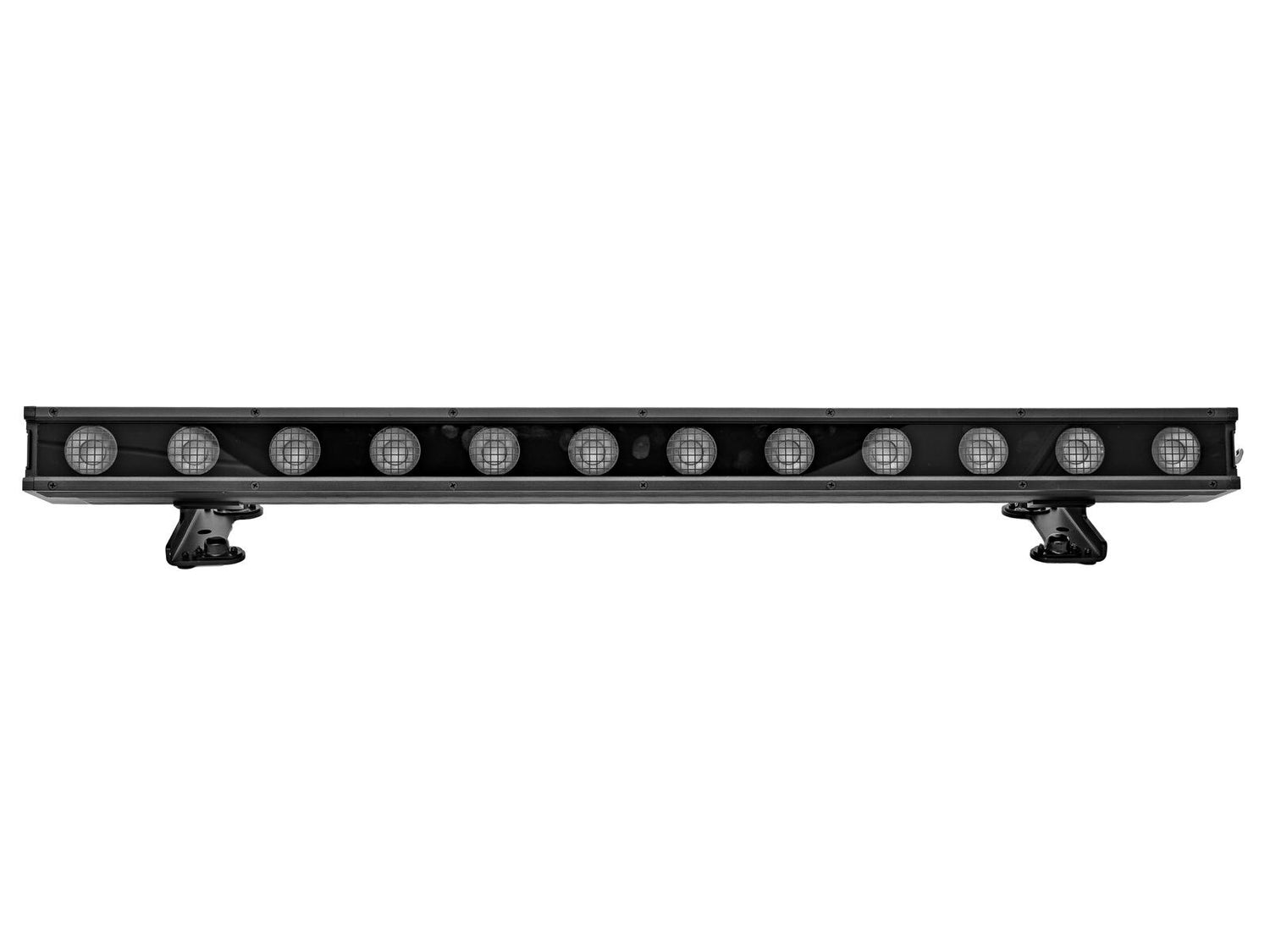

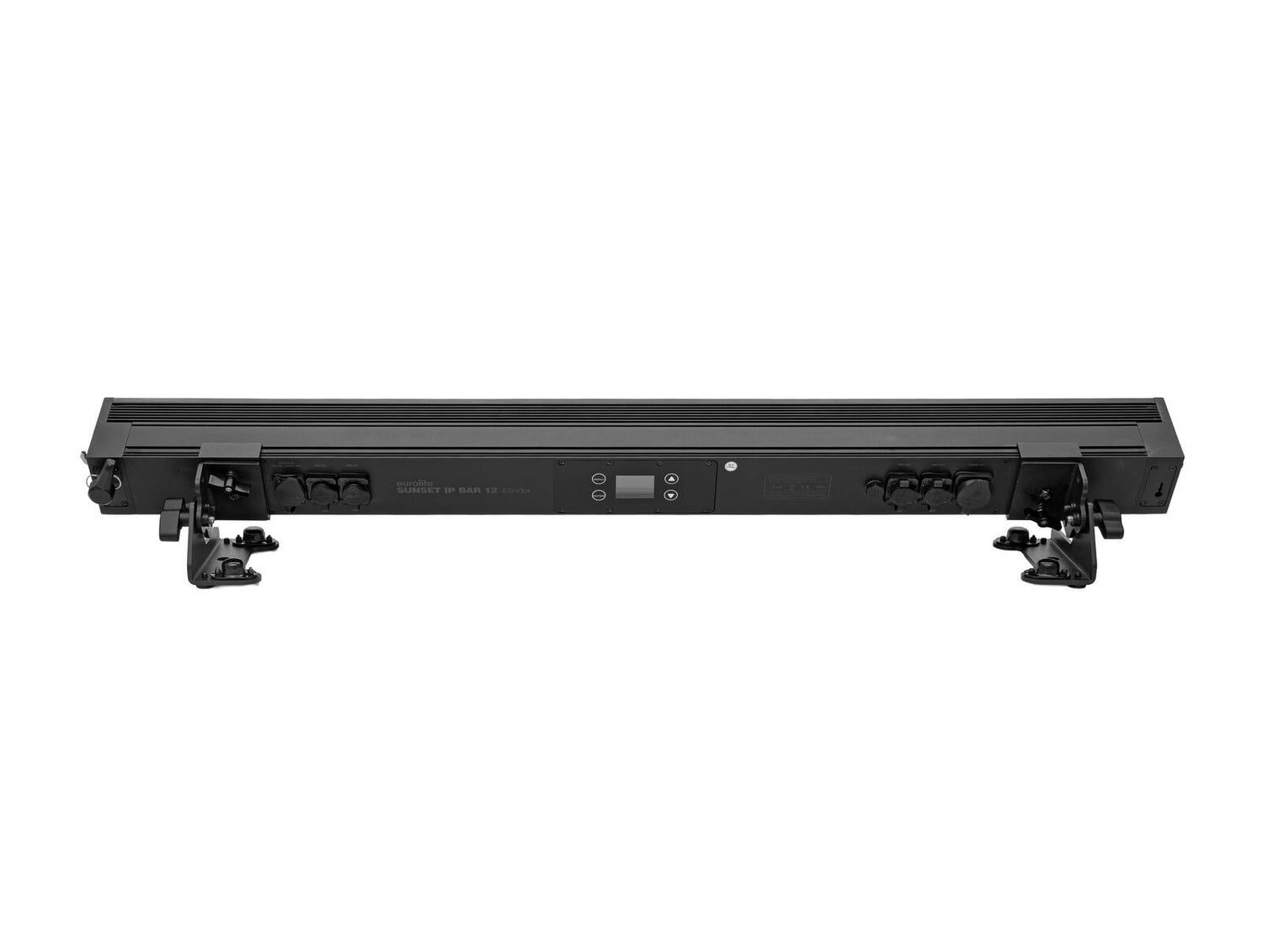

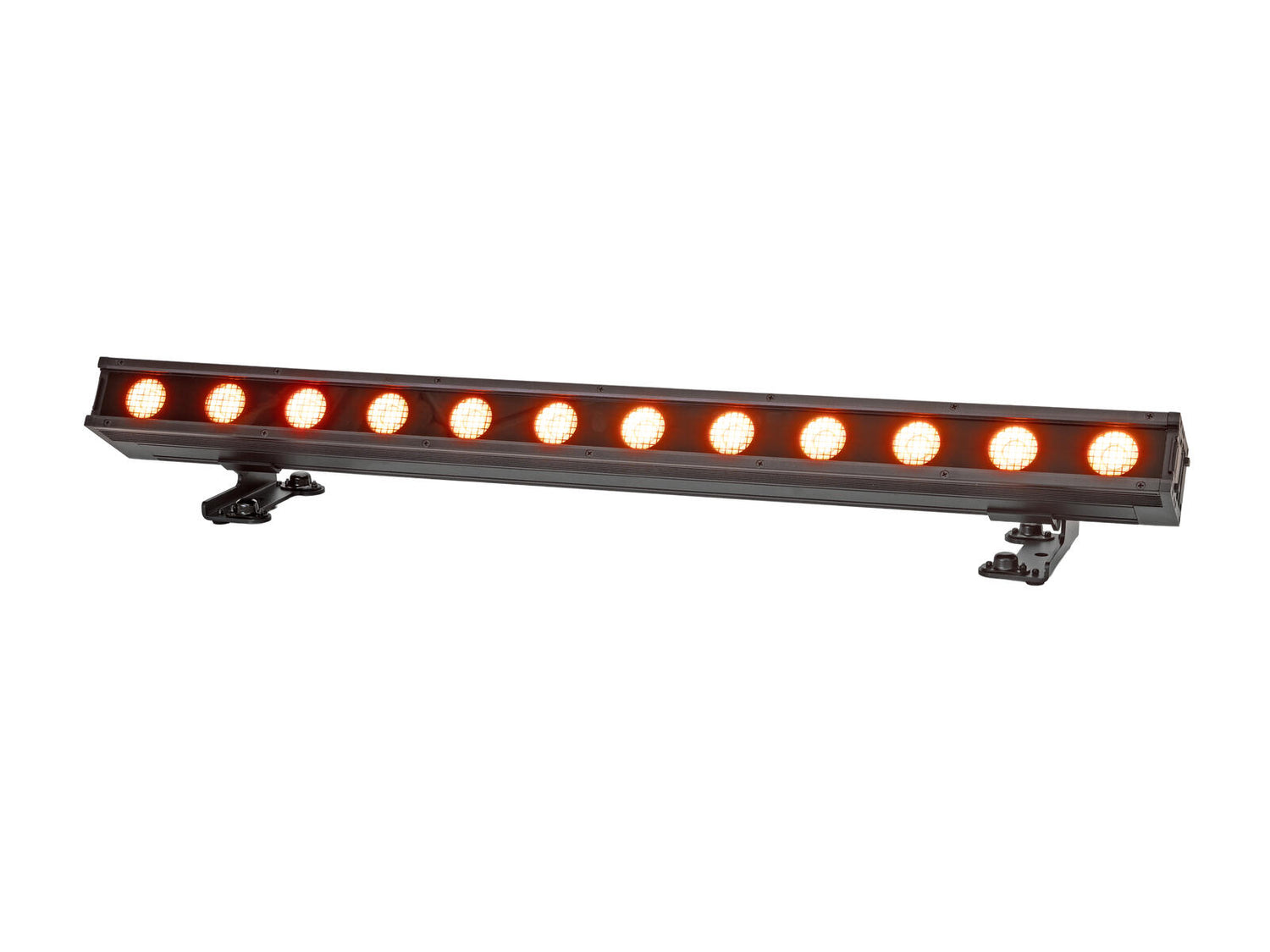

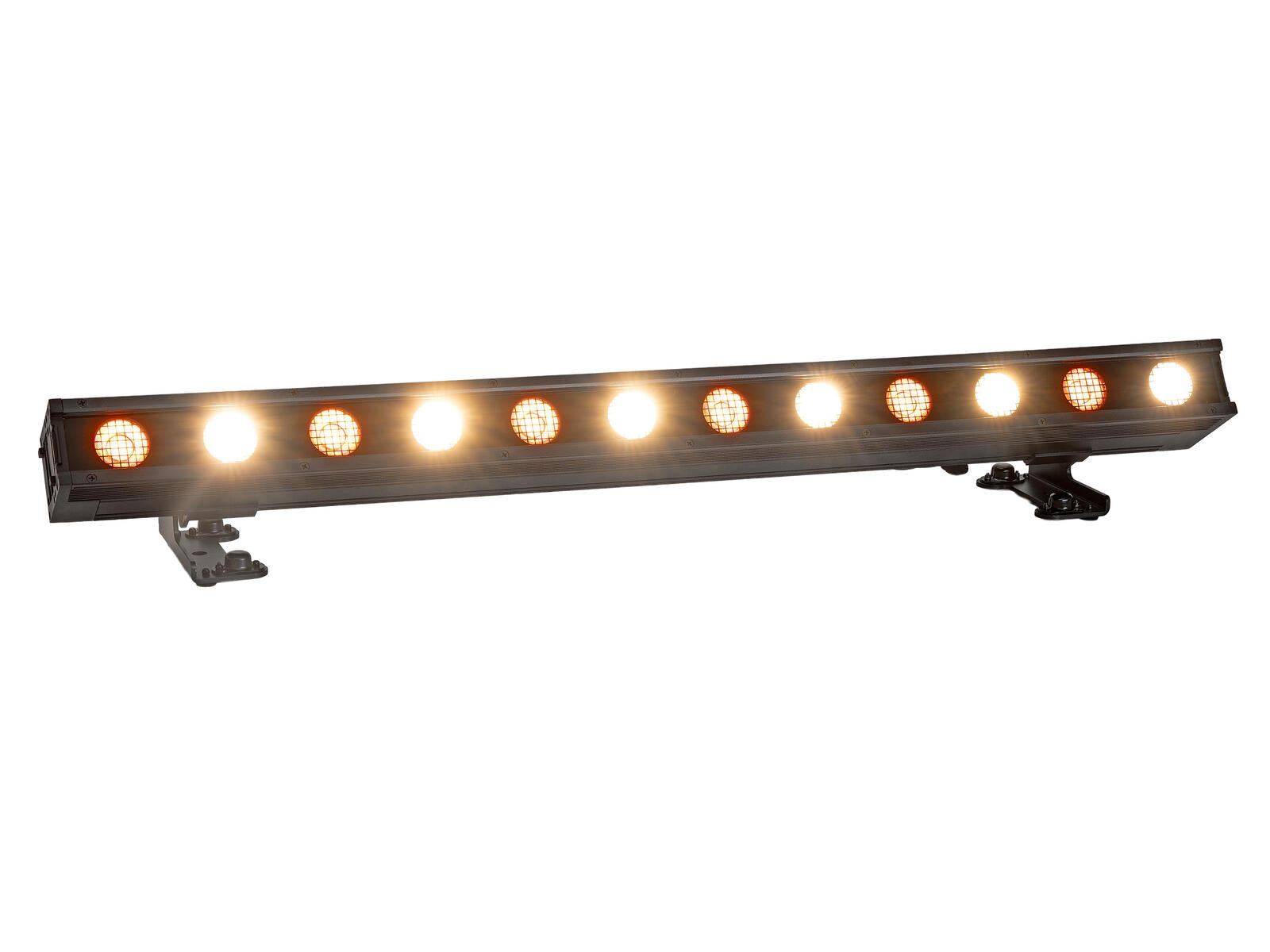

EUROLITE SUNSET IP BAR 12 Blinder dim2warm

Dette værbestandige bararmaturet er utstyrt med LEDs som etterligner oppførselen til tradisjonelle glødelamper. Når de dimmes, endres fargetemperaturen; når lysstyrken avtar, blir det varm hvite lyset gradvis varmere og får en gylden tone. The Sunset IP Bar 12 simulerer denne effekten svært overbevisende. Når den dimmes ned til null, toner lyset jevnt ut i en gylden farge. Selv ved lav lysstyrke beholder den den karakteristiske varme tonen fra en halogenlampe. De tolv LED-ene, hver på 30 W, kan styres individuelt, noe som gir både kraftige blinder-effekter og dynamiske chase-effekter.

Weather-proof (IP65) bar with twelve 30W LED units and excellent tungsten simulation

• Suitable for outdoor use IP65
• Blinder effect
• Very quiet working noise
• Flicker-free
• Control via stand-alone; DMX; RDM; master/slave function
• 5 integrated show programs
• Dimmer electronic; dimmer curves adjustable; Dimmer speed (step response) adjustable; pulse-width modulation adjustable; Dim to warm
• 36 LEDs 10 W warm white (WW)
  12 segments controlled separately
• 48 LEDs 0.6 W red (R)
  12 segments controlled separately
• 48 LEDs 1 W amber (A)
  12 segments controlled separately

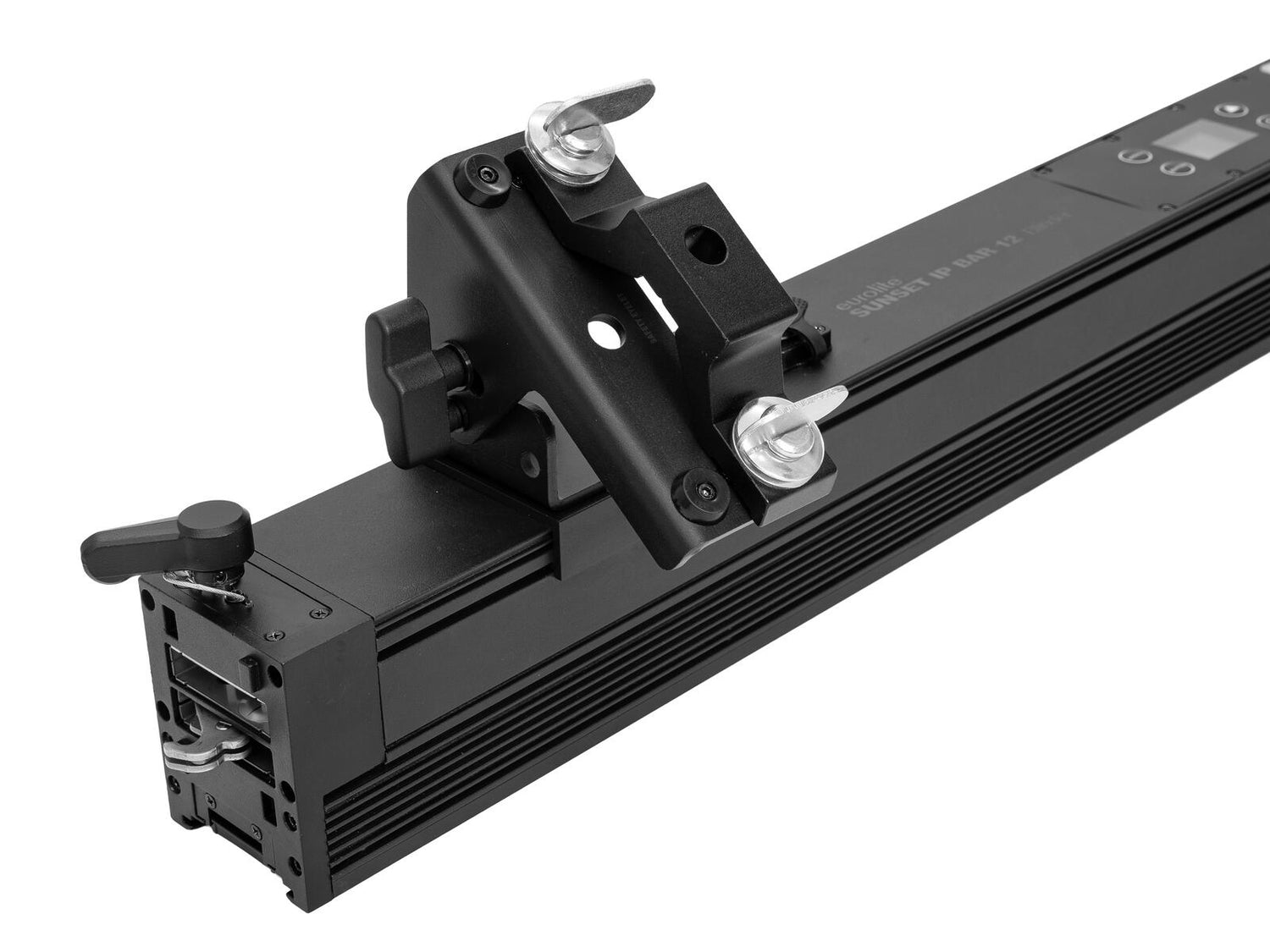

• With mounting bracket; with omega bracket
• The device is cooled by passive convection cooling
• Mains input and output for power linking up to 8 units
• Built with SEETRONIC connector
• With pressure compensation membrane
• For application areas such as: Stage; clubs/dancing school; wedding/gala/events; restaurants, bars and hotels; theater
• Application possibility: Standing; suspended

Scope of delivery

• 1 x spotlight
• 1 x user manual
• 1 x power cord
• 2 x omega bracket

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	230 W
IP classification:	IP65
Protection class:	Protection class I
Power connection:	Mains input via IP T-Con (M) mounting version power supply cord with safety plug
Cable construction:	3 x 2.5 mm² H07RN-F
Power output:	IP T-Con (F) mounting version
Lamp type:	LED lamp
LED type:	36 x 10 W warm white (WW) 48 x 0.6 W red (R) 48 x 1 W amber (A)
Flash rate:	1 - 33 Hz
DMX channels:	1; 4; 6; 12; 16; 21; 24; 34
DMX input:	3-pin XLR (M) mounting version IP 5-pin XLR (M) mounting version IP
DMX output:	3-pin XLR (F) mounting version IP 5-pin XLR (F) mounting version IP
Cooling:	Passive convection cooling
Control:	Stand-alone; DMX; RDM; master/slave function
Fixtures available for:	Light Captain
Projection:	Flicker-free
DMX features:	RDM For bidirectional communication over the DMX line
DMX fail mode:	Hold; blackout
Housing color:	Black
Attachment system:	2x mounting bracket 2x omega bracket
Display type:	Multicolor LCD display
Diameter mounting holes:	2 x Ø12mm
Use of brands:	Built with SEETRONIC connector
Material:	Aluminum casting
Dimensions:	Length: 100.5 cm Width: 14.0 cm Height: 18.0 cm
Weight:	8.00 kg
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
