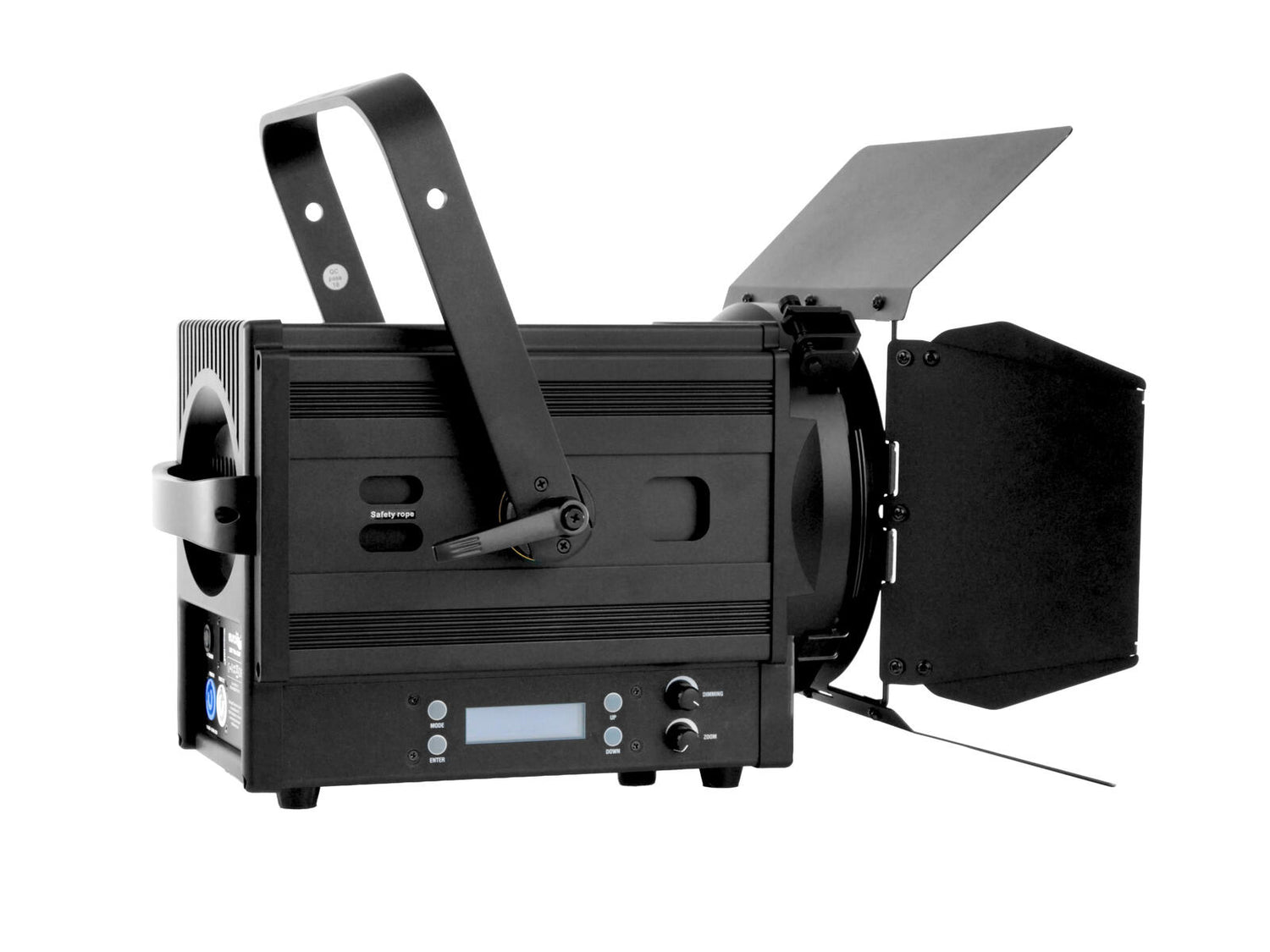

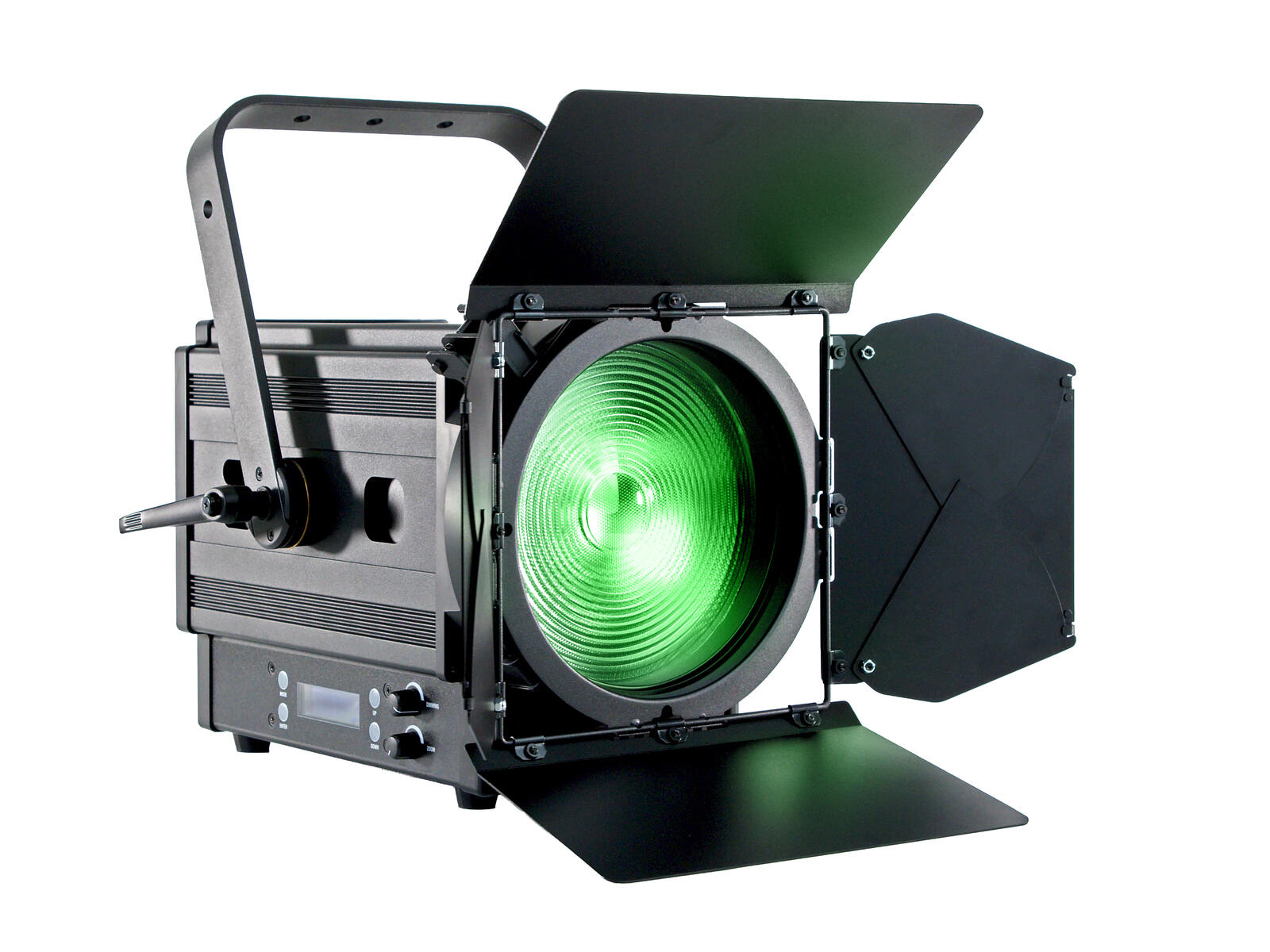

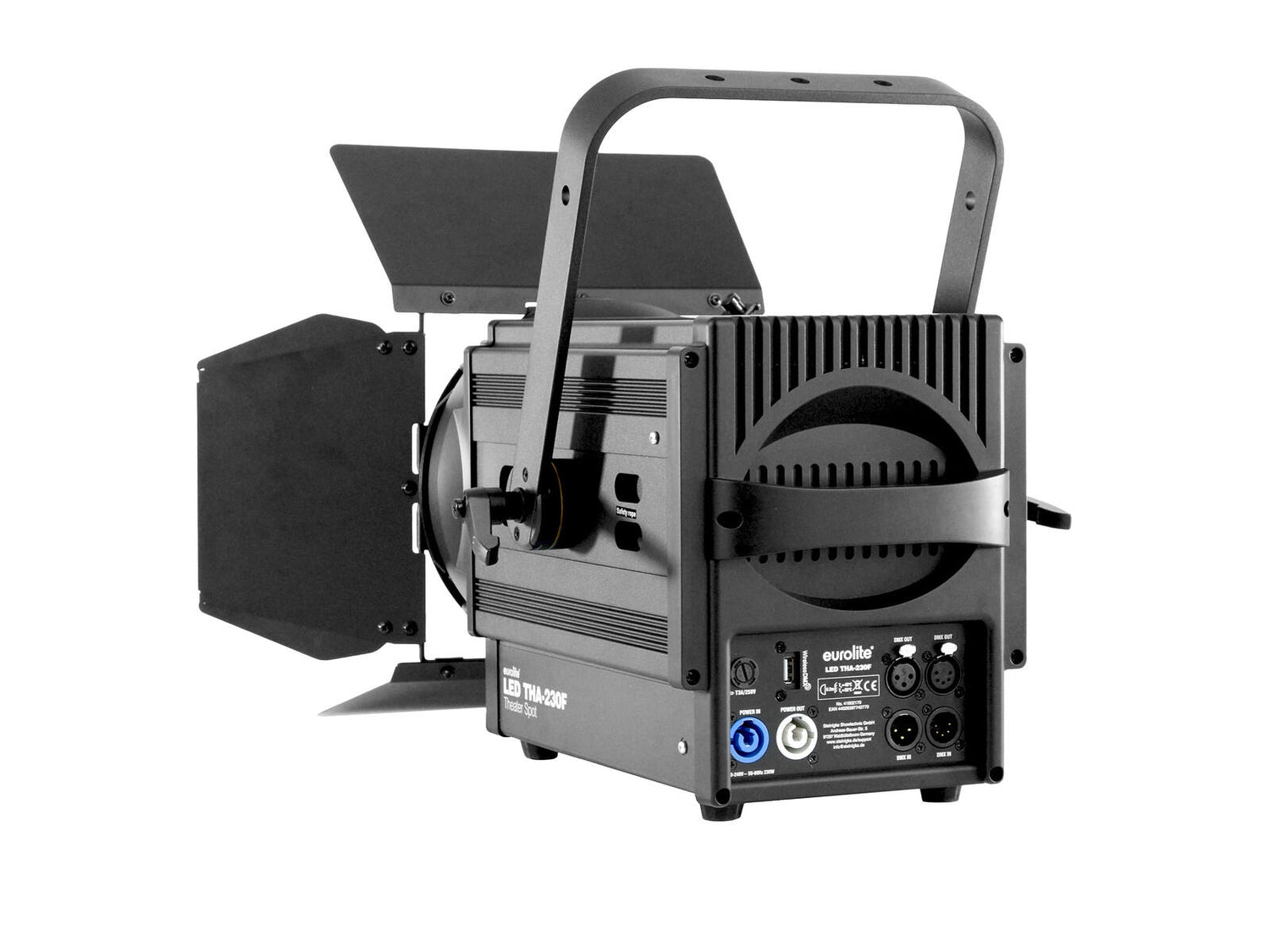

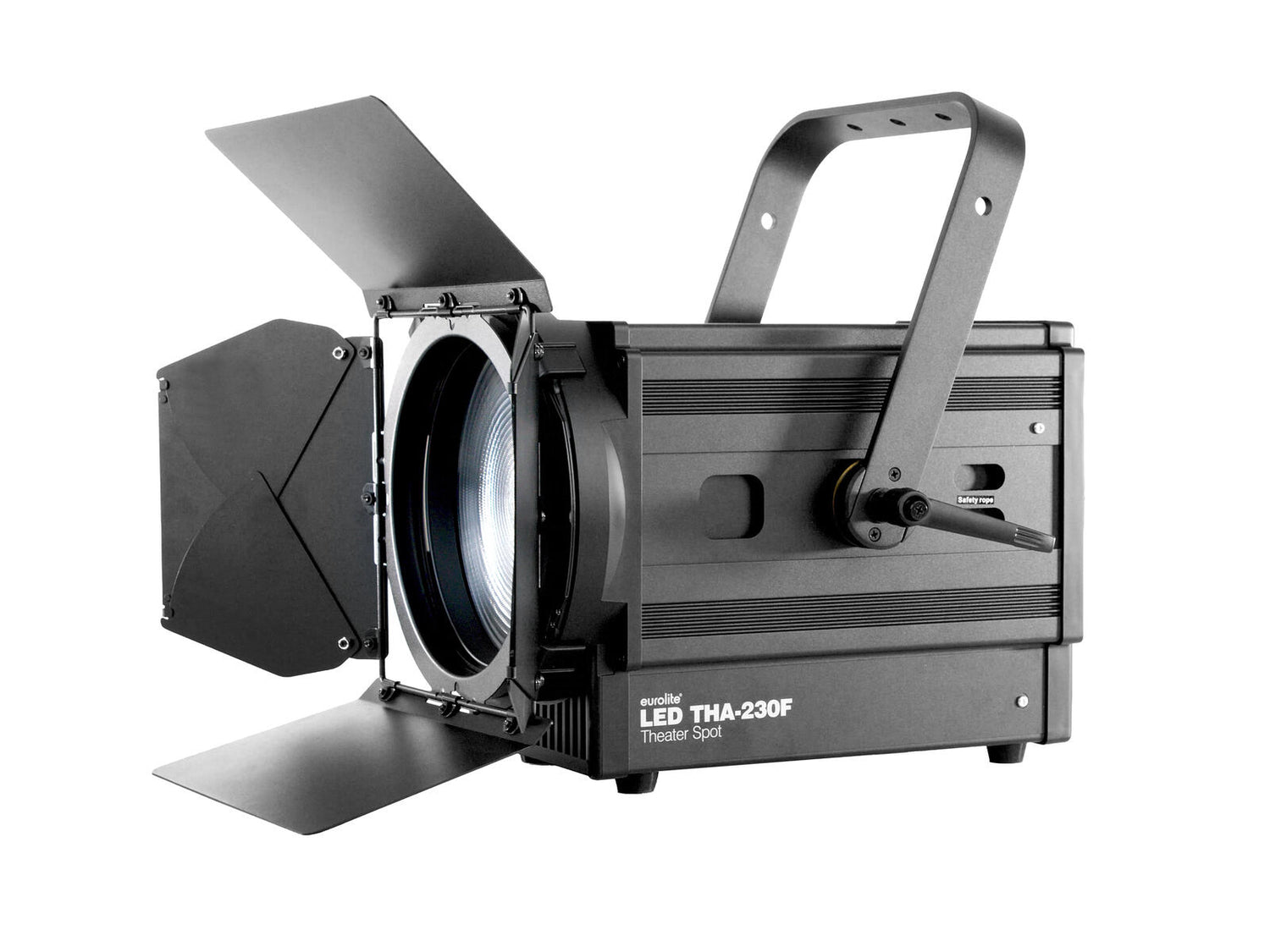

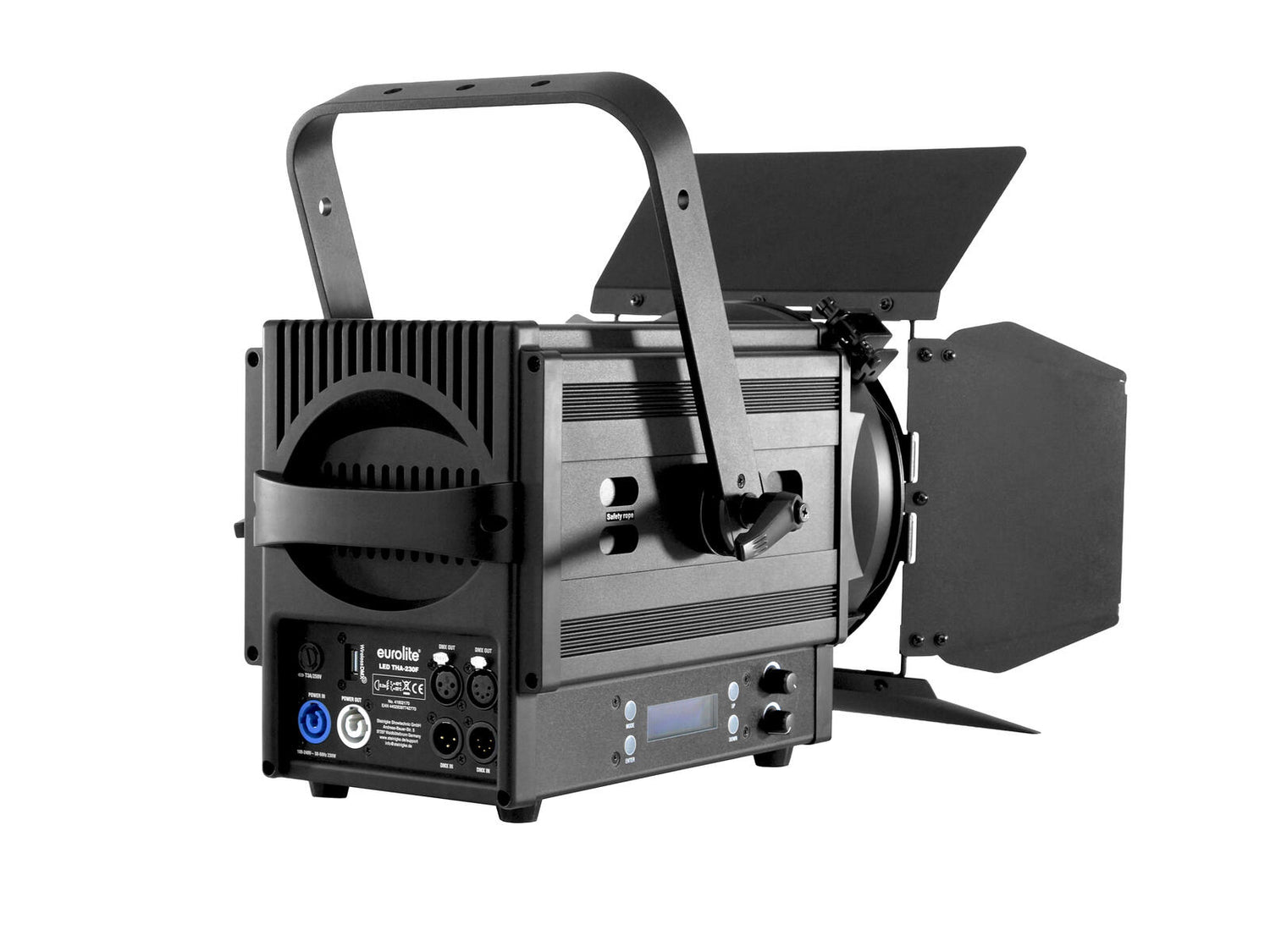

EUROLITE LED THA-230F teaterspot

The THA-230F er et Fresnel-armatur som passer godt til både farget og hvitt lys. Dens kraftige 230-watt LED produserer red, green, blue, og lime, som muliggjør et bredt spekter av fargemiksing.Dette tillater ikke bare livfulle farger og myke pastelltoner, men også særlig rene orange og yellow nyanser, samt et bredt spektrum av hvitt lys; fra dyp varm hvit til veldig kjølig hvit.Bak Fresnel-linsen finnes en motorisert zoom fra 3° til 56°, som kan kontrolleres via DMX. Alternativt kan zoom justeres direkte på armaturet og låses i posisjon, slik at fargestyring kan håndteres via DMX eller det innebygde menyssystemet.For støy-sensitive omgivelser har armaturet en stillemodus. PWM-frekvensen kan også justeres for å sikre flimmerfri ytelse i film- og TV-applikasjoner.Armaturet leveres med en fire-blad barndoor, hvorav to kan forlenges, noe som gjør mulig presis og fleksibel beam shaping.

Fresnel spotlight (fresnel lens), 230-W-COB (chip-on-board)-LED 4in1 RGBL, extremely quiet, DMX

• Med en beam angle på 3° - 56°
• Zoom motor driven
• Variable color temperature 2400 K - 8500 K
• Svært lavt arbeidstøy
• Eksakt 16 bit oppløsning på Dimmer, zoom, color
• Flicker-free
• Control via stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); RDM; quick select potentiometer for brightness and Zoom
• 1 LED 230 W COB (chip-on-board) 4in1 RGBL (homogenous color mix)
• Wash effect
• Direct color temperature selection for 62 preset values
• Dimmer electronic; dimmer curves; Dimmer speed (step response) adjustable; color blend stepless; pulse-width modulation variable
• Robust metalhus
• Med mounting bracket
• Mains input and output for power linking up to 8 units
• Built with SEETRONIC connector
• For application areas such as: Stage; wedding/gala/events; Trade fair and shop fitting; theater; rental; video and photography
• Application possibility: Suspended; on stand

Scope of delivery

• 1 x spotlight
• 1 x user manual
• 1 x power cord
• 1 x filter frame
• 1 x barndoor

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	230 W
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug
Cable construction:	3 x 1.5 mm² H05VV-F
Power output:	P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 3 A fuse replaceable
Lamp type:	LED lamp
LED type:	1 x 230 W COB (chip-on-board) 4in1 RGBL (homogenous color mix)
Flash rate:	1 - 20 Hz
Equipment:	Zoom motor driven
DMX channels:	1; 2; 4; 7; 18
DMX input:	3-pin XLR (M) mounting version 5-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version 5-pin XLR (F) mounting version
Cooling:	1 x temperature-controlled fan
Control:	Stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); RDM; quick select potentiometer for brightness and Zoom
Fixtures available for:	Light Captain
Projection:	Flicker-free
Beam angle:	3° - 56°
Beam angle (1/2 peak):	3 - 40°
Beam angle (1/10 peak):	13 - 56°
Color temperature:	2400K - 8500K adjustable
Lamp life:	30000 h
Housing color:	Black
Attachment system:	Mounting bracket
Display type:	Monochrome LCD display
USB port:	Type A
Transport aid:	4 x rubber feet
Diameter mounting holes:	3 x Ø10mm
Use of brands:	Built with SEETRONIC connector
Material:	Metal
Dimensions:	Length: 37.0 cm Width: 35.0 cm Height: 39.5 cm
Weight:	9.55 kg
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments) depending on mode used
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
