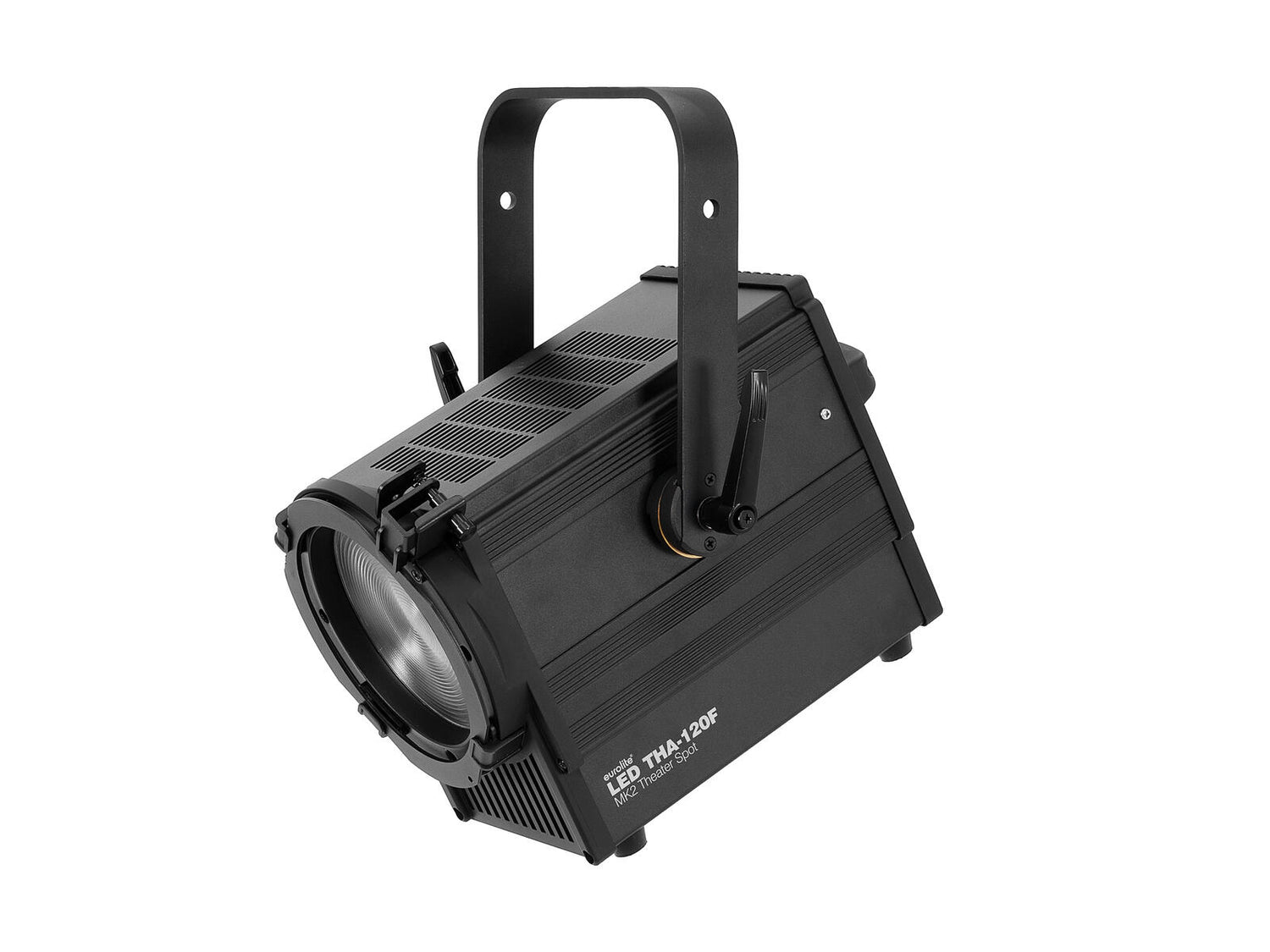

EUROLITE LED THA-120F MK2 teaterspot

Mens den originale THA-120F var begrenset til farget lys og pastelltoner, leverer den nye versjonen nå også utmerket hvitt lysytelse. Dette er muliggjort av et fargemikssystem basert på red, green, blue og lime. Det brede spekteret lime muliggjør spesielt rene gule og oransje toner, samt høykvalitets kjølig hvitt og varmt hvitt lys; noe som tidligere ikke var oppnåelig med tradisjonelle RGBW-armaturer. Bak Fresnel-linsen finnes en manuell zoom med et område fra 3° til 48°, som muliggjør fleksibel justering av beam angle. En spesielt designet lavstøys ventilatormodus gjør armaturen egnet for støysensitive miljøer. I tillegg kan PWM-frekvensen justeres fra 1200 Hz til 25 kHz i 12 trinn. Armaturen leveres også med en roterbar barndoor med fire blader. To av bladene kan forlenges, noe som muliggjør presis og optimal beam shaping til enhver tid.

Fresnel spotlight (fresnel lens), 120-W-COB (chip-on-board)-LED 4in1 RGBL, extremely quiet, DMX

• Variable color temperature 2400 K - 8500 K
• With a beam angle of 3° - 48°
• Zoom manual
• Exact 16 bit resolution at Dimmer, color
• Very quiet working noise
• Flicker-free
• Dimmer electronic; dimmer curves; Dimmer speed (step response); pulse-width modulation adjustable; color blend stepless
• Wash effect
• 1 LED 120 W COB (chip-on-board) 4in1 RGBL (homogenous color mix)
• Direct color selection for 117 preset colors
• With mounting bracket
• Mains input and output for power linking up to 8 units
• Built with SEETRONIC connector
• For application areas such as: Stage; wedding/gala/events; Trade fair and shop fitting; theater; rental; video and photography
• Application possibility: On stand; suspended
• Control via DMX; RDM; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); rotary dial for brightness; stand-alone

Scope of delivery

• 1 x spotlight
• 1 x user manual
• 1 x power cord

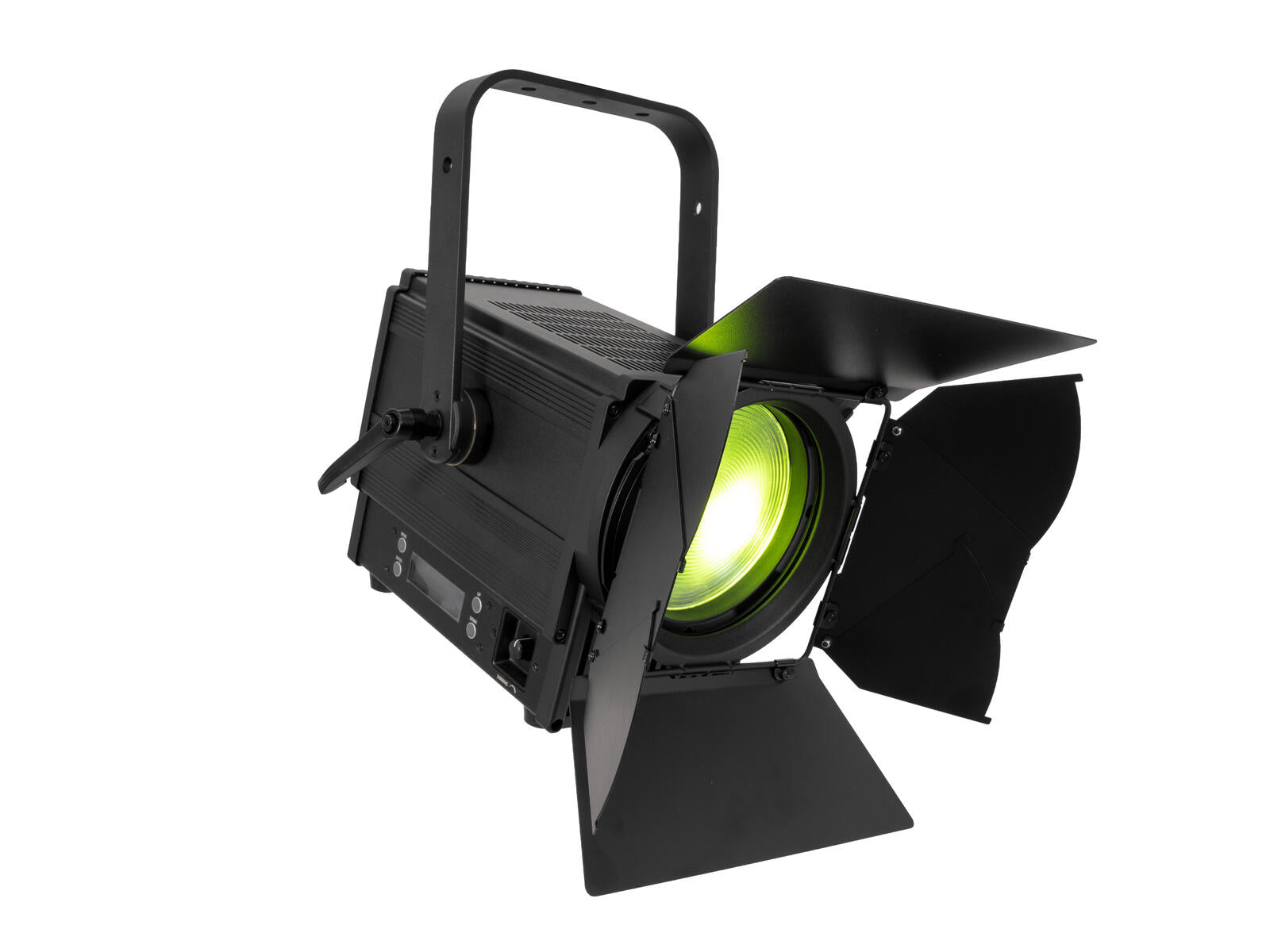

• 1 x barndoor
• 1 x filter frame

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	130 W
Protection class:	Protection class I

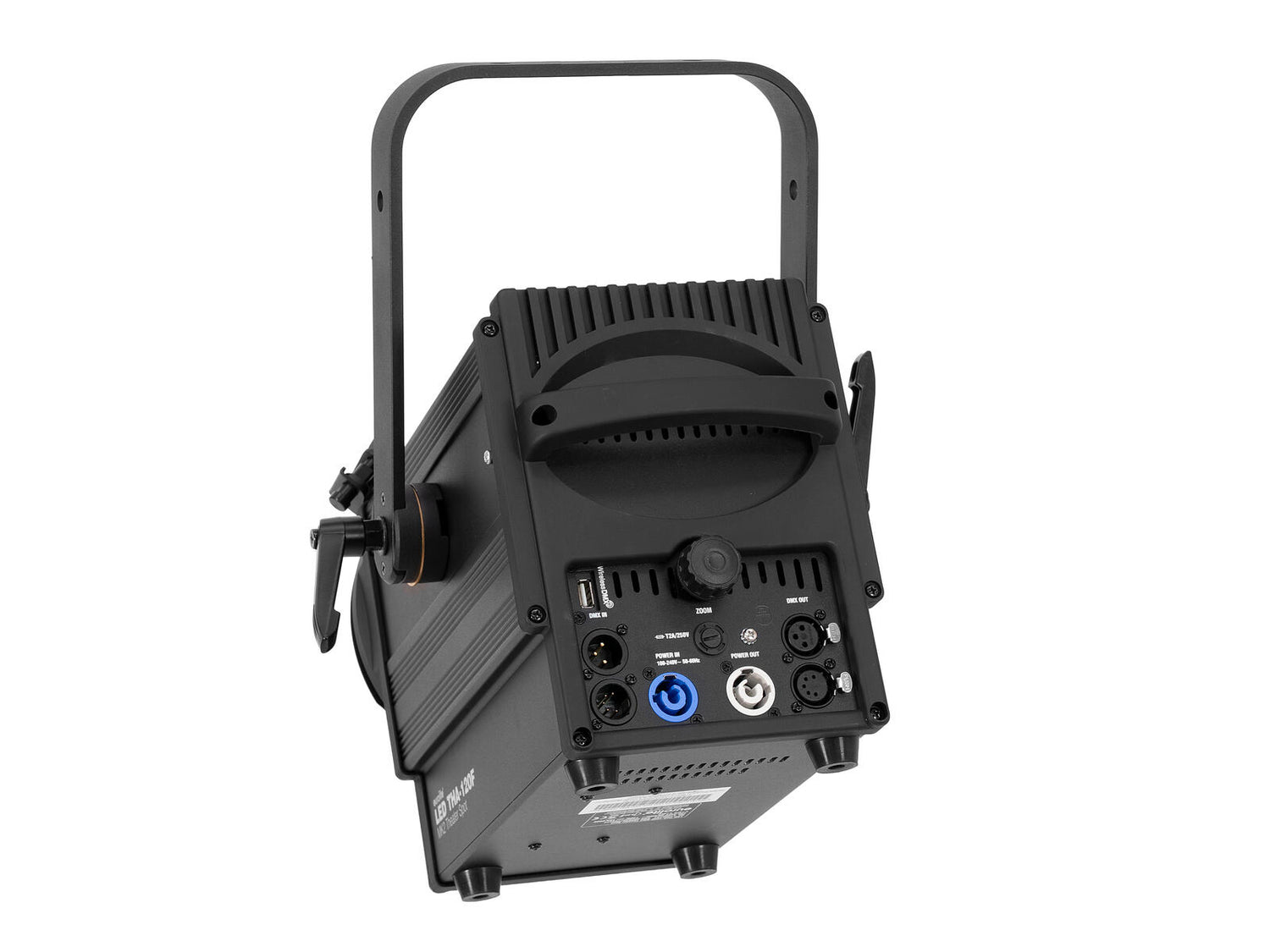

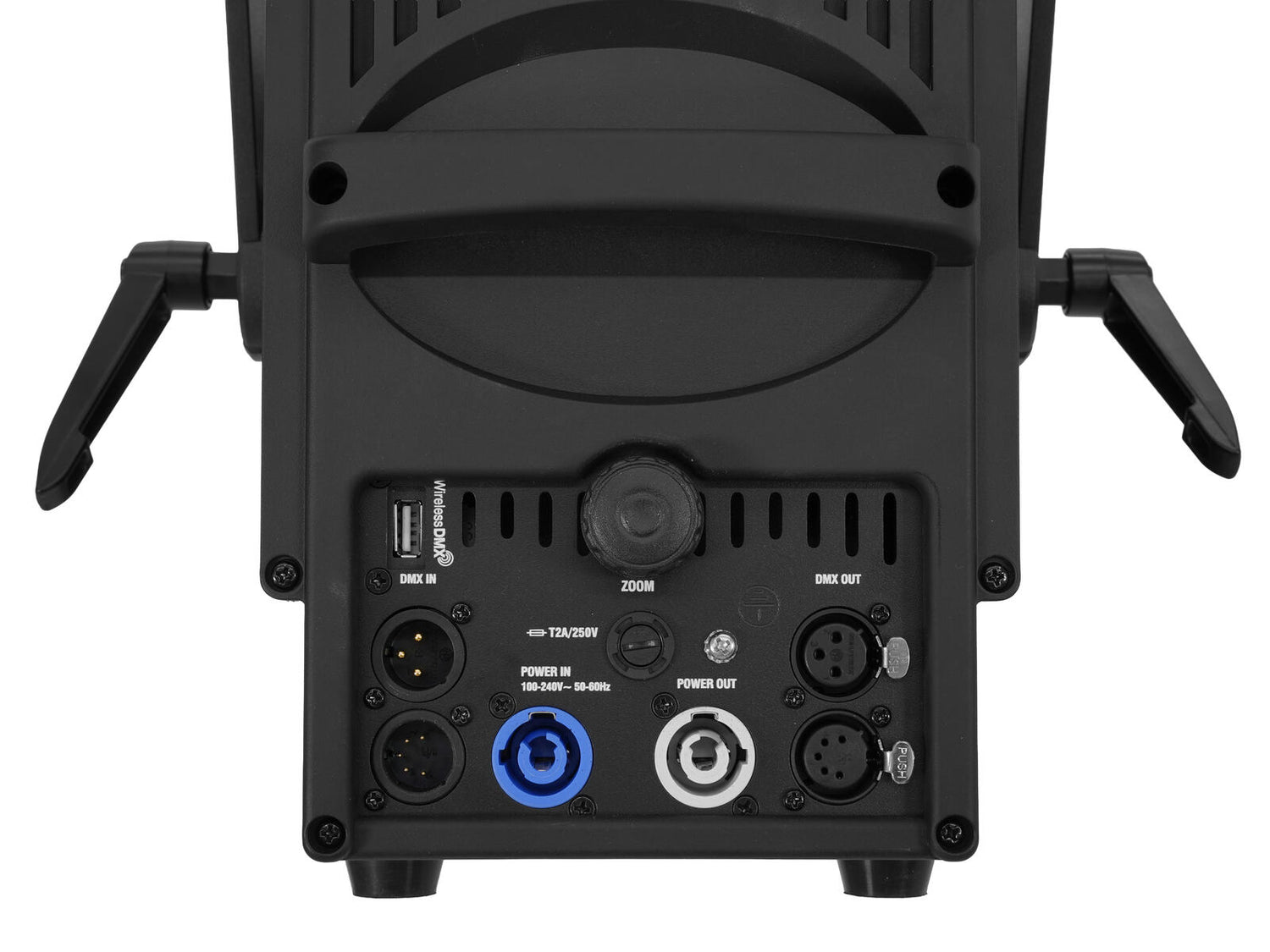

Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug
Cable construction:	3 x 1.5 mm² H05VV-F
Power output:	P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 2 A fuse replaceable
Lamp type:	LED lamp
LED type:	1 x 120 W COB (chip-on-board) 4in1 RGBL (homogenous color mix)
Flash rate:	1 - 20 Hz
Equipment:	Zoom manual
DMX channels:	1; 2; 4; 6; 16
DMX input:	5-pin XLR (M) mounting version 3-pin XLR (M) mounting version
DMX output:	5-pin XLR (F) mounting version 3-pin XLR (F) mounting version
Cooling:	1 x temperature-controlled fan
Control:	DMX; RDM; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); rotary dial for brightness; stand-alone
Fixtures available for:	GDTF (GrandMA3); Light Captain; Light´J
Projection:	Flicker-free
DMX features:	RDM For bidirectional communication over the DMX line
DMX fail mode:	Hold; blackout; manual
Beam angle:	3° - 48°
Beam angle (1/2 peak):	3 - 26°
Beam angle (1/10 peak):	14 - 48°
Color temperature:	2400K - 8500K adjustable
Lamp life:	30000 h
Housing color:	Black
Attachment system:	Mounting bracket

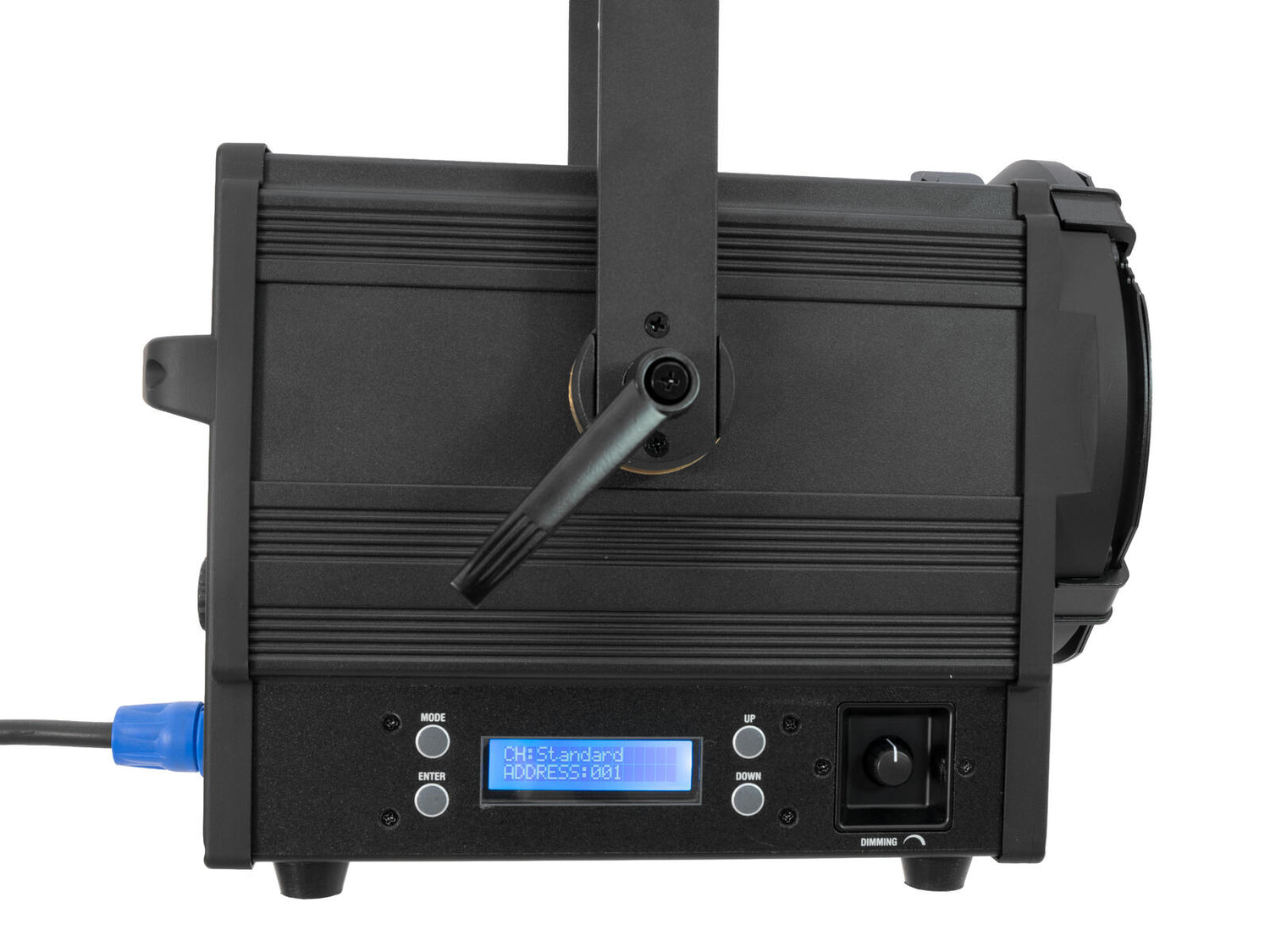

Display type:	Monochrome LCD display
USB port:	Type A
Diameter mounting holes:	3 x Ø10mm
Use of brands:	Built with SEETRONIC connector
Material:	Aluminum
Dimensions:	Length: 35.0 cm Width: 31.5 cm Height: 39.5 cm
Weight:	7.10 kg
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments) depending on mode used
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
