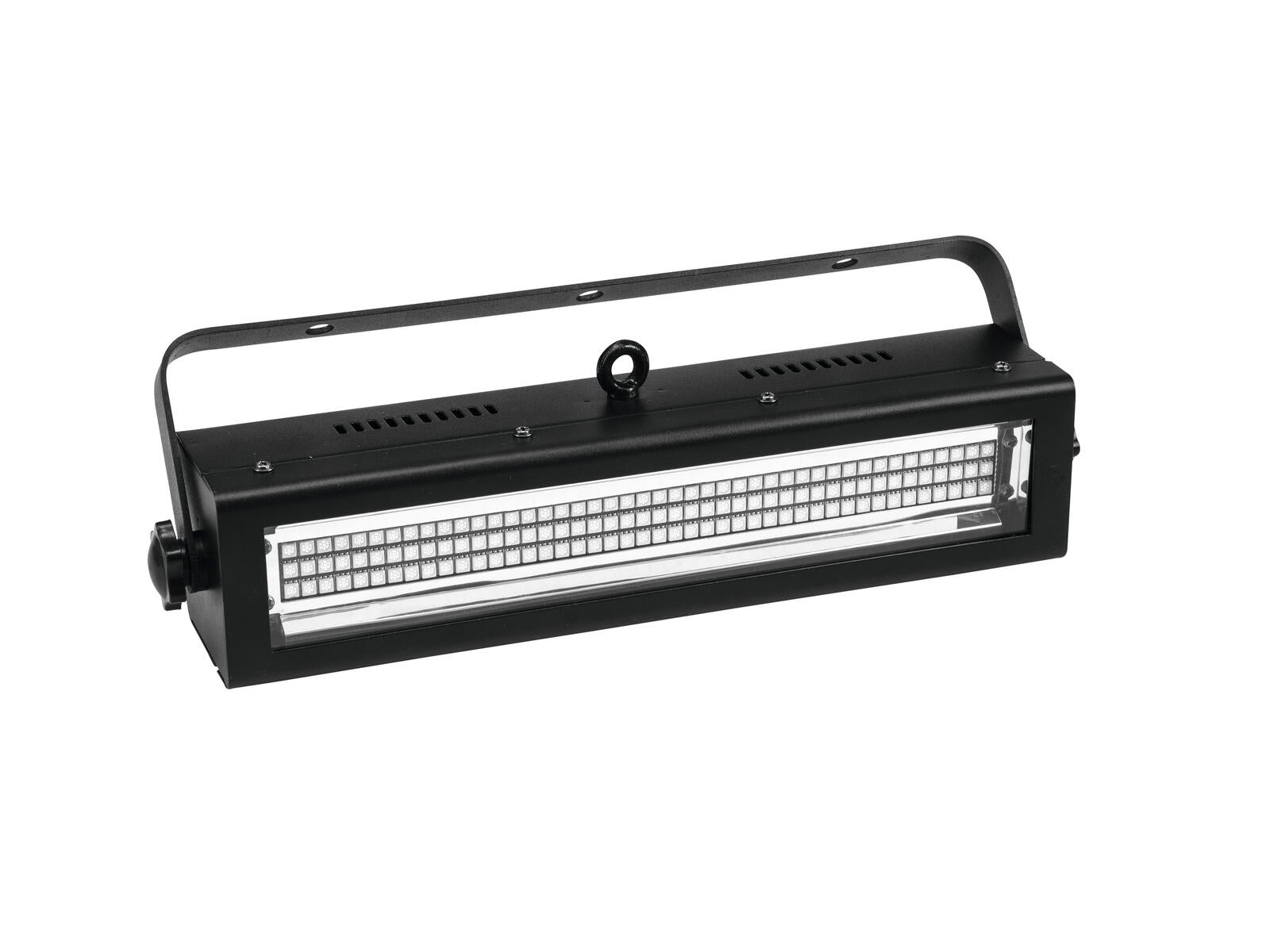

EUROLITE LED Strobe SMD PRO 132 DMX RGB

The LED Strobe SMD PRO 132 DMX RGB kombinerer tre funksjoner i ett armatur: Den er utstyrt med 132 lyse RGB SMD LED for både dynamiske strobe-effekter og langsommere blinder-effekter. Avhengig av valgt DMX-modus kan du velge mellom opptil 15 forhåndsinnstilte farger for wash-effekter. De innebygde SMD LEDene er flimmerfrie og derfor kan effekten også brukes i et TV-studio.The fixture has an auto, music, master/slave and DMX mode and incorporates 3-pin DMX connectors as well as an IEC input to connect it to the mains. The flash frequency and duration is variably adjustable. For a structured and versatile use, you can choose from 7 different DMX modes with 1, 2x2, 3x3, 4, or 6 DMX channels respectively.

Multifunctional strobe/flood/blinder with 132 bright SMD RGB LEDs

• 132 LEDs 0.2 W SMD 5050 3in1 R/G/B (homogenous color mix)
• Dimmer electronic; color blend stepless; color change adjustable; pulse effect adjustable
• Strobe effect; wash effect; Blinder effect
• Direct color selection for 15 preset colors
• The device is cooled by passive convection cooling
• Control via stand-alone; DMX; sound to light via microphone; master/slave function
• Flicker-free
• With a beam angle of 70°
• With mounting bracket
• 4 digit 7-segment LED display
• For application areas such as: Clubs/dancing school; party room; mobile djs / entertainer; restaurants, bars and hotels
• Very quiet working noise
• Application possibility: Suspended

Scope of delivery

• 1 x light effect
• 1 x user manual
• 1 x power cord
• 1 x XLR cable

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	30 W
Protection class:	Protection class I
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Lamp type:	LED lamp
LED type:	132 x 0.2 W SMD 5050 3in1 R/G/B (homogenous color mix)
Flash rate:	1 - 30 Hz
DMX channels:	1; 2; 2; 3; 3; 3; 4; 6
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	Stand-alone; DMX; sound to light via microphone; master/slave function
Fixtures available for:	Light´J; LED PC-Control 512; Light Captain
Projection:	Flicker-free
PWM frequency:	15700 Hz
Beam angle (1/2 peak):	70°
Attachment system:	Mounting bracket
Display type:	4 digit 7-segment LED display
Dimensions:	Width: 35 cm Depth: 7 cm Height: 7.1 cm
Weight:	1.70 kg
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
