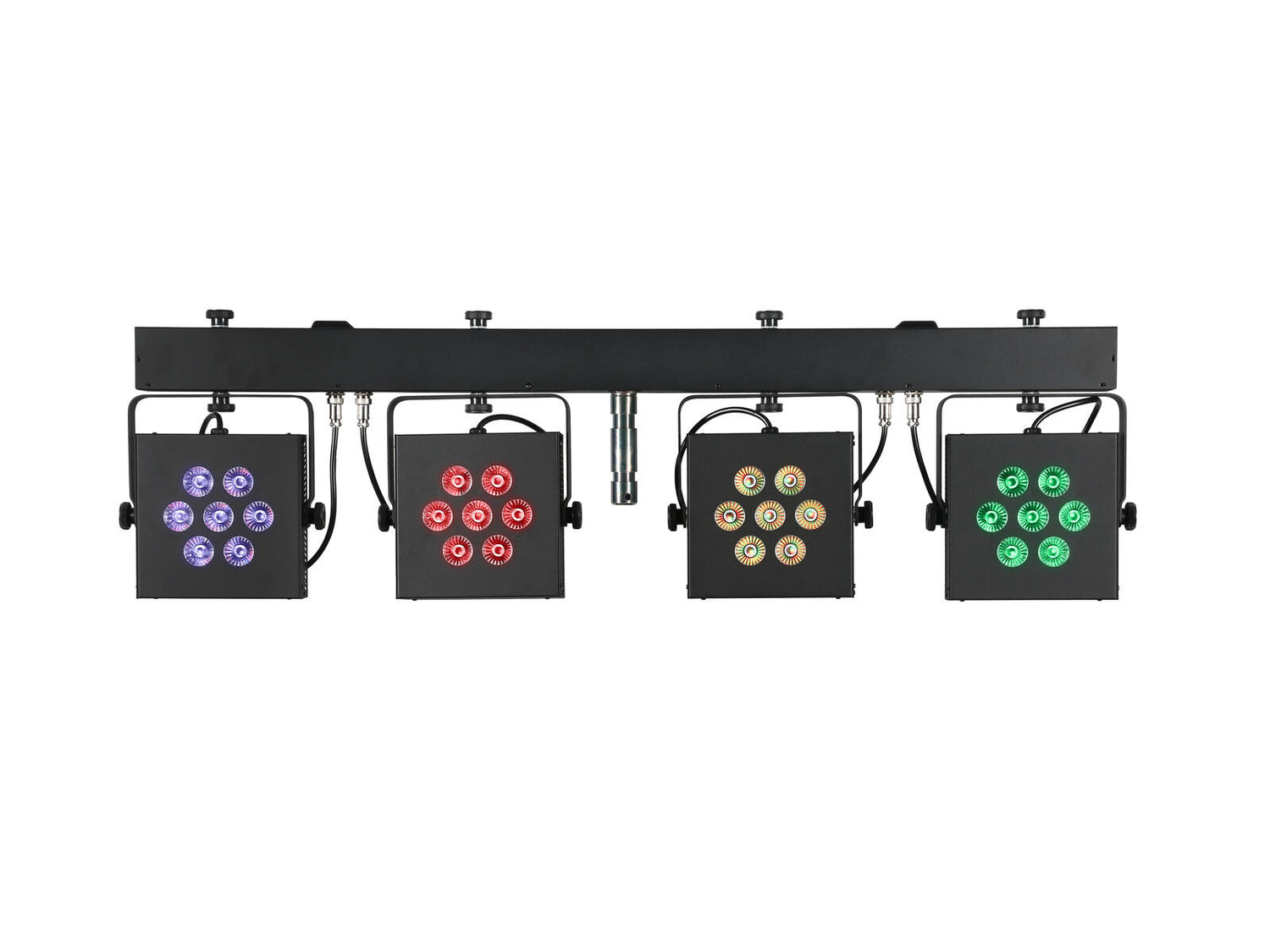

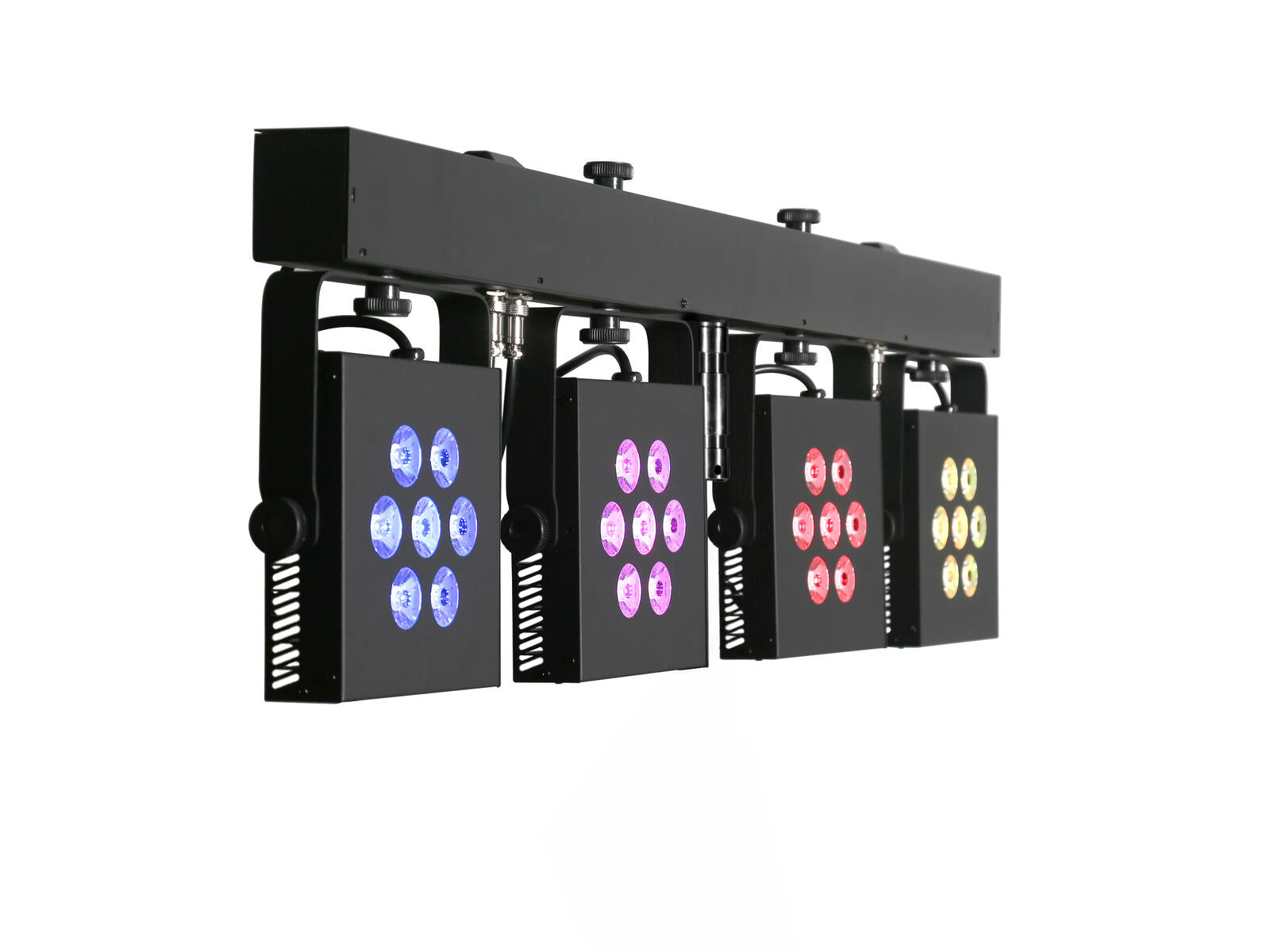

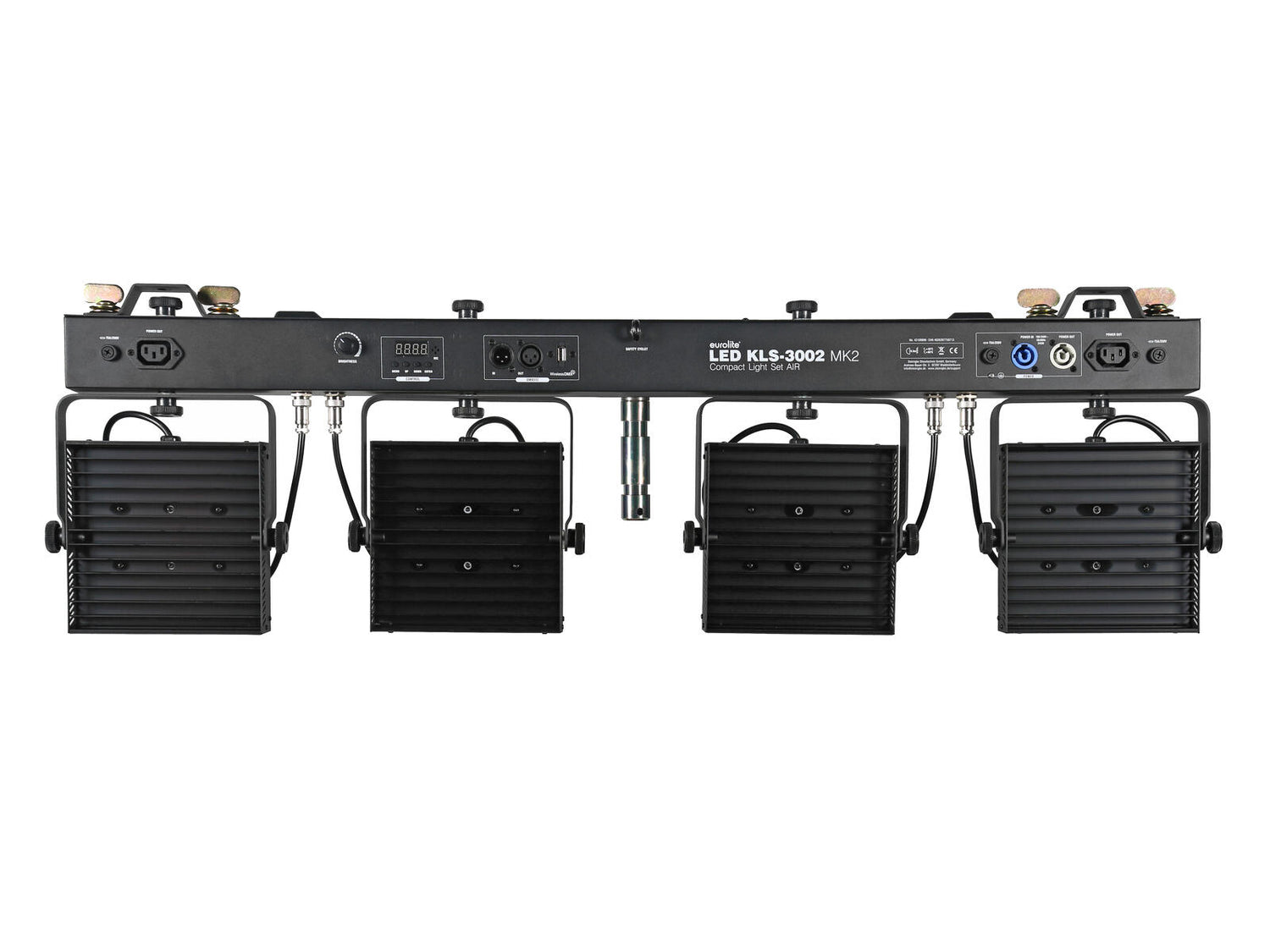

EUROLITE LED KLS-3002 MK2 Compact Light Set AIR

KLS 3002 leverer nok effekt til å brukes ikke bare i party-miljøer, men også på konsertscener. Fargemiksen er basert på red, green, blue, white, amber, og UV. Dette gir både sterke, slagkraftige farger samt rike oransje toner, myke pasteller, og imponerende blacklight-effekter.As part of Eurolite's Air program, it features not only standard DMX control, but also an integrated wireless system. This enables system-wide control via a dedicated wireless remote, wireless master-slave operation and the use of an optional wireless foot switch.

Bar with 4 powerful 6in1 RGBWA/UV spots, AirW wireless system (2.4 GHz), wireless remote control and transport bag

• Crossbar with integrated DMX control unit and TV spigot for tripod installation
• Integrated AirW radio transceiver for wireless master/slave operation
• Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
• 28 LEDs 12 W SMD 5050 6in1 RGBWA/UV (homogenous color mix)
  4 spots controlled separately
• With a beam angle of 15°
• Spot effect; UV effect; strobe effect
• Dimmer electronic; color fade adjustable; color change adjustable; color blend stepless; color selection; program selection; program speed adjustable; color macros
• Direct color selection for 20 preset colors
• 20 integrated show programs
• Control via stand-alone; sound to light via microphone; master/slave function; rotary dial for brightness; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); AirW; wireless Master/slave function; wireless remote control; wireless footswitch (optional)
• 3 buttons on the remote control for saving your own settings
• Flicker-free
• Monochrome 4 digit 7-segment LED display
• With omega bracket
• Silent operation
• The device is cooled by passive convection cooling
• For application areas such as: Wedding/gala/events; clubs/dancing school; mobile djs / entertainer; restaurants, bars and hotels; rental
• Application possibility: Suspended; on stand
• Mains input and output for power linking up to 8 units
• Wireless remote control: operating range up to 30m in the open air
• AirW: operating range up to 70m with line-of-sight
• TV spigot

Scope of delivery

• 1 x device
• 1 x user manual
• 1 x declaration of conformity
• 1 x power cord

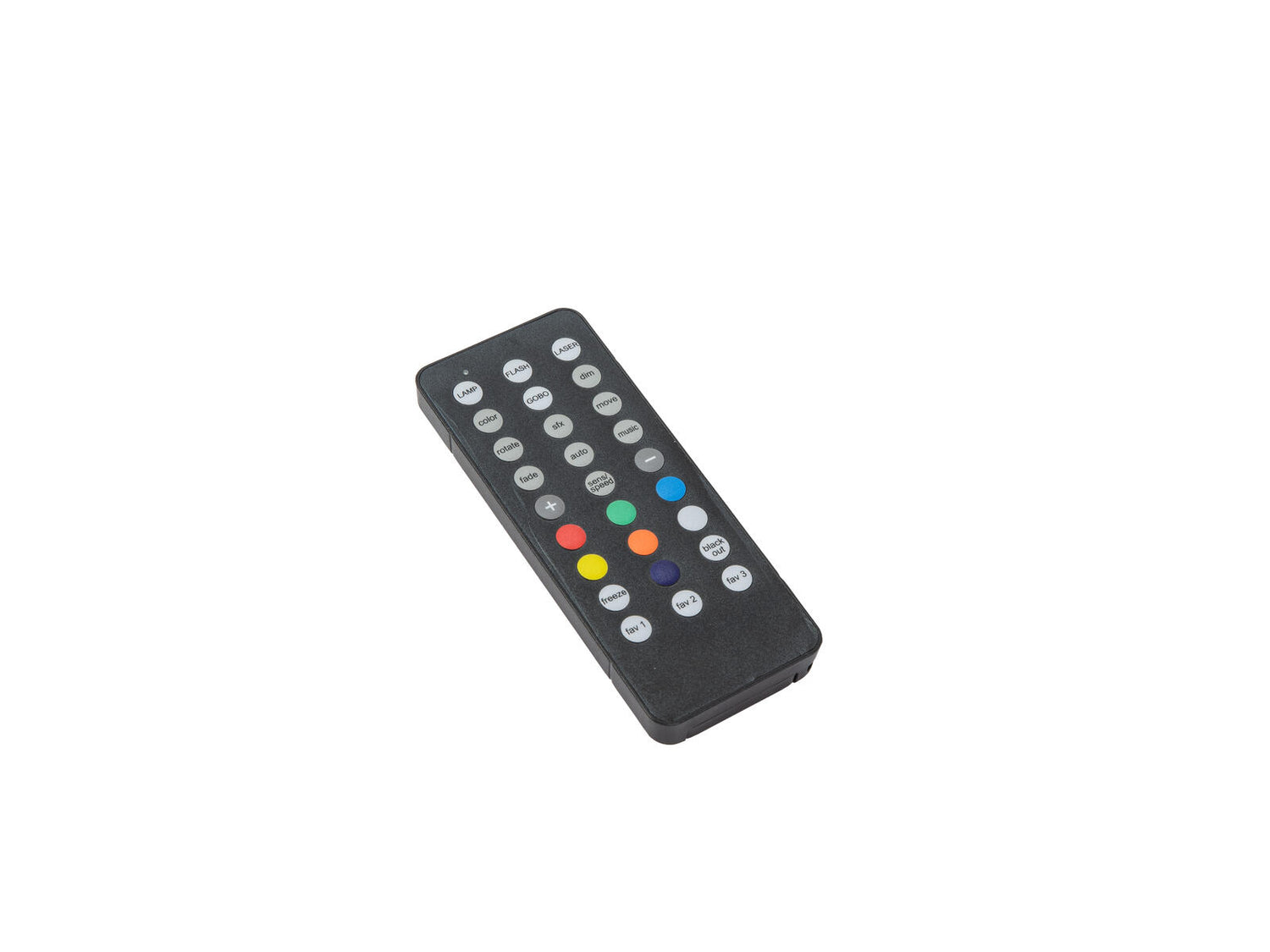

• 1 x remote control
• 1 x bag

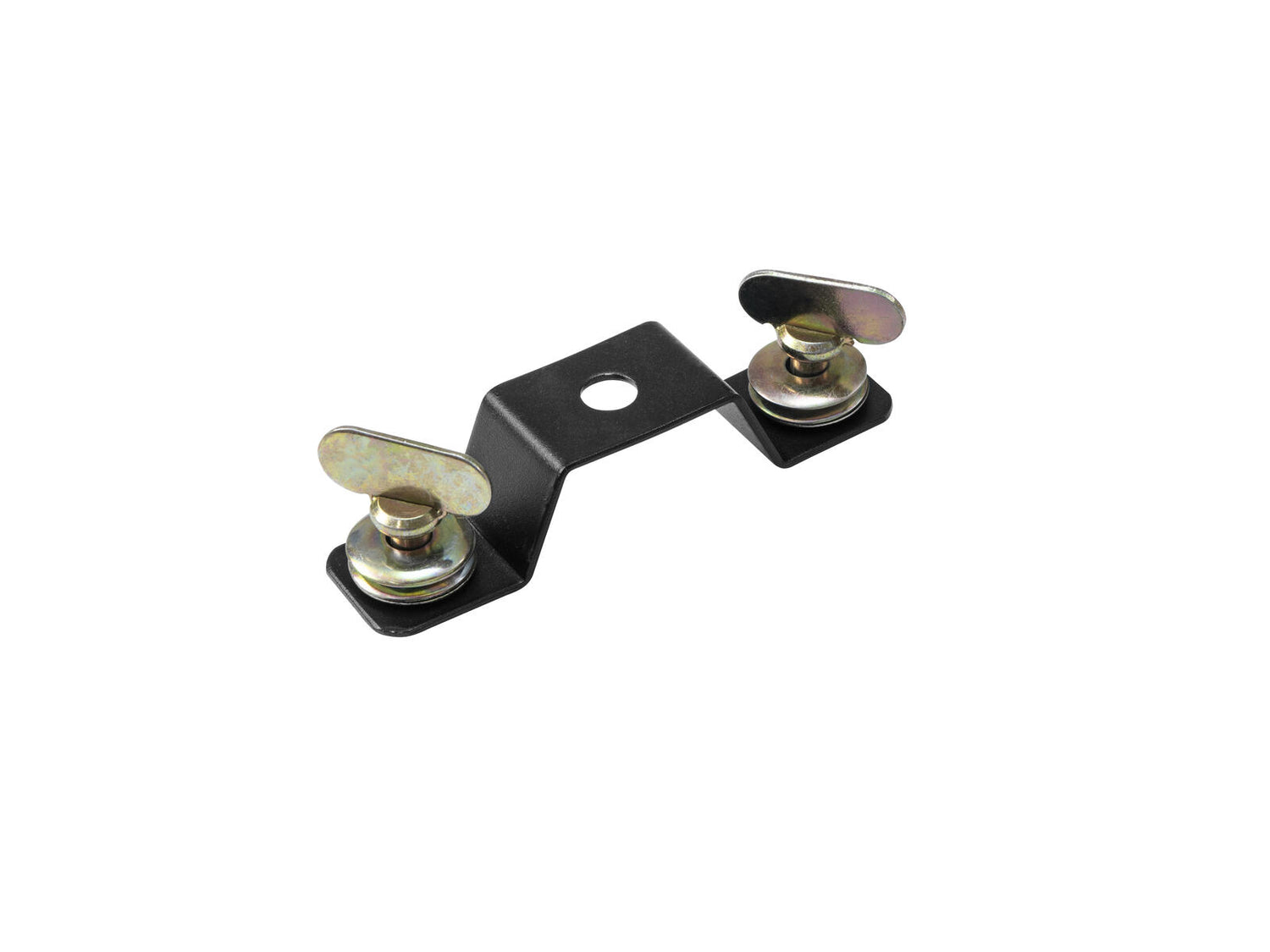

• 2 x omega bracket
• 4 x knurled screw
• 4 x washer
• 1 x battery
• 1 x terminating plug (power)

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	245 W
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable construction:	3 x 1.0 mm² H05VV-F
Cable length:	3 m
Power output:	1 x P-Con (gray), mounting version Bypass 2 x IEC connector (F) mounting version fused
Device fuse:	5 x 20 mm, T 5 A fuse replaceable
Power output fuse per channel:	5 x 20 mm, T 5 A fuse replaceable
Lamp type:	LED lamp
LED type:	28 x 12 W SMD 5050 6in1 RGBWA/UV (homogenous color mix)
Flash rate:	0.3 - 20 Hz
DMX channels:	2; 4; 6; 10; 24; 28; 32; 34
DMX input:	1 x 3-pin XLR (M) mounting version 1 x USB, type A
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	Stand-alone; sound to light via microphone; master/slave function; rotary dial for brightness; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); AirW; wireless Master/slave function; wireless remote control; wireless footswitch (optional)
Fixtures available for:	Light Captain; Light´J; Colorchief
Projection:	Flicker-free
Range:	Wireless remote control: range up to 30m in the open air AirW: range up to 70m with line-of-sight
Carrier frequency:	2.4 GHz
Modulation:	GFSK
DMX fail mode:	Blackout; hold; full on; auto
Beam angle:	15°
Beam angle (1/2 peak):	15° multicolor
Beam angle (1/10 peak):	Spot 30°
Color temperature:	5700K
Housing color:	Black matte
Attachment system:	Pivot: 1x TV spigot Ø 28mm 2x omega bracket
Display type:	1 x monochrome 4 digit 7-segment LED display
USB port:	1 x type A
Material:	Metal, 1 mm, painted
Dimensions:	Length: 107.5 cm Depth: 5.5 cm Height: 28.7 cm
Weight:	11.30 kg
Noise classification:	Class 0 (no noise at all)
Remote control
Battery:	1 x 12 V 23AE alkaline manganese included
Carrier frequency:	433.92 MHz
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
