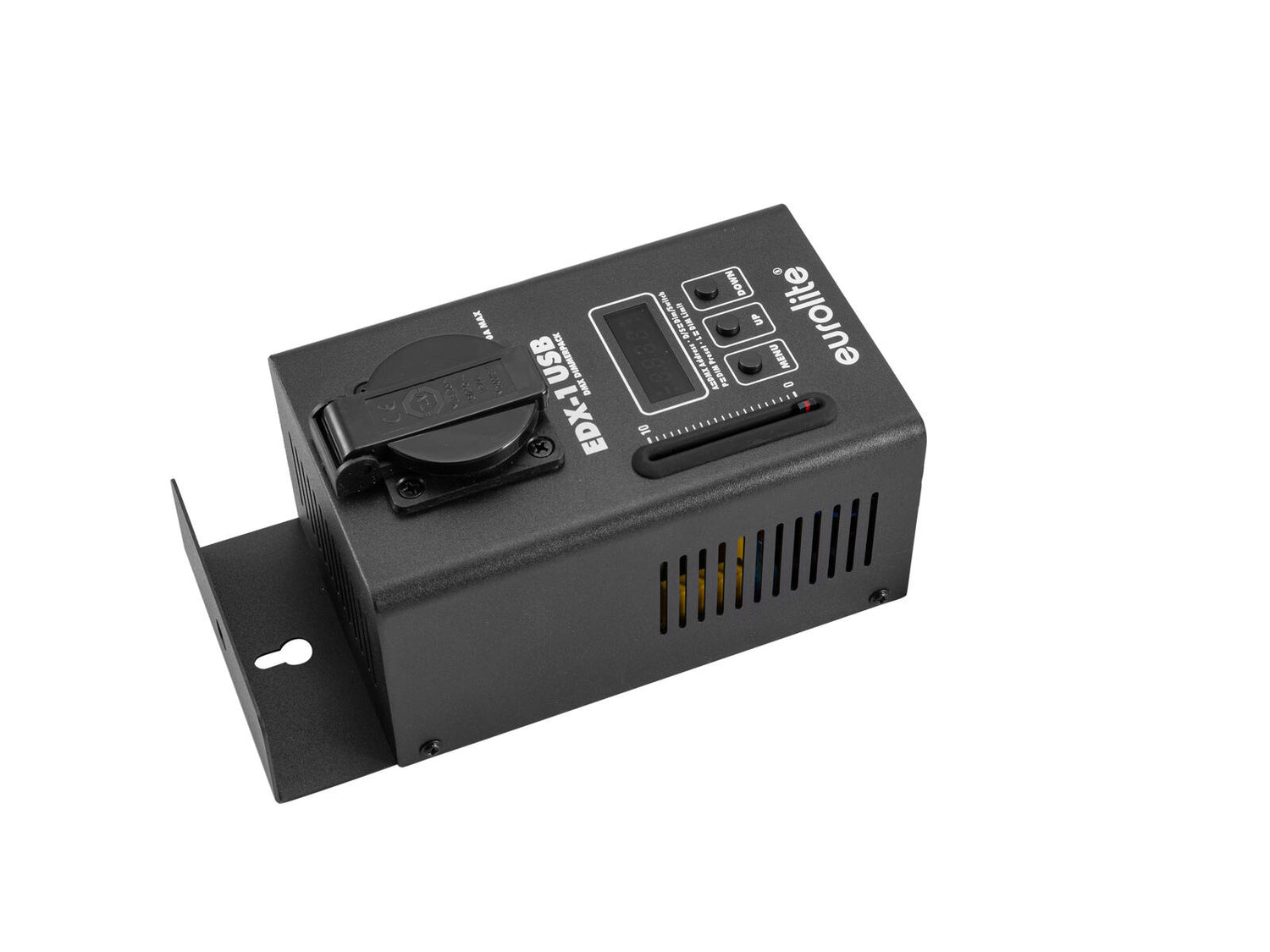

EUROLITE EDX-1 DMX USB Dimmer Pack

The EDX-1 DMX USB is a compact 1-channel dimmer to control the brightness of spotlights on stage or in clubs. It can be controlled via DMX signal from a light console and supports QuickDMX for wireless control. All menu settings can be made via the built-in control panel with LED display. The housing has threads for fixing the unit to a truss.

1-channel DMX dimmer pack with QuickDMX port

• Selectable dimmer or switch pack operating mode
• Control via QuickDMX via USB (optional); stand-alone; DMX; wired remote control; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• 4 digit 7-segment LED display
• For application areas such as: Trade fair and shop fitting; theater; rental; video and photography
• Silent operation
• Application possibility: Wall mounting

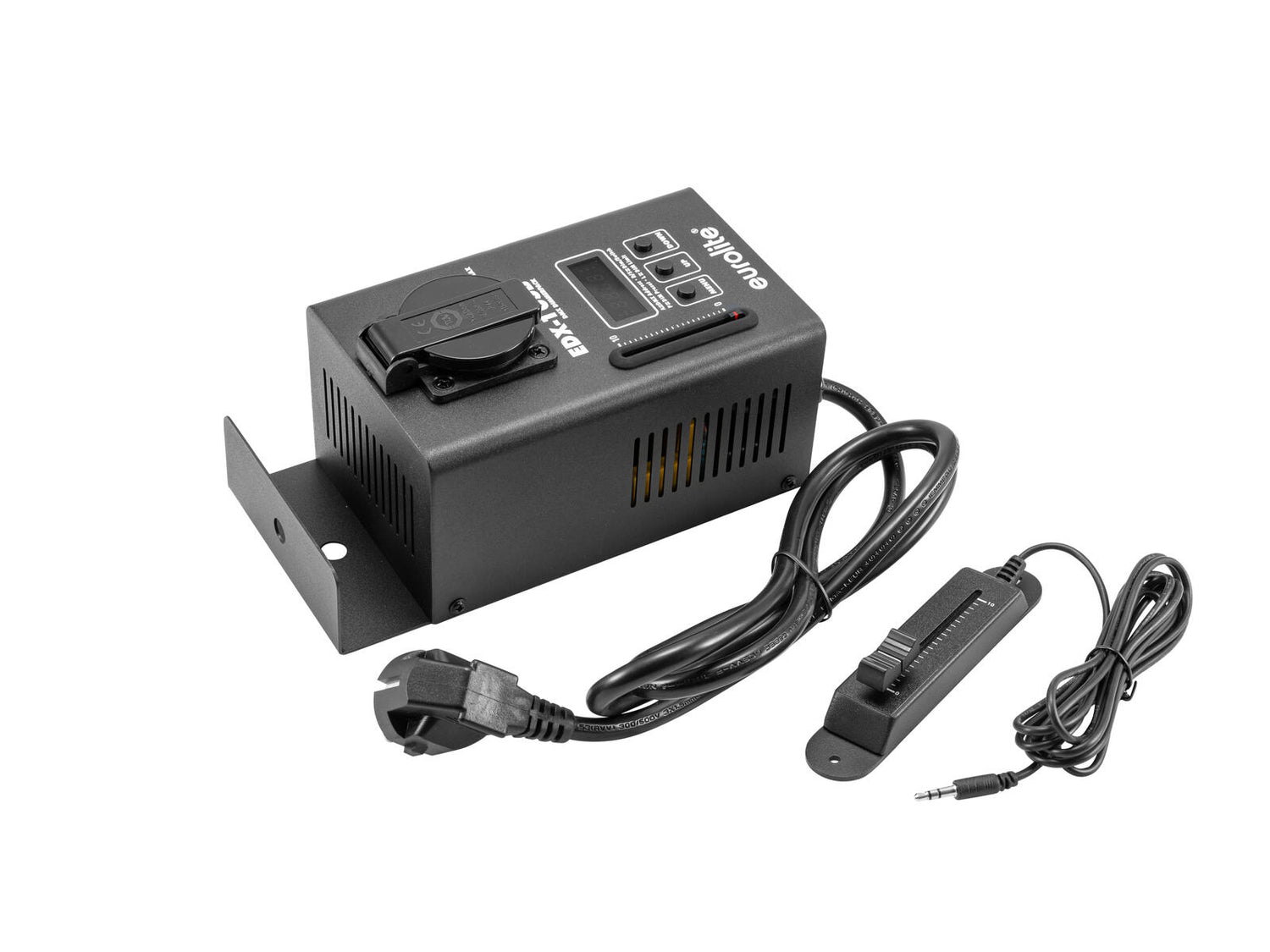

Scope of delivery

• 1 x device
• 1 x user manual

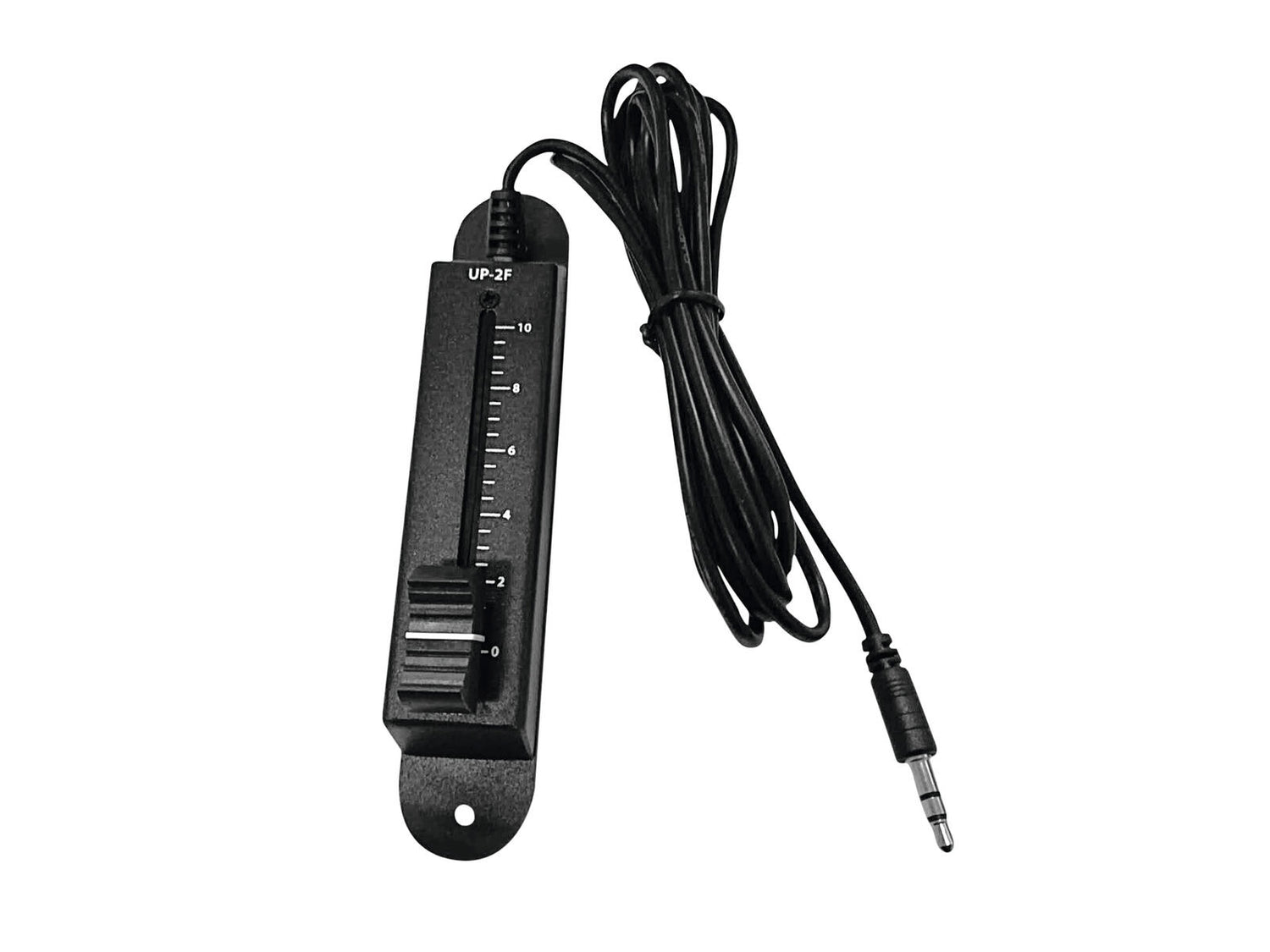

• 1 x remote control

Power supply:	230 V AC, 50 Hz
Output power:	Max. 2300 W
Output current:	Max. 10 A
Power connection:	Fixed power supply cord with safety plug
Power output:	1 x safety contact (F), hinged lid mounting version
DMX channels:	1

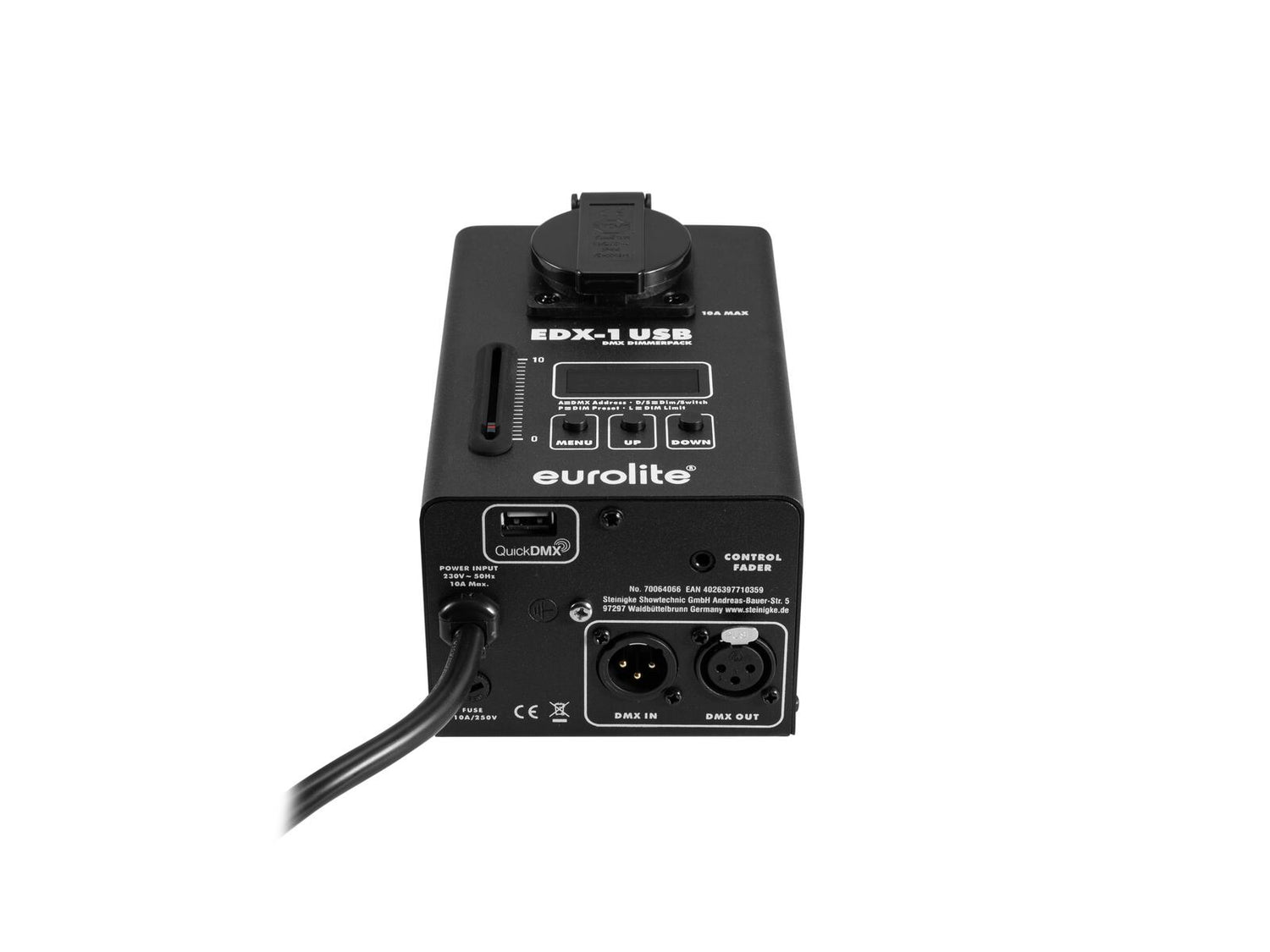

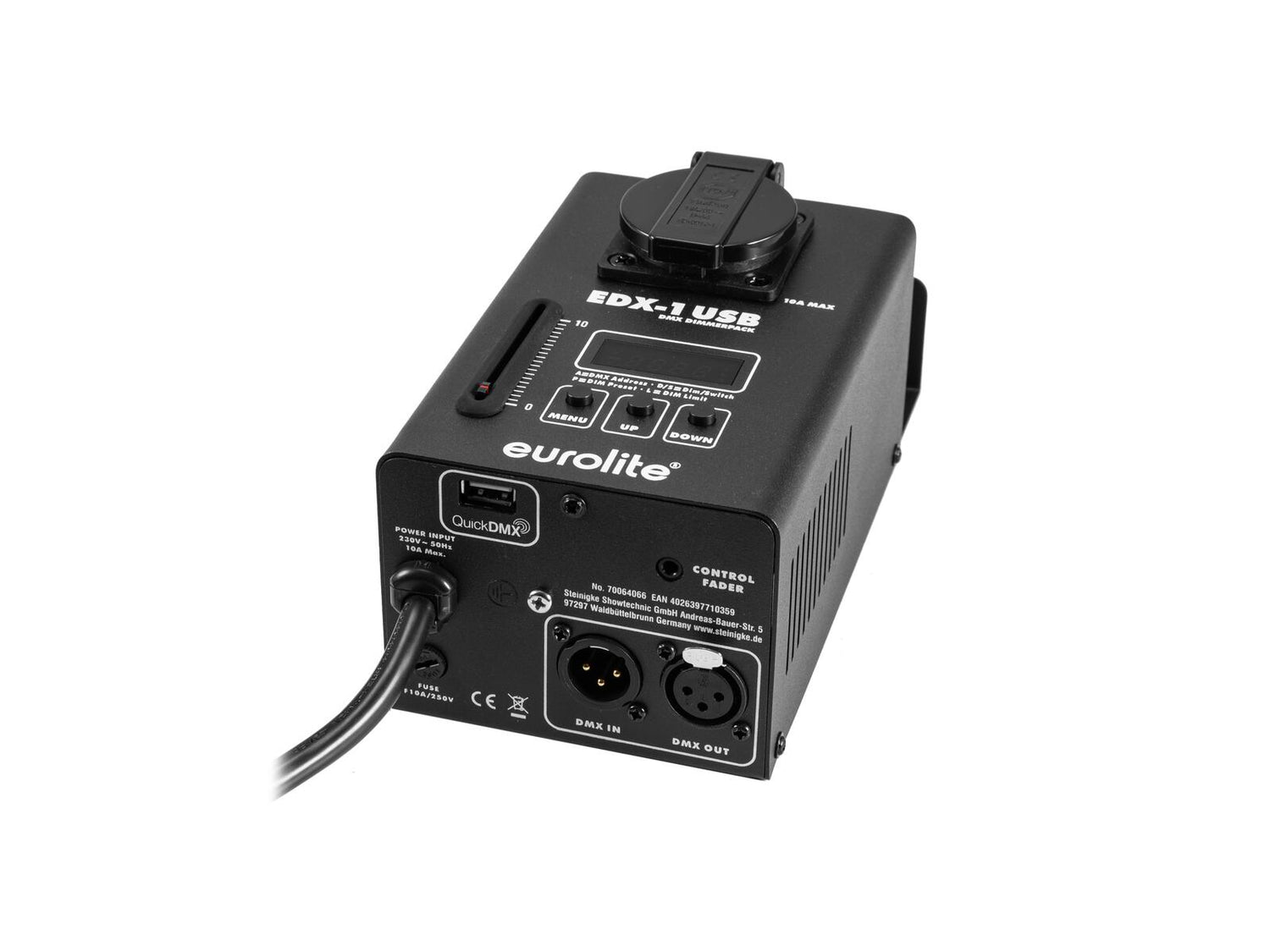

DMX input:	3-pin XLR (M) mounting version USB, type A
DMX output:	3-pin XLR (F) mounting version
Control:	QuickDMX via USB (optional); stand-alone; DMX; wired remote control; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Control channels:	1
Display type:	4 digit 7-segment LED display
Color:	Black
Dimensions:	Width: 18.2 cm Depth: 9.2 cm Height: 6.5 cm
Weight:	1.56 kg
Noise classification:	Class 0 (no noise at all)
