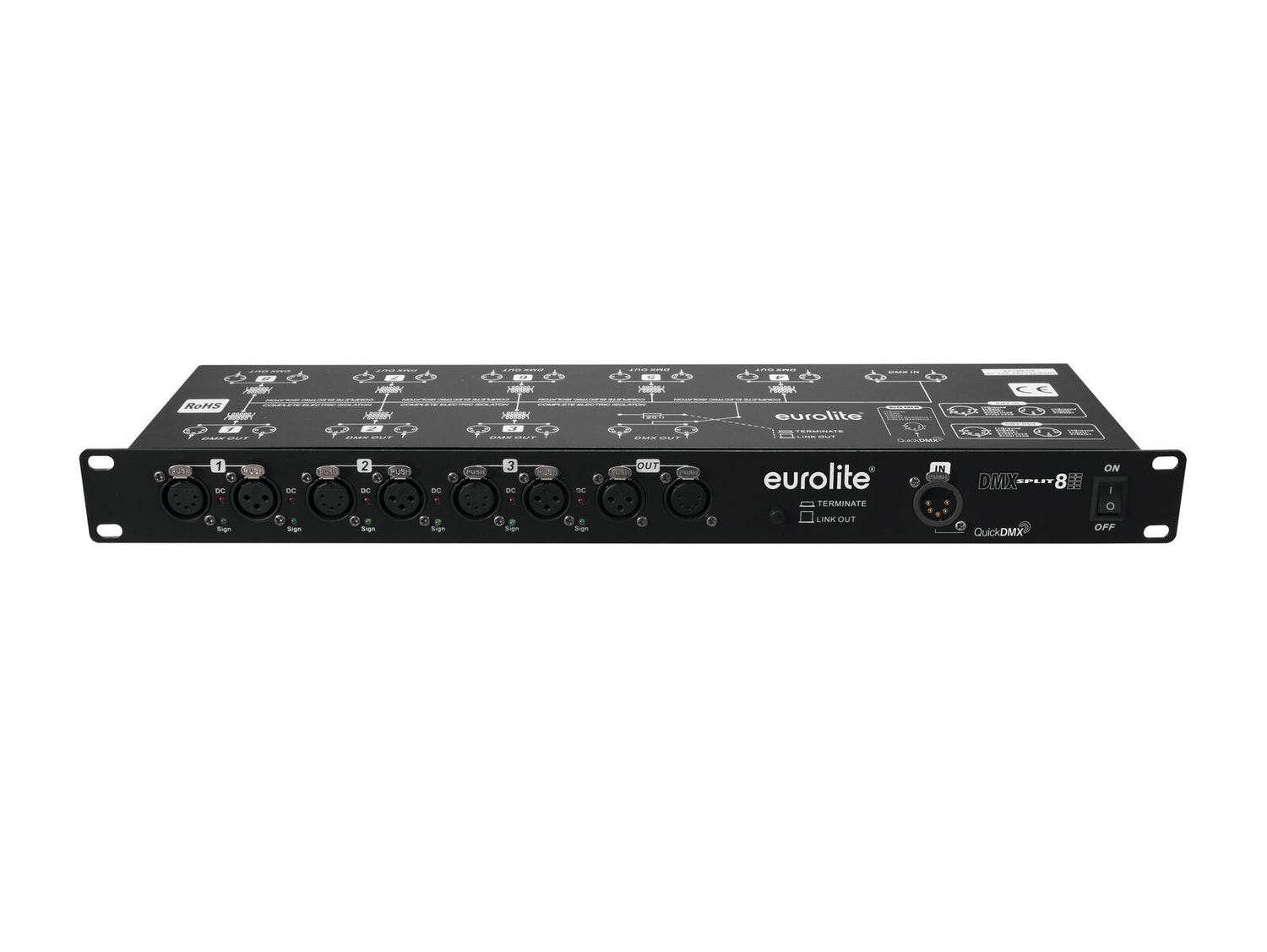

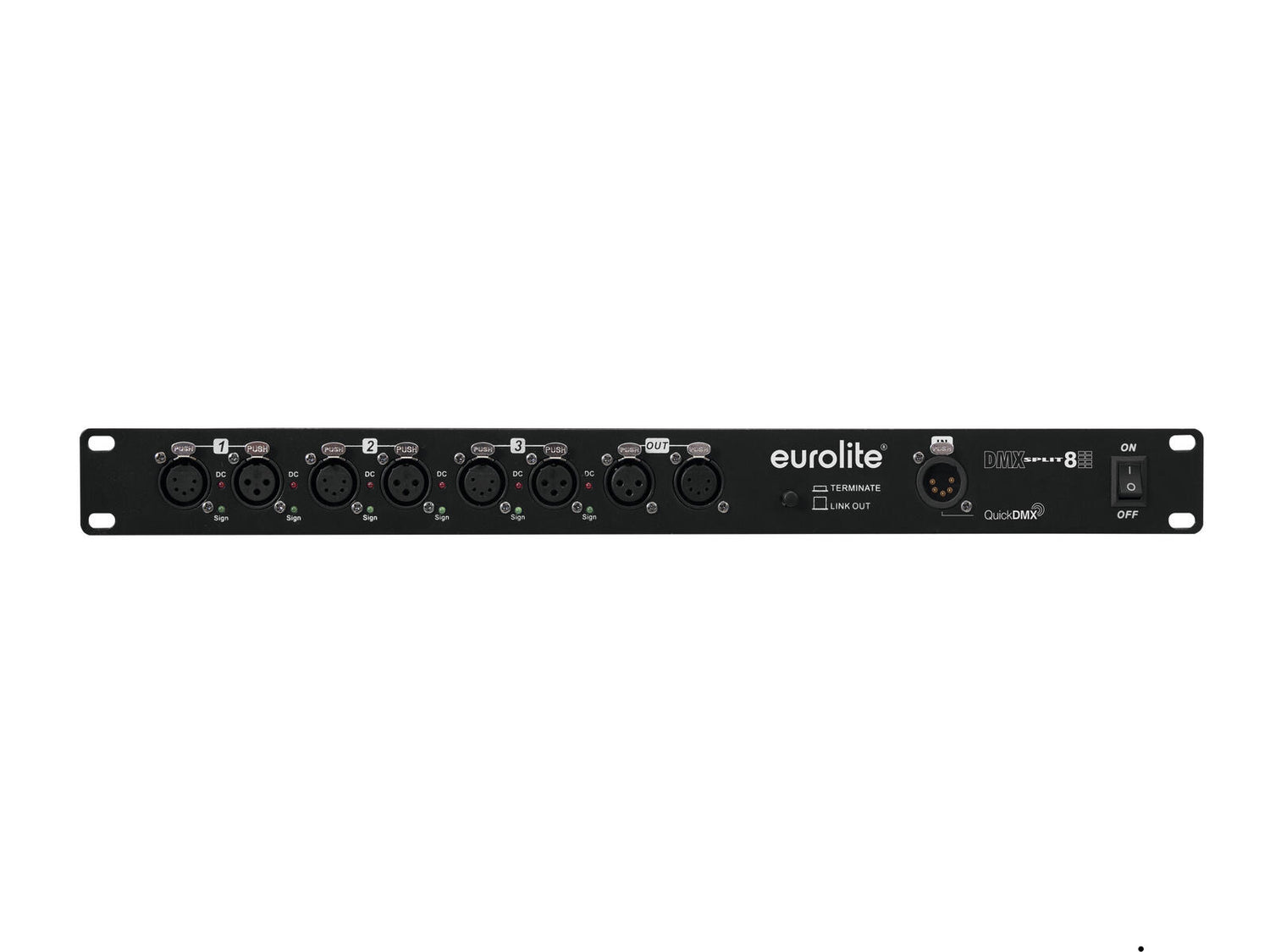

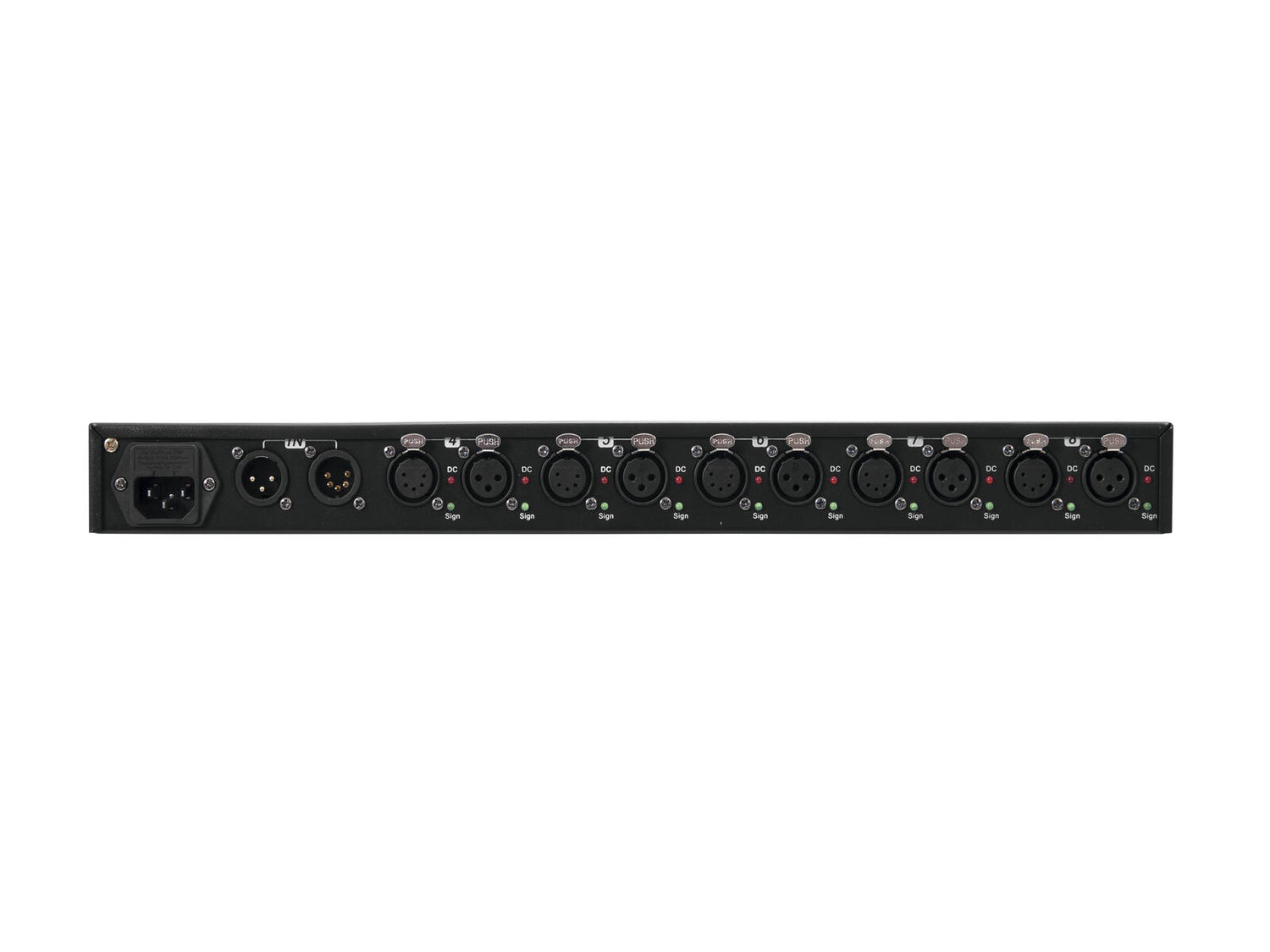

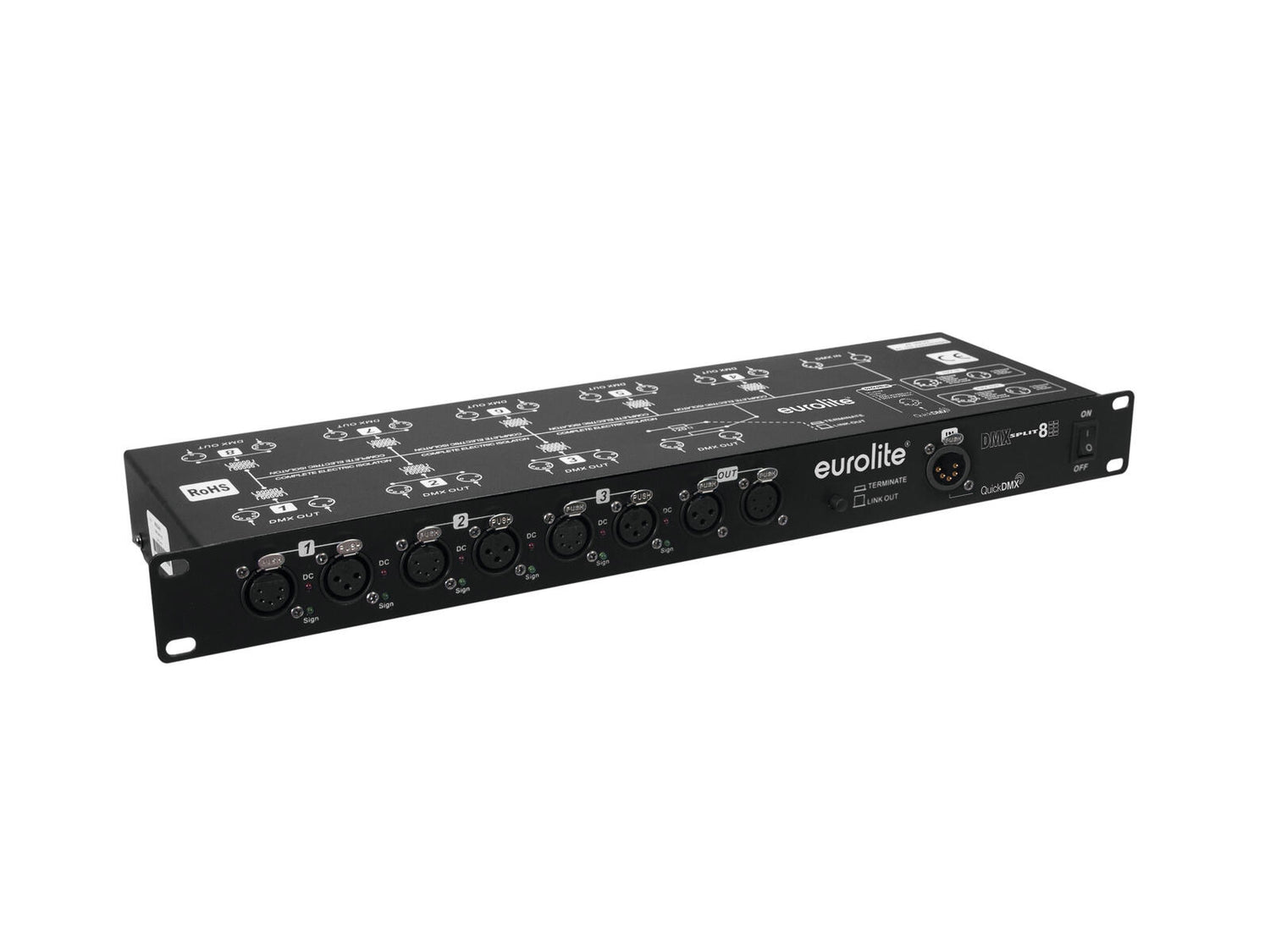

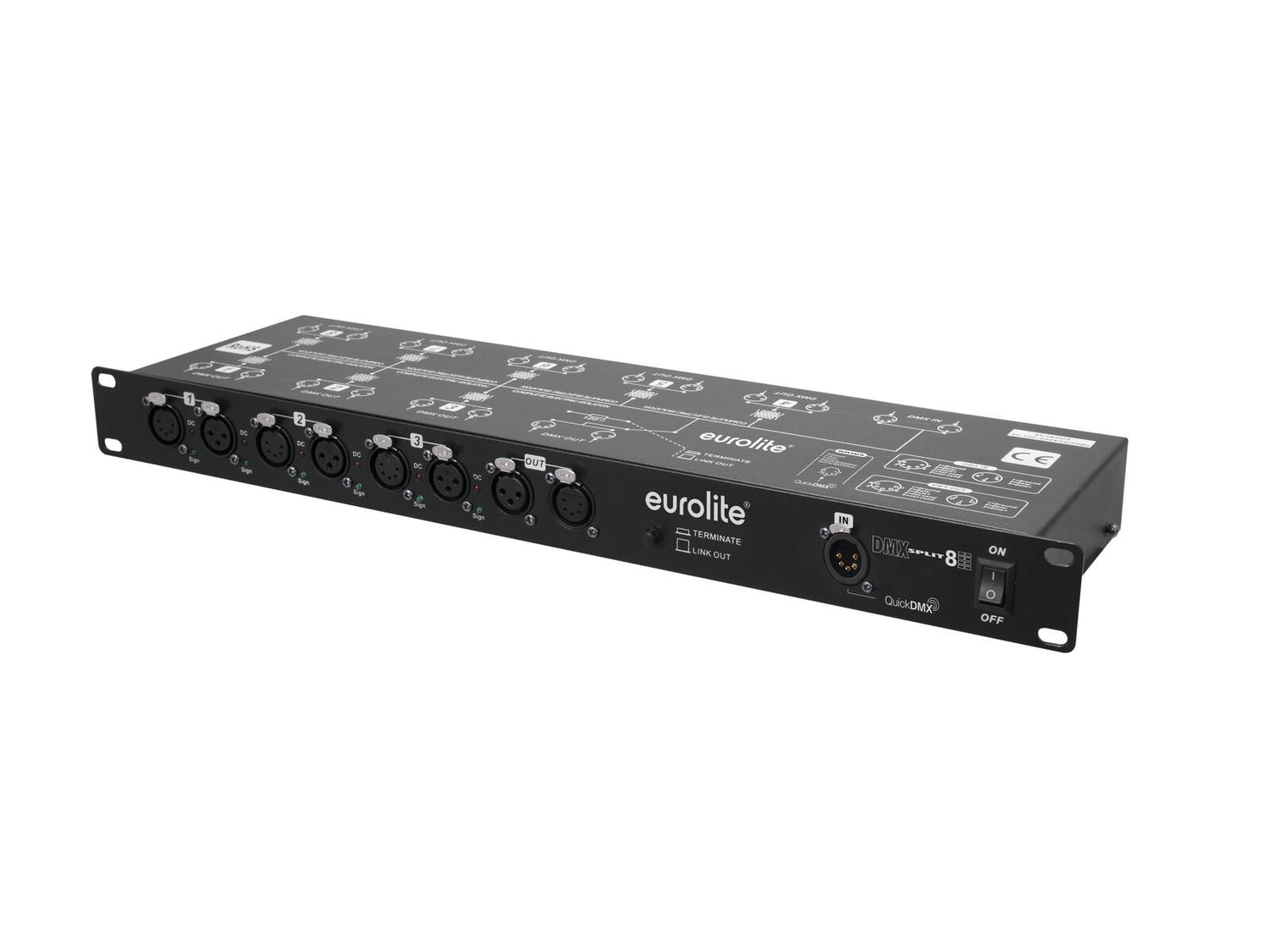

EUROLITE DMX Split 8X Splitter
1
av
5
Laster inn...
2 119 kr
Stk. pris kr
/
Ikke tilgjengelig
Inkl. mva & toll
Frakt 99 kr (gratis over 2499 kr.)
Betalingsmetoder akseptert
Beskrivelse
Beskrivelse
Splitter with 8 galvanically isolated outputs, 3/5-pin & QuickDMX XLR sockets
- DMX splitter for splitting one DMX input signal to 8 DMX outputs
- Input and outputs XLR 3-pin and 5-pin each
- Input and outputs galvanically isolated
- Input and outputs with a set of respective power supply and internal fuse
- Switchable termination resistor
- (19") 48.3 cm rack installation 1 U
- Each DMX output with independent driver and status indicator
- Control via DMX; QuickDMX via 5-pin XLR (M) mounting version (optional)
Scope of delivery
- 1 x device
- 1 x user manual
- 1 x power cord
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 5 W |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| DMX input: | 1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version |
| DMX output: | 8 x 3-pin XLR (F) mounting version separate (galvanic) with independent driver and status indicator 8 x 5-pin XLR (F) mounting version separate (galvanic) with independent driver and status indicator 1 x 5-pin XLR (F) mounting version Bypass 1 x 3-pin XLR (F) mounting version Bypass |
| Control: | DMX; QuickDMX via 5-pin XLR (M) mounting version (optional) |
| Control elements: | Bypass/terminating resistor switch, power switch |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48.3 cm Depth: 14.5 cm Height: 4.45 cm |
| Weight: | 2.22 kg |
