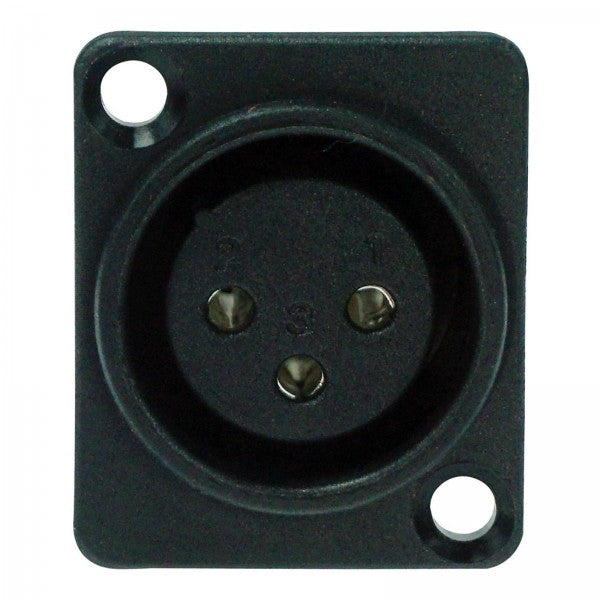

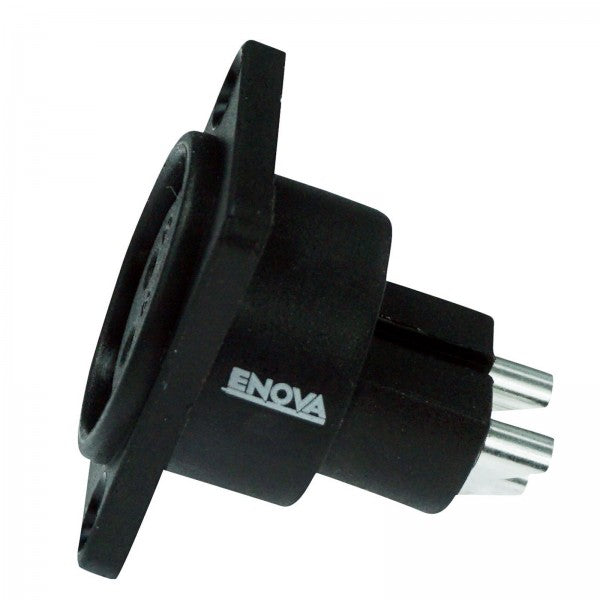

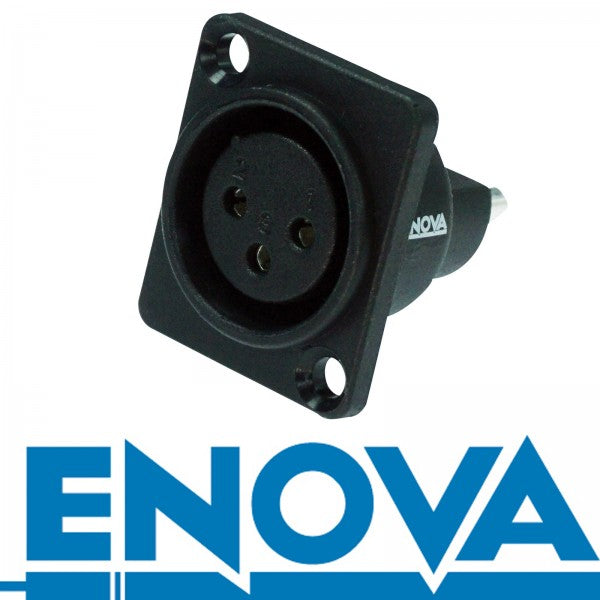

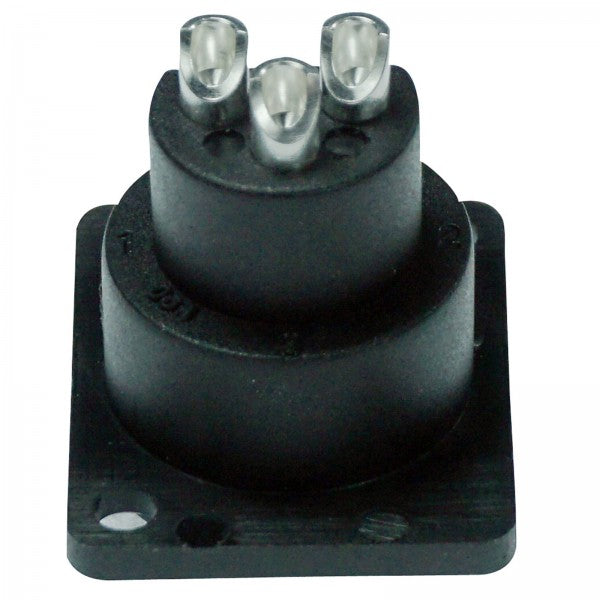

Enova 3-polet hunn 3-Pin XLR-chassiskontakt, svart IP67 Outdoor

ENOVA 3 POL HUN XLR CHASSIS STIK, SORT IP67 OUTDOOR

ENOVA er en ny sveitsisk produsent av kontakter og kabler av høy kvalitet. ENOVA tilbyr et sortiment av de mest etterspurte kontakter og kabler i Live- og AV-industrien og vil kontinuerlig utvide sitt sortiment.
ENOVA streber etter å tilby Live- og AV-industrien et fullverdig alternativ.

Brand:ENOVA
Series:XLIP-Serie
Version (Plug / Chassis):Chassis version
Connector type:XLR, XLR female 3 pol
Number of contacts:3
Contact diameter in mm:3 x Ø 2.70 mm
Gender (M / F):Female connector
Connector housing color:Black - Orange
Cable diameter min. in mm:Ø 5.5 mm
Cable diameter max. in mm:Ø 6 mm
Wiring mode:Solder contact
Insulation component:High performance plastics
Material connector housing:ZZNAL4-1
Material contact:Phosphor Bronze
Waterproof component:NBR
Working temperature minimum:-30°
Working temperature maximum:+80°
Plug cycle:1000
IP protection class according to EN60529 2000:IP67
Classification flammability of plastics:UL94HB
ROHS according to EN62321-1:Ja
Country of origin:China
Operating voltage (VAC.RMS):Insulation resistance:> 10 GOhm
Contact resistance:<3 mOhm
Applications:DJ, Keyboard player, Lighting technician, Singer, Sound engineer
Märkte:Event Production, LED interior / exterior lighting, Industrie, Medical technology, Mechanical engineering, Gerätebau, Anlagenbau, Multimedia Installation, Digital Signage, Cable Assembly, Beleuchtung, Broadcast, Recording studio
