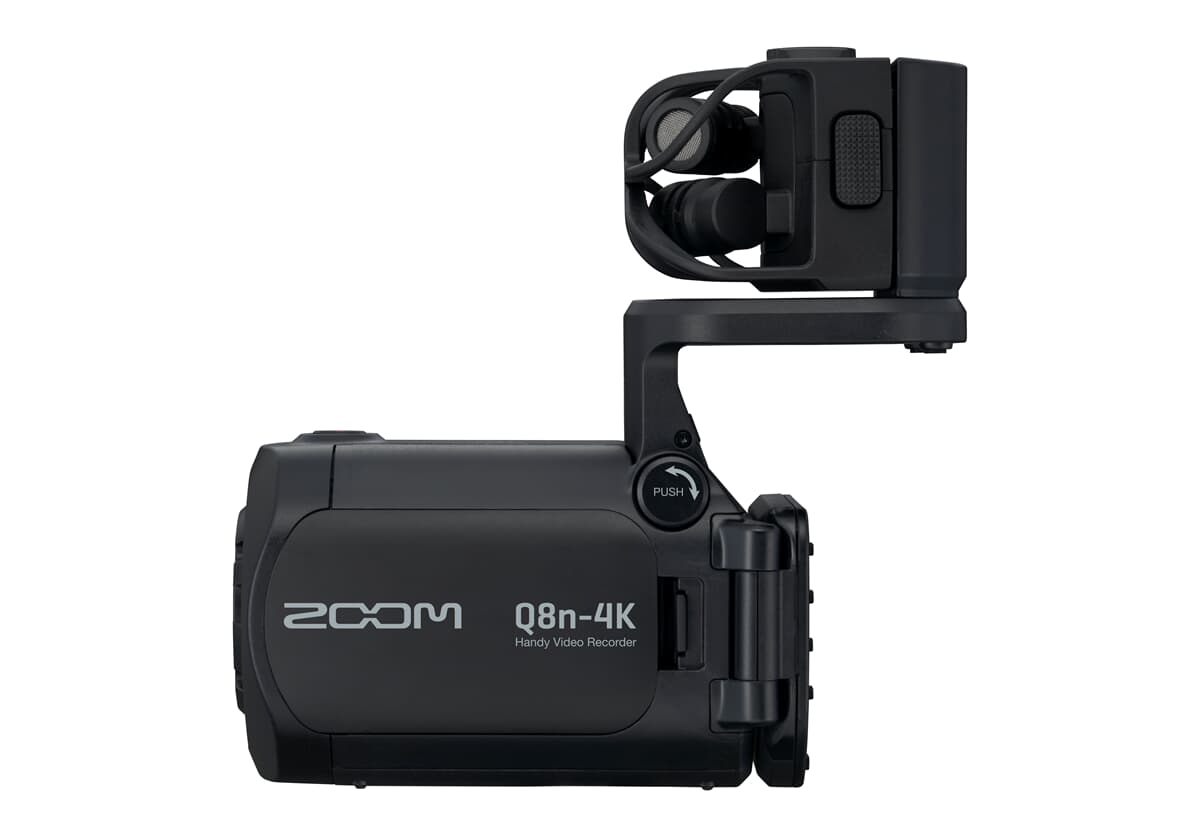

Zoom Q8n-4K

• 4K-video og 4-spors opptaker med mange funksjoner
• Høyt dynamisk område (HDR)
• F2.8 f/2.8 objektiv med 150 ^o Bred vinkel
• LCD fargeskjerm med 180 ^o flip-alternativ for selfies
• USB- interface for live streaming / dataoverføring

Zoom Q8n-4K

• 4K-video og 4-spors opptaker med mange funksjoner.
• Utskiftbart Zoom .
• To XLR mikrofon/linjeinnganger (med fantomkraft)
• High Dynamic Range (HDR) sørger for at svart-hvitt uskarphet reduseres.

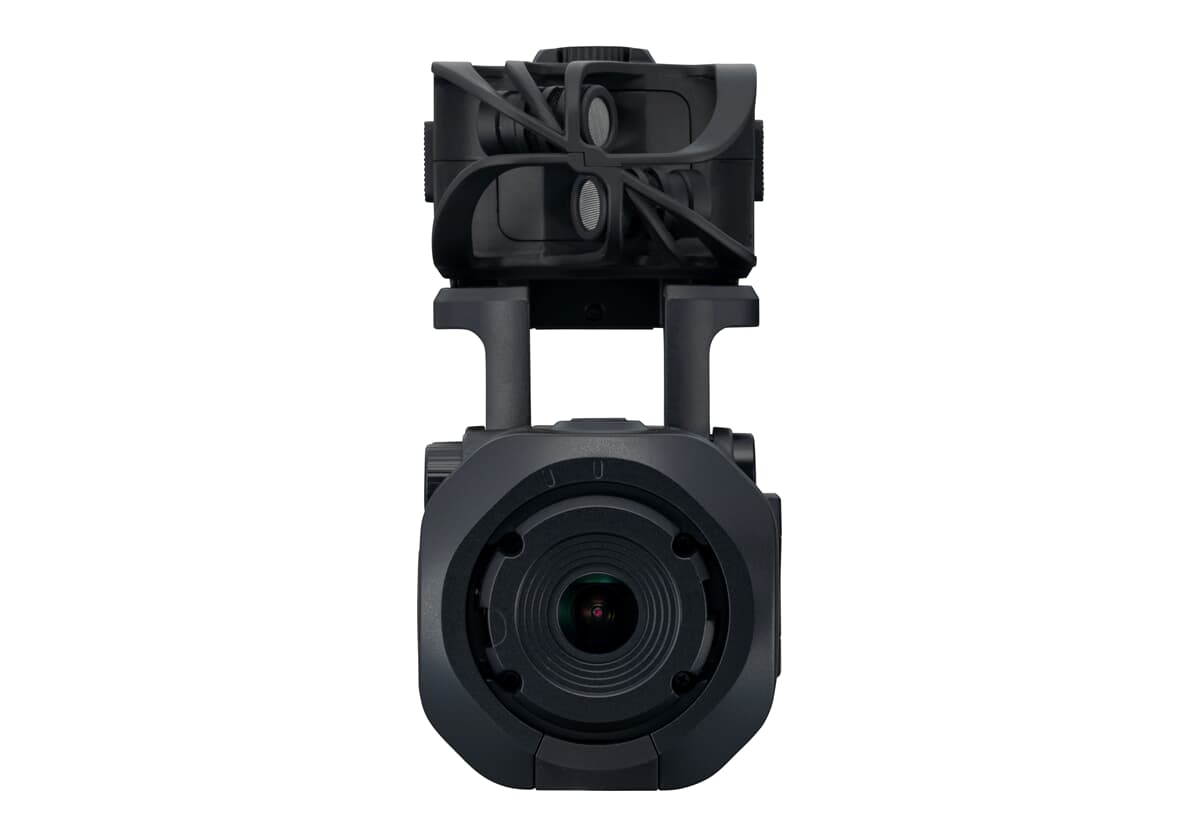

• F2.8 f/2.8 objektiv med 150 ^o vidvinkel som gir deg lysere og bredere bilder.
• Mange forhåndsinnstillinger for å dekke alle behov.

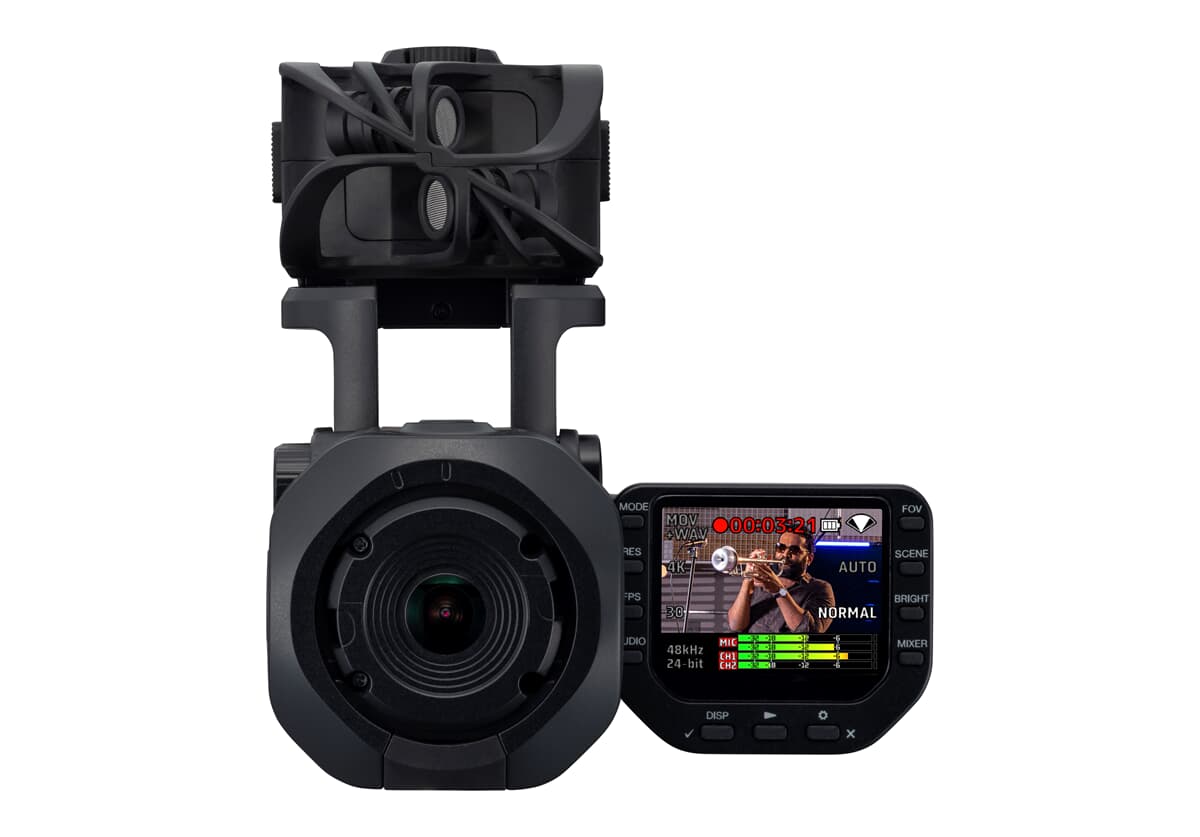

• LCD fargeskjerm med 180 ^o flip-alternativ for selfies.
• USB- interface for live streaming / dataoverføring - bruk det som webkamera.
• HDMI-utgang for å projisere på store skjermer (både NTSC og PAL)
• Data lagres på følgende medier: microSD-, microSDHC- og microSDXC-kort (opptil 512 GB)
• Oppladbart litium-ion-batteri med 1 time og 20 minutters driftstid. (i 4K/30fps-innstilling)
• Kan fjernstyres fra iOS/Android-appen "Q8n Control" med bluetooth adapter (BTA-1 - kjøpes separat)

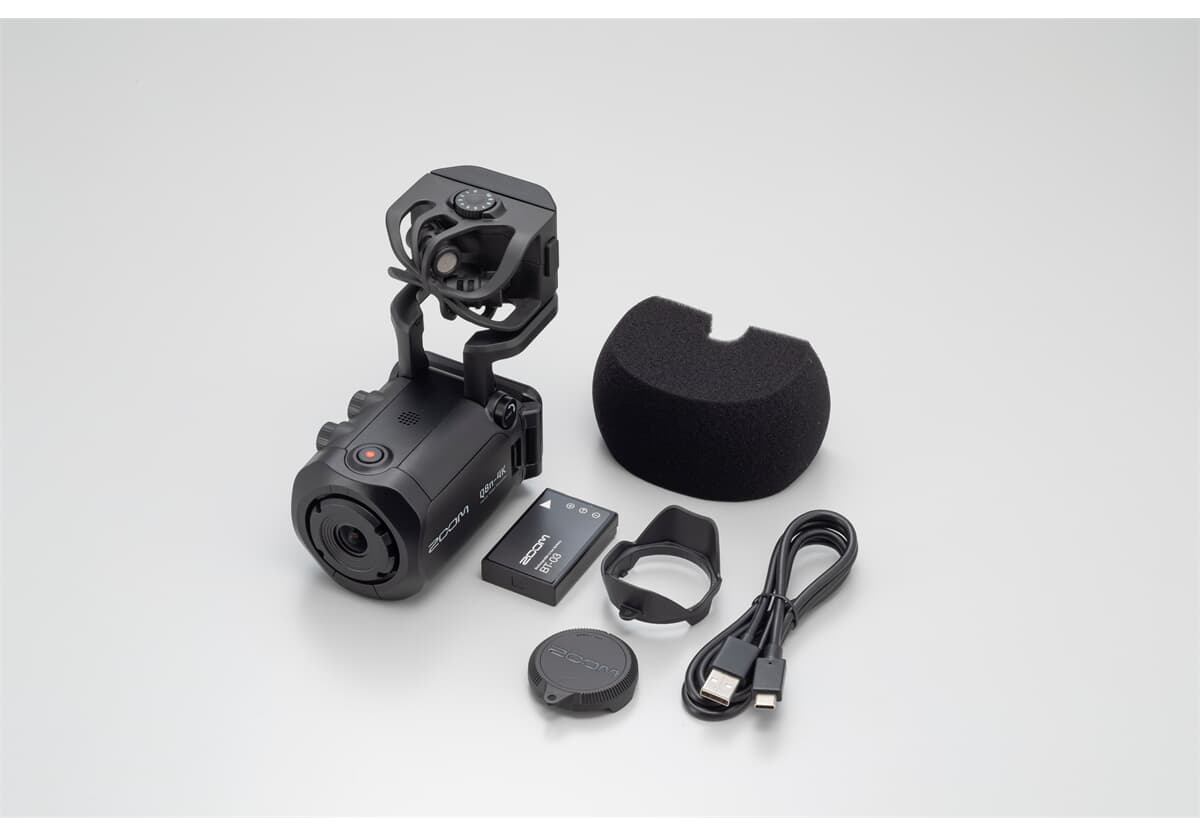

• Pakken inkluderer følgende:
• Vindhette, linsebeskytter, antirefleksskjerm, USB-kabel (type A til C)

• Image Sensor
  • 1 / 2.3 "16 M pixel CMOS sensor
• Lens
  • F 2.8, 150 ° FOV
• Video format
  • MPEG-4 AVC / H.264 (MOV)
• Video resolution
  • 4K
    • 30, 25, 24
  • 1080
    • 60, 50, 30, 25, 24
  • 720
    • 60, 50, 30, 25, 24
• Audio format
  • WAV only
  • 96 KHZ
    • 24-bit, 16-bit
  • 48 KHZ
    • 24-bit, 16-bit
  • 44.1 KHZ
    • 24-bit, 16-bit
• Audio functions
  • LO CUT
    • Off / 80 Hz / 120 Hz / 160 Hz / 200 Hz / 240 Hz
  • FX
    • Off / Limiter / Compressor / Leveler / DeEsser / NoiseGate
  • LEVEL
    • - ∞ dB ~ +10 dB
  • PAN
    • L100 ~ Center ~ R100
  • DELAY
    • 0 ms, 10 ms. - 300 ms (when using a WEB camera)
  • DIRECT MONITOR
    • On / Off (when using WEB camera and USB microphone function)
• Video function
  • Field of View
    • 5 stages
  • Scene
    • AUTO / INDOOR / OUTDOOR / NIGHT / CONCERT LIGHT
  • Self Timer
    • Off / 3 seconds / 5 seconds / 10 seconds
  • Bright
    • LOW / NORMAL / HIGH

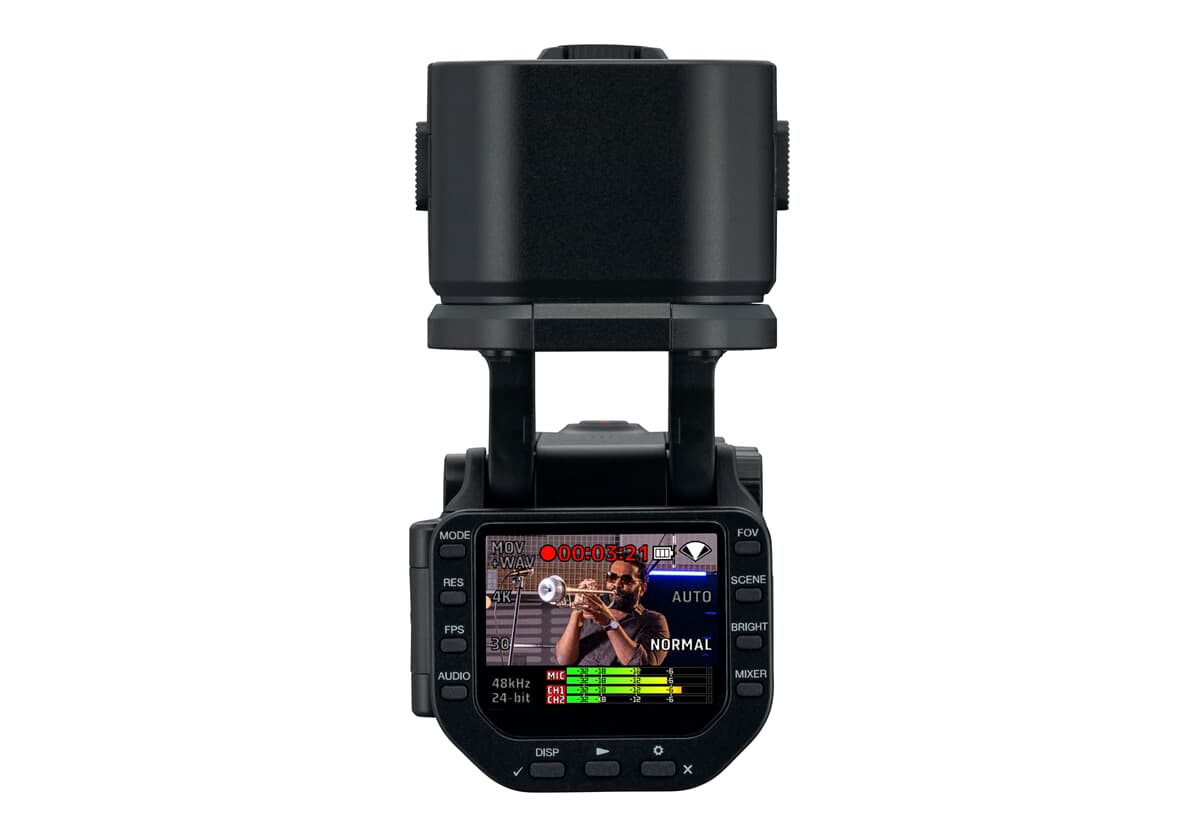

• Display
  • 2.0 "full color LCD 320x240
• Audio input
  • MIC
  • XY microphone: XYQ-8 (XY stereo system 120 °)
  • Maximum sound pressure: 120 dB SPL
  • Input gain: - ∞ dB ~ 43 dB

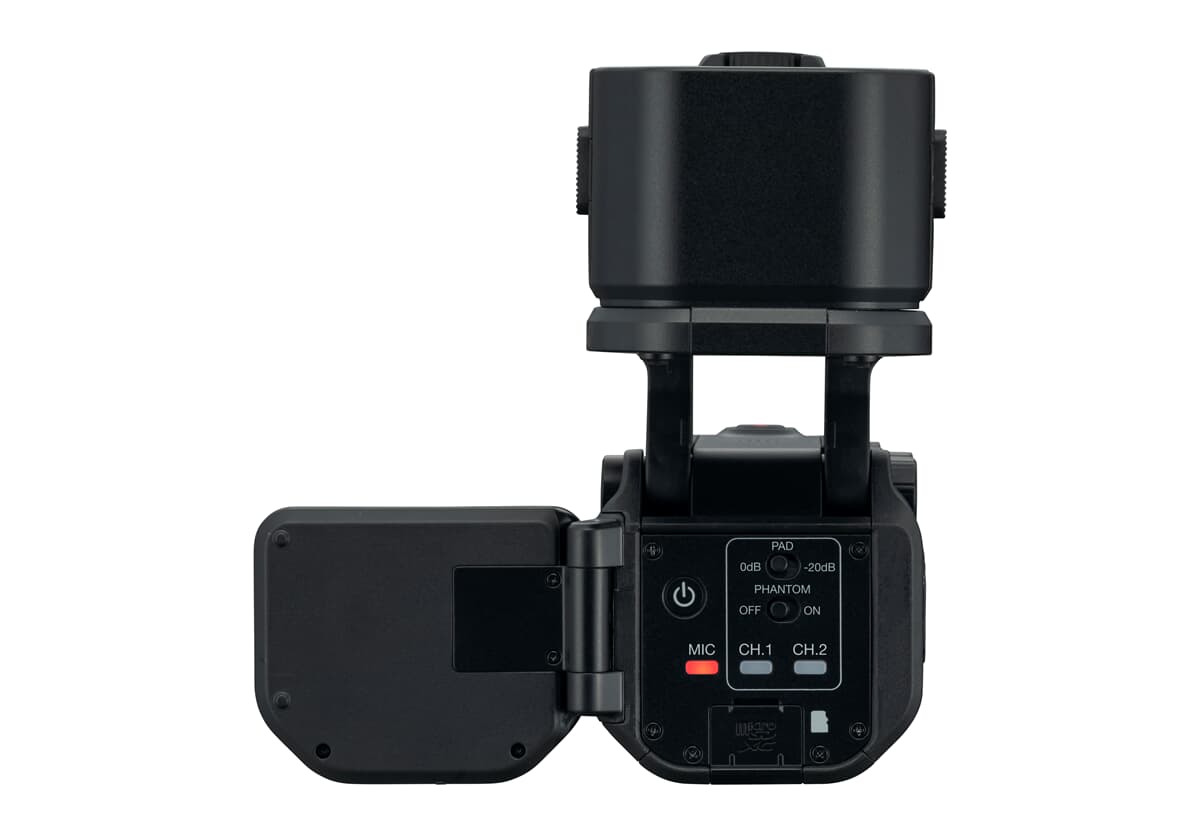

• Input 1/2
  • Input terminal: XLR
  • Input gain (PAD OFF): -∞ dB to 55 dB
  • Input impedance: 1.8 kΩ or more
  • Maximum permissible input level: +26 dBu (PAD ON)
  • Phantom power: +12 V / +24 V / +48 V
  • Input conversion noise: -120 dBu or less
• Outputs
  • Line / headphone stereo mini jack
  • HDMI micro Type D
• Built-in speaker
  • 300 mW 8 Ω Mono Speaker
• Recording media
  • micrSD / microSDHC / microSDXC (up to 512 GB)
• USB
  • USB-TYPE-C
  • Web Camera
    • Class: UVC 1.0 + UAC 1.0,
    • Specifications: Video WVGA, 720p, 1080p
    • Audio 48 kHz / 16-bit upwards stereo
• Card Reader
  • Class: USB Mass Storage Class
  • USB-Microphone
    • Class: UAC 1.0, Specifications: 44.1 kHz / 16-bit
    • Up: 2 ch, Down: 2 ch
    • Card reader and USB microphone are compatible with iOS devices
    • Supports USB bus power operation
    • Please use a USB cable that supports data transfer.
• Remote
  • Dedicated wireless adapter (ZOOM BTA-1)
• Power supply
  • Lithium-ion battery: maximum voltage DC 4.2 V, nominal voltage DC 3.7 V, capacity 1,600 mAh
  • AC adapter (ZOOM AD-17): DC 5 V / 1 A
  • Charging Time
    • Via USB 2.0 port: Approximately 4 hours and 30 minutes
    • Via USB3.0 port: Approximately 3 hours 00 minutes
    • Via ZOOM AD-17: Approximately 3 hours 00 minutes
  • Battery Life
    • 4K / 30: 1 hour 20 minutes
    • 1080/30: 2 hours 30 minutes
    • MOV mode, 48 kHz / 24-bit, XYQ-8 connection, no XLR input, power saving mode enabled
• External dimensions
  • Main unit (with mic, arm retracted)
    • 159 mm (L) x 68 mm (W) x 65 mm (H)

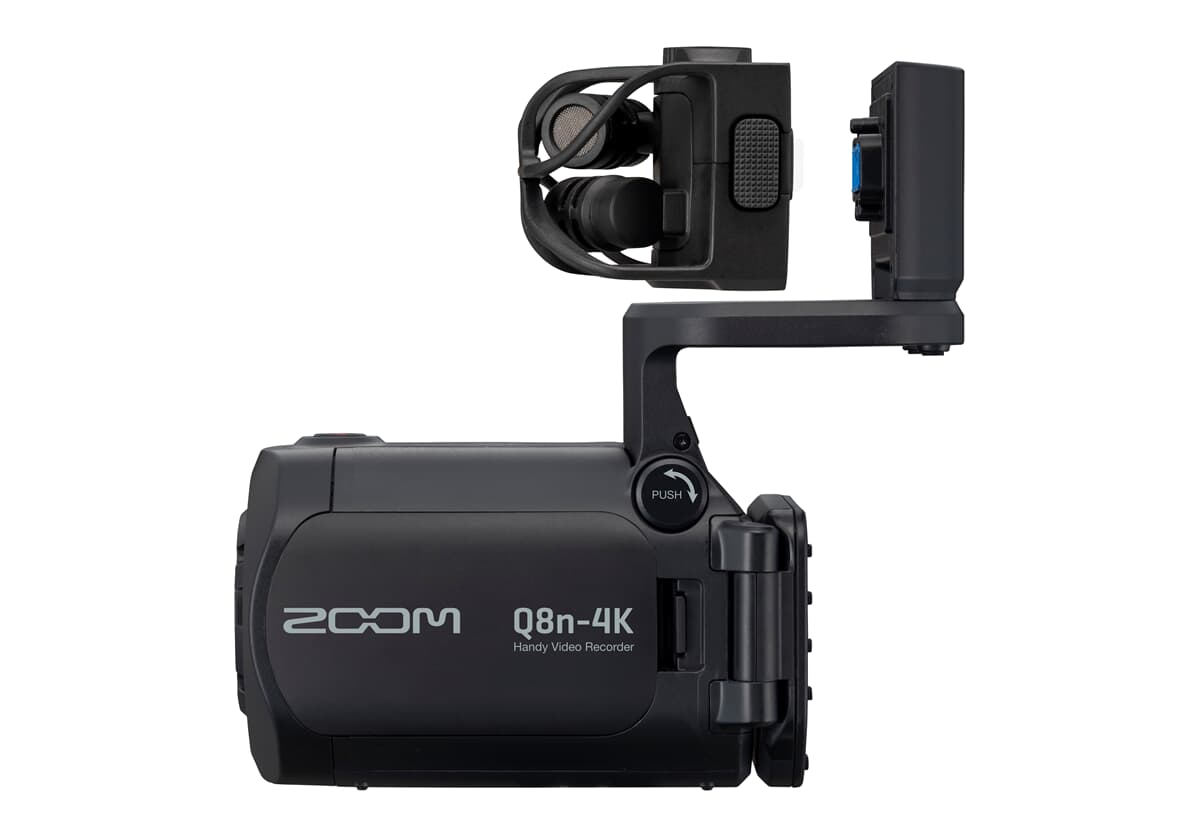

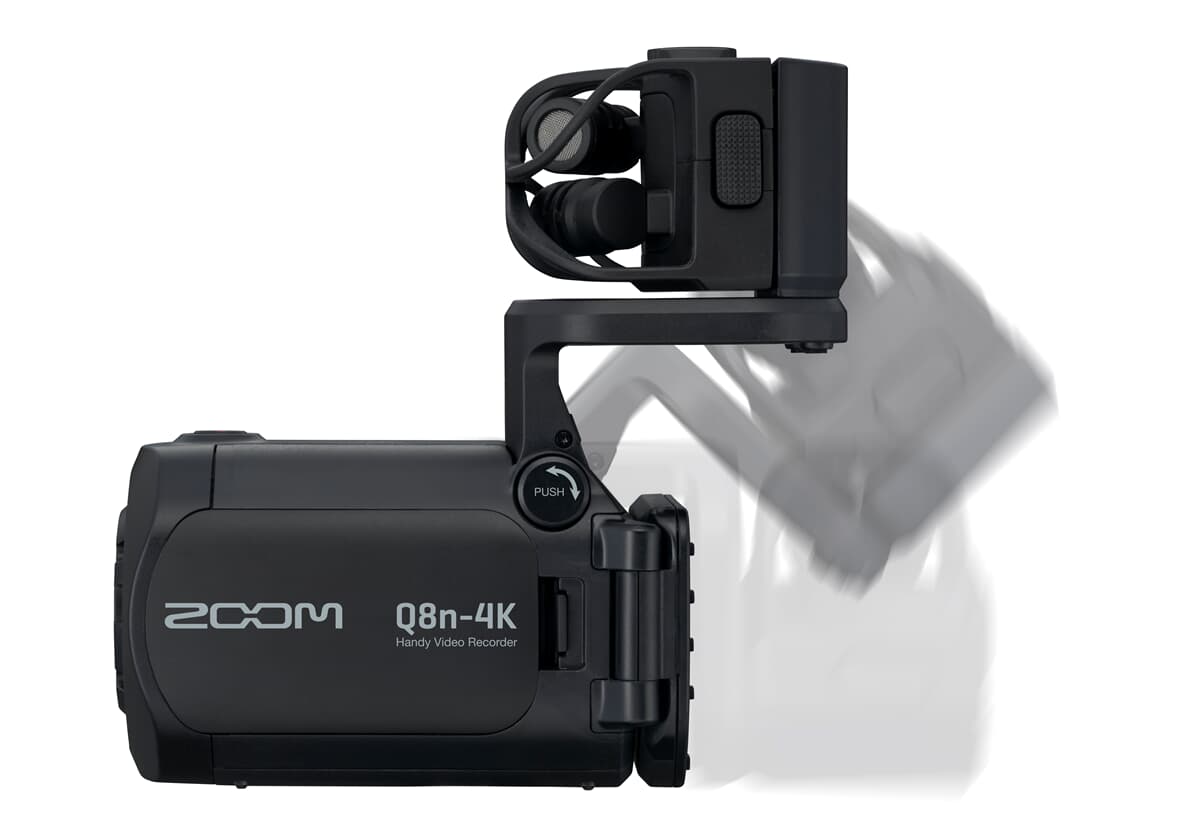

  • Main unit (with arm raised, with micrphone)
    • 134 mm (length) x 68 mm (width) x 135 mm (height)
  • Microphone
    • 45 x 66 x 51 mm (L x W x H)
• Weight
  • 367 g (including batteries)
• Box size
  • 215 x 160 x 90 mm
• Box weight
  • 731 g
