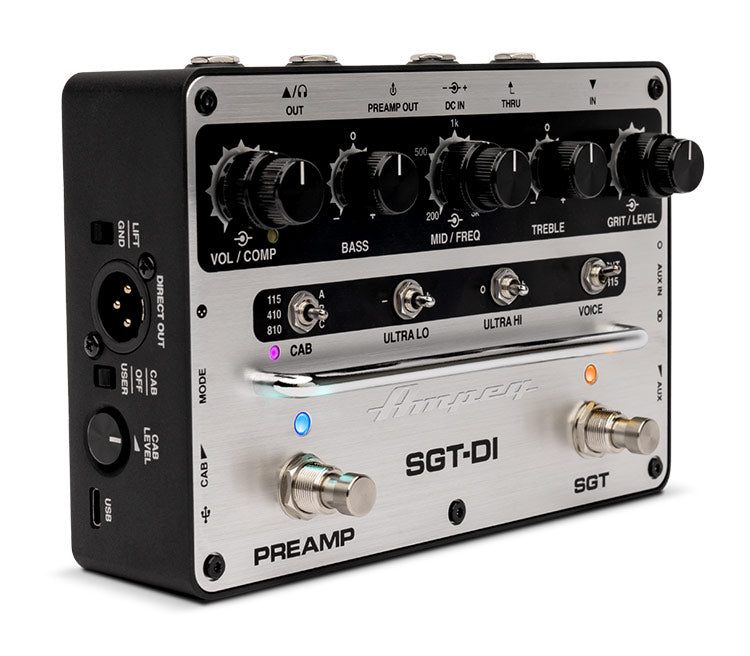

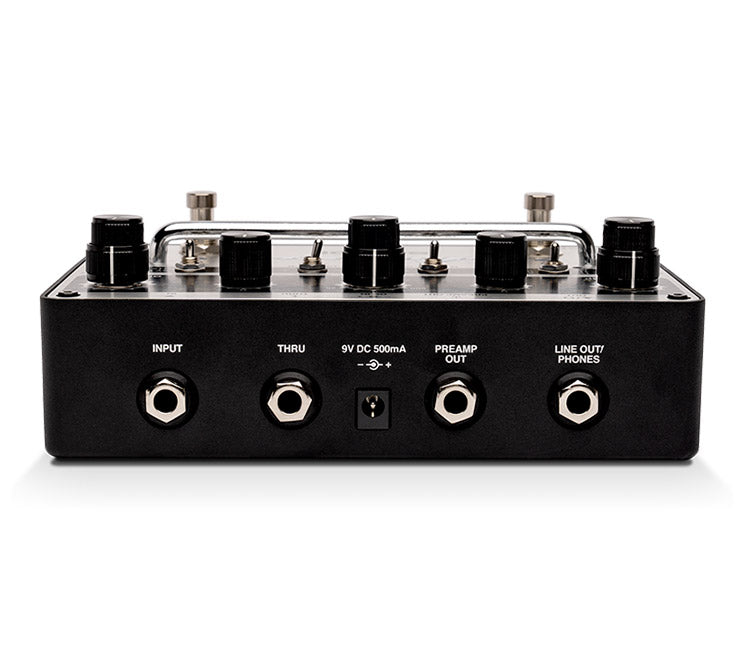

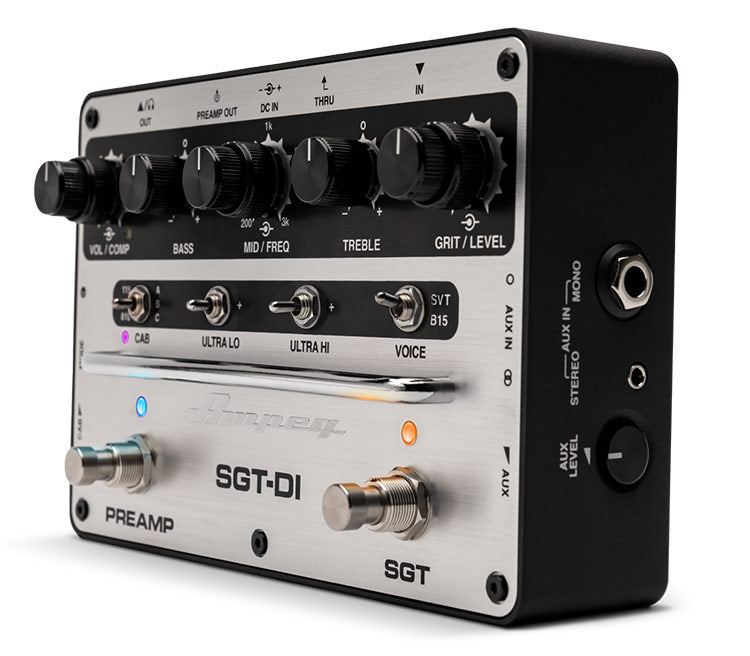

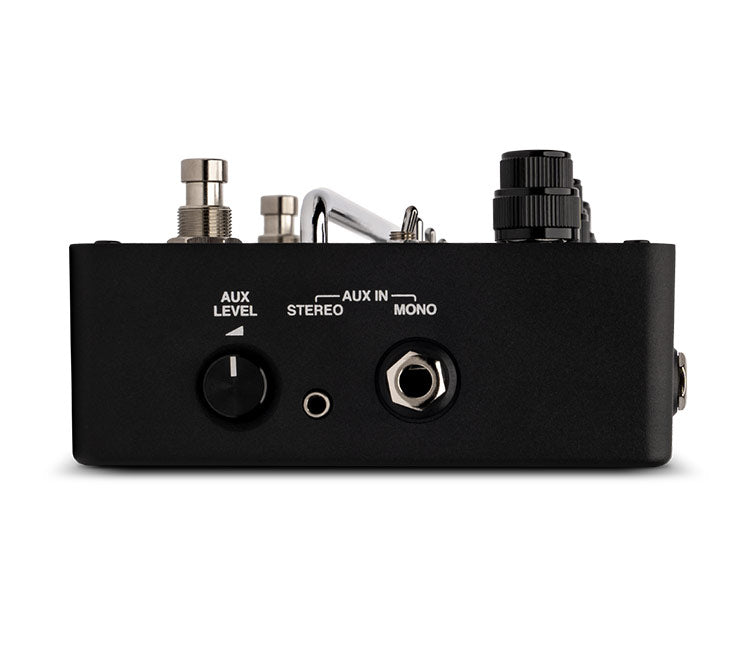

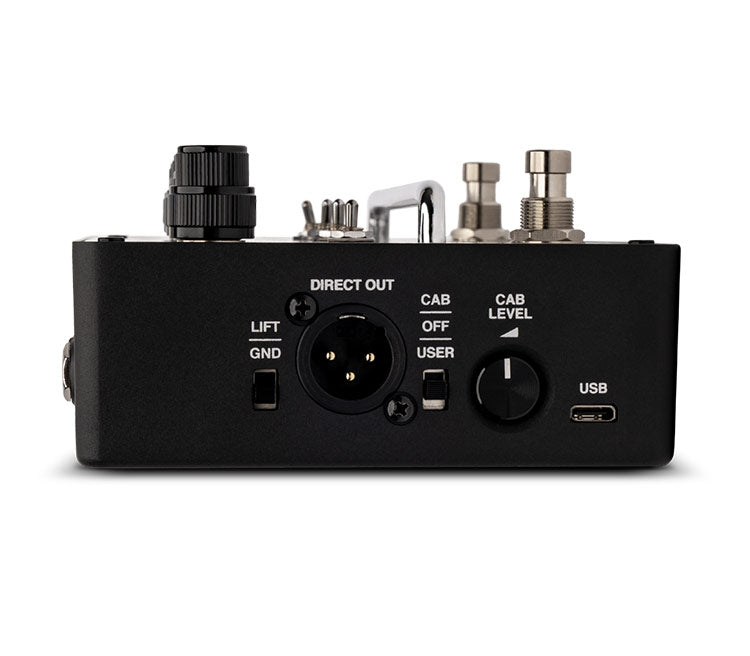

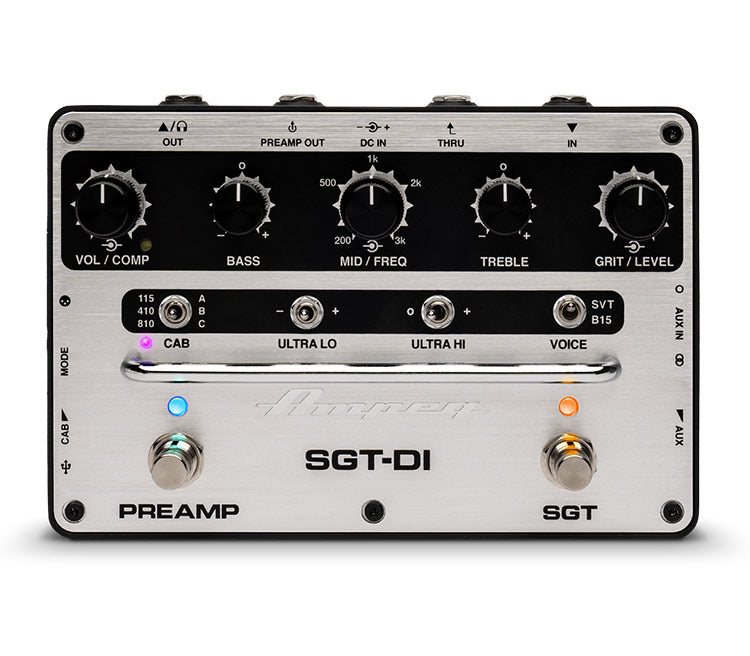

Ampeg SGT-DI Preamp/Drive/DI Bass Pedal

Signal-to-Noise Ratio:

Headphone Out: 106dB (20Hz-20 kHz A-Weighted, Preamp and SGT disabled)

Maximum Gain:

Preamp Out: 57dB (@ 1kHz, EQ flat, Pre-amp and SGT enabled, maximum Grit, maximum Volume).

Headphone Out: 57dB (@ 1kHz, EQ flat, Pre-amp and SGT enabled, maximum Grit, maximum Volume, Cab Mode disabled).

XLR Out: 37dB (@ 1kHz, EQ flat, Pre-amp and SGT enabled, maximum Grit, maximum Volume, Cab Mode disabled).

Power Requirements:

External: 9V DC @ 500mA (use the included adapter).

Tone Controls:

Bass: +15/-12dB at 40Hz Mid: +/-14dB at selected frequency Treble: +/-20dB at 8kHz Ultra Lo Boost: -10dB at 500Hz, +2dB at 40Hz Ultra Lo Cut: -17dB at 40Hz Ultra Hi: Ranges from +5dB to +11dB at 5kHz, depending on the position of the Volume knob. It peaks at 11dB at approximately 3 o’clock on the knob.

Size (H x W x D):

2.5 x 7.4 x 4.9 inches / 65 x 189 x 126 mm (with side panel knobs recessed, no rubber feet applied).

2.5 x 7.9 x 4.9 inches / 65 x 201 x 126 mm (with side panel knobs extended, no rubber feet applied).

Weight:

1.9 lbs / 0.85 kg
